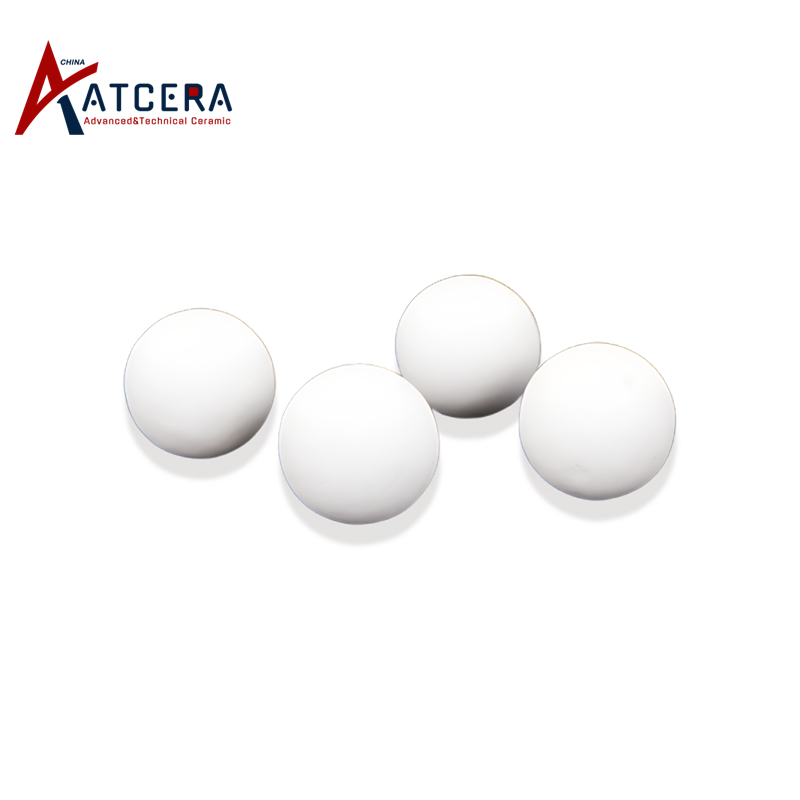

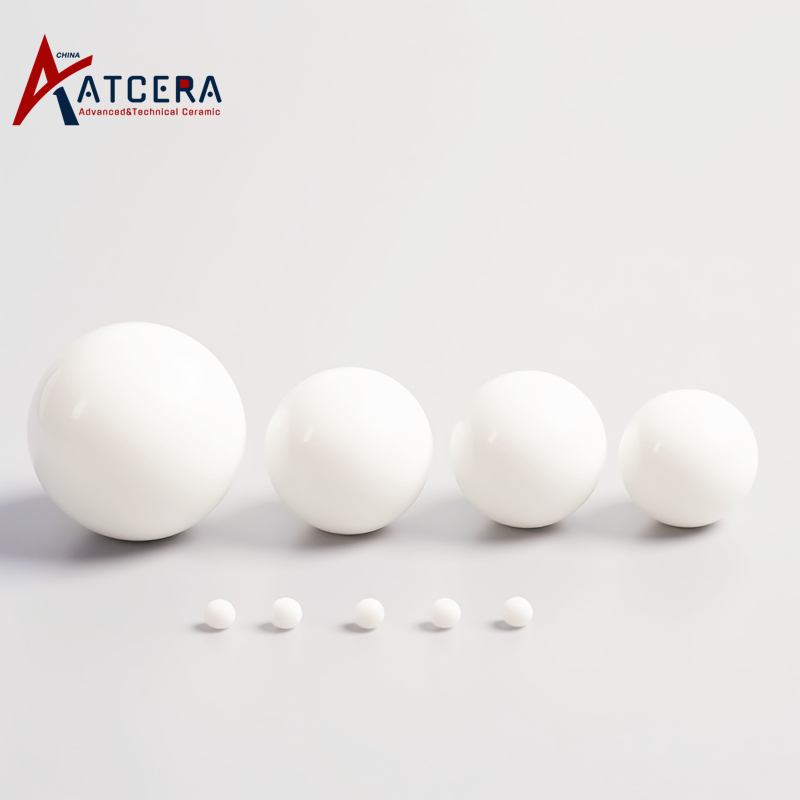

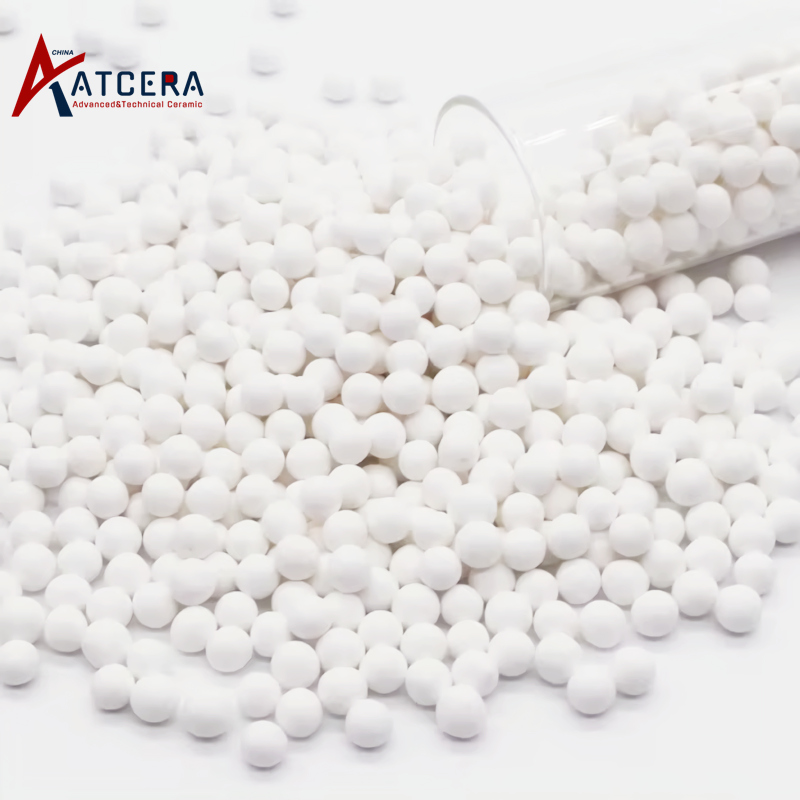

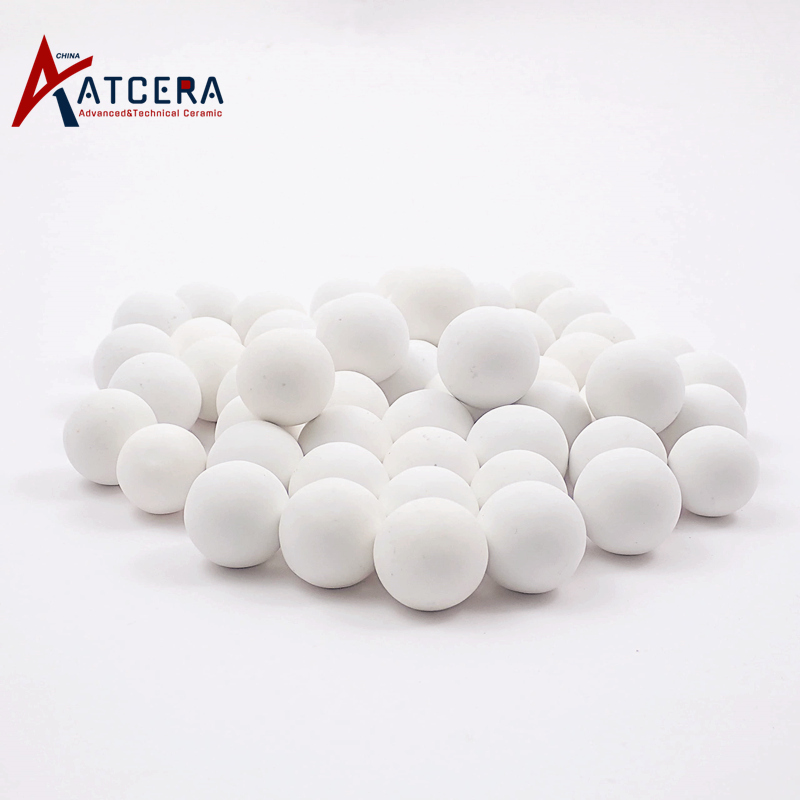

High purity alumina grinding ball and cylinder have high hardness, good wear resistance, high temperature resistance, also with characteristics of high mechanical strength and corrosion resistance, they are used in various grinding equipment, and applied in mineral processing, coal power, cement manufacturing, metallurgy and other industries.
| view all alumina balls |
1. With characteristics of high hardness, high strength and low wear, therefore they have no effect on the quality of grinding materials, and the problem of polluting raw materials by grinding media is solved.
2. Compared with normal alumina grinding medias, high purity alumina grinding ball and cylinder has large density, which can greatly improve the grinding efficiency, reduce the grinding time.
3. The wear resistance is good, so can greatly extend the service life of the grinding media.
4. The density is less than half of the steel ball, which can reduce the noise and power consumption of the grinding equipment, and reduce over-grinding under fine grinding conditions, saving grinding time and power consumption.
5. With high temperature resistance, corrosion resistance, they are suitable for all kinds of grinding materials.
| Material | 99% Alumina (AL2O3) |
| Thermal Conductivity | 24.0w/m.k |
| Electrical Insulation | ≤22.5KV, temperature resistance up to 1600℃ |
| Density | 3.83g/cm3 |
| Thermal Expansion Coefficient | 7*10-6/℃ |
| Bending Strength (at room temperature) | 310MPa |
| Compressive Strength (at room temperature) | 2200MPa |
| Hardness (Hv) | 1650 |
| Fracture Toughness | 4.2MPa*m1/2 |
*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.
High purity aluminum grinding balls and grinding columns can be used as grinding media for various grinding equipment, especially fine grinding equipment, including ball grinder, pot grinder, vibration grinder, etc.

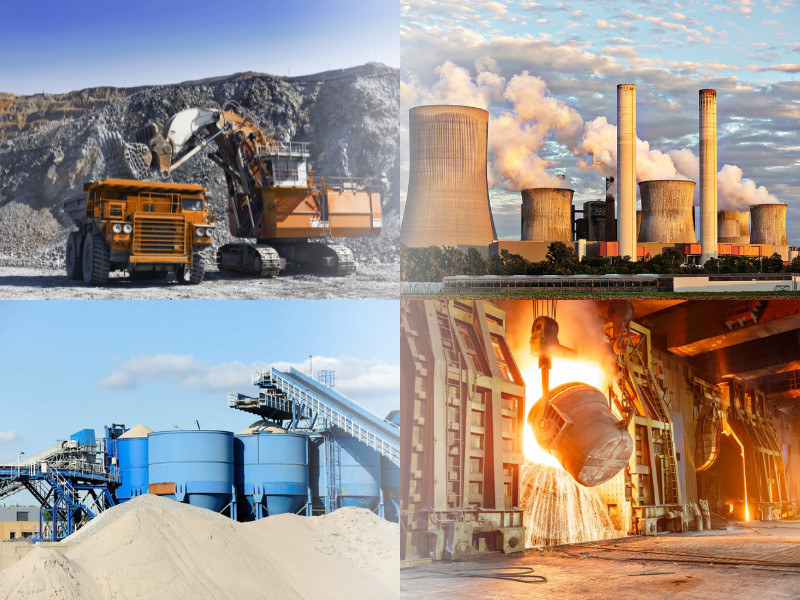

1. Mineral processing industry
High purity alumina grinding ball and grinding cylinder have high hardness, good wear resistance, in the mineral processing industry for the production of small and uniform particles of mineral powder, the service life is long, and can effectively reduce the overall cost of grinding;
2. Coal power industry
High purity alumina grinding ball and grinding cylinder have high hardness, good wear resistance, they can be used to grind pulverized coal for power generation, which can effectively reduce the noise and operation costs of grinding equipment;
3. Cement industry
Alumina ceramic has high hardness, good corrosion resistance, as a grinding medium in the cement industry, the extracted raw material powder particles are uniform, improve production efficiency;
4. Metallurgical industry
Alumina ceramic has high hardness, high temperature resistance, and can adapt to harsh working environment in the metallurgical industry, and are used as grinding media to grind various raw materials.

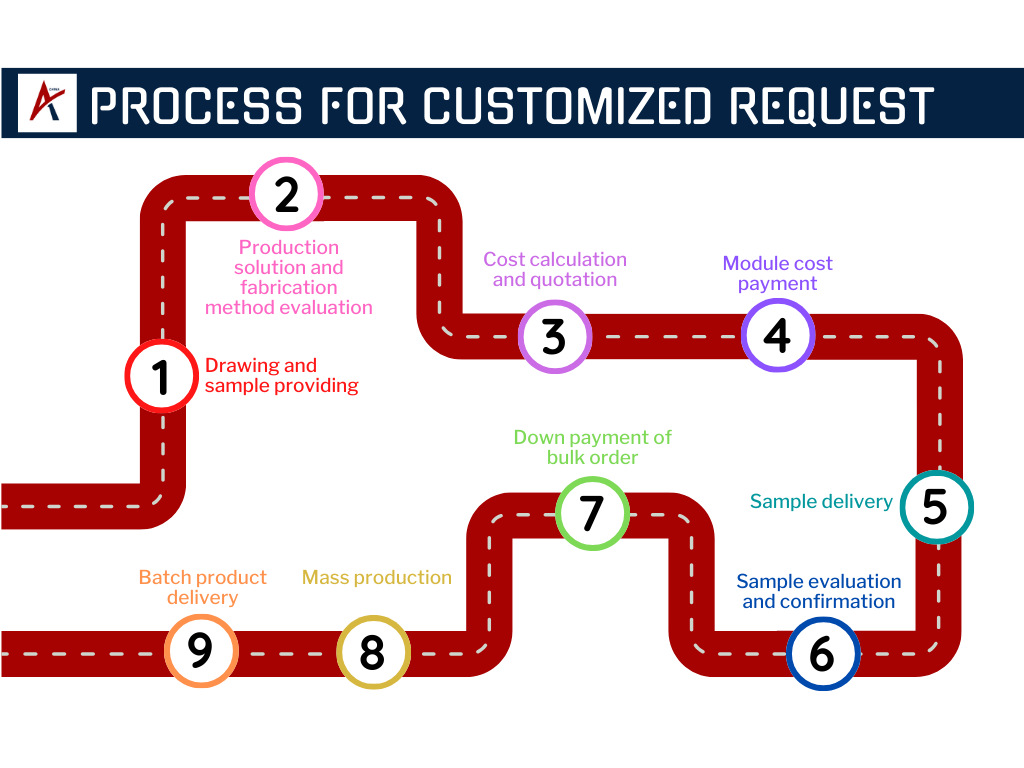

Process for Customized Request
⩟ Drawing and sample providing
⩟ Production solution and fabrication method evaluation
⩟ Cost calculation and quotation
⩟ Module cost payment
⩟ Sample delivery
⩟ Sample evaluation and confirmation
⩟ Down payment of bulk order
⩟ Mass production
⩟ Batch product delivery
Extensive Supplier Expertise
Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.
Sophisticated Production Infrastructure
Advanced processing equipment, and strict quality control system.
Assured Batch Supply
Stable production capacity and supply chain, batch delivery cab be well guaranteed.
Cost-Effective Excellence
High cost performance, and perfect after-sales service.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
