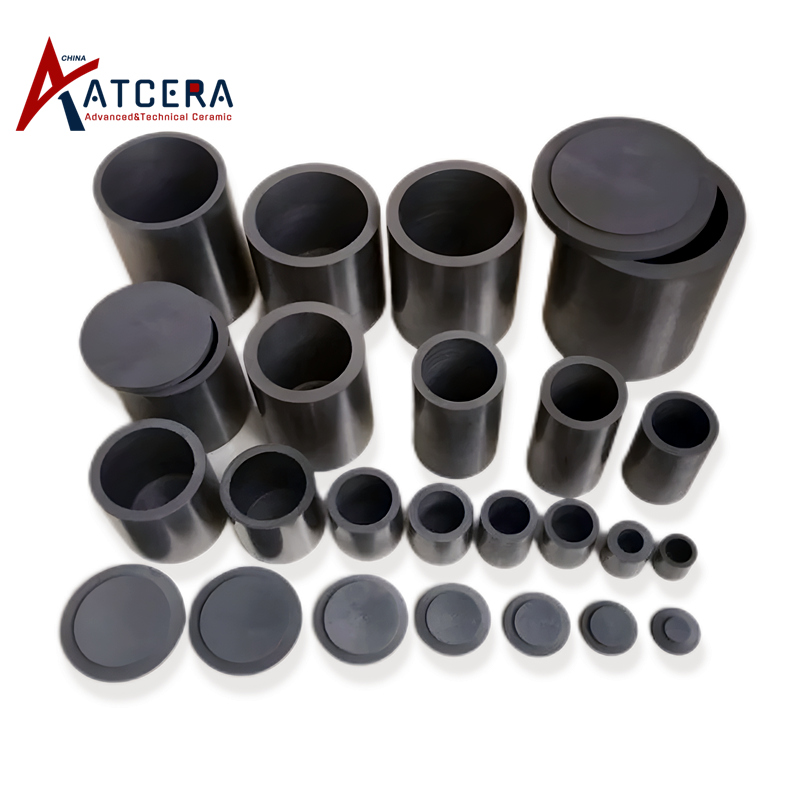

Silicon Nitride Crucibles

Silicon nitride ceramic crucible is made of high purity silicon nitride powder as raw material, mixed with sintering additives, pressed into the shape of a crucible, and then sintered in pressurized nitrogen environment to form a dense structure of silicon nitride ceramic crucible. Silicon nitride crucible is resistant to high temperature, acid and alkali corrosion, also with good thermal shock resistance, it is widely used in high temperature chemical analysis experiments and industrial material testing, used to heat and melt various materials.



view all silicon nitirde crucibles

Properties of Si3N4 Crucibles

⩟ High Temperature Resistance

Silicon nitride crucible can withstand high temperature, suitable for melting a variety of high temperature metal and ceramic materials.



⩟ Corrosion Resistance

Silicon nitride crucible has good corrosion resistance and can resist the erosion of most acid and alkali solutions.



⩟ Wear Resistance

Silicon nitride crucible has high hardness and good wear resistance, can be used for a long time without wear failure, and can be reused many times.



⩟ Good Thermal Shock Resistance

Silicon nitride crucible thermal expansion coefficient is low, with high thermal conductivity and good thermal shock resistance, can keep stable performance in the case of rapid temperature changes.









Technical Data of Silicon Nitride Materials

Si3N4 Type Gas pressure sintering Si3N4 Hot pressing sintering Si3N4
Density (g/cm3) 3.2 3.3
Flexture strength (MPa) 700 900
Young Modulus (GPa) 300 300
Poisson's ratio 0.25 0.28
Compressive strength (MPa) 2500 3000
Hardness (GPa) 15 16
Fracture toughness (MPa*m1/2) 5~7 6~8
Maximum working temperature (℃) 1100 1300
Thermal conductivity (W/m*K) 20 25
Thermal expansion coefficient (/℃) 3*10-6 3.1*10-6
Thermal shock resistance (ΔT ℃) 550 800



*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Application Fields of Si3N4 Crucibles

Silicon nitride ceramic crucible is widely used in melting and sintering test of various metal and non-metal materials.



1. Laboratory analysis

Silicon nitride crucible can be used to heat and melt various materials, including metal and non-metal material. By observing the changes and behavior of materials at high temperature, their physical and chemical properties can be studied and identified.



2. Industrial analysis

In industrial production, silicon nitride crucible can be used to analyze and test raw materials, intermediates and final products. By using silicon nitride crucible for high temperature analysis, the properties and characteristics of the product can be better understood, so as to optimize the production process and improve product quality.



3. Material preparation

Through the use of silicon nitride crucible, can prepare a variety of high-performance materials, such as metal alloys, ceramics, glass and so on. By controlling the composition and process conditions of materials, materials with excellent properties can be obtained.



4. Scientific research

In the field of scientific research, silicon nitride crucible can be used as a high temperature vessel to study the physical and chemical properties of various materials, such as the phase change behavior of different materials at different temperatures, chemical reaction kinetics, etc.

Customized Services

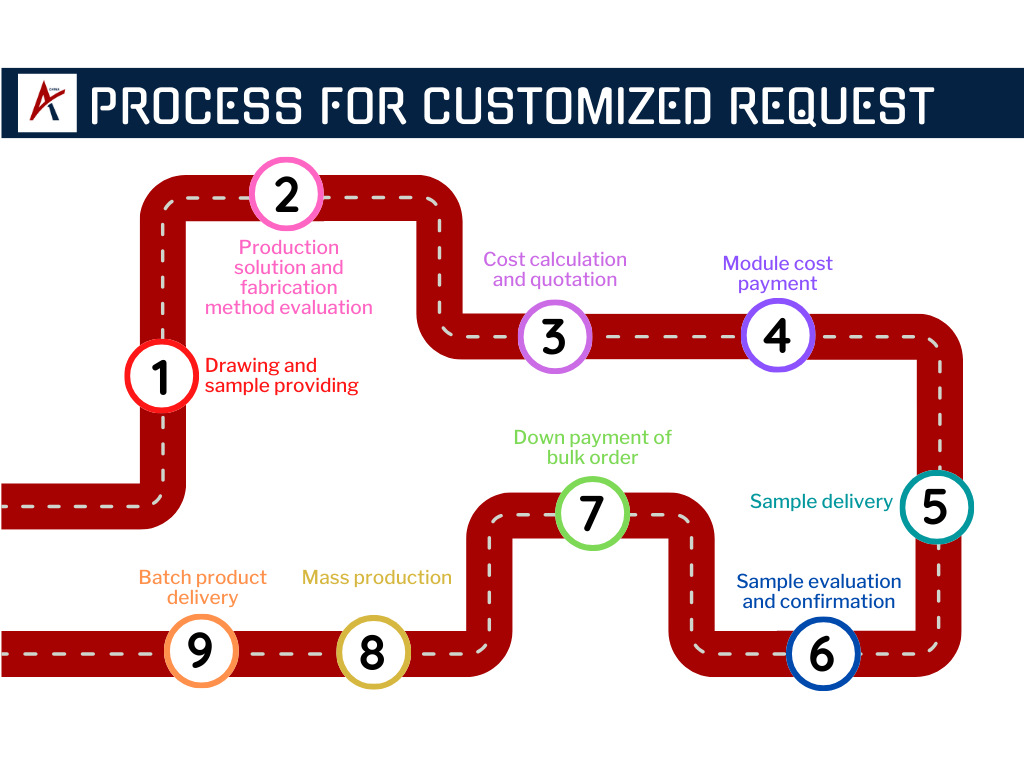

Process for Customized Request



⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Why Choose Silicon Nitride Crucibles From ATcera

 Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.



 Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.



 Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.



 Cost-Effective Excellence

High cost performance, and perfect after-sales service.

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
