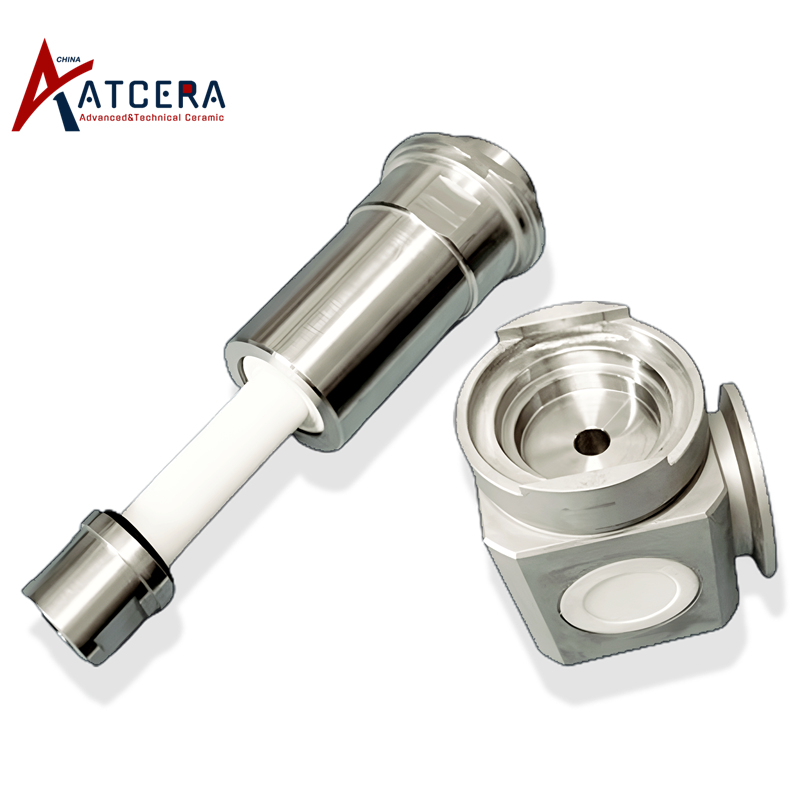

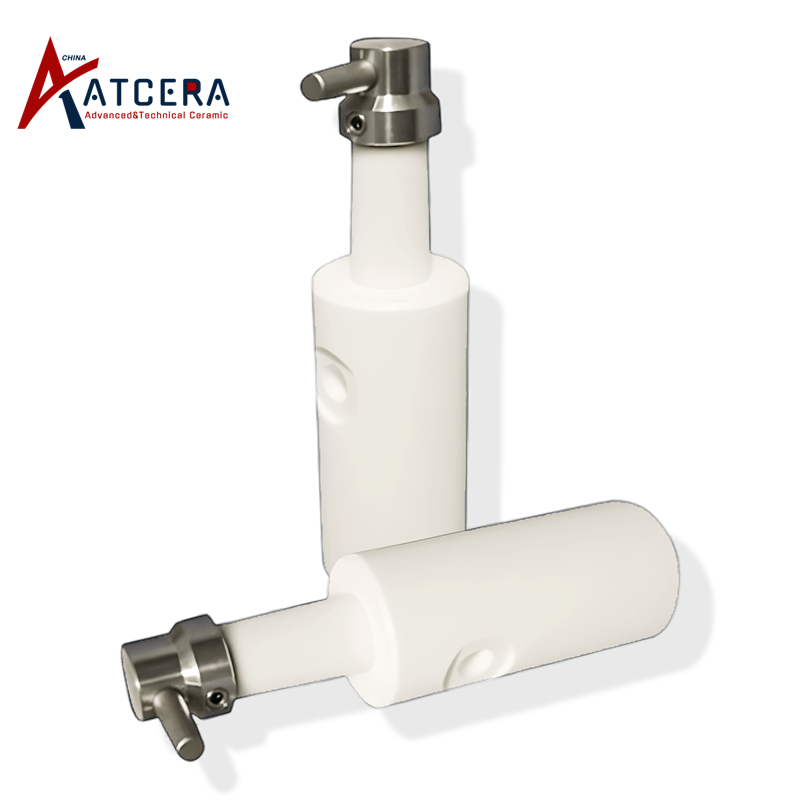

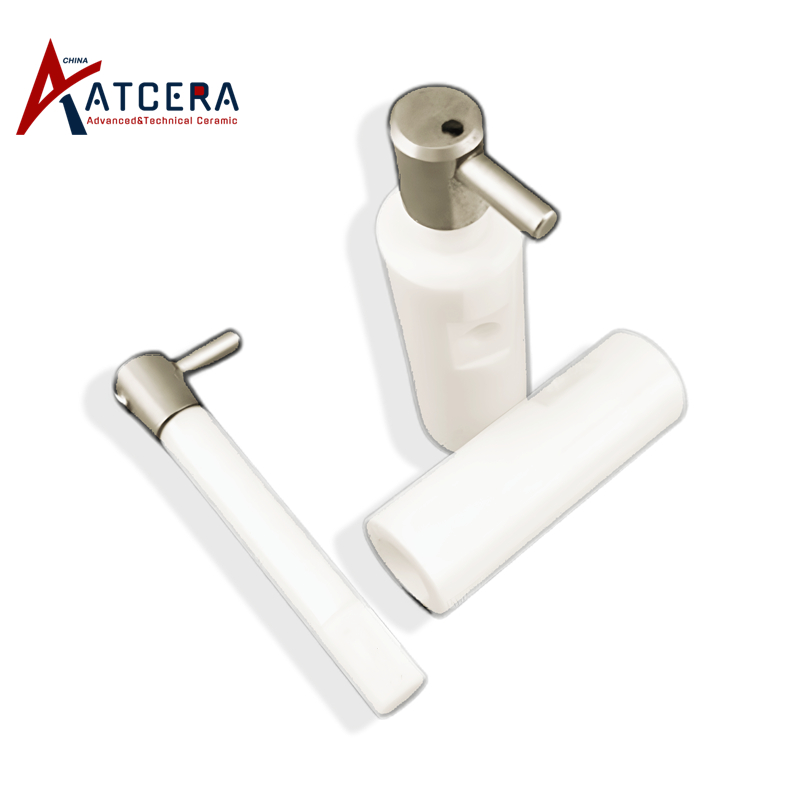

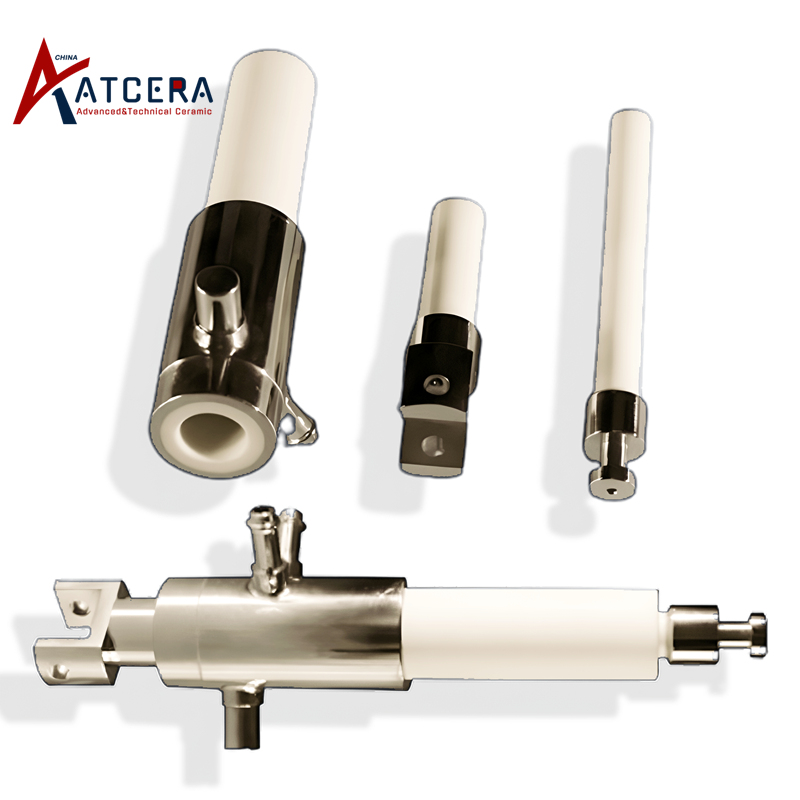

Zirconia ceramic pump is a type of high-precision liquid filling pump, usually constituted by the pump body, rotating body (there is a liquid inlet and outlet hole), plunger, sealing ring and other parts. Plunger in the ceramic pump body to do reciprocating linear movement, for liquid inhalation and discharge, rotary body can rotate to achieve the liquid inlet and outlet switch.
| view all zirconia pumps |
⩟ Strong Corrosion Resistance
Zirconia ceramic material has good corrosion resistance, the pump can be used to transport a variety of corrosive liquids, no pollution to the liquid.
⩟ High Precision
The processing precision of zirconia ceramic material is high, which can meet the high precision metering requirements.
⩟ Long Life Time
Zirconia material hs high hardness and good wear resistance, so service life of zirconia metering pump is long.
⩟ Easy Maintenance
The inner surface of zirconia ceramic metering pump is polished, metering liquid will not remain on the pump, which can reduce maintenance costs.
⩟ High Safety
Zirconia material itself is non-toxic and harmless, good biological compatibility, no stimulation and side effects to human body.
| Material | Zirconia (ZrO2)+ Stabilizing agent |
| Thermal Conductivity | 3.0w/m.k |
| Temperature resistance | 1000℃ |
| Density | 5.65-6.05g/cm3 |
| Thermal Expansion Coefficient | 0.00001/℃ |
| Bending Strength | 480-1000MPa |
| Hardness (Hv) | 1200-1450HV1 |
| Fracture Toughness | 6-8MPa*m1/2 |
| Hazardous Substances | In compliance with EU ROHS standards |
*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

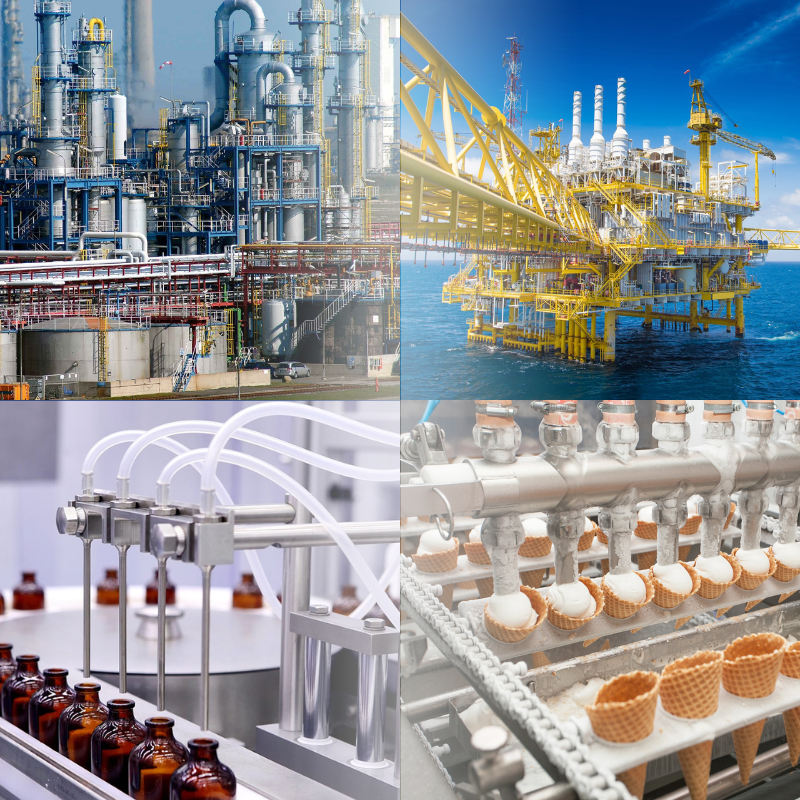

Food Industry
Used for beverage, dairy products, spices and other liquids quantitative filling, filling accuracy is high, meanwhile without any influence to the quality and taste. Zirconia ceramic metering pumps can be used to control the amount of food additives added to maintain the quality and taste of food.
Pharmaceutical Industry
Zirconia material biocompatibility is good, zirconia filling pump can be used for the filling and measurement of various liquid pharmaceutical and biological agents, to meet the high requirements for drug safety and stability in biomedicine field.
Cosmetics industry
Used in perfume, lotion and other liquid cosmetics filling, to achieve high precision and high efficiency;
Chemical Industry
Zirconium oxide material is chemically inert and has good corrosion resistance, and can be used for precision filling of various chemical liquids, such as chemical agents, battery electrolytes, etc.. Aluminum oxide material is chemically inert and has good corrosion resistance, and can be used for precision filling of various chemical liquids, such as chemical agents, battery electrolytes, etc.

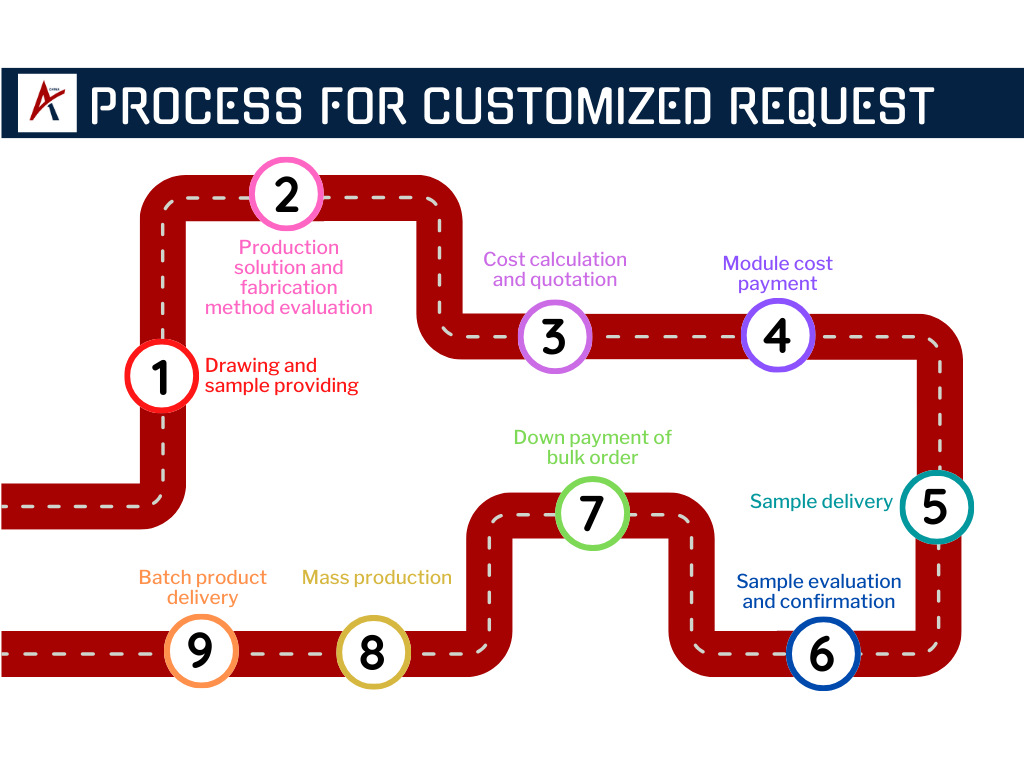

Process for Customized Request
⩟ Drawing and sample providing
⩟ Production solution and fabrication method evaluation
⩟ Cost calculation and quotation
⩟ Module cost payment
⩟ Sample delivery
⩟ Sample evaluation and confirmation
⩟ Down payment of bulk order
⩟ Mass production
⩟ Batch product delivery
Extensive Supplier Expertise
Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.
Sophisticated Production Infrastructure
Advanced processing equipment, and strict quality control system.
Assured Batch Supply
Stable production capacity and supply chain, batch delivery cab be well guaranteed.
Cost-Effective Excellence
High cost performance, and perfect after-sales service.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
