Magnesia Stablized Zirconia (MSZ) Ceramic

Magnesia stablized zirconia (MSZ) ceramic is made of high purity zirconia powder as the main raw material, adding a certain amount of magnesia as stabilizer, mixed evenly after forming, sintered at high temperature, to obtain a crystal phase stable ceramic structure.

Zirconia ceramics have high temperature resistance, good thermal shock resistance, high hardness, good wear resistance and corrosion resistance, and very good toughness, so it is also known as "ceramic steel".

It is widely applied in various fields, including mechanical engineering, petrochemical, electronic appliances, medical and biological industries, comprehensive performance is excellent.



view all msz ceramic products

MSZ Ceramic By Types

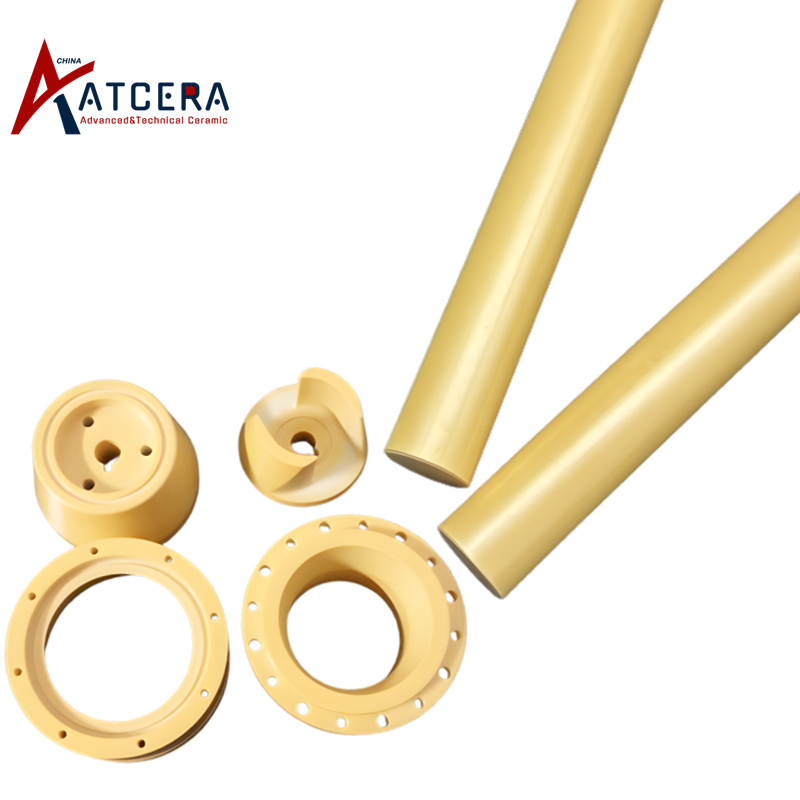

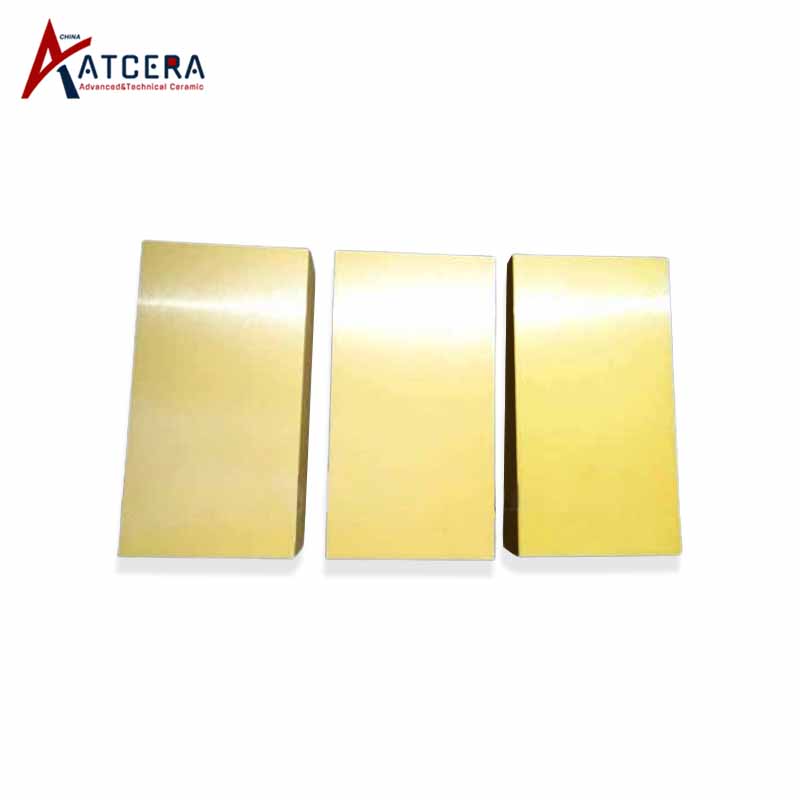

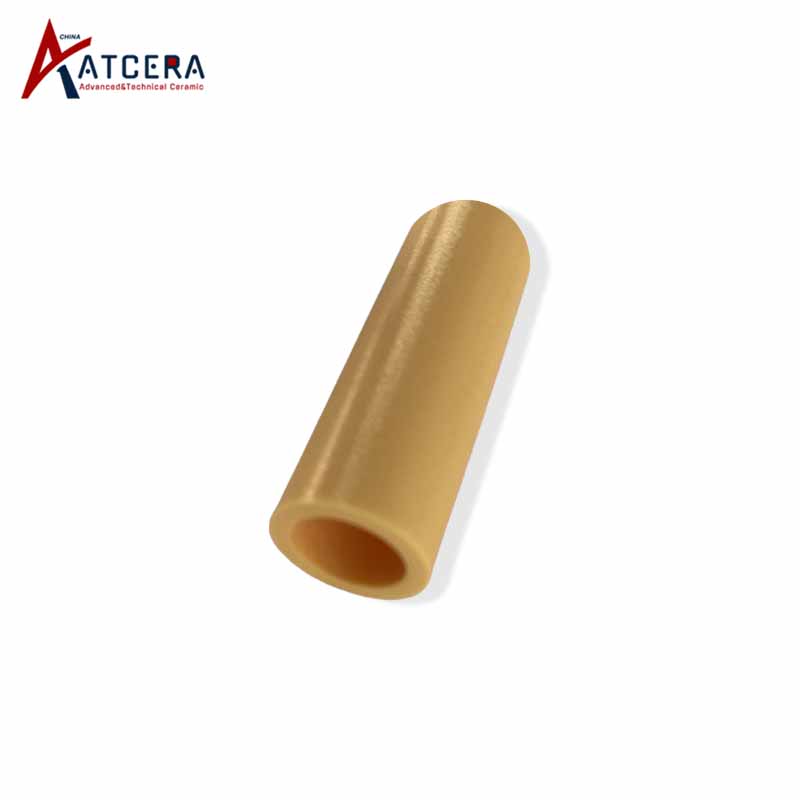

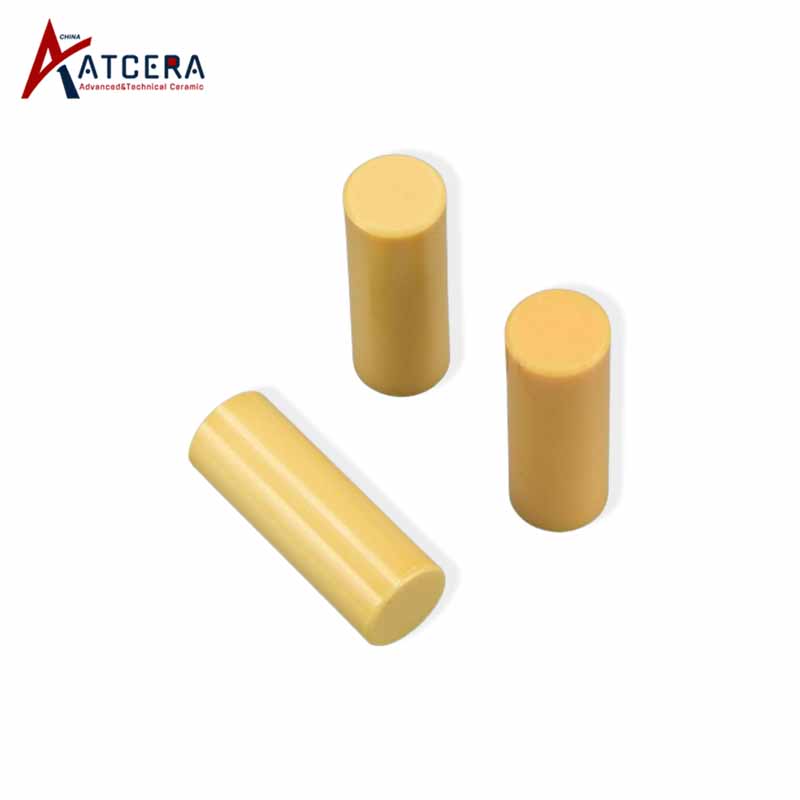

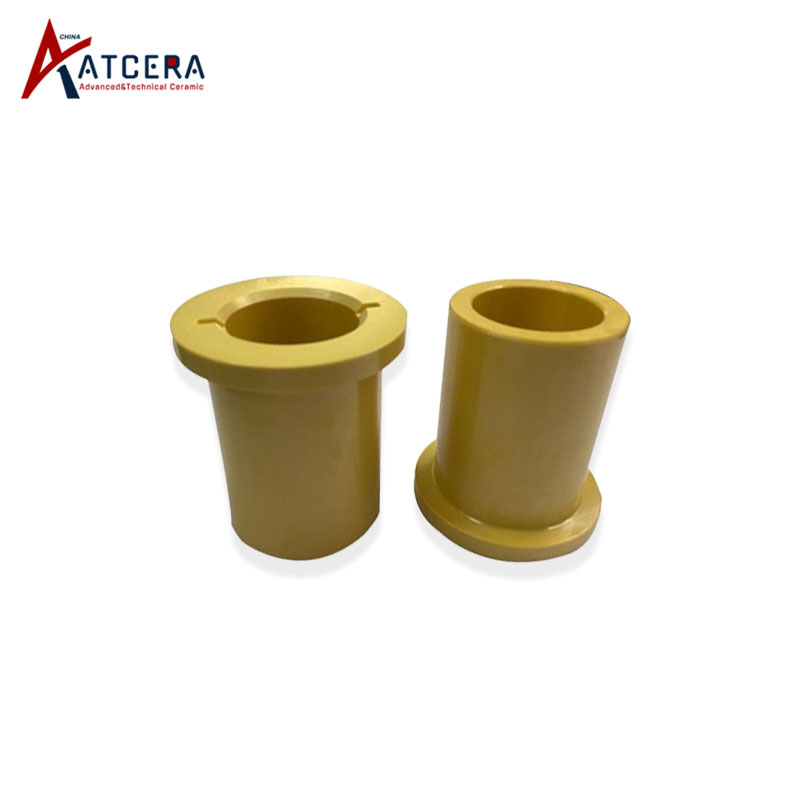

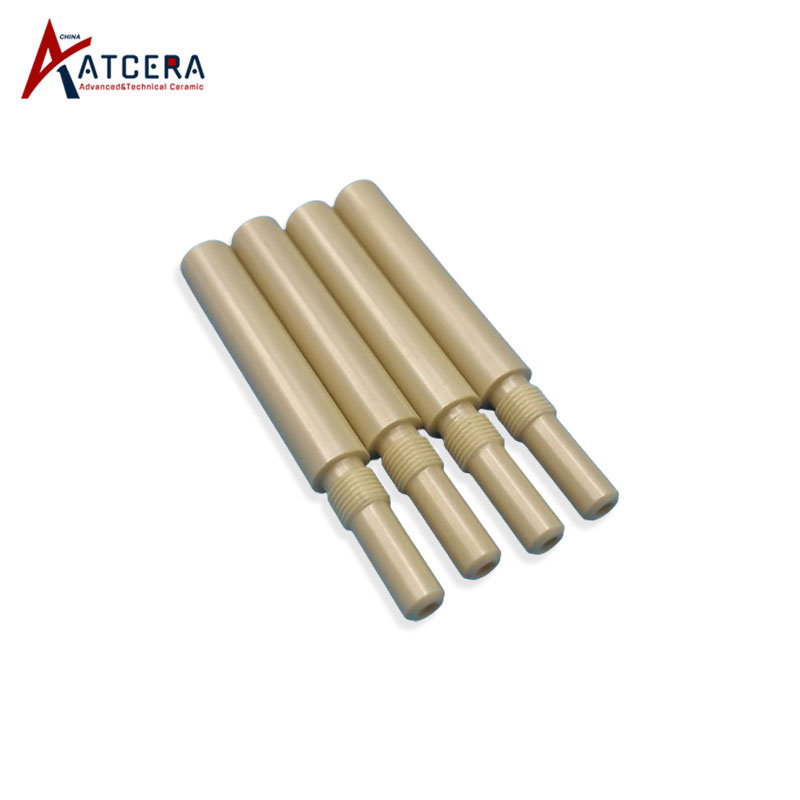

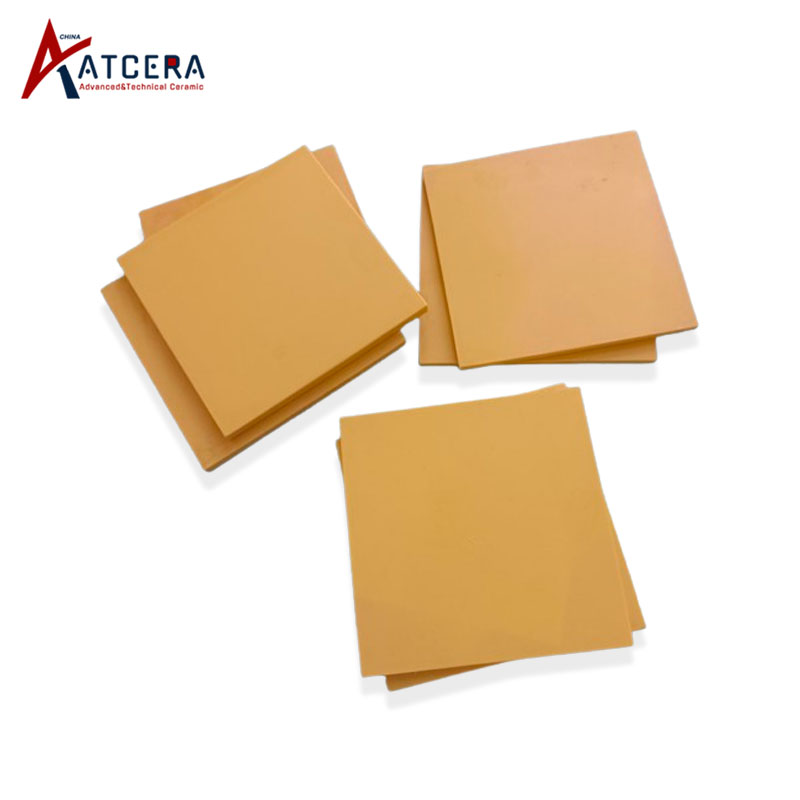

As our important product, ATCERA can produce various zirconia ceramic tubes, balls, rods, measurement instrument, plates, and mechnical parts.

To ensure product performance, we select high purity and granularity homogenuous powder, and stabilizer powder, apply the most appropriate forming method and sintering temperature, to form dense and uniform ceramic structure,  then advanced machining processes are used to get dimension with high accuracy and good surface finish.

If you have any product request, or need technical support, please do not hesitate to contact us.

Technical Data of Mg-PSZ Materials

Material Magnesia stablized zirconia (MSZ)
Density (g/cm3) 5.7
Flexture strength (MPa) 540
Young Modulus (GPa) 250
Poisson's ratio 0.31
Compressive strength (MPa) 2500
Hardness (HV) 1100
Fracture toughness (MPa*m1/2) 7.5
Maximum working temperature (℃) 1200
Thermal conductivity (W/m*K) 18
Thermal expansion coefficient (/℃) 8*10-6
Thermal shock resistance (ΔT ℃) 250





*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.







Properties of MSZ Ceramics

MSZ ceramic is widely used advanced industrial ceramics, in order to meet the needs of different fields, various type stabilizer is added into raw material, , so the performance has been comprehensively promoted and improved.



1. Corrosion Resistance

The  magnesia stablized zirconia material has good corrosion resistance, it can be in contact with various acids, alkalis, salt water and other chemical agents, without the risk of failure caused by corrosion, and does not pollute the contacted liquid.



2. High Temperature Resistance

The normal use temperature of the  magnesia stablized zirconia ceramic can reach higher than 1000℃, available for the requirements of high temperature environment.



3. Good Wear Resistance

Magnesia stablized zirconia material has high hardness and good wear resistance, so the service life is long.



4. Good Toughness and High Strength

Toughness of  magnesia stablized zirconia ceramic is very high, even higher than some common used metals, also the strength is high.



5. Excellent biocompatibility Resistance

Magnesia stablized zirconia has excellent biocompatibility, it is harmless and non-toxic, and can be used in devices that may have direct or indirect contact with the human body.



5. High surface finish

Surface finish is very high after polishing, friction is very small.



Main Applications of MSZ Ceramics

1. Mechanical Engineering Industry

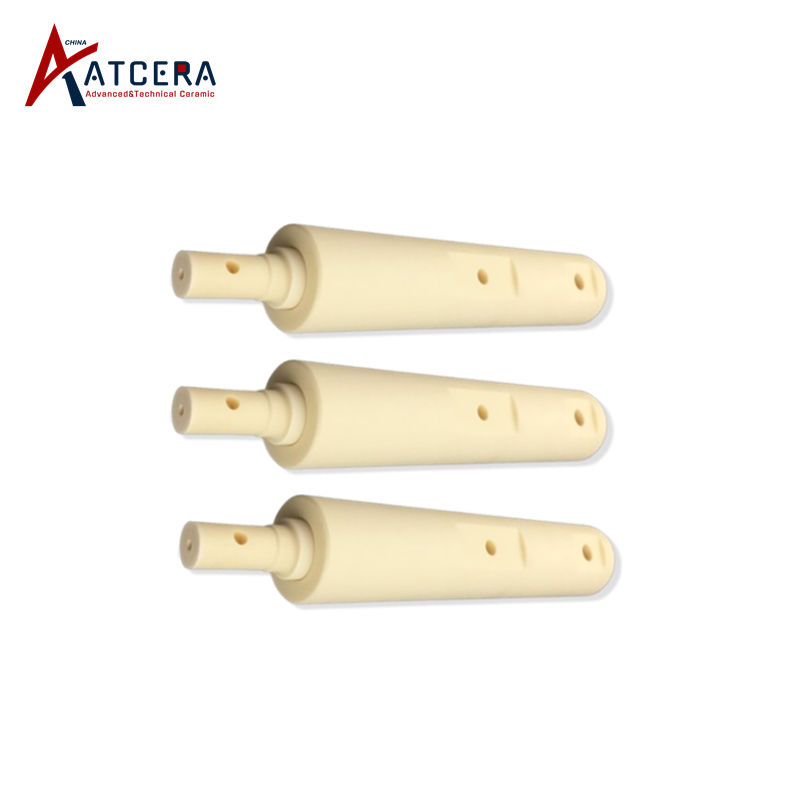

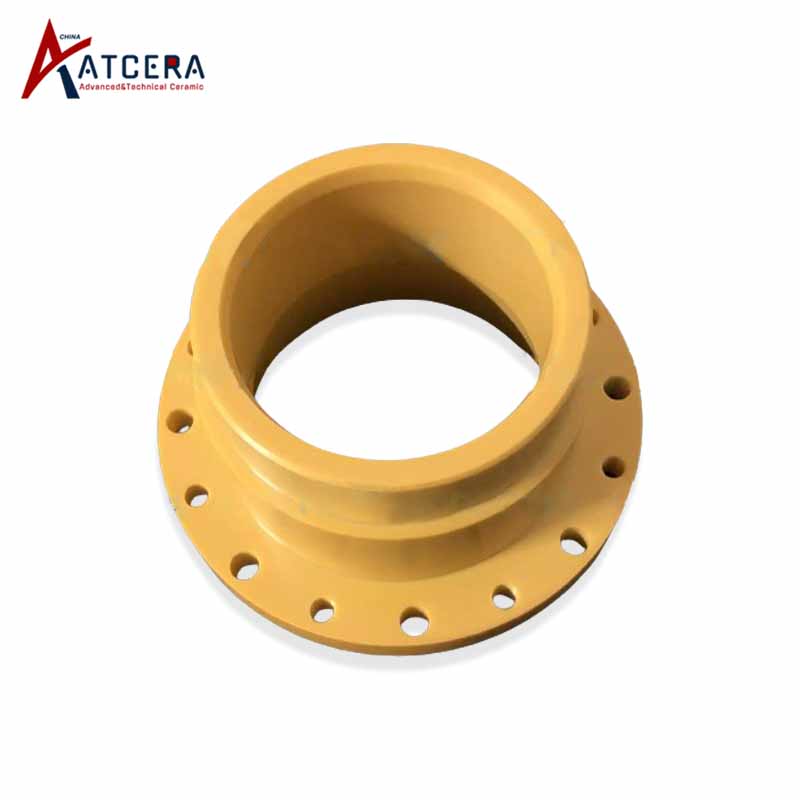

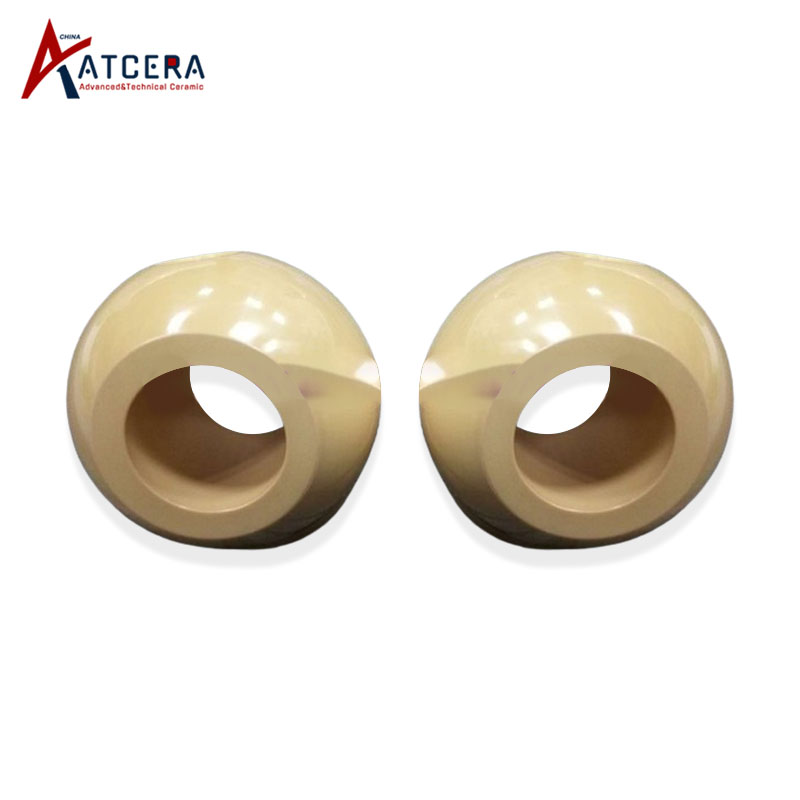

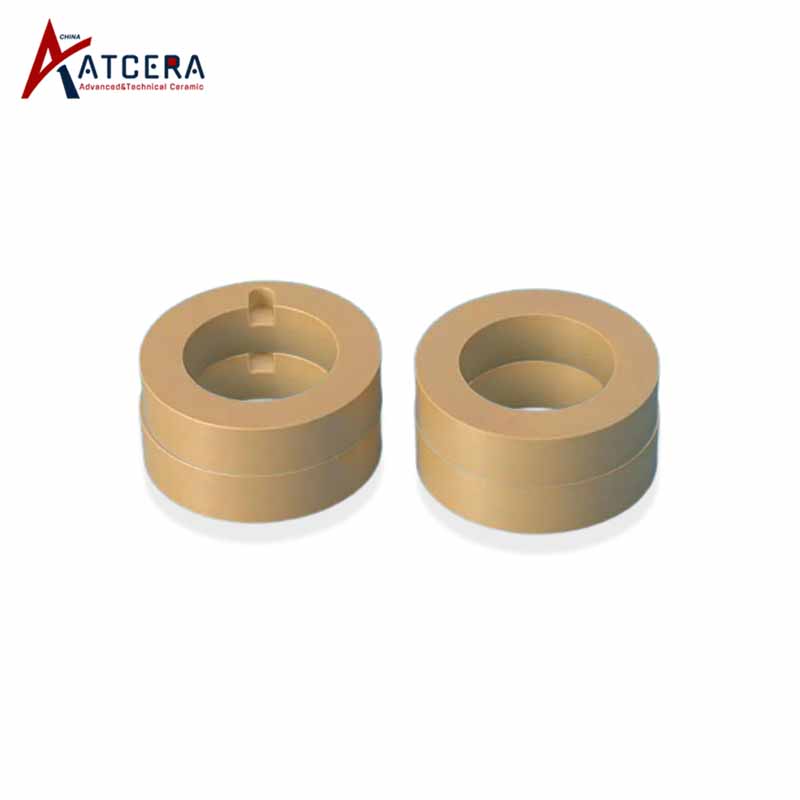

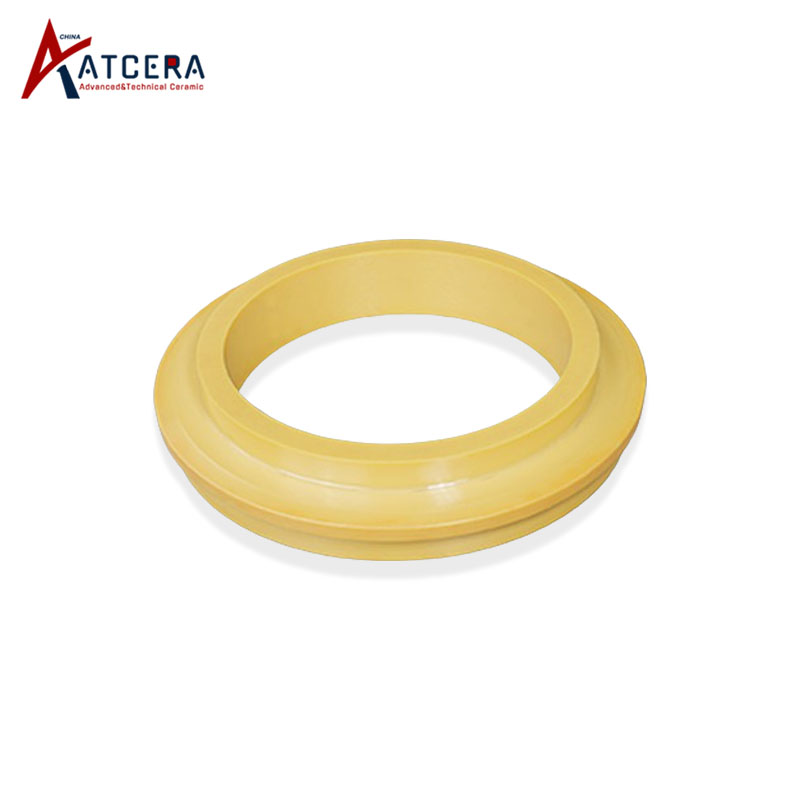

MSZ ceramic can be made into a variety of mechanical parts, including piston, plunger, bearing, valve, hydraulic rod, shaft, sealing rings, etc, which is widely used in harsh environment like high temperature, high humidity, and corrosive environment.

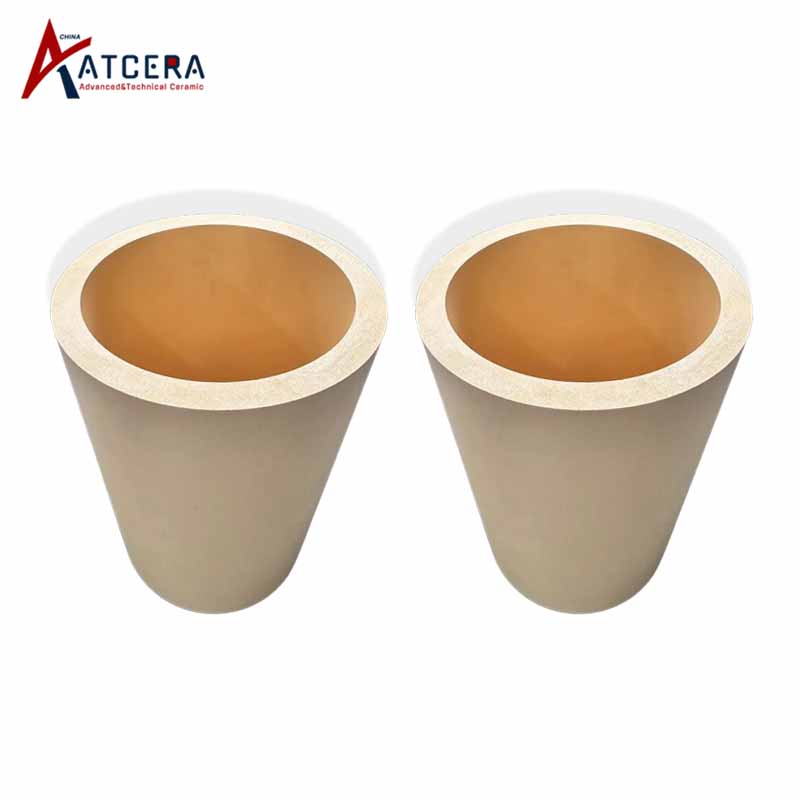

2. Crucible

MSZ ceramic crucible is mainly used for melting and forging of various metals, especially metals with high melting point, such as titanium, zirconium, tungsten, etc.



3. Medical and Biological Industries

MSZ ceramic plays an important role in the medical and biological industry, it can be used to make injection syringe,  filters, biological production and experimental equipment.
