Silicon Nitride Structural Parts

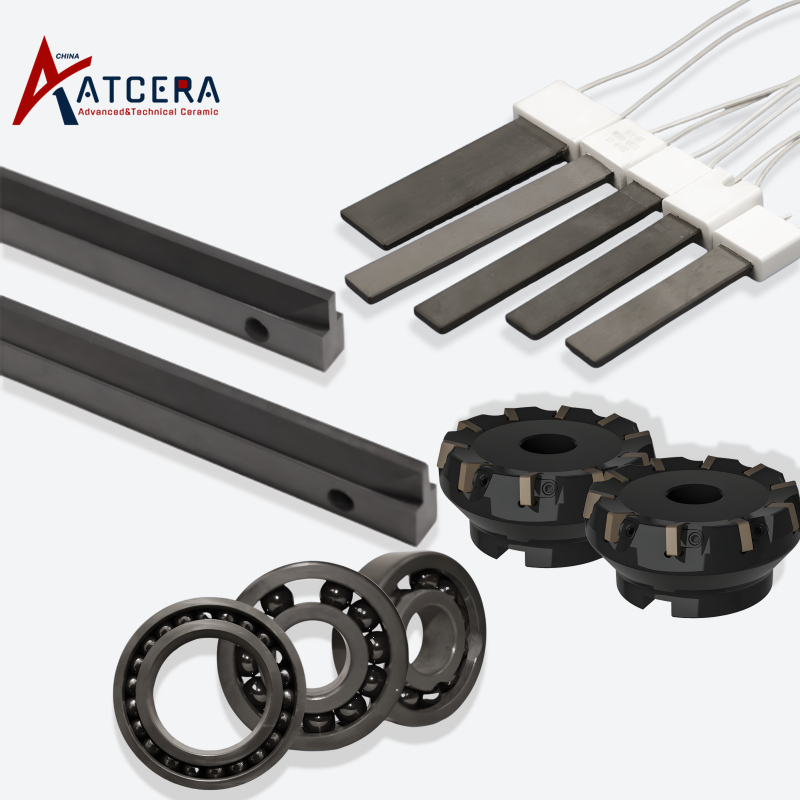

Silicon Nitride Mechanical Parts

ATCeramic can provide silicon nitridestructure components and tools, they can be widely used in mechanical engineering, photovoltaic cells and semiconductor production, petrochemical, high temperature refractory, metallurgy, thermal power generation other industries.



view all silicon nitirde mechanical parts

Properties of Si3N4 Mechanical Parts

Silicon nitride is a kind of widely used advanced industrial ceramic, to meet the needs of different fields, raw material composition and appropriate sintering process can be selected, and required properties are achieved.

 High strength

Strength of silicon nitride is high, flexture strength is up to 900MPa, also the fracture toughness is high, so it can be used for application with heavy load and mechanical shock;

 Corrosion resistance

Silicon nitride material has good corrosion resistance, it does not react with various acids, alkalis, salt or other chemical agents, without the risk of failure caused by corrosion;

 High temperature resistance

The normal use temperature of the silicon nitride ceramic can reach higher than 1100℃, available for the requirements of high temperature environment;

 Good wear resistance

Silicon nitride material has high hardness, which is up to 16GPa, so the wear resistance is very good and service life is long;

 Good thermal shock resistance

Silicon nitride has small thermal expansion, and high termal conductivity, thermal shock resistance is very good, up to 550℃.

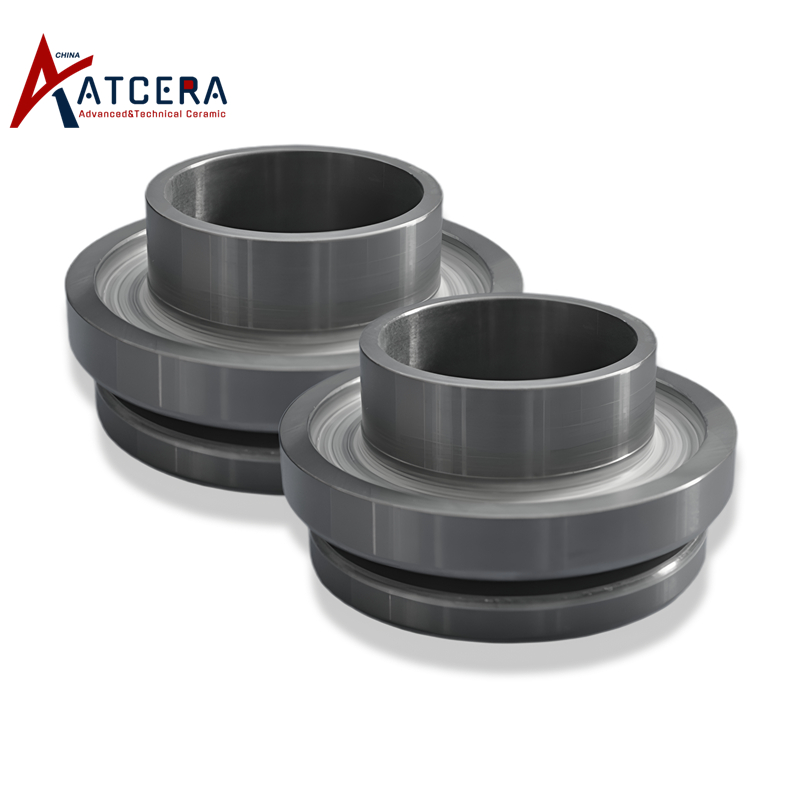

  • Si3N4 ceramic insulation ring
    Si3N4 Insulation Ring

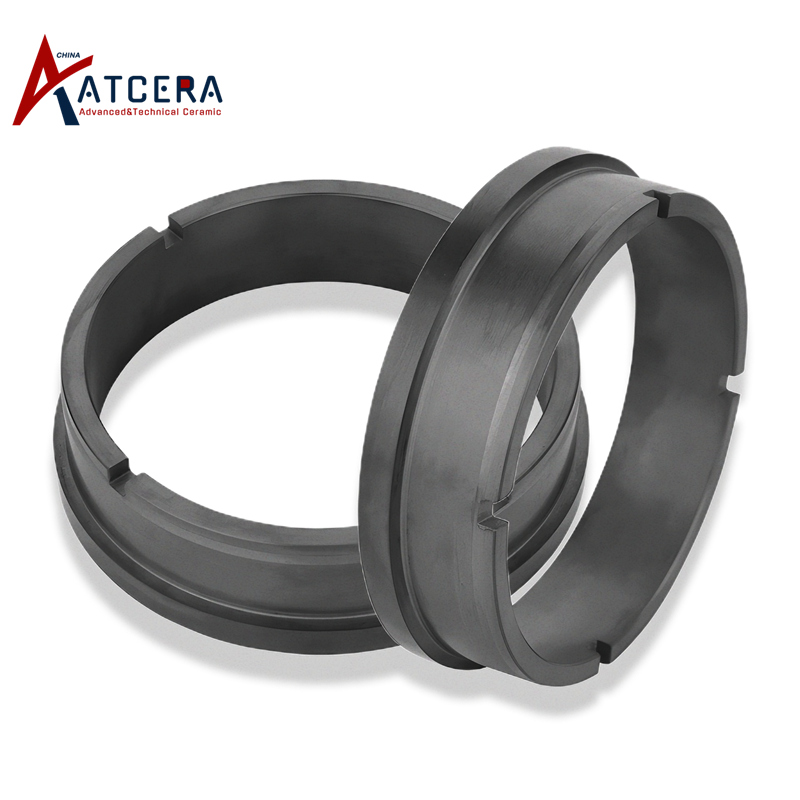

  • Si3N4 sealing ring
    Si3N4 Sealing Ring

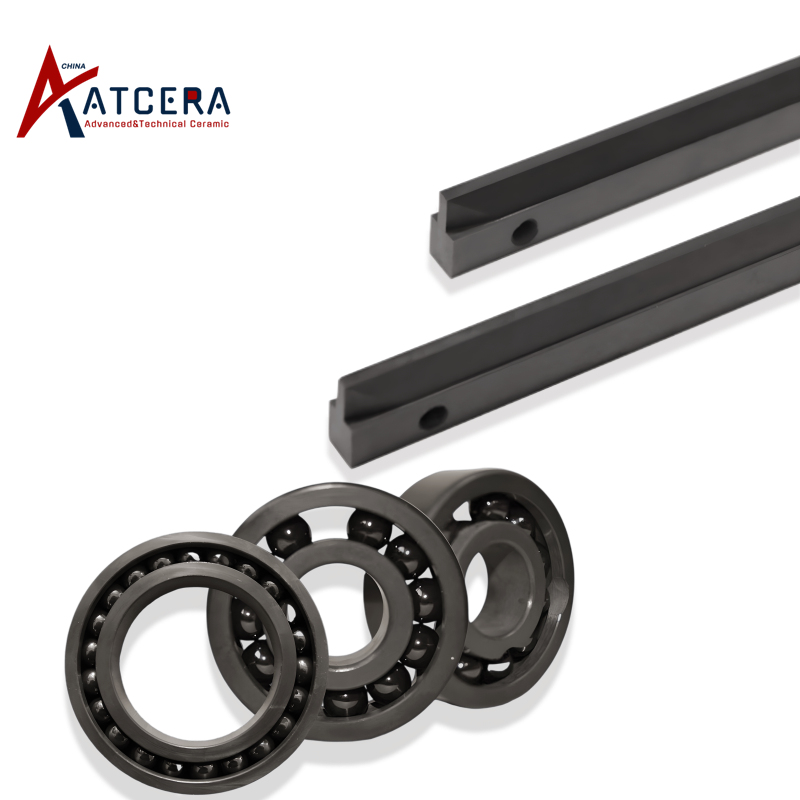

  • SiC full ceramic bearing

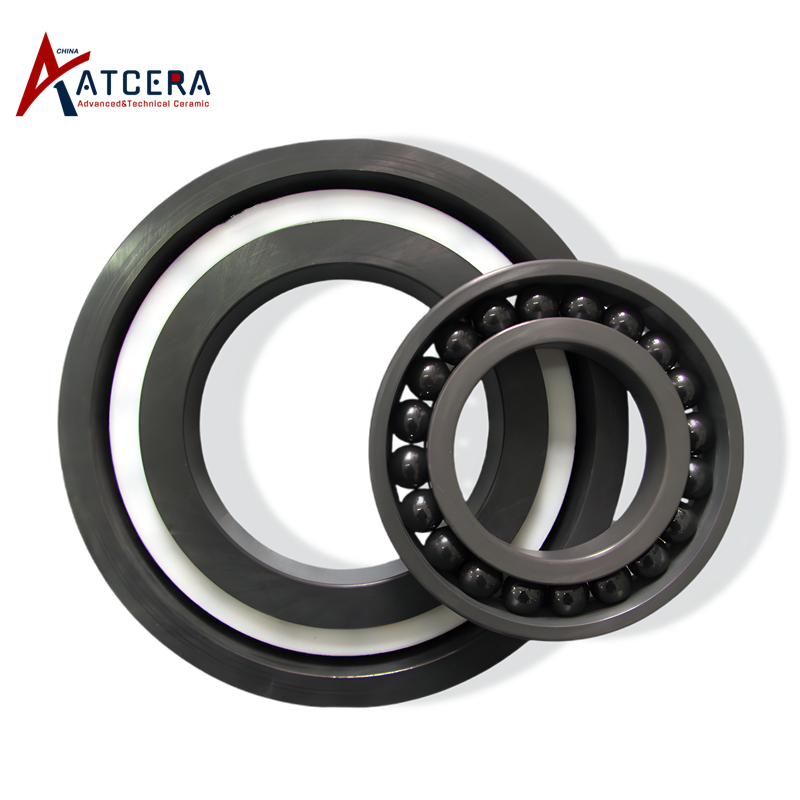

    Si3N4 Bearing

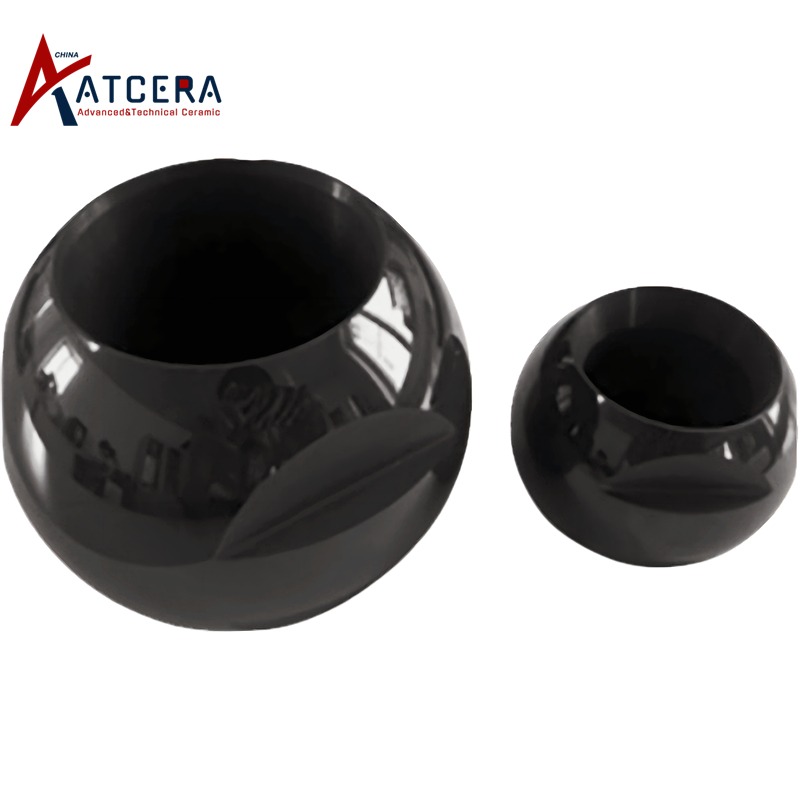

  • Silicon nitride bearing ball

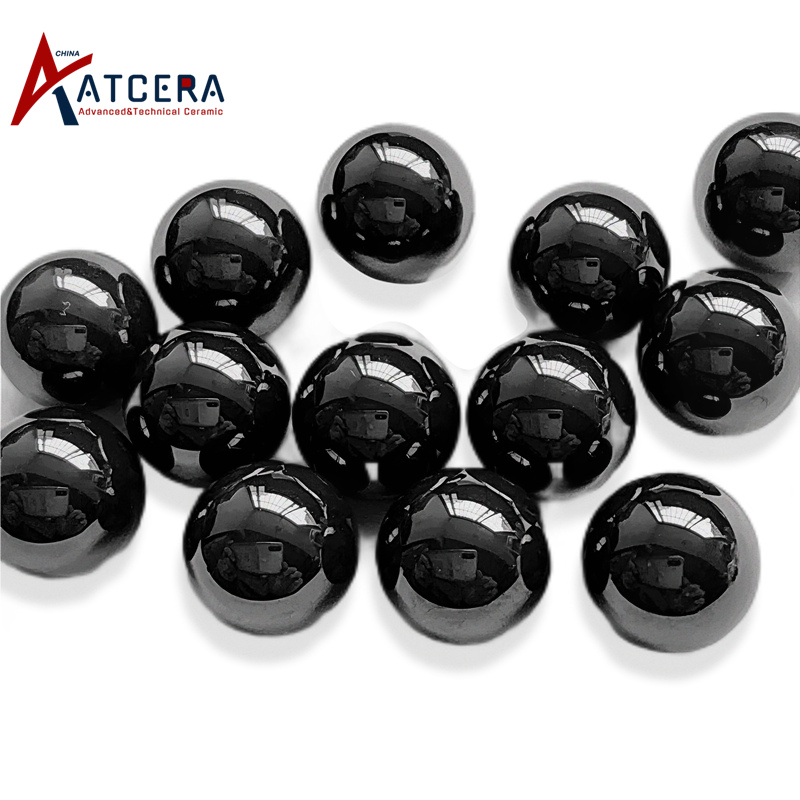

    Si3N4 Bearing Ball

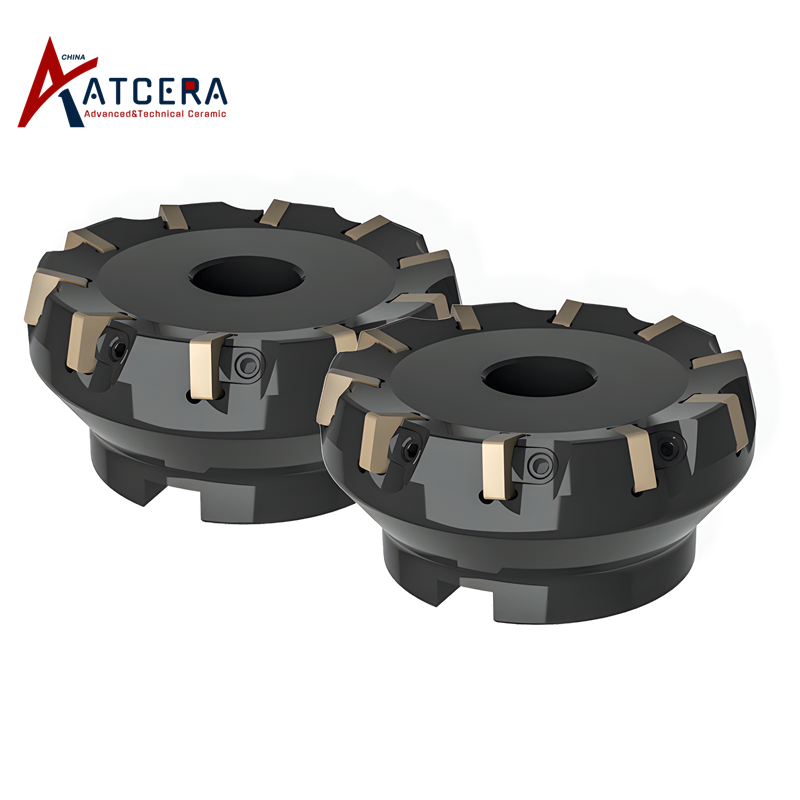

  • Silicon nitride ceramic milling cutter
    Si3N4 Machining Cutting Tool

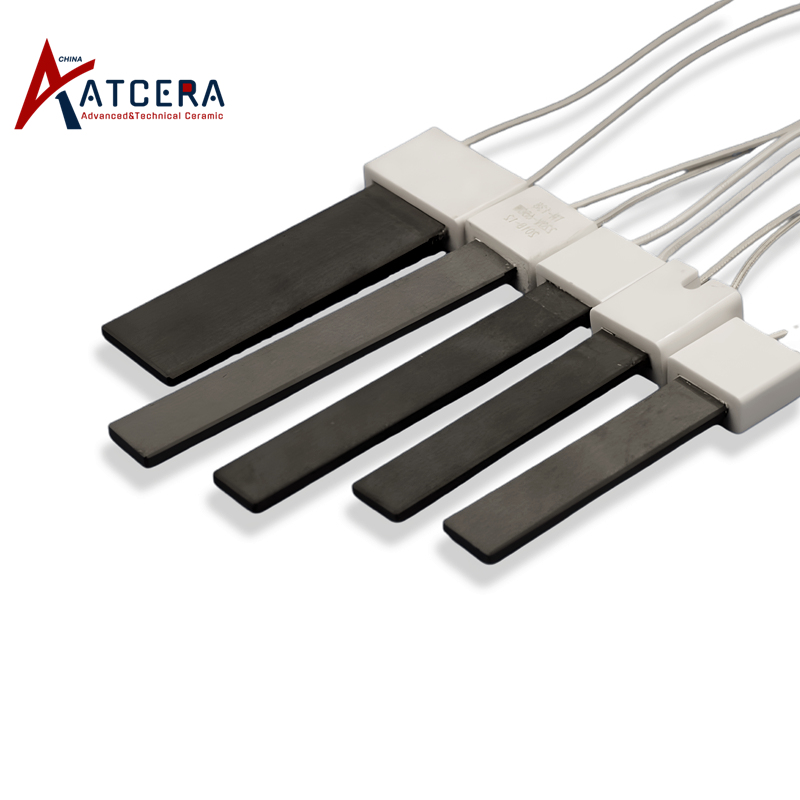

  • Silicion nitride ceramic heating element
    Si3N4 Heating Element

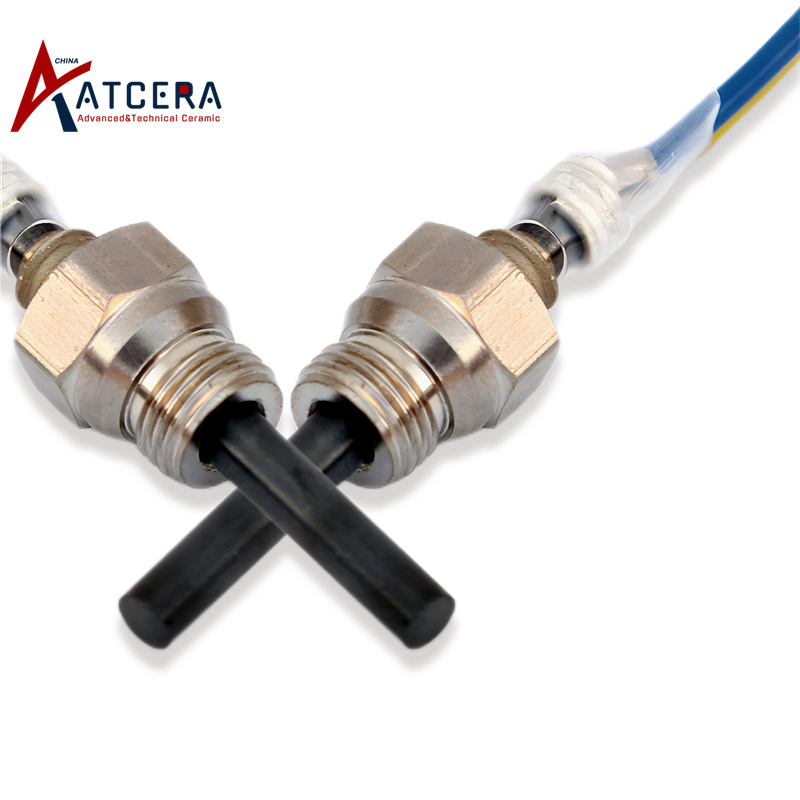

  • Silicon nitride electric plug
    Si3N4 Electric Plug









Technical Data of Silicon Nitride Materials

Si3N4 Type Gas pressure sintering Si3N4 Hot pressing sintering Si3N4
Density (g/cm3) 3.2 3.3
Flexture strength (MPa) 700 900
Young Modulus (GPa) 300 300
Poisson's ratio 0.25 0.28
Compressive strength (MPa) 2500 3000
Hardness (GPa) 15 16
Fracture toughness (MPa*m1/2) 5~7 6~8
Maximum working temperature (℃) 1100 1300
Thermal conductivity (W/m*K) 20 25
Thermal expansion coefficient (/℃) 3*10-6 3.1*10-6
Thermal shock resistance (ΔT ℃) 550 800



*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

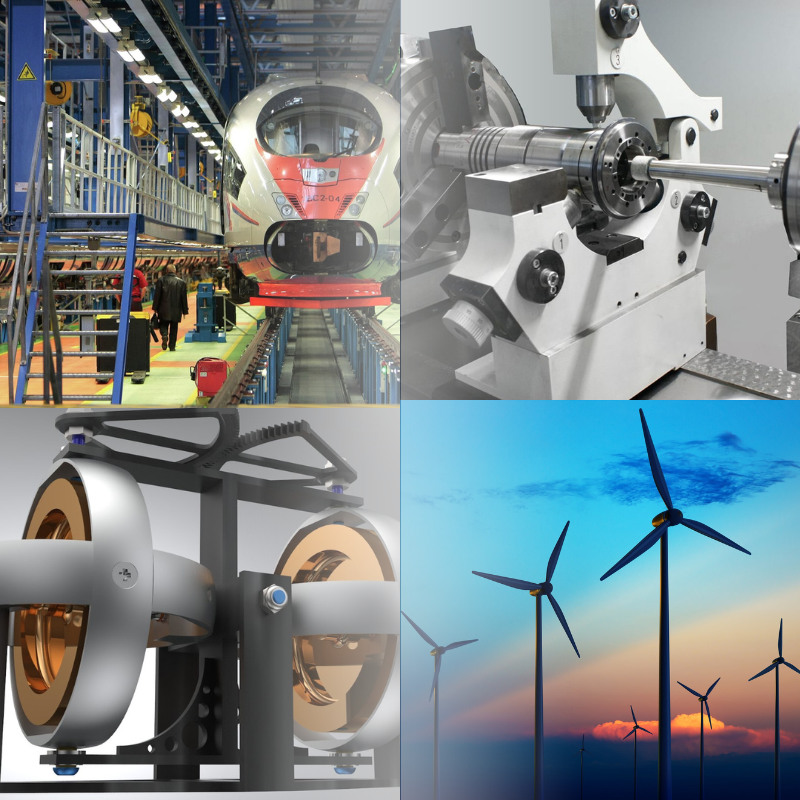

Main Applications of Silicon Nitride Mechanical Parts

1. Mechanical engineering industry

Silicon nitride ceramics have high hardness, good wear resistance, also with good mechanical properties, they can stable performance at high temperature, can be made into various mechanical parts, such as piston, plunger, shaft, cylinder liner, machining cutting tools, etc.



2. High temperature refractory industry

Silicon nitride ceramics have high temperature resistant and oxidation resistant, they can maintain stable performance under harsh working conditions, and can be used to manufacture heater and heating element, nozzle, mold for glass products, etc.

Customized Services

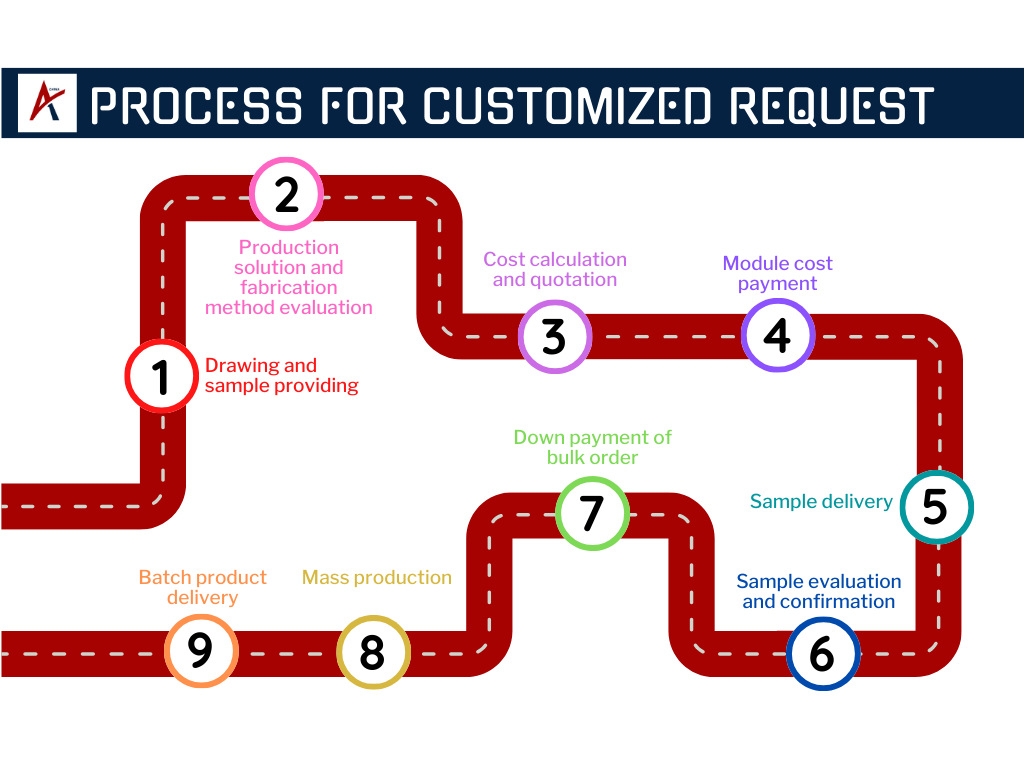

Process for Customized Request



⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Why Choose Silicon Nitride Mechanical Parts From ATcera

 Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.



 Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.



 Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.



 Cost-Effective Excellence

High cost performance, and perfect after-sales service.

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
