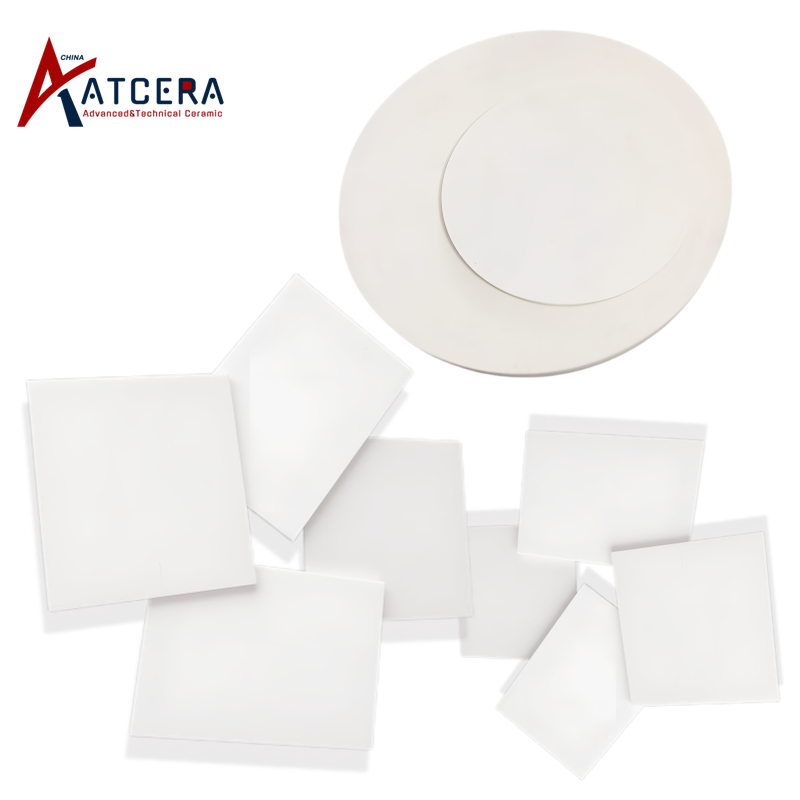

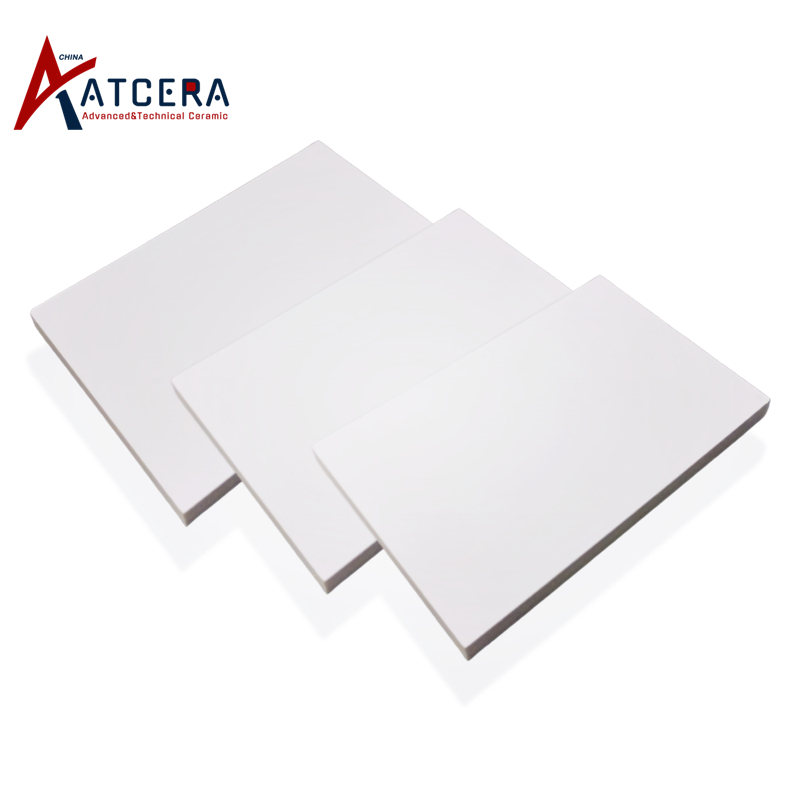

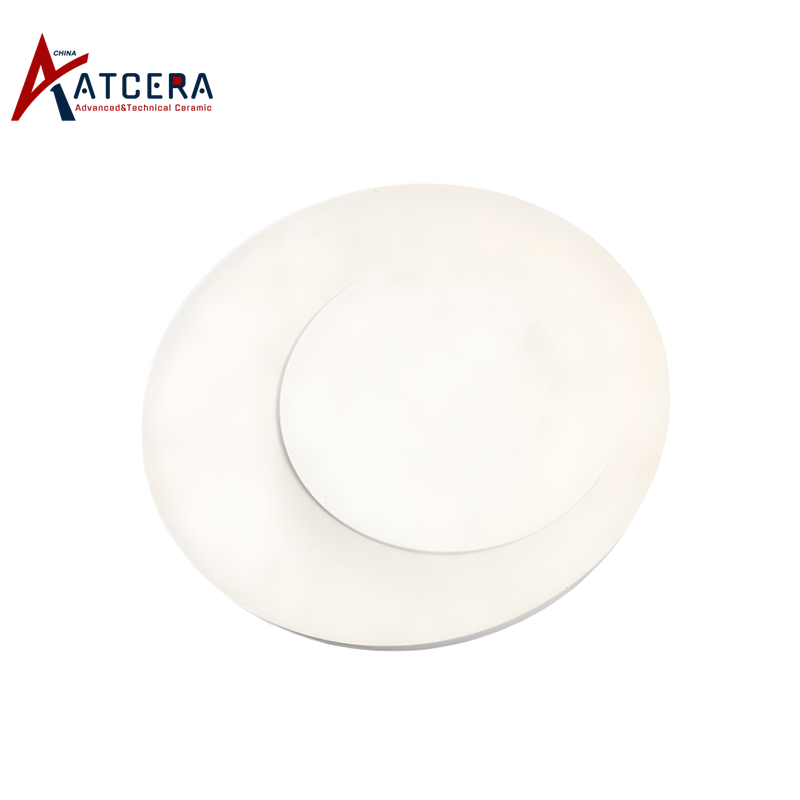

Alumina Plates

ATCERA can provide alumina plates, and they can be widely used in mechanical engineering, petrochemical, high temperature refractory, metallurgy, military and other industries.



view all alumina plates

Properties of Alumina Plates

⩟ High temperature resistance, excellent thermal shock resistance



⩟ Excellent electrical insulation performance, high breakdown voltage



⩟ Superior mechanical strength, good pressure and impact resistance



⩟ High hardness, good wear resistance, long service life



⩟ Excellent resistance to oil and chemical corrosion

Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Main Applications of Alumina Plates

1. Mechanical engineering industry

Alumina plates have high hardness, good wear resistance, also with good mechanical properties, they can stable performance at high temperature, can be made into various anti-wear components for mechanical devices, such as grinding machine, sand blasting machine, powder delivery pipe system, etc.

2. High temperature refractory industry

Alumina plates have high temperature resistant, oxidation resistant, can maintain stable performance under harsh working conditions, and can be used to manufacture thermal insulation plates for furnace, hot pressing machine, etc.

3. Chemical and metallurgical industries

Alumina plates have very good corrosion resistance, good chemical inertia, and do not react with various chemical media, also with excellent high temperature resistance,  they are suitable for manufacturing a variety of chemical and metallurgical equipment, such as reaction vessel, heating plate, etc.

Customized Services

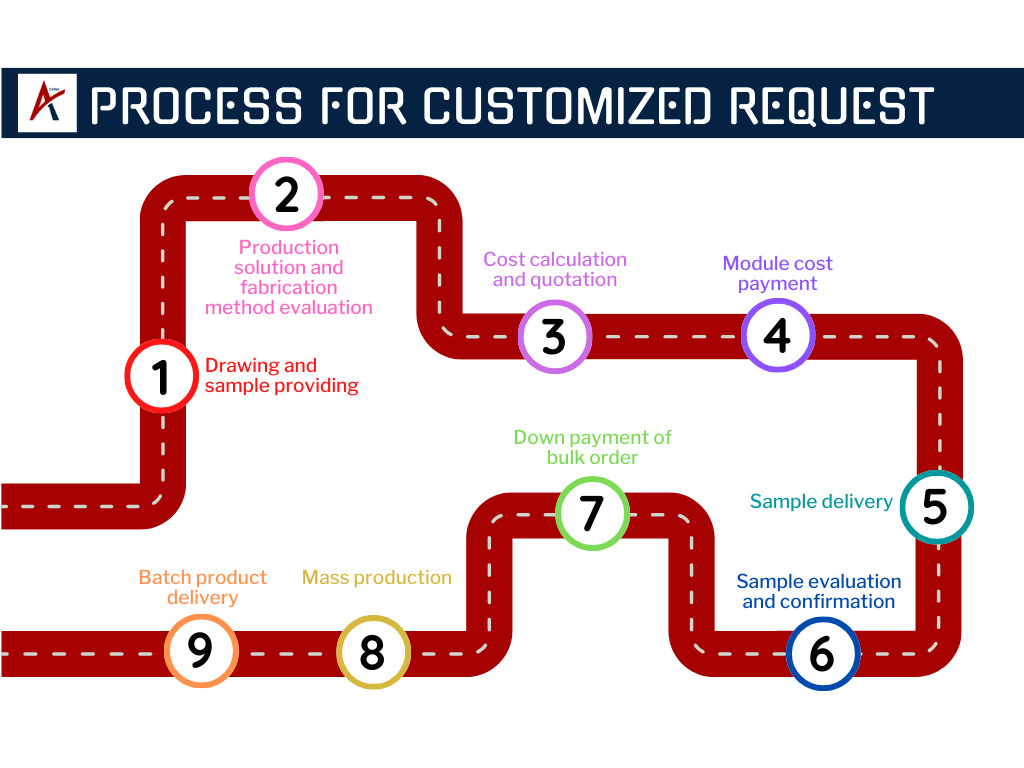

Process for Customized Request



⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Why Choose Alumina Plates From ATcera

 Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.



 Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.



 Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.



 Cost-Effective Excellence

High cost performance, and perfect after-sales service.

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
