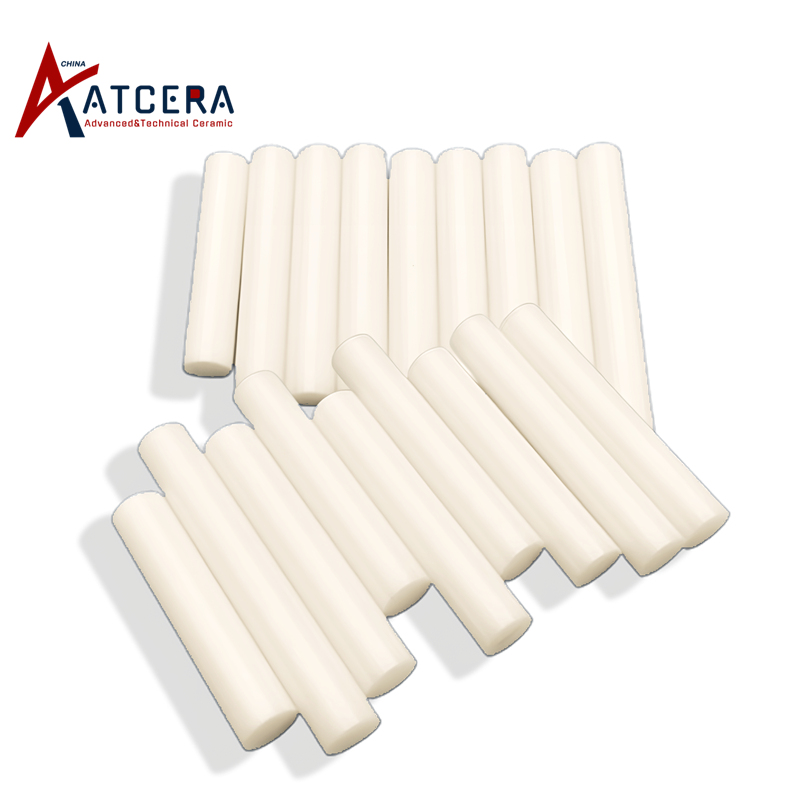

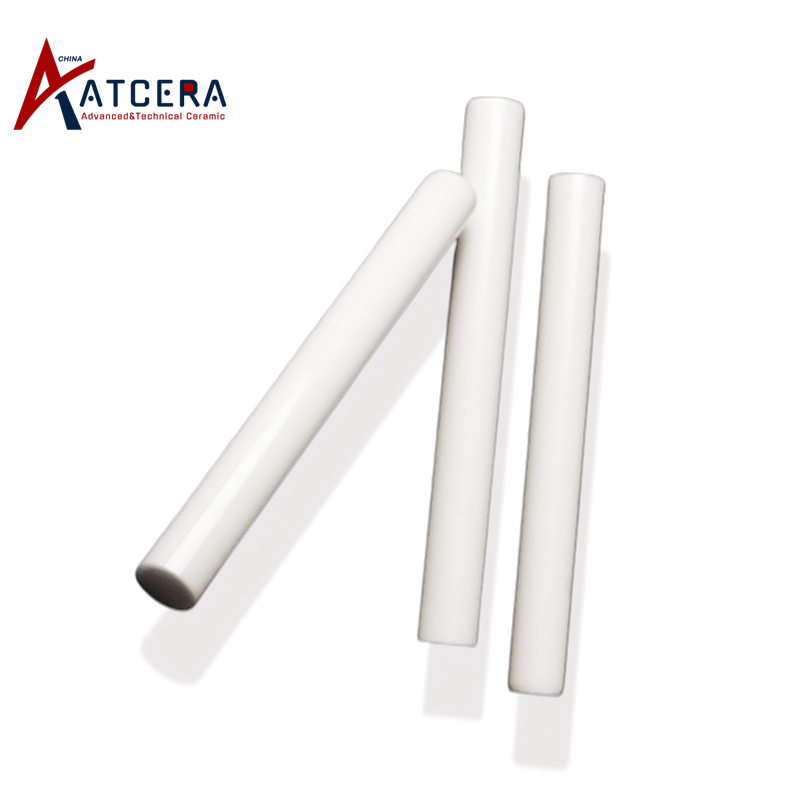

Zirconia Rods

Zirconia ceramic rod is formed by isostatic pressing method and sintered at high temperature, to form uniform, dense and smooth ceramic layer and transition layer, which has superior wear resistance and is suitable for precision ceramic parts.

In order to improve performance of zirconia rod, according to the application scenario and demand, stabilizing agent is added to the zirconia raw material, among which the zirconia with yttrium oxide is called yttrium stabilized zirconia (YSZ), and its wear resistance and toughness can be significantly improved.

view all zirconia rods

Send Inquiry Now All Products

Zirconia Rods

Properties of Zr2O3 Rods

⩟ High wear resistance and toughness

Zirconia ceramic rod adopts high purity microcrystalline zirconia ceramic powder as raw material, through high pressure isostatic pressing molding and high temperature sintering process, the powder crystal is denser, the internal crystal structure is stable, the processed rod has high hardness, good wear resistance, and high toughness.

⩟ Strong stability

Zirconia is an inert material that does not react to many substances in nature and has strong weather resistance, so its performance is very stable in various extreme environments.

⩟ Strong corrosion resistance

Zirconia material chemical stability is good, resistant to a variety of acid and alkali corrosion.

All Products

Product List
Technical Data Sheet

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Main Applications of Zirconia Rods

Zirconia ceramic rod has high temperature resistance, good thermal shock resistance, and has high mechanical strength, good toughness, corrosion resistance, wear resistance and other characteristics, it is widely used in mechanical engineering, medical equipment, petrochemical, metallurgy and other industries.

1. Mechanical engineering industry

Zirconia ceramic rod has high compressive strength, good wear resistance and toughness, performance is stable at high temperature, can be made into a variety of mechanical parts, including hydraulic rod, transmission shaft, plunger, grinding rod, etc. Mechanical parts made by ceramic has longer service life than metal, and more adapted to harsh working environment.

2. Chemical and Metallurgical industries

Zirconia ceramic rod has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, suitable for manufacturing a variety of chemical equipment, such as stirring, support, drainage parts, etc., but also can be used as a variety of catalyst carrier, used in the chemical process.

All Products

Customized Services

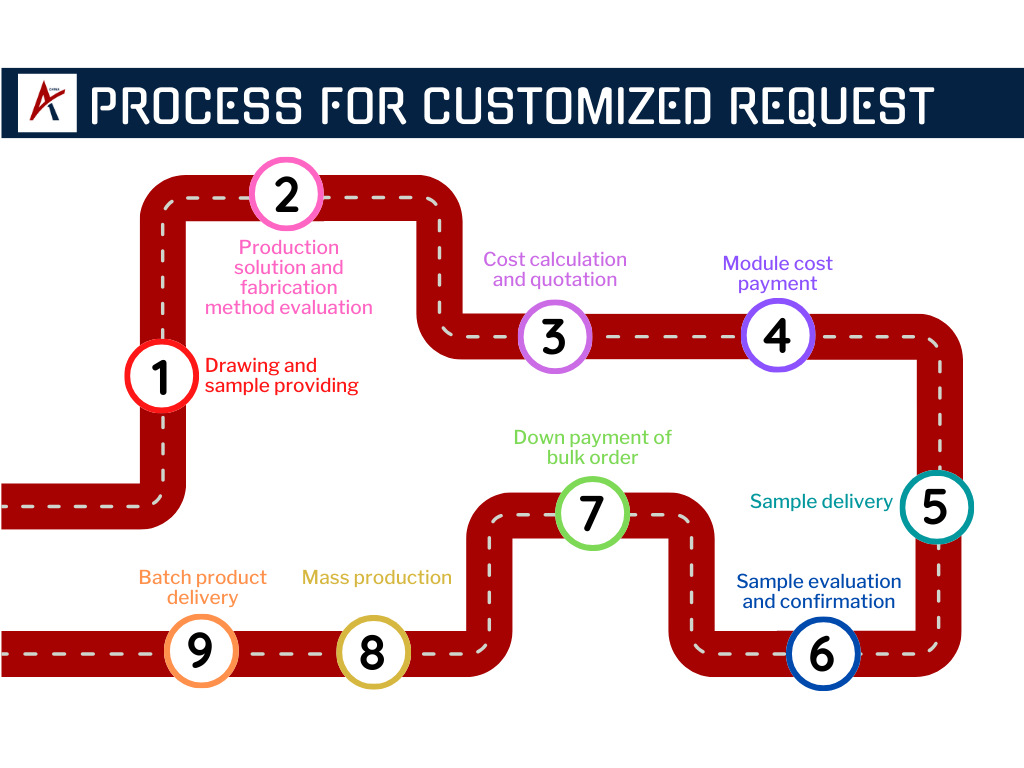

Process for Customized Request

⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Send a Quick Inquiry Now All Products

Why Choose Zirconia Rods From ATcera

Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.

Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.

Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.

Cost-Effective Excellence

High cost performance, and perfect after-sales service.

Ask a Free Quote All Products

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
