zirconia crucibles

Zirconia Crucibles

The highest working temperature of zirconia crucible can reach 2200℃, also with good thermal stability and wear resistance, good acid and alkali corrosion resistance, mainly used for melting precious metals like platinum and high temperature calcination test.

Properties of Zr2O3 Crucibles

⩟ High temperature resistance, the highest working temperature can reach up to 2200℃.



⩟ Good thermal shock resistance, can maintain good thermal stability at high temperature.



⩟ High hardness, good wear resistance and acid and alkali corrosion resistance.



⩟ Reusable, with long service life.

  • zirconia ceramic crucibles

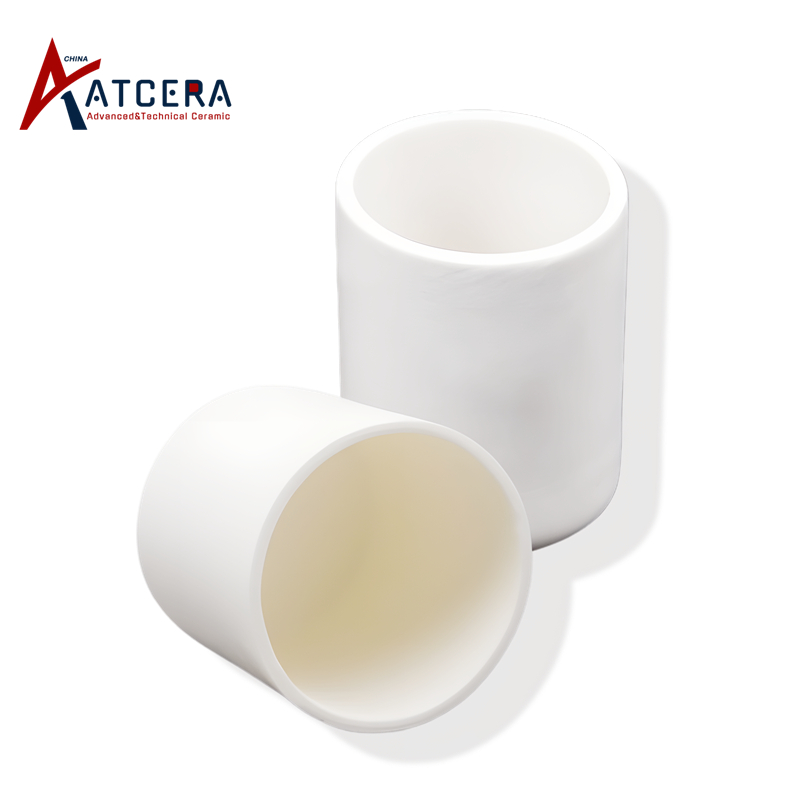

    Zirconia Crucible Cylindrical
  • zirconia crucible

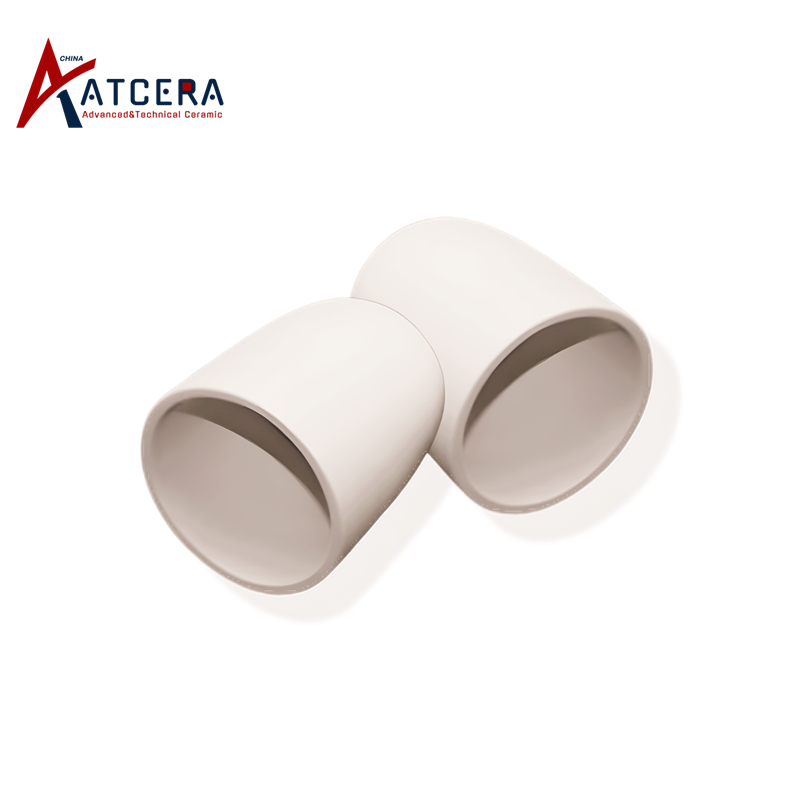

    Zirconia Crucible Conical
  • zirconia crucible

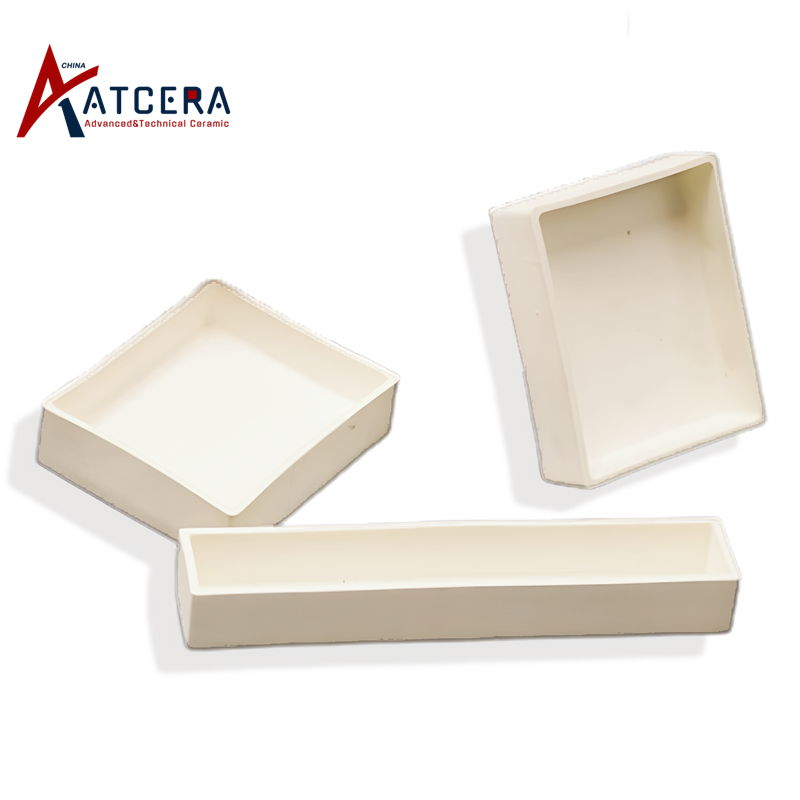

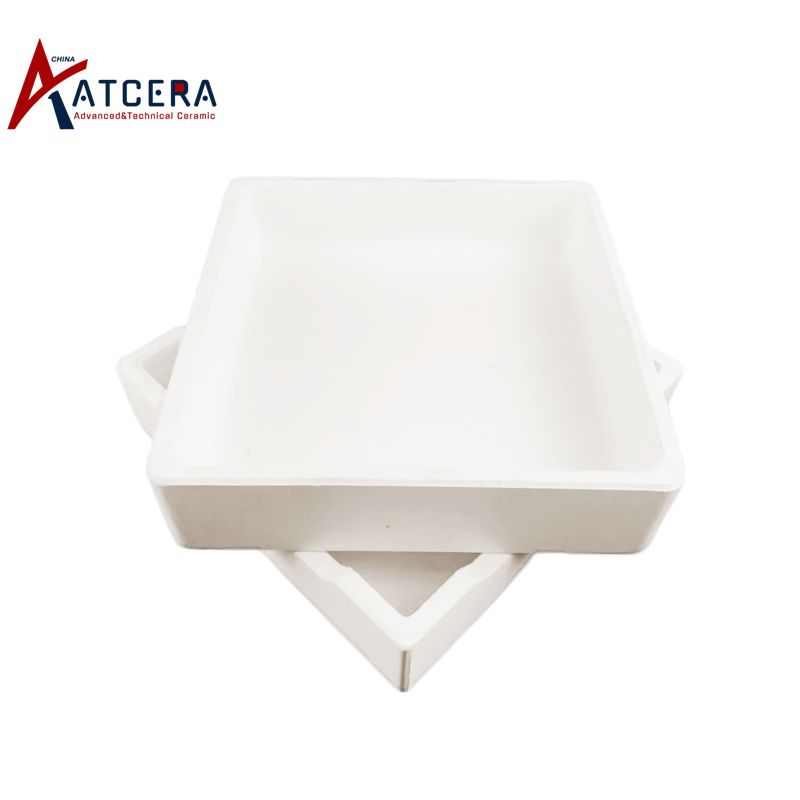

    Zirconia Crucible Rectangular
  • #










Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Application Fields of Zirconia Crucible

Zirconia crucible is suitable for melting precious metals like platinum, high temperature calcination test, and high temperature thermal analysis.



1. Zirconia crucible can be used in various industrial thermal analysis, melting metal and non-metallic material samples.



2. Zirconia crucible is widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



3. Zirconia crucible can be used in metallurgical, chemical and material science experiments.

Customized Services

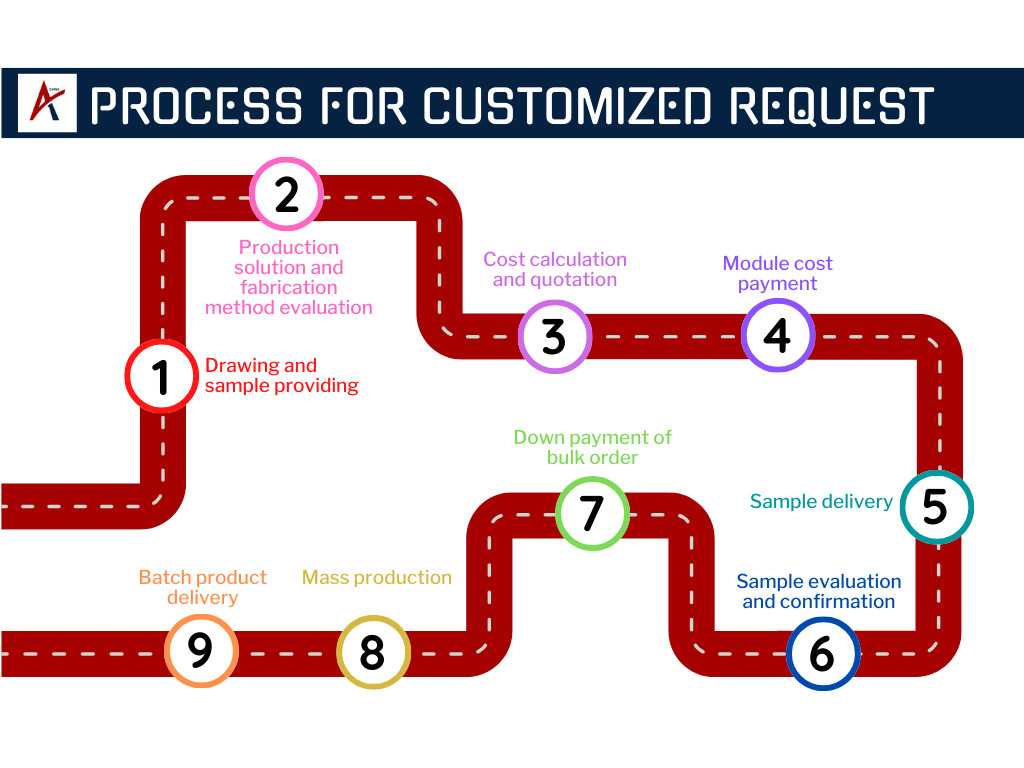

Process for Customized Request



⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Why Choose Zirconia Crucibles From ATcera

 Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.



 Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.



 Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.



 Cost-Effective Excellence

High cost performance, and perfect after-sales service.

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
