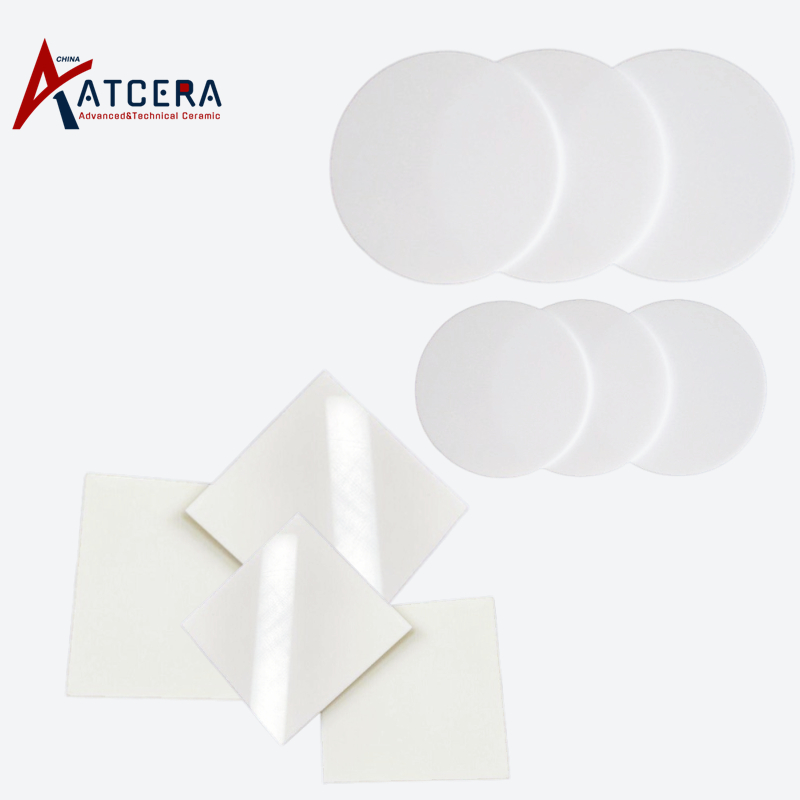

Beryllium Oxide Ceramic

Beryllium oxide ceramic is made of beryllium oxide powder as the raw material, after forming and sintering to obtain a stable crystalline phase structure, it has the characteristics of super high thermal conductivity, high temperature resistance, good corrosion resistance, light weight, good thermal shock resistance and oxidation resistance.



It is widely used in semiconductor (substrate), metallurgy, nuclear reactor, electronics, etc.



Thermal conductivity is the best during ceramic materials, and the higher purity, the higher thermal conductivity, for 99% BeO ceramic, the thermal conductivity can reach up to 310W/(K*m). Appropriate purity BeO ceramic material can be selected according to application scenario and parameter requirements.







view all alumina ceramic products
Send Inquiry Now All Products

Beryllium Oxide Ceramic

You are in:

/ Home / Beryllium Oxide Ceramic

Beryllium Oxide Ceramic By Types

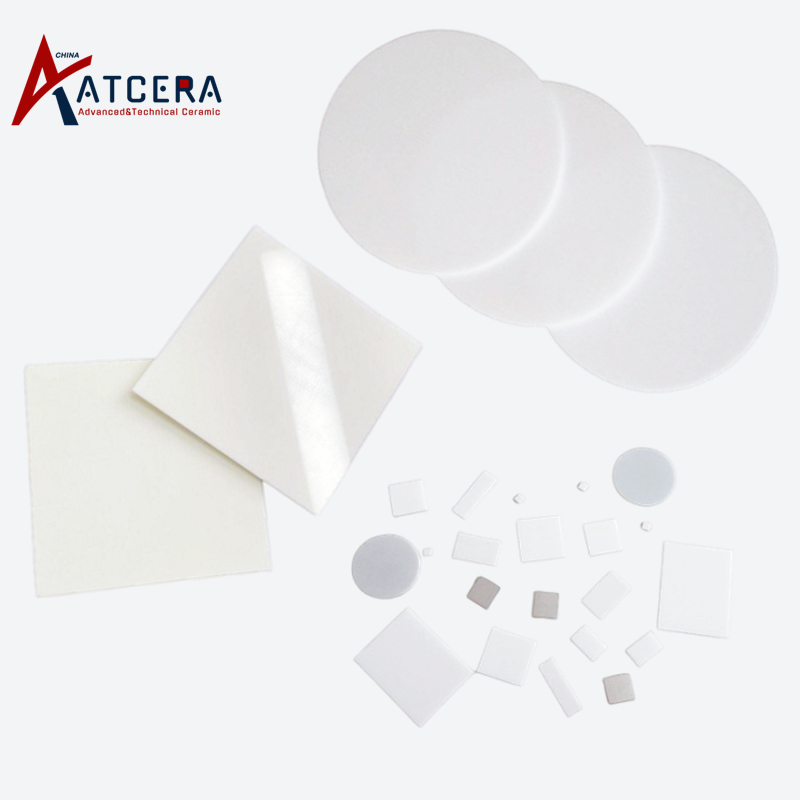

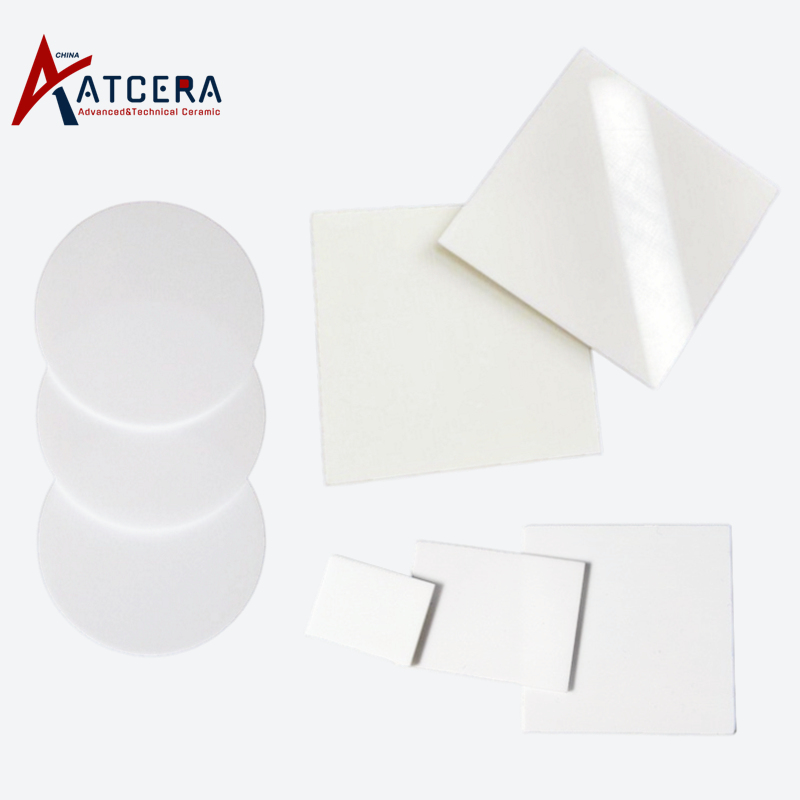

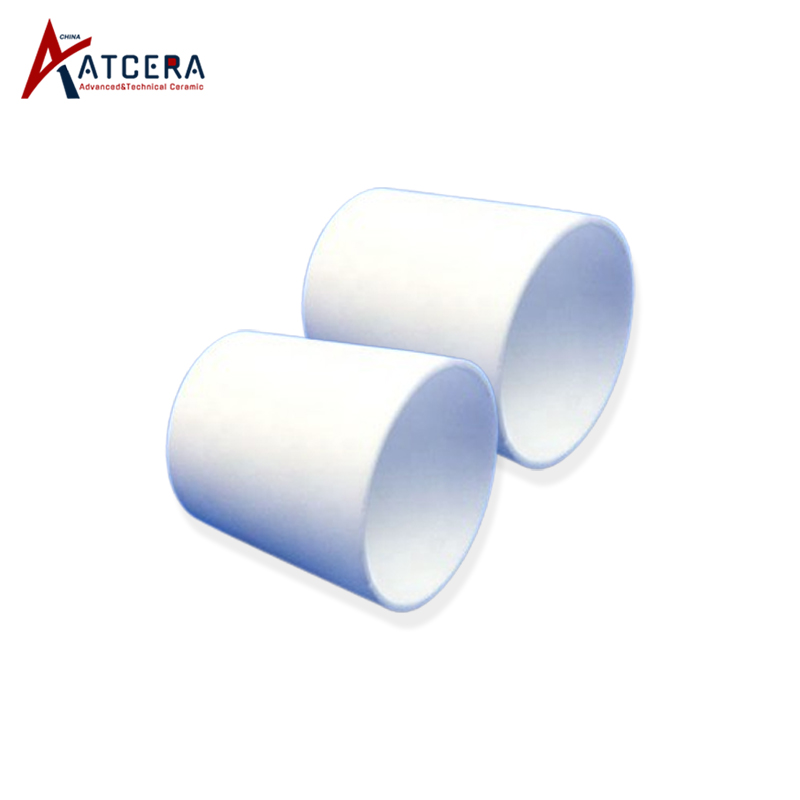

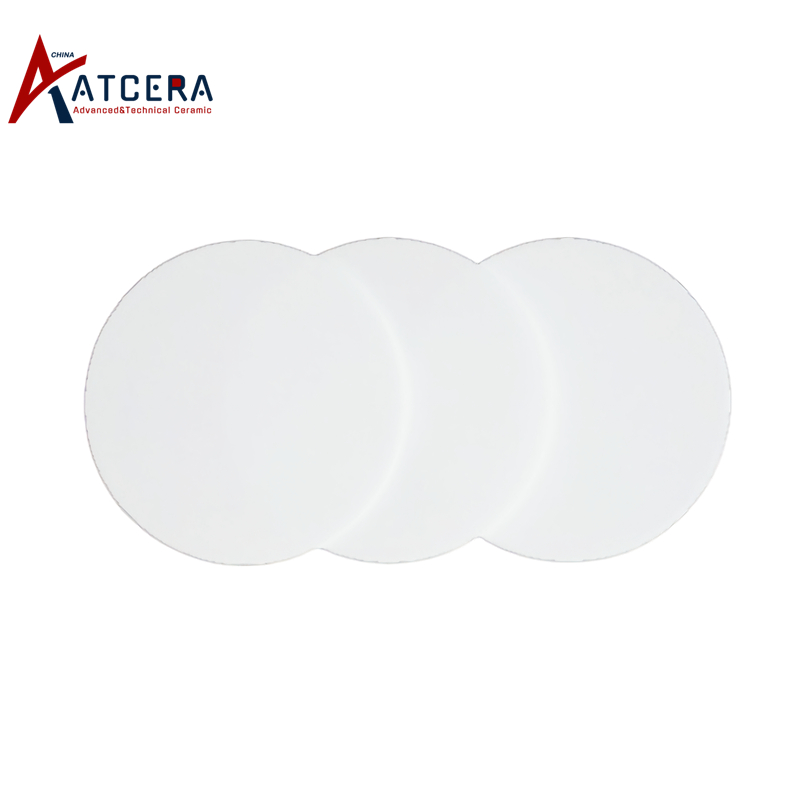

As our new developed product, ATCERA can produce various purity beryllium oxide ceramic substrates, also BeO crucibles and other mechnical parts. To ensure product performance and quality, we select high purity and granularity homogenuous powder, apply the most appropriate forming method, sintering additive and process, to form dense and uniform ceramic structure, also complete protection measures are taken during the whole production process, to avoid any harm to employees. If you have any beryllium oxide product request, or need technical support, please do not hesitate to contact us.

Advanced Ceramic By Applications

Advanced ceramics play a pivotal role in various industries, offering a unique combination of exceptional mechanical, thermal, and electrical properties. Unlike traditional ceramics, advanced ceramics are engineered to deliver superior performance in demanding applications. These materials, often based on non-metallic compounds, exhibit high hardness, wear resistance, and corrosion resistance, making them indispensable in a wide range of industrial sectors.

Semiconductor

Electronics and Electricity

Mechanical Parts

Petrochemical Industry

Food Processing

Metallurgy Industry

Photovoltaic Cell Industry

Biological and Medical

Lithium Battery Production

Communications

Military Protection

Laboratory Equipment and Instruments

Semiconductor

Advanced ceramics, as a kind of non-metallic material with excellent physical and chemical properties, including good electrical insulation performance, high hardness, good wear resistance, high temperature and corrosion resistance, good heat dissipation performance, they have a wide range of applications in the semiconductor industry, such as high-performance substrates, electronic component package, heat sink, and semiconductor production equipment parts, etc. The performance and production efficiency of semiconductor products have been significantly improved compared with traditional products, meeting the needs of the rapid development of the industry.   Applications of Advanced Ceramics For Semiconductor Industry 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and ...
Learn More Send a Quote

Electronics and Electricity

Advanced ceramics with its excellent electrical insulation performance, and they have a wide range of applications in the electronic and electrical industry, such as ceramic substrate, electric heater and ignitor, insulation ring, and electrical equipment components, etc., even under harsh environment like high temperature and corrosive substance, they can also keep stable performance for long time, to meet the requirements of high reliability.   Applications of Advanced Ceramics For Electronics & Electricity Industry 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and silicon carbide ceramics have good electrical insulation and thermal conductivity, they can be used to produce substrates for main board of electronic and electrical products.    2. Ceramic...
Learn More Send a Quote

Mechanical Parts

Advanced ceramic materials have high hardness, good wear resistance, high mechanical strength, and high temperature and corrosion resistance, they are widely used in the manufacture of various mechanical parts, such as pump, bearing, valve, shaft, plunger, cylinder, etc., with long service life, good reliability, can be applied to a variety of harsh working environments; they can also be used to manufacture processing tools, such as cutting tool, grinding pad, grinding ball and bead, etc., with wide range of applicable materials, high processing efficiency and precision, can effectively improve production efficiency.   Applications of Advanced Ceramics For Mechanical Parts 1. Ceramic pump Alumina and zirconia have high hardness, wear resistance is good, also with good corrosion resist...
Learn More Send a Quote

Petrochemical Industry

Advanced ceramic materials have good corrosion resistance and high temperature resistance, also with high mechanical strength, they are widely used to produce equipment and device for petroleum and chemical industries, for production processing and experimental anslysis, with stable performance and long service life.   Applications of Advanced Ceramics For Petrochemical Industry 1. Ceramic pipe system components Alumina, zirconia, silicon carbide and silicon nitride have good corrosion resistance and mechanical strength, they can be used to produce pipe system components, including pipe, pump, valve and sealing part.    2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good corrosion resistance, high temperature resistance, non-toxic, harmless and ...
Learn More Send a Quote

Food Processing

Advanced ceramic materials are non-toxic, harmless and pollution-free, also have good biological compatibility, they can be used to produce various production equipment for food processing, with high efficiency and stable performance, without any contamination.   Applications of Advanced Ceramics For Food Processing 1. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump and valve for food processing, including beverage, dairy products, spices, to control fluid flow and pressure in filling process.    2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good corrosion resistance, high temperature resistance, non-toxic, harmless and...
Learn More Send a Quote

Metallurgy Industry

Advanced ceramic materials have high temperature resistance, high hardness and good wear resistance, also with high mechanical strength, they are widely used to produce various equipment and device for metallurgical industry, for raw material preparation and smelting process, performance is stable and service life is long.    Applications of Advanced Ceramics For Metallurgy Industry 1. Ceramic grinding ball and bead Alumina, zirconia and silicon nitride ceramics have high hardness and mechanical strength, they can be used to produce grinding ball and bead for various grinding equipment, to grind ore and chemical raw material into fine powder for further process.   2. Ceramic heater Silicon carbide ans alumina ceramics have high temperature and good thermal shock resistance, ...
Learn More Send a Quote

Photovoltaic Cell Industry

Advanced ceramics have high hardness, good wear resistance, high temperature and corrosion resistance, also with high mechanical strength. They have a wide range of applications in the photovoltaic cell industry industry, such as high-performance substrate, crucible, vacuum chuck and other photovoltaic cell production equipment parts. The performance and production efficiency of photovoltaic cell have been significantly improved compared with traditional products, meeting the needs of the rapid development of the industry.   Applications of Advanced Ceramics For Photovoltaic Cell Industry 1. Ceramic substrate Silicon carbide has has a wide energy gap, high thermal stability, and good thermal conductivity, it can be used to produce substrate for photovoltaic cell.    2. Ceram...
Learn More Send a Quote

Biological and Medical

Advanced ceramic materials are non-toxic, harmless and pollution-free, also have good biological compatibility, they can be used to produce various production equipment for biological and medical industries, especially in the pharmaceutical process, with high efficiency and stable performance, without any contamination to the medicine.   Applications of Advanced Ceramics For Biological and Medical Industries 1. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump and valve for biological reagent production and pharmaceutical processing, to control fluid flow in filling process.   2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good...
Learn More Send a Quote

Lithium Battery Production

Advanced ceramic materials have high hardness and wear resistance, good corrosion resistance and high mechanical strength, they are widely used to produce equipment and device for lithium battery production, for raw material preparation and refinement process.   Applications of Advanced Ceramics For Lithium Battery Production 1. Ceramic grinding ball  Alumina, zirconia and silicon nitride ceramics have high hardness and mechanical strength, they can be used to produce grinding ball for various grinding equipment, to grind lithium ore and chemical raw material into fine powder for further process.   2. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump a...
Learn More Send a Quote

Communications

Advanced ceramic materials have high hardness, good wear resistance, high temperature and corrosion resistance, good thermal conductivity, good insulation and no magnetic interference, with high surface precision after processing, stable optical performance. They are widely used in the communication field to manufacture components in various communication device, performance is significantly improvded compared with traditional products, also the service life is much longer.   Applications of Advanced Ceramics For Communication Field 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and silicon carbide ceramics have good thermal conductivity, high temperature and corrosion resistance, they can be used to manufacture the substrate of communication module for various electr...
Learn More Send a Quote

Military Protection

Advanced ceramic materials have high hardness, good wear resistance, low density and good corrosion resistance, they can be used to produce liner of body armor and protective armor of vehicles, aircraft and ships. Weight is light, resistant to the kinetic energy of bullets or shells, protective effect is good, and can be used in harsh environments for a long time.   Applications of Advanced Ceramics For Military Protection   Ceramic armor liner    Silicon carbide and alumina ceramics have good wear resistance and high mechnical strength, also with light weigh, they can be used to produce armor liner for body armor, or protective amor of military vehicles, aircraft, ships.
Learn More Send a Quote

Laboratory Equipment and Instruments

Advanced ceramic materials have high hardness and good wear resistance, good corrosion resistance and high temperature resistance, also with high mechanical strength, they are widely used to produce laboratory equipment and instruments,  for various physical, chemical and biotic experiments. They are conductive to get accurate and reliable experiment result, also have stable performance and and long service life.   Technical Ceramics For Laboratory   1. Crucible Alumina, zirconia, silicon nitride and quartz have high temperature resistance and good thermal shock resistance, also resistant to acid and alkali corrosion, they can be used to produce crucbile for material thermal analysis and burning experiments.    2. Quartz cuvette Quartz cuvette has good light transm...
Learn More Send a Quote

Properties of BeO Ceramics

Beryllium oxide ceramic is a kind of high thermal conductive advanced industrial ceramic, to meet the needs of different fields, appropriate purity, sintering additive and process can be selected to achieve required properties.



High Thermal Conductivity

Up to 310W/(℃*m), working temperature can be up to 2000℃, also the thermal shock resistance is good.





Good Electric Insulation

Its electrical resistivity is higher than 1014Ω*cm,  breakdown voltage is larger than 20KV/mm, so it has large current carrying capacity.





Low dielectric constant and dielectric loss

This specific property ensure BeO can reduce the energy loss during signal transmission.





Good Erosion Resistance

BeO ceramic can resist erosion of various alkali and molten metals, corrosion resistance and wettability resistance are very good.

Technical Data of Beryllium Oxide Materials

BeO Type Be-97 Be-99
BeO purity ≧97% ≧99%
Density (g/cm3) ≧2.85 ≧2.85
Flexture strength (MPa) 170 190
Hardness (Hv) 1200 1250
Fracture toughness (MPa*m1/2) 2.5-3.5 2.5-3.5
Maximum working temperature (℃) 1600 1650
Thermal conductivity (W/m*K) 220-240 260-310
Thermal expansion coefficient (/℃) 7~8.5*10-6 7~8.5*10-6
Dielectric Constant (at 1MHz) 6.5 7
Breakdown Voltage (kV/mm) 15 20



*This chart illustrates the standard characteristics of the beryllium oxide materials commonly employed in the manufacturing of our beryllium oxide products and parts. Please be aware that the attributes of customized beryllium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.



Q：What is the thermal conductivity of Beryllium Oxide Ceramic?
A：Beryllium Oxide Ceramic has exceptionally high thermal conductivity, typically around 260W/m*K, which is comparable to metals like aluminum. This makes it ideal for applications requiring efficient heat dissipation, such as in high-power electronic devices.



Q：Is Beryllium Oxide Ceramic safe to handle and use?
A：While Beryllium Oxide Ceramic itself is safe to use in its solid form, it is important to handle it with care during manufacturing or machining processes because inhaling beryllium dust can be hazardous. Proper safety protocols, including dust control and protective equipment, are essential.



Q：What are the electrical insulation properties of Beryllium Oxide Ceramic?
A： Beryllium Oxide Ceramic is an excellent electrical insulator, with a high dielectric strength and low dielectric constant, making it suitable for high-frequency and high-voltage electronic applications.



Q：How does Beryllium Oxide Ceramic perform in high-temperature applications?
A：Beryllium Oxide Ceramic can operate at temperatures up to 1800℃, offering excellent thermal stability and maintaining its properties under extreme conditions, making it suitable for use in high-temperature furnaces and aerospace components.



Q：What is the chemical resistance of Beryllium Oxide Ceramic?
A：Beryllium Oxide Ceramic is highly resistant to most chemicals, including acids and alkalis, which allows it to perform well in chemically corrosive environments. However, it may react with certain strong acids under specific conditions.

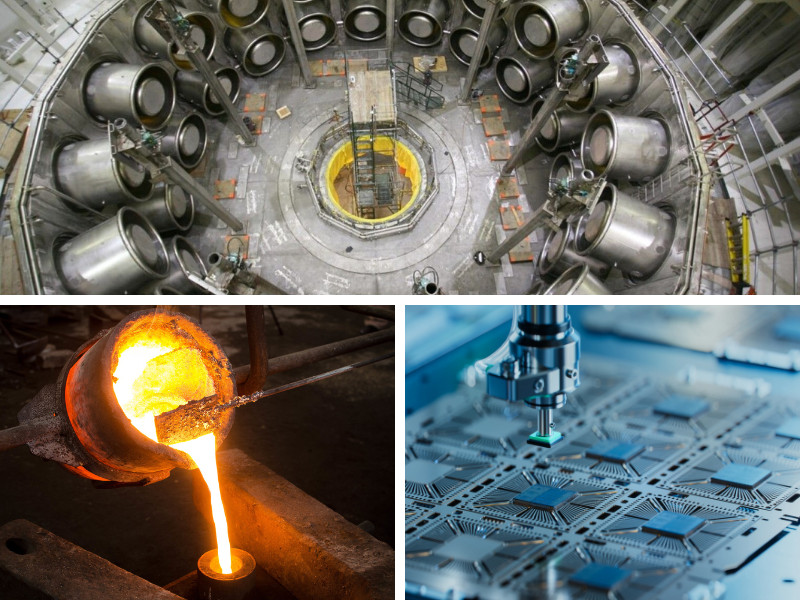

Main Applications of BeO Ceramics

1. Semiconductor industry

Beryllium oxide ceramic substrate has the highest thermal conductivity among ceramic substrates, also with good corrosion and high temperature resistance,  it is widely used in semiconductor parts and integrated circuits, including integrated circuit (IC), high frequency radio frequency (RF) devices, high power LED,  piezoelectric components, photoelectric components, sensors, MEMS and other micro electronic devices;



2. Noble metal metallurgy

Beryllium oxide ceramic has high temperature resistance, and good corrosion resistance to molten metals, it can be used to produce crucibles for various noble metal melting, including beryllium, gold, silver, platinum, uranium, etc.



3. Nuclear reactor

Beryllium oxide ceramic has high neutron scattering cross section, and good stability under irradiation, it can be used to produce neutron moderator for nuclear reactors, with stable performance even under high temperature condition.
