Nitride bonded silicon carbide ceramic has the characteristics of high temperature resistance, high hardness, good wear resistance, corrosion resistance, light weight, good thermal conductivity, good thermal shock resistance and oxidation resistance, it is widely used in mechanical engineering, semiconductor, petrochemical, electric power, environmental protection and energy saving and other industries.
| view all NBSIC ceramic products |

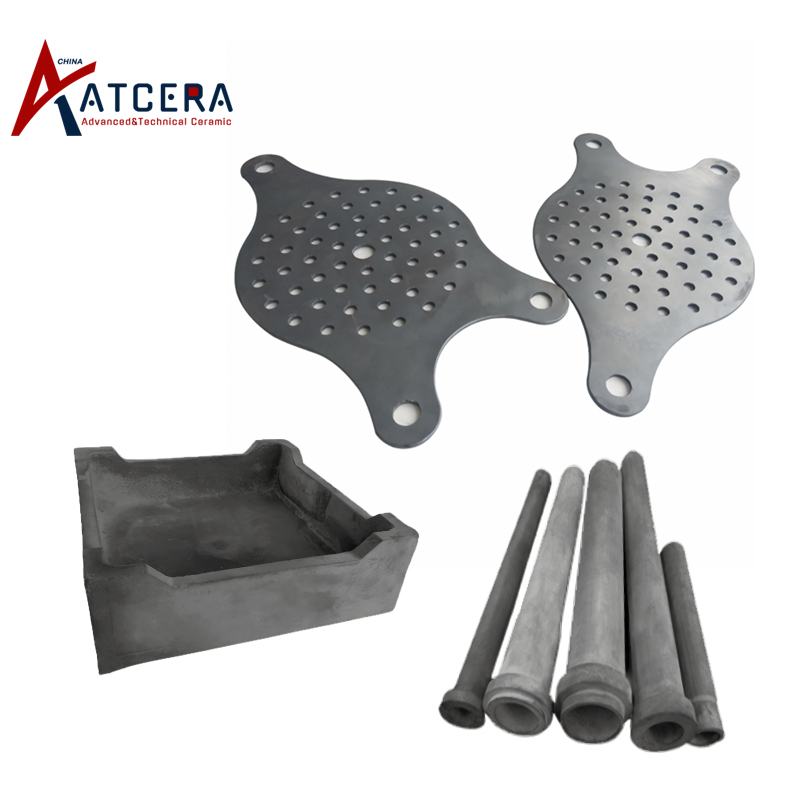

As our important product, ATCERA can produce various silicon carbide NBSiC ceramic tubes, plates and mechnical parts.
To ensure product performance, we select high purity and granularity homogenuous powder, and stabilizer powder, apply the most appropriate forming method and sintering temperature, to form dense and uniform ceramic structure, then advanced machining processes are used to get dimension with high accuracy and good surface finish.
If you have any product request, or need technical support, please do not hesitate to contact us.
| Material | Nitride Bonded Silicon Carbide (NBSiC) |
| SiC (W%) | 80 |
| Free SiC (W%) | 0 |
| Si₃N₄ (W%) | 20 |
| Maximum Working Temperature (℃) | ≤1550 |
| Density (g/cm3) | 2.8 |
| Porosity (%) | 12 |
| Bending Strength (Mpa) | 160(20℃) |
| 180(1200℃) | |
| Modulus of Elasticity (Gpa) | 1200 |
| Thermal conductivity (W/m*K) | 15(1000℃) |
| Thermal expansion coefficient (K-1×10-6) | 5 |
| Hardness (kg/mm²) | 2600 |
*This chart illustrates the standard characteristics of the nitride bonded silicon carbide materials commonly employed in the manufacturing of our nbsic products and parts. Please be aware that the attributes of customized nbsic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
Nitride-bonded silicon carbide is formed with silicon carbide as the main raw material, adding a certain proportion of silicon powder, and sintering in nitrogen environment at high temperature.
It has the characteristics of high temperature resistance, good thermal conductivity, strong oxidation resistance, the maximum use temperature of 1500℃,also with long service life and high mechanical strength.
NBSIC has excellent thermal shock resistance and corrosion resistance, with high strength and good air tightness.
It has high temperature resistance, good thermal shock resistance, acid and alkali corrosion resistance, good thermal shock resistance.

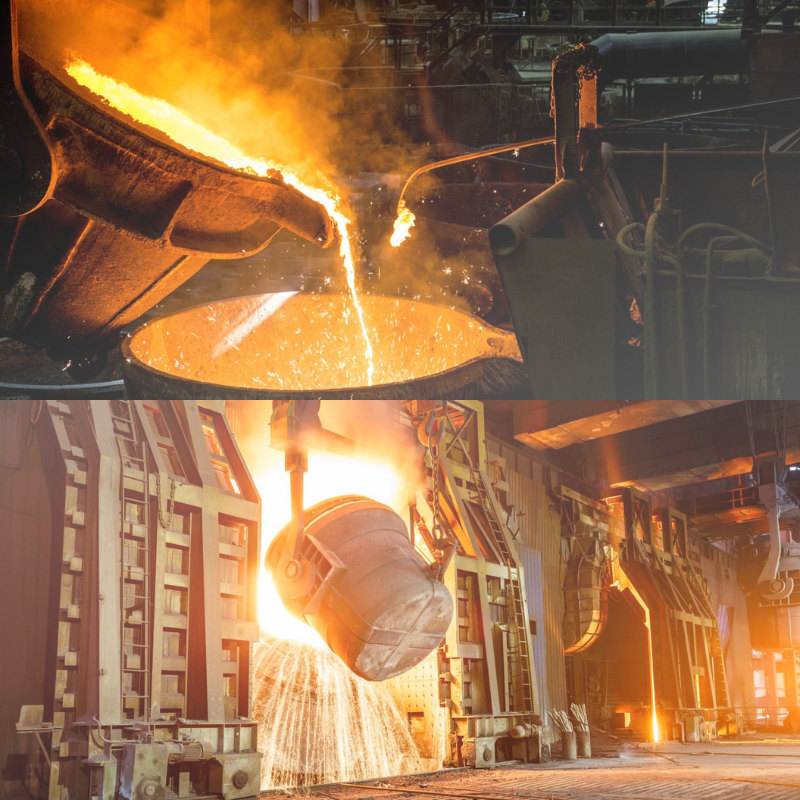

1. Casting Industry

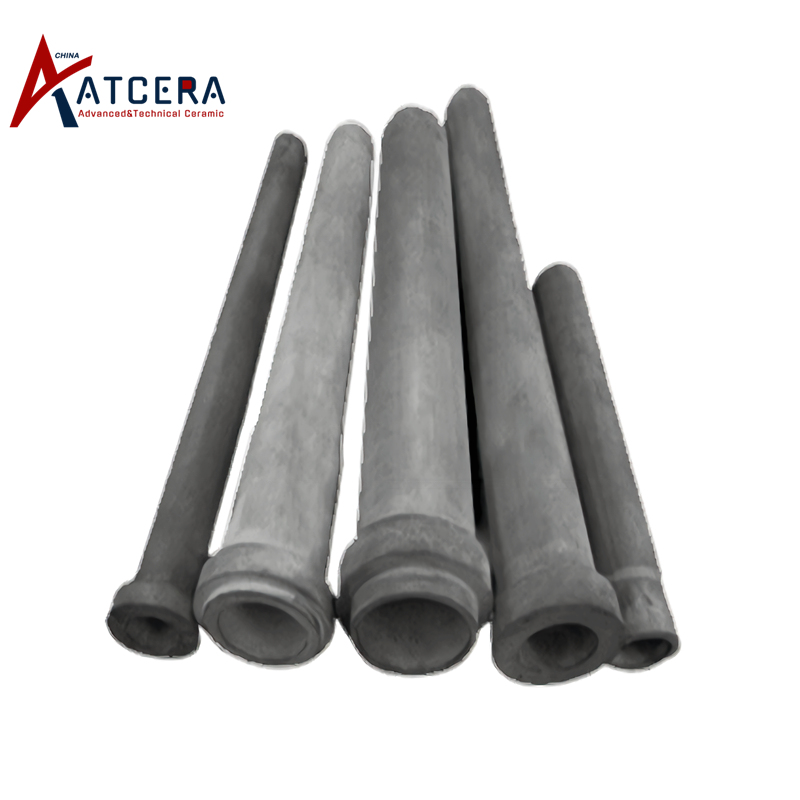

Nitride-bonded silicon carbide riser tube is mainly used in low pressure casting machine, to dilver molten aluminum liquid into the mold cavity for casting, to produce automobile, motorcycle wheel hub and other aluminum alloy parts.

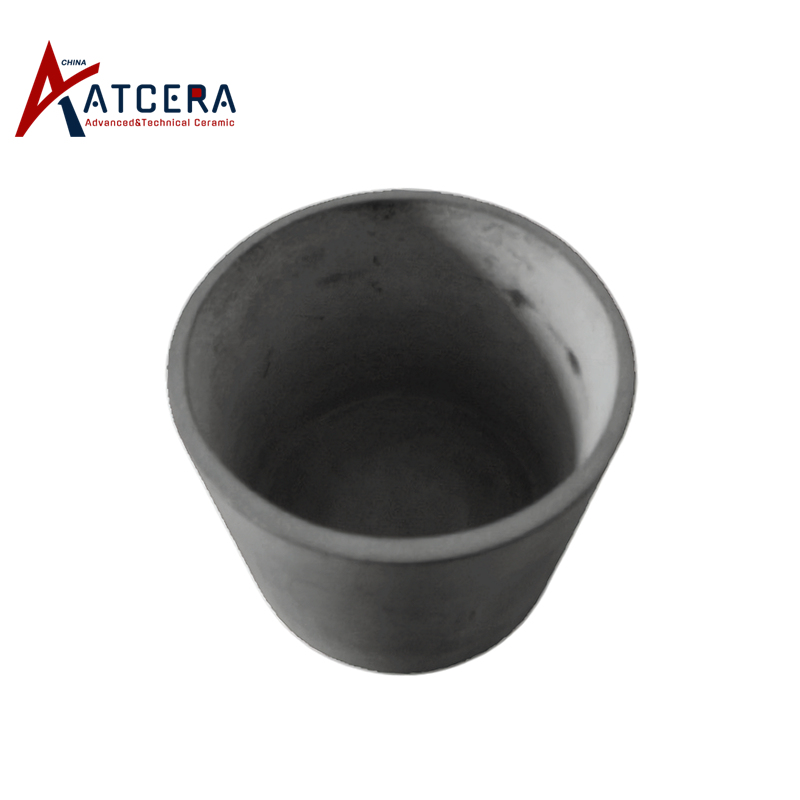

2. Crucible
NBSiC crucible is widely used in chemical analysis experiments at high temperatures and industrial material testing and analysis, sed to calcine and melt various materials, including metals, ceramics, glass, etc.
3. Refractory Environment

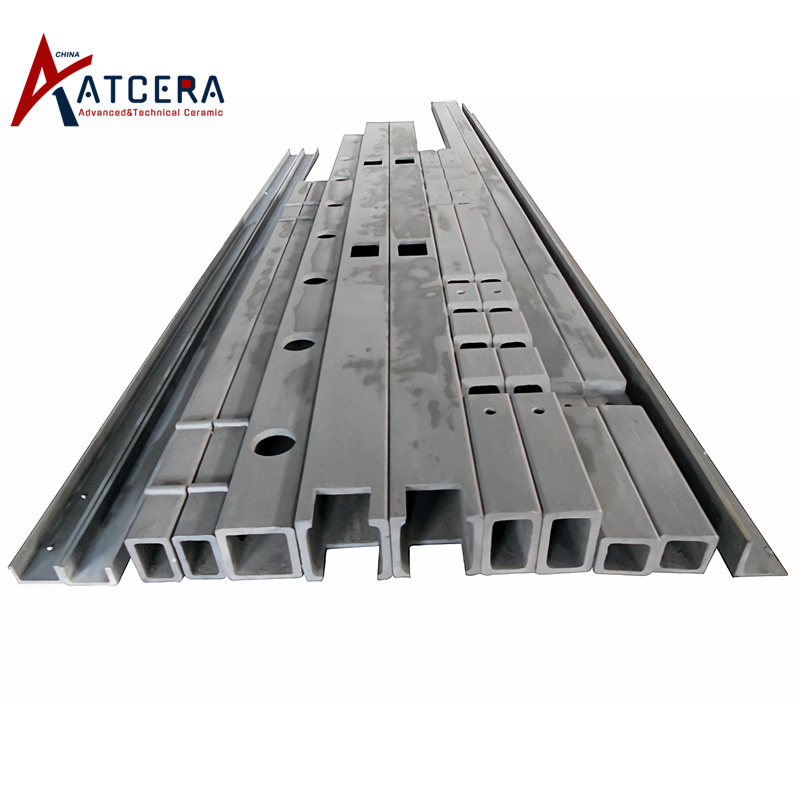

NBSiC refractory plate and NBSiC beam are used in a variety of ceramic sintering kilns, including tunnel kiln, shuttle kiln, roller kiln, push plate kiln, the function is to support the structure of the kiln and loading the ceramic that needs to be sintered.
