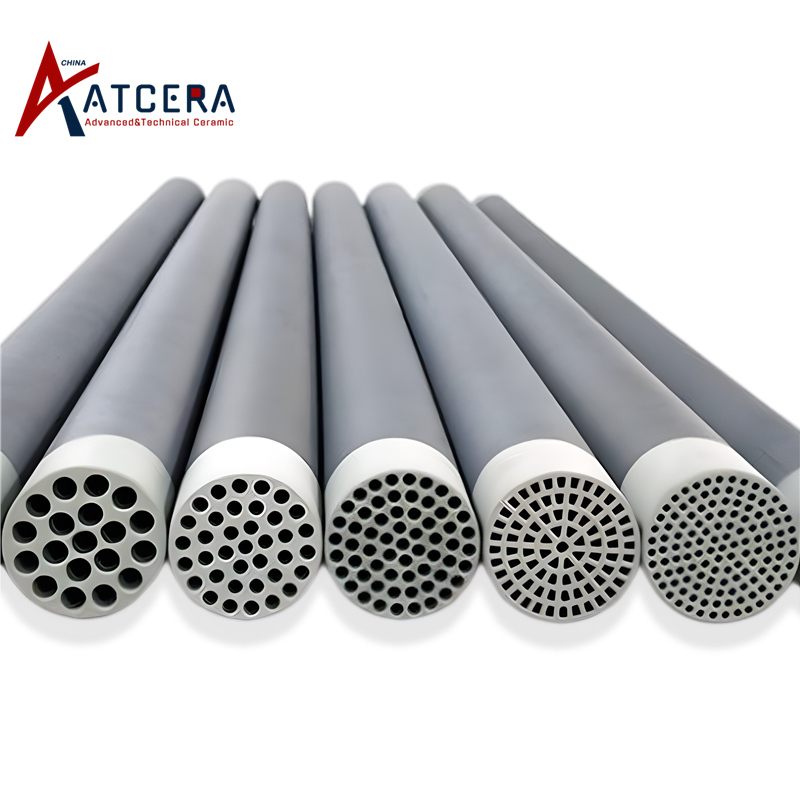

Ceramic Membrane Tubes

ATCERA can provide various materials of ceramic membrane tubes, including alumina membrane tube and silicon carbide membrane tube, they can be widely used in chemical industry,  food processing and beverage industry, biomedical field,  environmental protection and other industries.

Ceramic Membrane Tubes By Material

Integrated performance of alumina is comprehensive, it's also the most widely used ceramic membrane tube; view more





silicon carbide membrane tube has lower density and better thermal shock resistance. view more

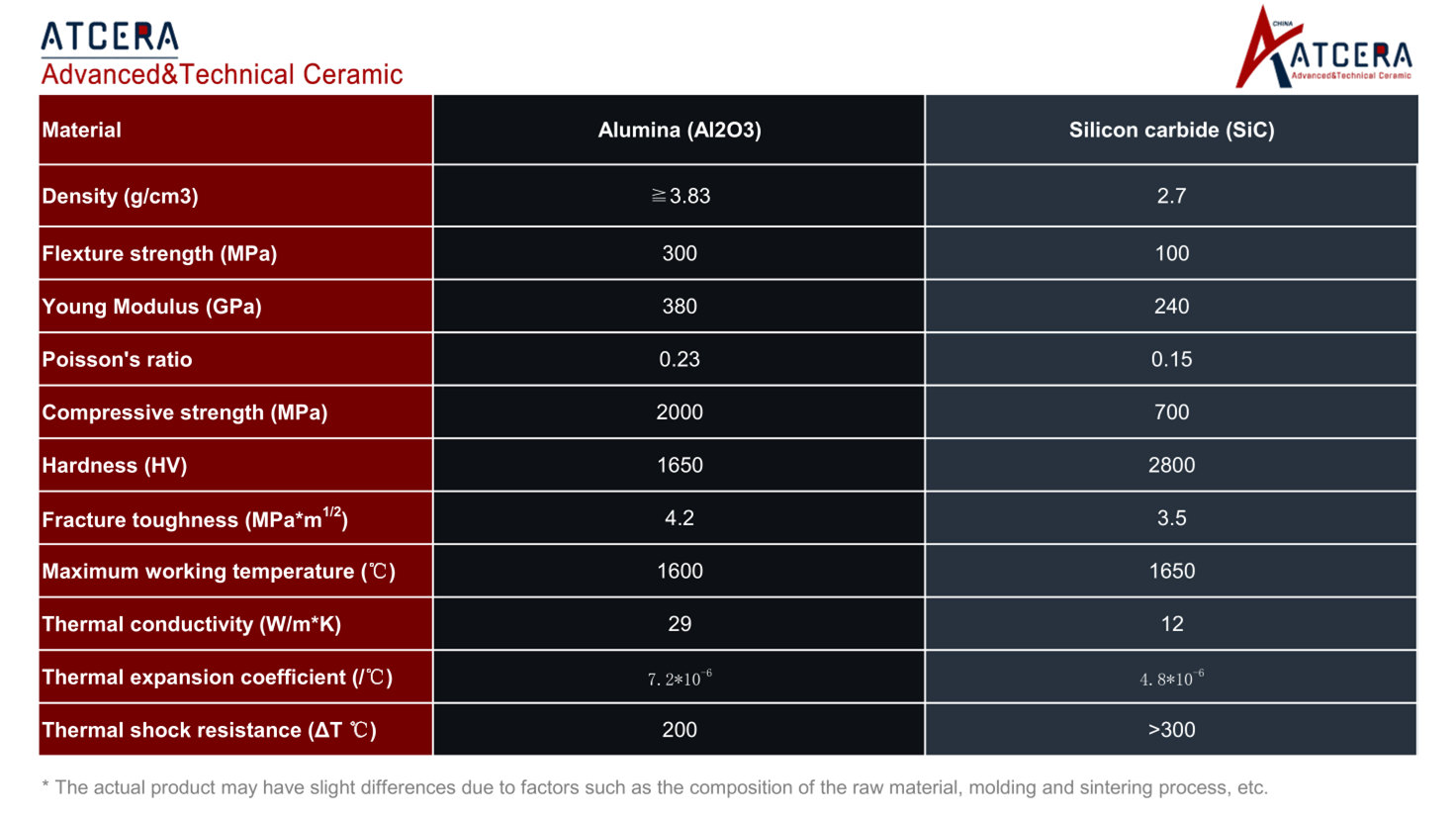

Basic performance parameters of ceramic membrane tubes provided by ATCERA are as follows (the actual product may have slight differences due to factors such as the composition of the raw material, molding and sintering process, etc.).

data sheet of ceramic membrane tubes



Q:What materials are commonly used for manufacturing ceramic membrane tubes?
A:Ceramic membrane tubes are typically made from materials such as Alumina (Al₂O₃), Silicon Carbide (SiC), Zirconia (ZrO₂), and Titanium Dioxide (TiO₂). These materials are selected for their high chemical resistance, mechanical strength, and ability to withstand extreme temperatures.



Q:What are the typical applications of ceramic membrane tubes?
A:Ceramic membrane tubes are used in a variety of filtration and separation processes, including water treatment, wastewater management, chemical processing, and food and beverage production. They are especially useful in applications requiring the removal of fine particles, bacteria, and other contaminants from liquids.



Q:How does the pore size of ceramic membrane tubes affect their performance?
A: The pore size of ceramic membrane tubes is critical to their performance in filtration applications. Smaller pores provide finer filtration, capturing smaller particles, while larger pores allow for faster flow rates but filter out larger particles. The selection of pore size depends on the specific filtration requirements of the application.



Q:What are the advantages of ceramic membrane tubes over polymeric membranes?
A:Ceramic membrane tubes offer several advantages over polymeric membranes, including higher thermal and chemical stability, longer lifespan, resistance to fouling, and the ability to operate at higher pressures and temperatures. These properties make ceramic membranes more suitable for harsh industrial environments.



Q:Can ceramic membrane tubes be used in high-temperature processes?
A:Yes, ceramic membrane tubes can be used in high-temperature processes, typically up to 600°C or higher, depending on the material. Their thermal stability makes them ideal for applications that involve hot fluids or gases, such as in certain chemical processing or food production scenarios.

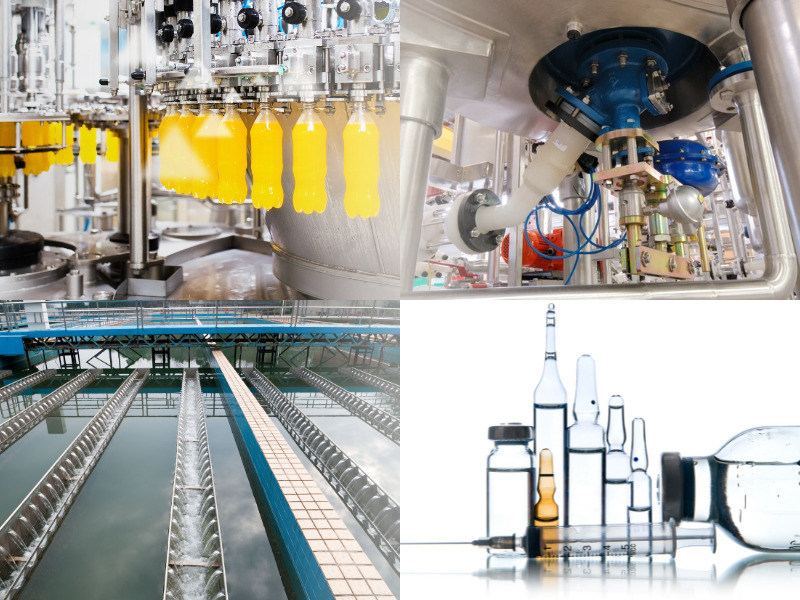

Main Applications of Ceramic Membrane Tubes

1. Food and beverage industry

Ceramic membrane tubes can be used in milk filtration, juice concentration, natural plant extract, wine/tea beverage production, etc.

2. Chemical industry

Ceramic membrane tubes are widely used for solid-liquid separation, gas-solid separation, and organics separation and purification, such as benzene, phenol, alcohol, various pigments.

3. Environmental protection

Ceramic membrane tubes can be used for purifying oily wastewater, textile wastewater, urban sewage and paper-making wastewater, as well as high temperature waste gas purification.

4. Biomedical field

Ceramic membrane tubes can be used to seperate particles, bacteria and macromolecular impurities in the medicine, and decolor medicine, or refine and concentrate medicine liquid, extract the active ingredients, effective monomers, etc.

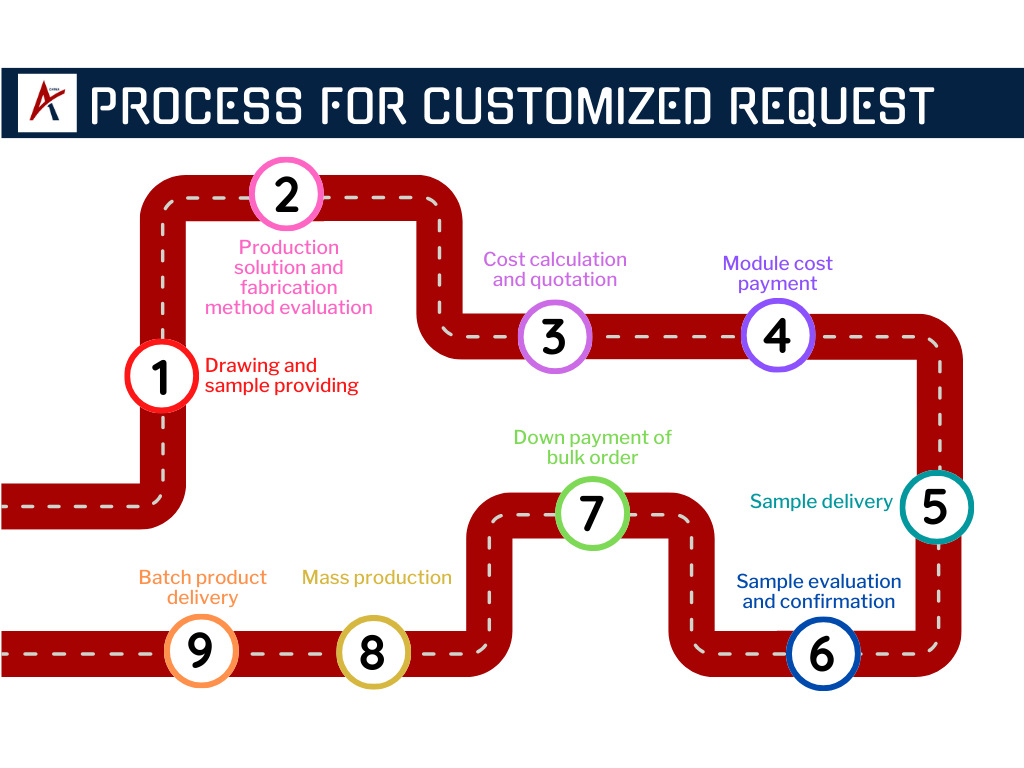

Process for Customized Request

⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Support

In addition to current standard products, ATCERA can also customize solution according to the user's application scenarios and using parameters, to provide customers with the most optimized product and service.

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
