B4C Plates

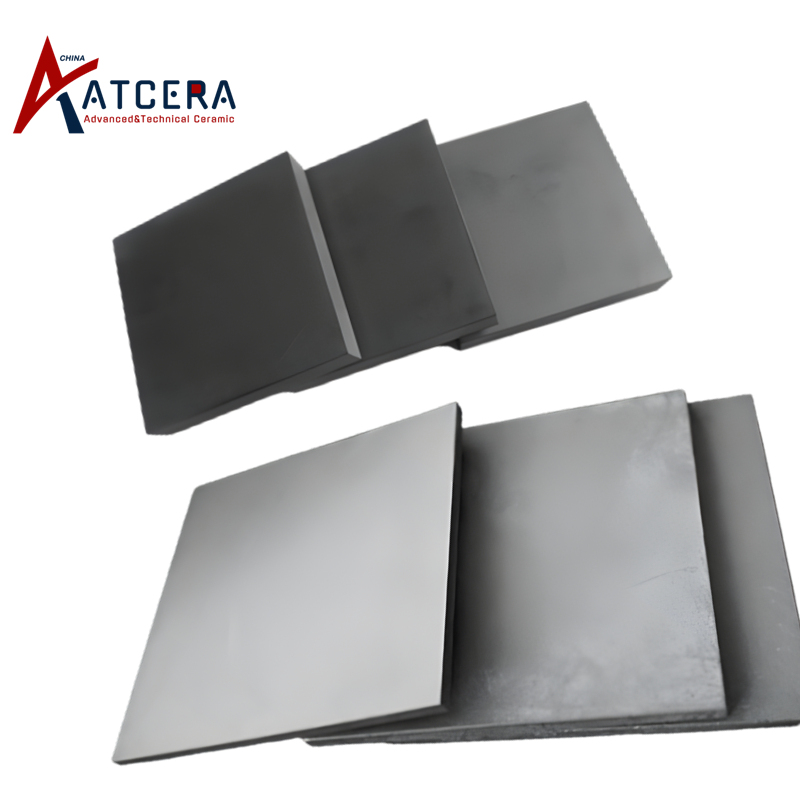

Boron Carbide Plates

Boron carbide ceramic plate is made of boron carbide as raw material after forming high temperature sintering, it has high temperature and good corrosion resistance, good wear resistance, also the density is low and weight is light. It is widely used as wear-resistant and high temperature protection plate for machinery, metallurgy, chemical industry, aerospace and other industries, also can be used as radiation protection shielding material for nuclear energy industry.

view all boron carbide plates

Send Inquiry Now All Products

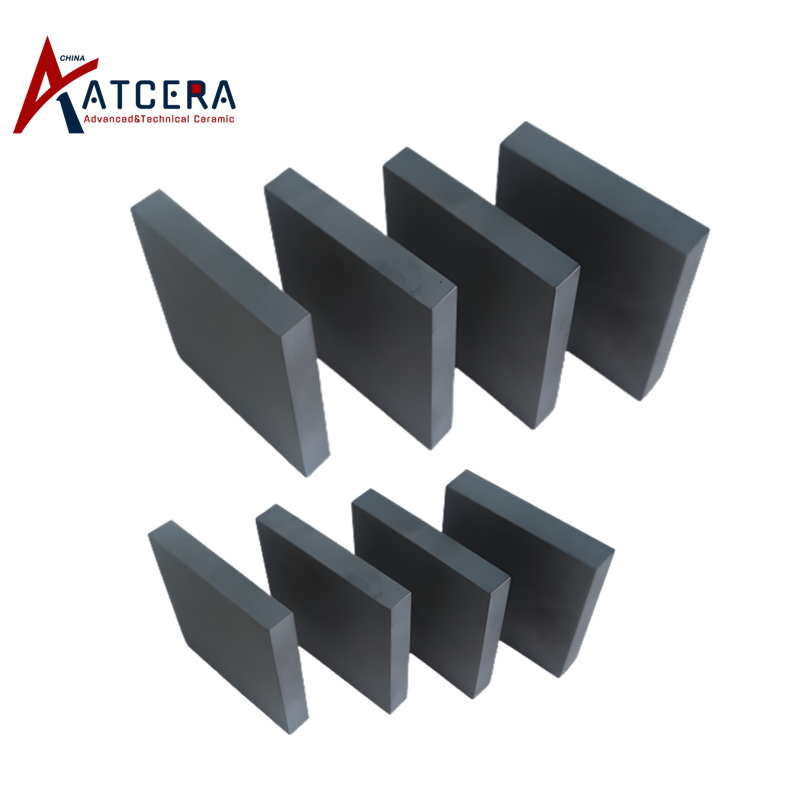

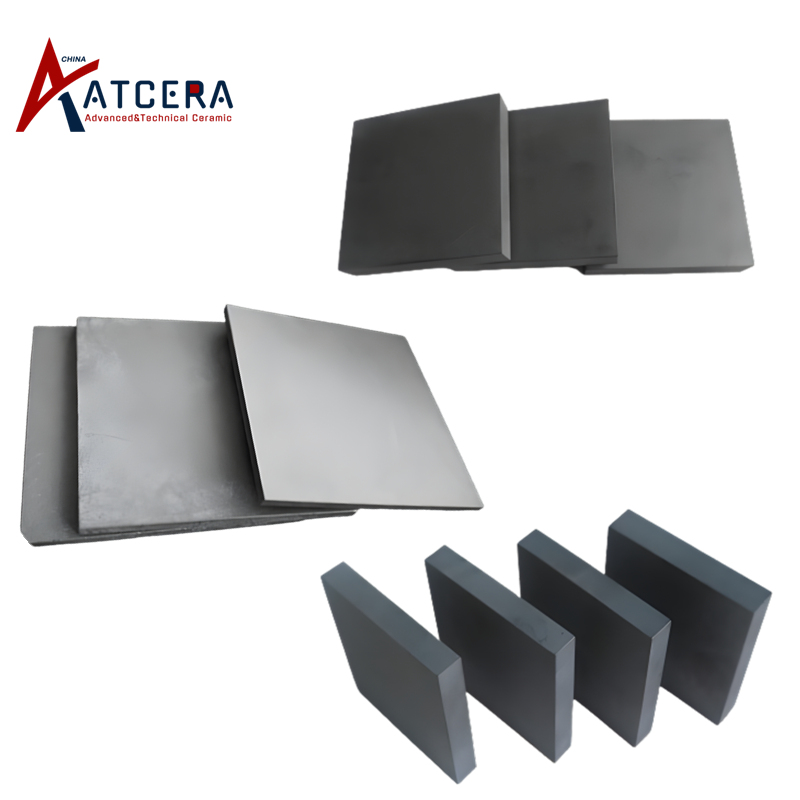

Boron Carbide Plate

Properties of B4C Tuebs

⩟ Boron carbide ceramic plate has high hardness, very good wear resistance, low density, light weight, also elastic modulus is large.

⩟ Boron carbide plate has good corrosion resistance, good chemical stability.

⩟ It has high temperature resistance, small thermal expansion coefficient,can keep stable mechanical performance at high temperature.

⩟ The neutron absorption capacity of boron carbide is very strong.

All Products

Technical Data Sheet

Technical Data of Boron Carbide Materials

		Index Data
		B₄C
Hardness	GPa	≥24
Porosity Rate	%	＜0.2
Density	g/cm³	＞2.44
Compressive Strength	MPa	2500
Flexural Strength	MPa	480
Coefficient of Heat Expansion	10^-6/℃	4
Thermal Conductivity	W/(M·K)	40
Content of B₄C	%	≥90
Elastic Modulus	GPa	450
Operating Temperature	℃	1400

*This chart illustrates the standard characteristics of the boron carbide materials commonly employed in the manufacturing of our B₄C products and parts. Please be aware that the attributes of customized boron carbide products and parts may vary depending on the specific processes involved.

Application Fields of B4C Tuebs

Boron carbide ceramic plate is widely used as wear-resistant and high temperature protection plate for machinery, metallurgy, chemical industry, aerospace and other industries, also can be used as radiation protection shielding material for nuclear energy industry.

All Products

Customized Services

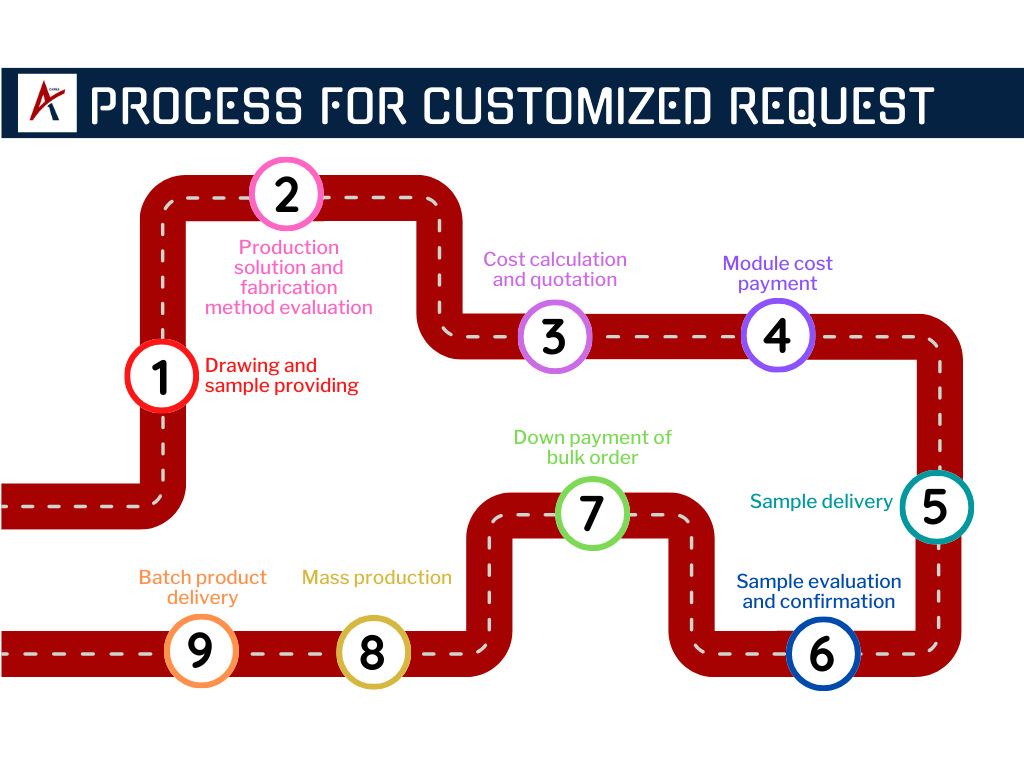

Process for Customized Request

⩟ Drawing and sample providing

⩟ Production solution and fabrication method evaluation

⩟ Cost calculation and quotation

⩟ Module cost payment

⩟ Sample delivery

⩟ Sample evaluation and confirmation

⩟ Down payment of bulk order

⩟ Mass production

⩟ Batch product delivery

Send a Quick Inquiry Now All Products

Why Choose Boron Carbide Tubes From ATcera

Extensive Supplier Expertise

Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.

Sophisticated Production Infrastructure

Advanced processing equipment, and strict quality control system.

Assured Batch Supply

Stable production capacity and supply chain, batch delivery cab be well guaranteed.

Cost-Effective Excellence

High cost performance, and perfect after-sales service.

Ask a Free Quote All Products

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
