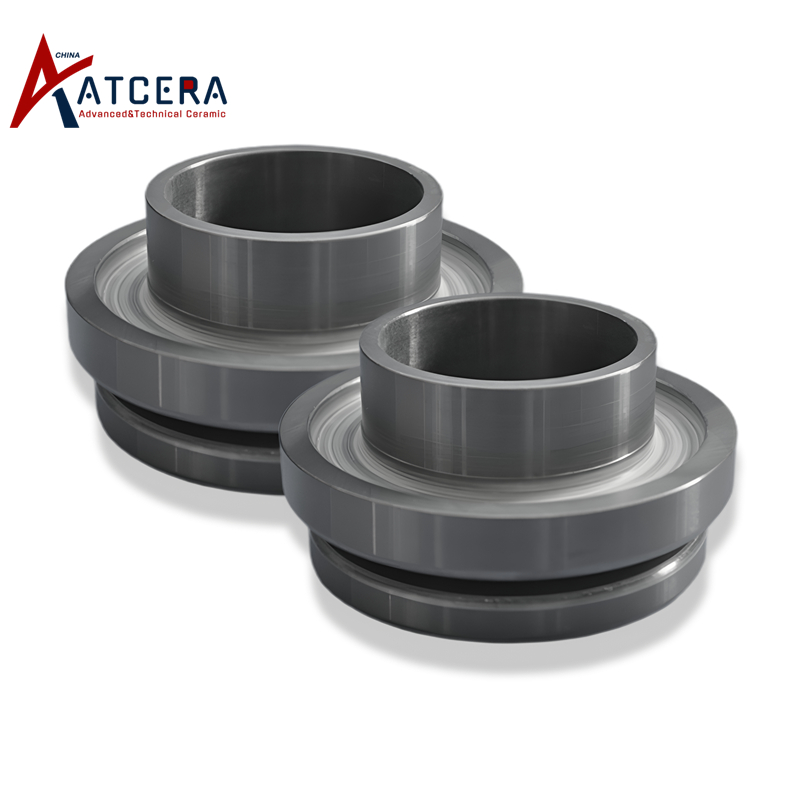

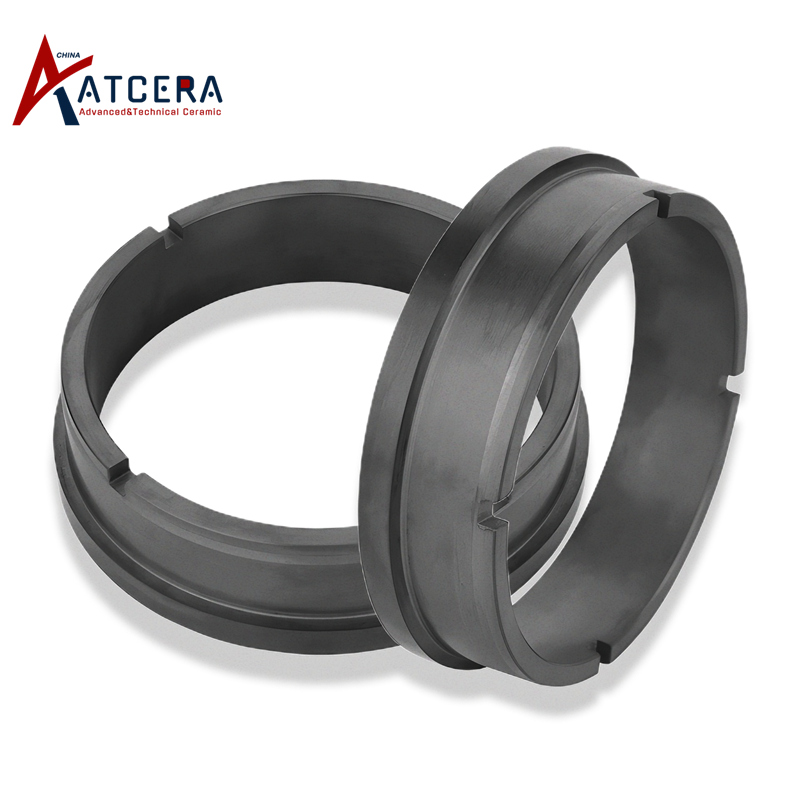

ATCeramic can provide silicon nitride rings, they can be used as sealing and insulation parts, widely used in mechanical engineering, petrochemical, metallurgy, power generation plant, photovoltaic cell production and other industries.
| view all silicon nitirde rings |
Silicon nitride is a kind of widely used advanced industrial ceramic, to meet the needs of different fields, raw material composition and appropriate sintering process can be selected, and required properties are achieved.
⩟ High strength
Strength of silicon nitride is high, flexture strength is up to 900MPa, also the fracture toughness is high, so it can be used for application with heavy load and mechanical shock;
⩟ Corrosion resistance
Silicon nitride material has good corrosion resistance, it does not react with various acids, alkalis, salt or other chemical agents, without the risk of failure caused by corrosion;
⩟ High temperature resistance
The normal use temperature of the silicon nitride ceramic can reach higher than 1100℃, available for the requirements of high temperature environment;
⩟ Good wear resistance
Silicon nitride material has high hardness, which is up to 16GPa, so the wear resistance is very good and service life is long;
⩟ Good thermal shock resistance
Silicon nitride has small thermal expansion, and high termal conductivity, thermal shock resistance is very good, up to 550℃.
| Si3N4 Type | Gas pressure sintering Si3N4 | Hot pressing sintering Si3N4 |
| Density (g/cm3) | 3.2 | 3.3 |
| Flexture strength (MPa) | 700 | 900 |
| Young Modulus (GPa) | 300 | 300 |
| Poisson's ratio | 0.25 | 0.28 |
| Compressive strength (MPa) | 2500 | 3000 |
| Hardness (GPa) | 15 | 16 |
| Fracture toughness (MPa*m1/2) | 5~7 | 6~8 |
| Maximum working temperature (℃) | 1100 | 1300 |
| Thermal conductivity (W/m*K) | 20 | 25 |
| Thermal expansion coefficient (/℃) | 3*10-6 | 3.1*10-6 |
| Thermal shock resistance (ΔT ℃) | 550 | 800 |
*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
1. Chemical equipment
Silicon nitride seal rings have good corrosion resistance, performance is not affected by acid, alkali and other chemicals, can be used in a variety of chemical equipment;
2. Mining and engineering machinery
Silicon nitride sealing rings material high hardness, good wear resistance, and high compressive strength, can be used for high load, high dust environment, replacement cycle is long ;
3. Metal smelting furnace and other high temperature equipment
Silicon nitride sealing rings have good high temperature resistance, thermal expansion is small and thermal stress to equipment is small, which can effectively ensure the reliability of the equipment.
4. Semiconductor and photovoltaic cell manufacturing
Silicon nitride insulation rings are one of the key components in polysilicon reduction furnaces, which is used in photovoltaic cells and semiconductor production process.

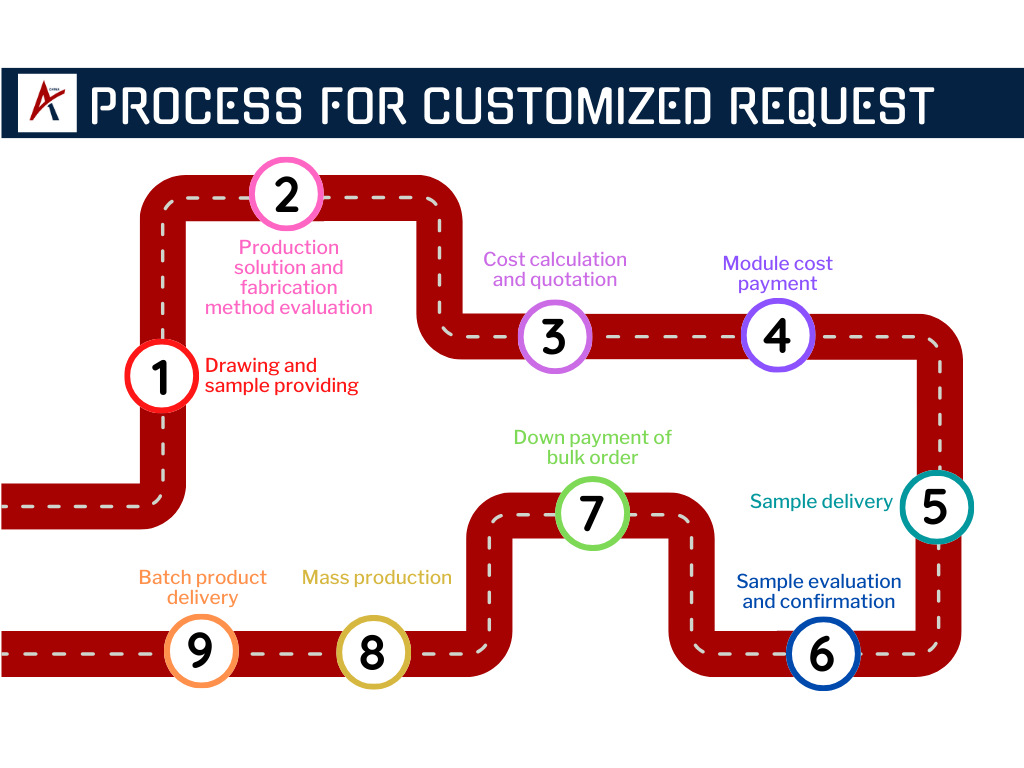

Process for Customized Request
⩟ Drawing and sample providing
⩟ Production solution and fabrication method evaluation
⩟ Cost calculation and quotation
⩟ Module cost payment
⩟ Sample delivery
⩟ Sample evaluation and confirmation
⩟ Down payment of bulk order
⩟ Mass production
⩟ Batch product delivery
Extensive Supplier Expertise
Over 20 years experience in the field of advanced industrial ceramics, ATCERA is able to provide professional technical support and the most optimized solution.
Sophisticated Production Infrastructure
Advanced processing equipment, and strict quality control system.
Assured Batch Supply
Stable production capacity and supply chain, batch delivery cab be well guaranteed.
Cost-Effective Excellence
High cost performance, and perfect after-sales service.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
