Fused silica products

Quartz Glass

Quartz glass is made of high purity silica as the raw material, after forming and sintering process (or arc fusing method) to obtain a stable crystalline phase structure, it has the characteristics of high temperature resistance, excellent optical performance, good corrosion resistance,  good thermal shock resistance and oxidation resistance, it is widely used to produce crucbile, optical instruments, devices for semiconductor manufacture. Material composition and fabrication process have significant influence to the quartz performance, according to the application scenario and parameter requirements, material composition and  appropriate fabrication process can be selected.



view all quartz glass products
Send Inquiry Now All Products

Quartz Glass

You are in:

/ Home / Quartz Glass

Quartz By Types

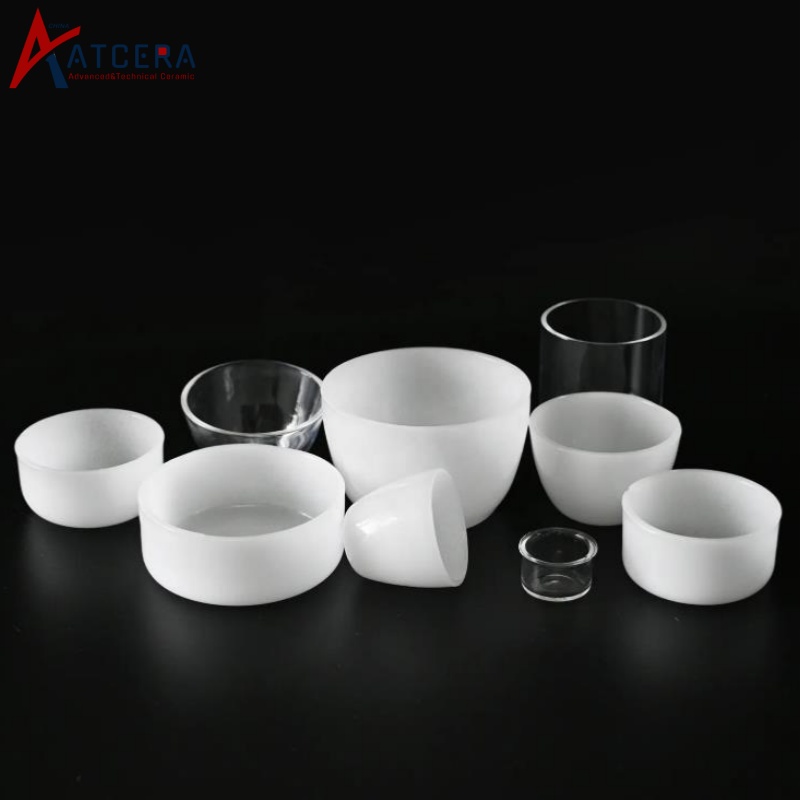

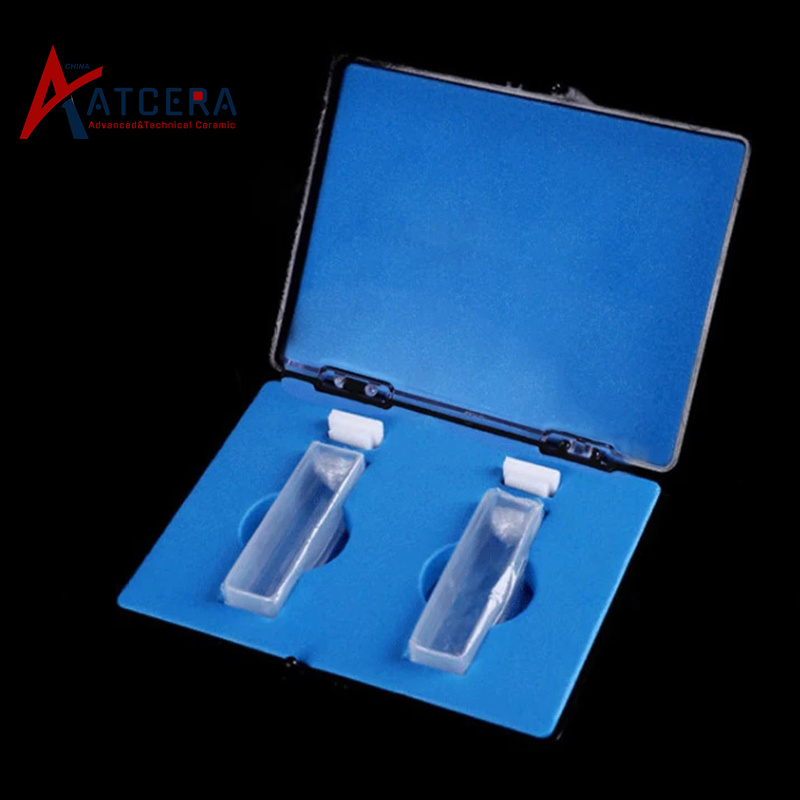

As our important product, ATCERA can produce various quartz crucible, plate, rod, cuvette and other components for semiconductor production process. To ensure product performance, we select high purity material, apply the most appropriate fabrication process, to form dense and uniform ceramic structure,  then advanced machining processes are used to get dimension with high accuracy and good surface finish. If you have any quartz product request, or need technical support, please do not hesitate to contact us.

Advanced Ceramic By Applications

Advanced ceramics play a pivotal role in various industries, offering a unique combination of exceptional mechanical, thermal, and electrical properties. Unlike traditional ceramics, advanced ceramics are engineered to deliver superior performance in demanding applications. These materials, often based on non-metallic compounds, exhibit high hardness, wear resistance, and corrosion resistance, making them indispensable in a wide range of industrial sectors.

Semiconductor

Electronics and Electricity

Mechanical Parts

Petrochemical Industry

Food Processing

Metallurgy Industry

Photovoltaic Cell Industry

Biological and Medical

Lithium Battery Production

Communications

Military Protection

Laboratory Equipment and Instruments

Semiconductor

Advanced ceramics, as a kind of non-metallic material with excellent physical and chemical properties, including good electrical insulation performance, high hardness, good wear resistance, high temperature and corrosion resistance, good heat dissipation performance, they have a wide range of applications in the semiconductor industry, such as high-performance substrates, electronic component package, heat sink, and semiconductor production equipment parts, etc. The performance and production efficiency of semiconductor products have been significantly improved compared with traditional products, meeting the needs of the rapid development of the industry.   Applications of Advanced Ceramics For Semiconductor Industry 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and ...
Learn More Send a Quote

Electronics and Electricity

Advanced ceramics with its excellent electrical insulation performance, and they have a wide range of applications in the electronic and electrical industry, such as ceramic substrate, electric heater and ignitor, insulation ring, and electrical equipment components, etc., even under harsh environment like high temperature and corrosive substance, they can also keep stable performance for long time, to meet the requirements of high reliability.   Applications of Advanced Ceramics For Electronics & Electricity Industry 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and silicon carbide ceramics have good electrical insulation and thermal conductivity, they can be used to produce substrates for main board of electronic and electrical products.    2. Ceramic...
Learn More Send a Quote

Mechanical Parts

Advanced ceramic materials have high hardness, good wear resistance, high mechanical strength, and high temperature and corrosion resistance, they are widely used in the manufacture of various mechanical parts, such as pump, bearing, valve, shaft, plunger, cylinder, etc., with long service life, good reliability, can be applied to a variety of harsh working environments; they can also be used to manufacture processing tools, such as cutting tool, grinding pad, grinding ball and bead, etc., with wide range of applicable materials, high processing efficiency and precision, can effectively improve production efficiency.   Applications of Advanced Ceramics For Mechanical Parts 1. Ceramic pump Alumina and zirconia have high hardness, wear resistance is good, also with good corrosion resist...
Learn More Send a Quote

Petrochemical Industry

Advanced ceramic materials have good corrosion resistance and high temperature resistance, also with high mechanical strength, they are widely used to produce equipment and device for petroleum and chemical industries, for production processing and experimental anslysis, with stable performance and long service life.   Applications of Advanced Ceramics For Petrochemical Industry 1. Ceramic pipe system components Alumina, zirconia, silicon carbide and silicon nitride have good corrosion resistance and mechanical strength, they can be used to produce pipe system components, including pipe, pump, valve and sealing part.    2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good corrosion resistance, high temperature resistance, non-toxic, harmless and ...
Learn More Send a Quote

Food Processing

Advanced ceramic materials are non-toxic, harmless and pollution-free, also have good biological compatibility, they can be used to produce various production equipment for food processing, with high efficiency and stable performance, without any contamination.   Applications of Advanced Ceramics For Food Processing 1. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump and valve for food processing, including beverage, dairy products, spices, to control fluid flow and pressure in filling process.    2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good corrosion resistance, high temperature resistance, non-toxic, harmless and...
Learn More Send a Quote

Metallurgy Industry

Advanced ceramic materials have high temperature resistance, high hardness and good wear resistance, also with high mechanical strength, they are widely used to produce various equipment and device for metallurgical industry, for raw material preparation and smelting process, performance is stable and service life is long.    Applications of Advanced Ceramics For Metallurgy Industry 1. Ceramic grinding ball and bead Alumina, zirconia and silicon nitride ceramics have high hardness and mechanical strength, they can be used to produce grinding ball and bead for various grinding equipment, to grind ore and chemical raw material into fine powder for further process.   2. Ceramic heater Silicon carbide ans alumina ceramics have high temperature and good thermal shock resistance, ...
Learn More Send a Quote

Photovoltaic Cell Industry

Advanced ceramics have high hardness, good wear resistance, high temperature and corrosion resistance, also with high mechanical strength. They have a wide range of applications in the photovoltaic cell industry industry, such as high-performance substrate, crucible, vacuum chuck and other photovoltaic cell production equipment parts. The performance and production efficiency of photovoltaic cell have been significantly improved compared with traditional products, meeting the needs of the rapid development of the industry.   Applications of Advanced Ceramics For Photovoltaic Cell Industry 1. Ceramic substrate Silicon carbide has has a wide energy gap, high thermal stability, and good thermal conductivity, it can be used to produce substrate for photovoltaic cell.    2. Ceram...
Learn More Send a Quote

Biological and Medical

Advanced ceramic materials are non-toxic, harmless and pollution-free, also have good biological compatibility, they can be used to produce various production equipment for biological and medical industries, especially in the pharmaceutical process, with high efficiency and stable performance, without any contamination to the medicine.   Applications of Advanced Ceramics For Biological and Medical Industries 1. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump and valve for biological reagent production and pharmaceutical processing, to control fluid flow in filling process.   2. Ceramic membrane tube Alumina, zirconia and silicon carbide ceramics have good...
Learn More Send a Quote

Lithium Battery Production

Advanced ceramic materials have high hardness and wear resistance, good corrosion resistance and high mechanical strength, they are widely used to produce equipment and device for lithium battery production, for raw material preparation and refinement process.   Applications of Advanced Ceramics For Lithium Battery Production 1. Ceramic grinding ball  Alumina, zirconia and silicon nitride ceramics have high hardness and mechanical strength, they can be used to produce grinding ball for various grinding equipment, to grind lithium ore and chemical raw material into fine powder for further process.   2. Ceramic pump and valve Alumina and zirconia ceramics have good corrosion resistance and biological compatibility, also with high mechanical strength, they can be used to pump a...
Learn More Send a Quote

Communications

Advanced ceramic materials have high hardness, good wear resistance, high temperature and corrosion resistance, good thermal conductivity, good insulation and no magnetic interference, with high surface precision after processing, stable optical performance. They are widely used in the communication field to manufacture components in various communication device, performance is significantly improvded compared with traditional products, also the service life is much longer.   Applications of Advanced Ceramics For Communication Field 1. Ceramic substrate Alumina, silicon nitride, aluminum nitride and silicon carbide ceramics have good thermal conductivity, high temperature and corrosion resistance, they can be used to manufacture the substrate of communication module for various electr...
Learn More Send a Quote

Military Protection

Advanced ceramic materials have high hardness, good wear resistance, low density and good corrosion resistance, they can be used to produce liner of body armor and protective armor of vehicles, aircraft and ships. Weight is light, resistant to the kinetic energy of bullets or shells, protective effect is good, and can be used in harsh environments for a long time.   Applications of Advanced Ceramics For Military Protection   Ceramic armor liner    Silicon carbide and alumina ceramics have good wear resistance and high mechnical strength, also with light weigh, they can be used to produce armor liner for body armor, or protective amor of military vehicles, aircraft, ships.
Learn More Send a Quote

Laboratory Equipment and Instruments

Advanced ceramic materials have high hardness and good wear resistance, good corrosion resistance and high temperature resistance, also with high mechanical strength, they are widely used to produce laboratory equipment and instruments,  for various physical, chemical and biotic experiments. They are conductive to get accurate and reliable experiment result, also have stable performance and and long service life.   Technical Ceramics For Laboratory   1. Crucible Alumina, zirconia, silicon nitride and quartz have high temperature resistance and good thermal shock resistance, also resistant to acid and alkali corrosion, they can be used to produce crucbile for material thermal analysis and burning experiments.    2. Quartz cuvette Quartz cuvette has good light transm...
Learn More Send a Quote

Properties of Quartz

As a kind of widely used non-metal material,  quartz has the following features, so it is used to produce various optical products, and instruments for semiconductor and solar cell production.



1. High temperature resistance, quartz softening point temperature is about 1730℃, it can be used at 1100℃ for a long time, short time maximum use temperature up to higher than 1350℃.



2. Quartz rod has good light transmission and stable optical performance, the transparent range is wide, which is from 120nm-4500nm for normal pure quartz, and there is no absorption peak in this spectrum range. Also filter UV quartz can be produced by adding some additive into the raw material, to effectively block UV radiation (wavelength 190-320nm).



3. Quartz has good corrosion resistance, can contact directly with various acids, alkalis and chemical reagents, and has good chemical stability.



4. Electrical insulation performance of quartz is excellent, even at high temperatures quartz rod also has good insulation performance.





Technical Data of Quartz Materials



Density (g/cm3) 2.2
Flexture Strength (MPa) 48
Elastic Modulus (GPa) 72
Poisson's Ratio 0.14-0.17
Compressive strength (MPa) 1100
Bending strength (MPa) 67
Moh's hardness 5.5~6.5
Maximum working temperature (long-term, ℃) 1100
Maximum working temperature (short-term, ℃) 1350
Thermal conductivity (W/m*K) 1.4
Thermal expansion coefficient (/℃) 5.5*10-7
Specific resistance (Ω*cm) 7*107



*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.







Q：What is the thermal expansion coefficient of Quartz?
A：Quartz has an extremely low thermal expansion coefficient, typically around 0.5*10⁻⁶/℃, making it highly resistant to thermal shock and suitable for applications where dimensional stability is critical under varying temperatures.



Q：Is Quartz resistant to chemical corrosion?
A：Quartz is highly resistant to most acids, alkalis, and solvents, with the exception of hydrofluoric acid. This chemical stability makes it ideal for use in harsh chemical environments and laboratory settings.



Q：How does Quartz perform in UV light transmission?
A： Quartz is known for its excellent UV light transmission properties, with high transparency in the UV spectrum, making it suitable for UV lamps, lenses, and other optical applications.



Q：Can Quartz withstand high-pressure environments?
A：Quartz can withstand significant pressure and is often used in high-pressure applications, such as in the manufacturing of pressure sensors and in high-pressure vessels due to its structural integrity.



Q：What are the electrical insulation properties of Quartz?
A：Quartz is an outstanding electrical insulator, with a high dielectric strength and low electrical conductivity, making it ideal for use in electronic and semiconductor applications where insulation is critical.

Application Fields of Quartz

1. Semiconductor and solar cell production

Quartz glass can be used to produced various intruments for semiconductor and cell production, including crucible, tank, boat, boat bracket, etc., they are playing irreplaceable role in the semiconductor and photovoltaic industry.



2. Optical field

Quartz has excellent and stable optical performance, it can be used produce various optical components, including optical fibers, sight glass, lamp tube, testing instruments, etc.



3. Chemical industry

Quartz has good high temperature resistance and corrosion resistance, can be used as catalyst carrier, and make thermometers, pressure gauges and other measuring instruments for chemical industry.
