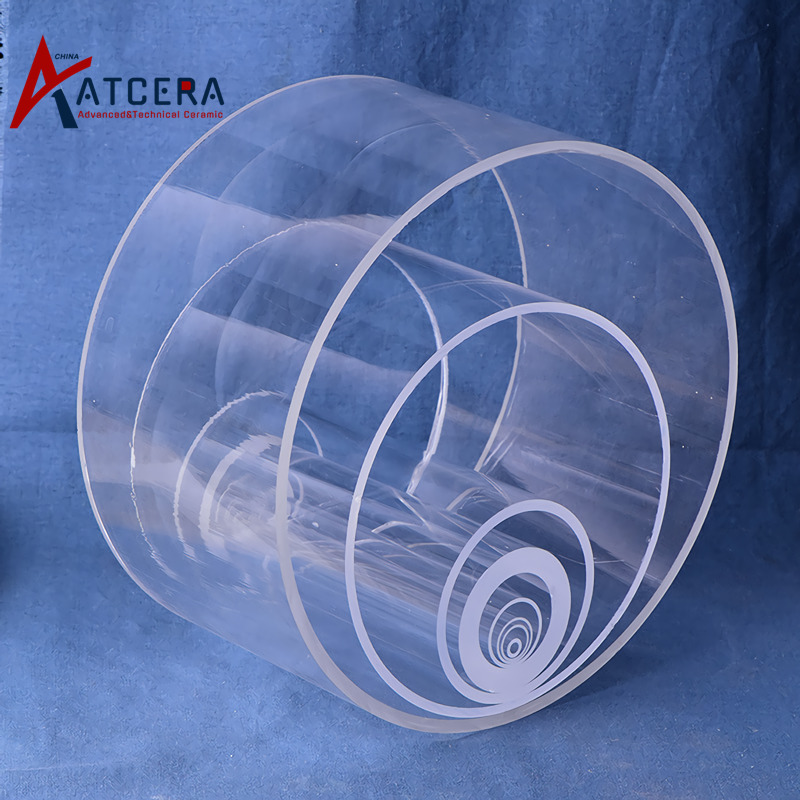

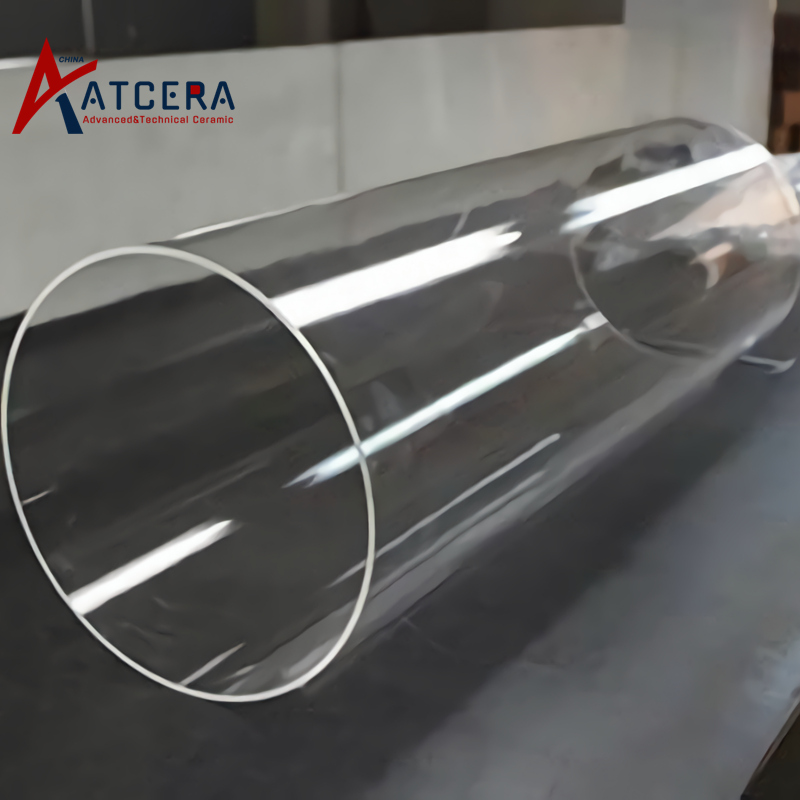

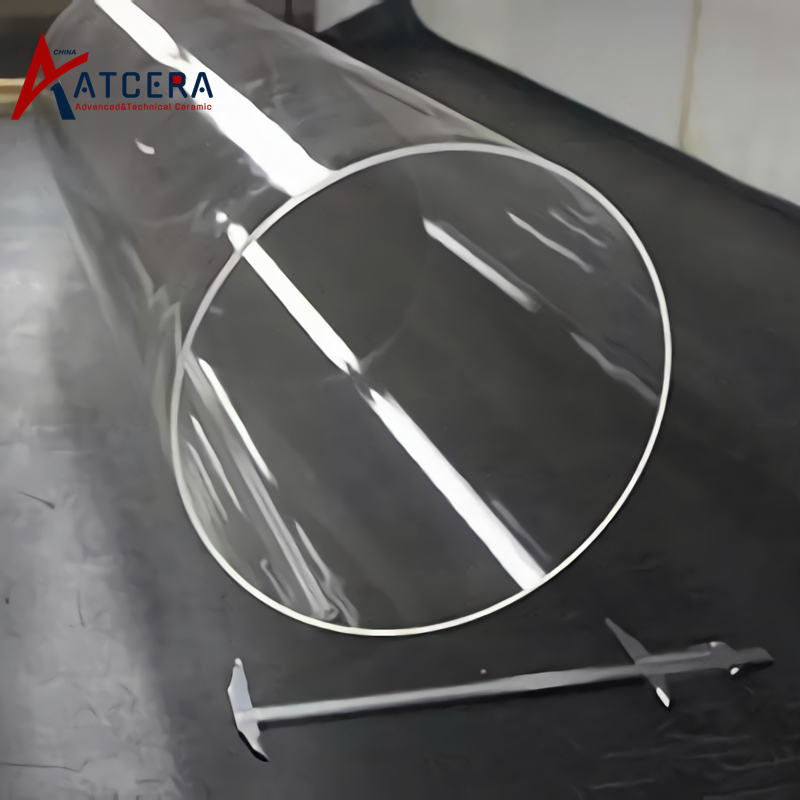

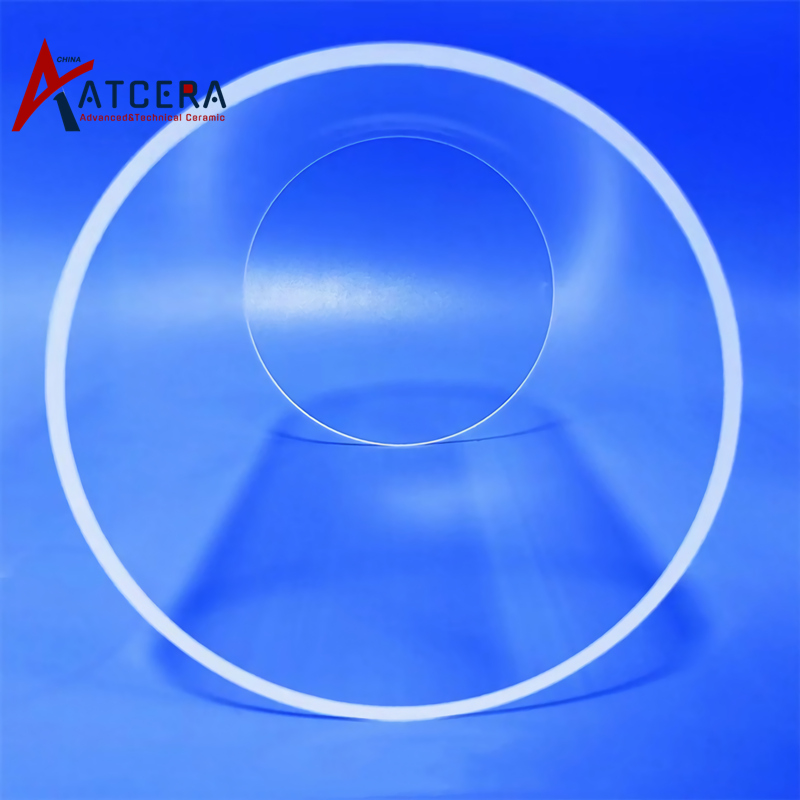

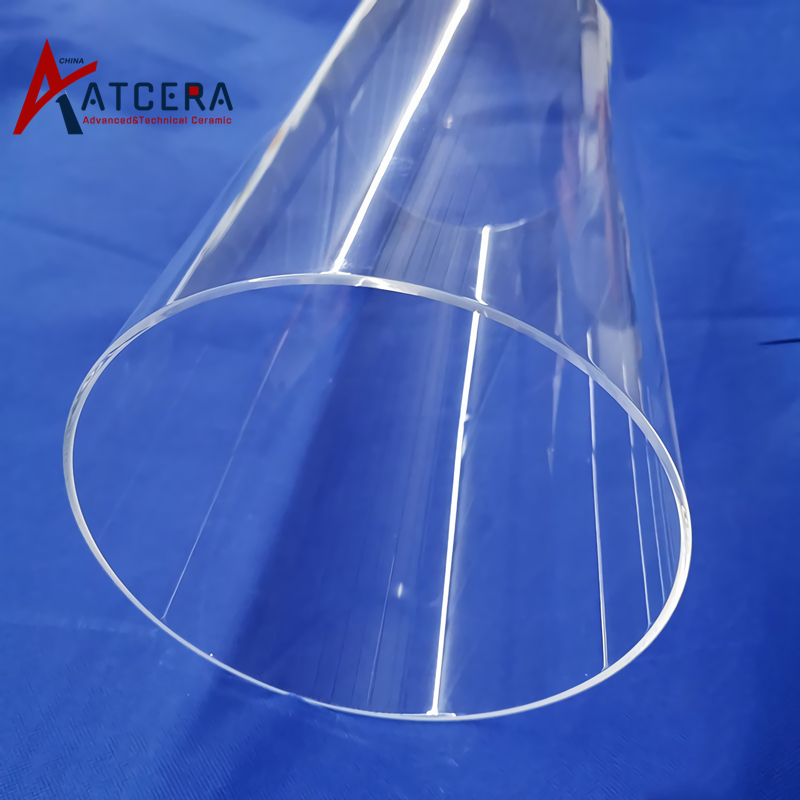

Large Diameter Quartz Transparent Tube

Quartz tube has excellent optical properties, good high temperature resistance and thermal stability, corrosion resistance, good chemical stability, excellent electrical insulation properties, it has wide range application in semiconductor manufacture, electric light source, laser, optical instruments, experimental instruments, high temperature and chemical machinery and equipment.

Brand:
ATCERA
Item NO.:
AT-QTZ-G0060

Materials
Quartz
Shapes
Tube
Applications
Semiconductor , Electronics and Electricity , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Large Diameter Quartz Transparent Tube

1. High temperature resistance

Quartz tube can be used for a long time at 1100℃, and the temperature of short time use can reach 1450℃, also the coefficient of thermal expansion is small, so it can withstand drastic temperature changes.

2. Good light transmission performance

Quartz tube has good light transmission performance in the whole spectral band from ultraviolet to infrared, visible light transmittance is higher than 93%, and ultraviolet spectral transmittance is higher than 80%.

3. Good corrosion resistance

In addition to hydrofluoric acid, quartz tube almost does not react with other acids, and can maintain chemical stability at high temperature condition.

Applications of Large Diameter Quartz Transparent Tube

Quartz tube has good optical performance, high temperature resistance, corrosion resistance, can be used to make a variety of optical components and experimental equipment, including light source lamp, heating protection tube, testing tube, biological culture tube， etc.

1. Optical tube

Quartz tube optical performance is good, with high light transmission efficiency, it can be used to make a variety of light source tubes, such as laser tube, mercury lamp tube, tungsten iodide lamp tube.

2. Industrial heating

Quartz tube has high temperature resistance, good thermal stability, can be used to make heater protection tube, widely used in chemical, semiconductor, food and drug processing industries.

3. Experimental equipment

Quartz tube is resistant to high temperature and corrosion, and can be used to make a variety of experimental instruments, including chemical testing tubes, biological culture tubes, etc.

Size Chart of Large Diameter Quartz Transparent Tube

We are committed to delivering prime quartz tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

JGS-1, JGS-2 and JGS-3 quartz are available, please contact ATCERA if have spectrum demand to the material.

Diameter Tolerance:

Diameter≤ 6mm: Dimeter±2%, Thickness±10%

6mm<Diameter≤25mm: Dimeter±1.25%, Thickness ±10%

25mm < diameter ≤38mm: Dimeter±1.35%, Thickness±12%

Send Requirements for Custom Design

Large Diameter Quartz Transparent Tube
Item no.	Outer Diameter (mm)	Wall Thickness (mm)	Length (mm)	Purity (%)
AT-QTZ-G0060	200-1000	6-25	≤3500	99-99.98%

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When using the quartz tube, handle it gently to avoid severe impact or fall, so as to avoid damage.

2. Shall not exceed the maximum use temperature of the quartz tube, otherwise it may cause soften deformation.

3. Quartz tube for high temperature conditions must be wiped clean before use, fine thread gloves shall be worn during operation and do not touch it directly with hands.

4. Quartz tube is acidic material, strictly avoid contact with alkaline substances (such as sodium silicate, asbestos, potassium and sodium compounds, etc.) when used at high temperature, otherwise its performance might be influenced.

Valuable Information

Large Diameter Quartz Transparent Tube Packing

Quartz large diameter tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
