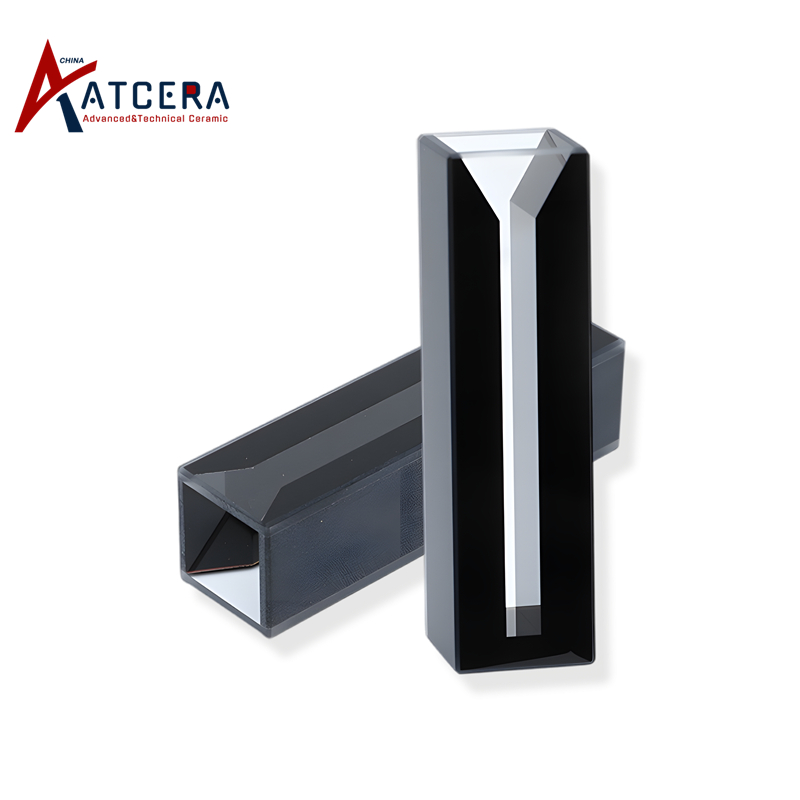

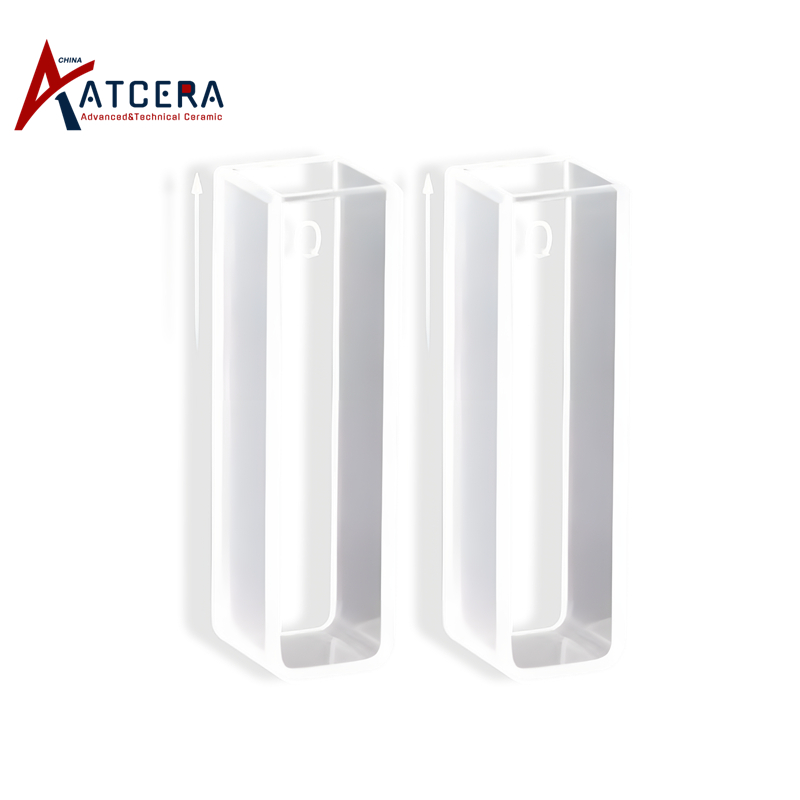

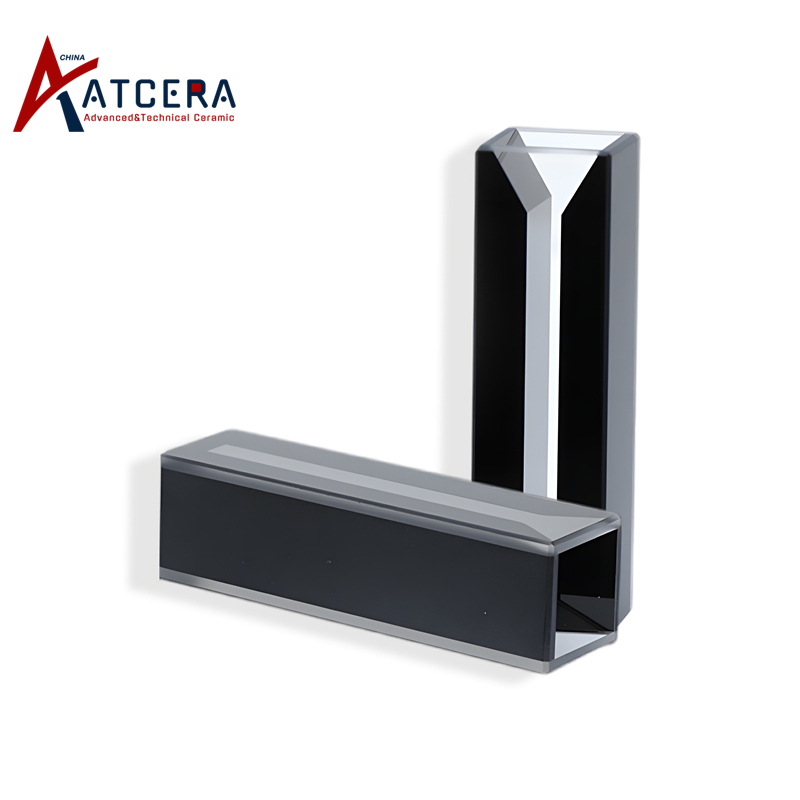

Quartz Cuvette UV Quartz Cuvette

Quartz cuvette (also known as absorption cell, sample cell) is used to hold reference liquid or sample liquid, supporting spectral analysis instruments, such as UV-Vis spectrophotometer, hemoglobin analyzer, particle size analyzer, etc., for quantitative and qualitative analysis of substances. It is widely used in chemical industry, metallurgy, medicine, food, water treatment and other industries.

Brand:
ATCERA
Item NO.:
AT-SY-M001

Materials
Quartz
Shapes
Tube
Applications
Petrochemical Industry , Food Processing , Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Cuvette

1. Quartz cuvette has good light transmission and wide light transmission range, which is suitable for spectral analysis including ultraviolet light, the wavelength range is from 120nm-4500nm, and there is no absorption peak in this spectrum range, so the test results are accurate and reliable, meeting the requirements of high-precision and high-sensitivity analysis.

2. Quartz cuvette has good corrosion resistance, can be applied to the analysis of various acids, alkalis and chemical reagents, and has good chemical stability。

3. Quartz cuvette can be reused after cleaning, saving comprehensive use cost.

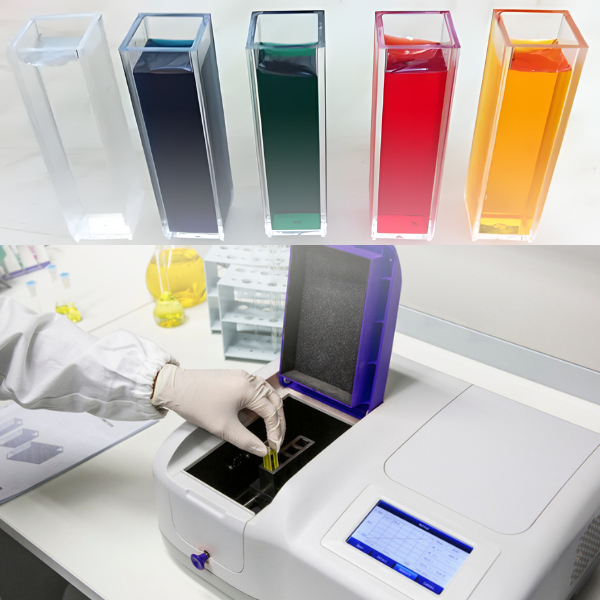

Applications of UV Quartz Cuvette

Quartz cuvette is suitable for various types of spectral analysis instruments such as ultraviolet visible spectrophotometer, microplate reader, colorimeter.

Quartz cuvette is used in the spectrum analyzer for substance analysis, widely used in chemical industry, metallurgy, medicine, food, water treatment and other industries.

Size Chart of Quartz Cuvette

We are committed to delivering optimal quartz cuvette tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

The following requirements shall be provided if customized design request:

1. Dimensions

2. Transmittance wavelength range

3. Transmittance surface design requirements(double-sided or four-sided transmittance)

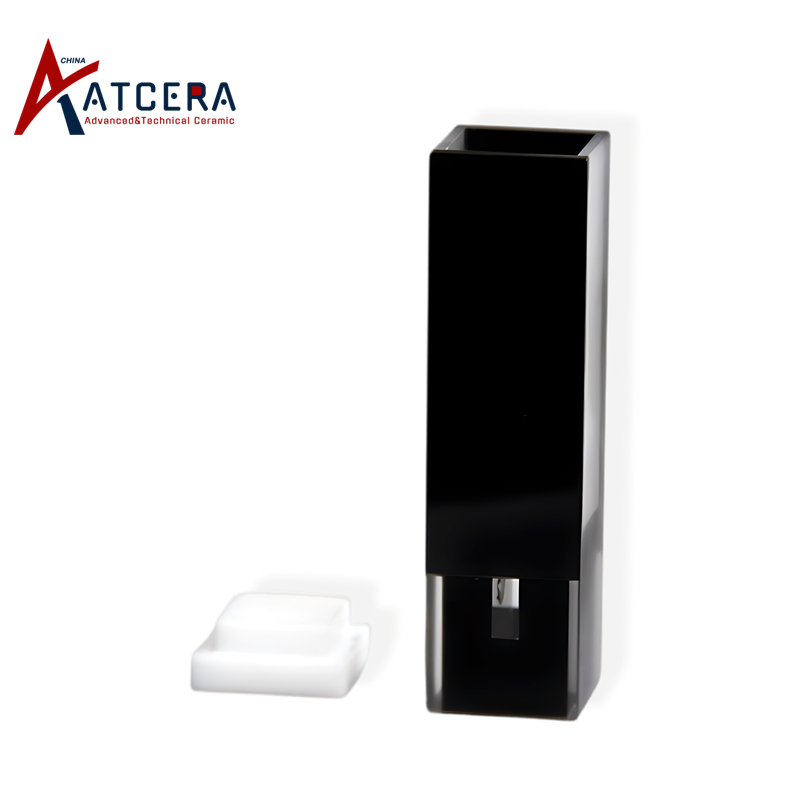

4. Stoppers or covers(if needed)

Send Requirements for Custom Design

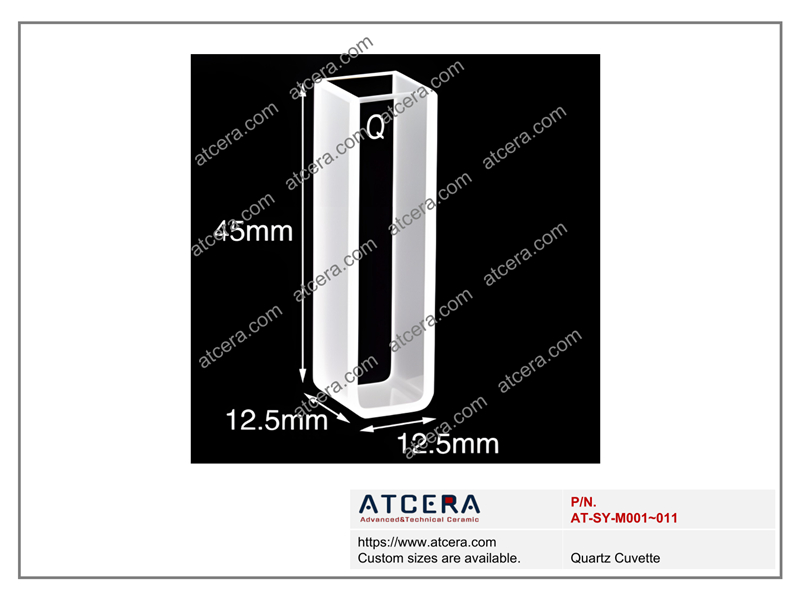

Drawing of UV Quartz Cuvette

Item NO.	Pathlength (mm)	Exterior Dimensions (mm)	Capacity	Polished Window
AT-SY-M001	1	45×12.5×3.5	350	2
AT-SY-M002	2	45×12.5×4.5	700	2
AT-SY-M003	3	45×12.5×5.5	1050	2
AT-SY-M004	5	45×12.5×7.5	1750	2
AT-SY-M005	10	45×12.5×12.5	3500	2
AT-SY-M006	10×10	48×12.5×22.5	3500	4
AT-SY-M007	20	45×12.5×22.5	7000	2
AT-SY-M008	30	45×12.5×32.5	10500	2
AT-SY-M009	40	45×12.5×42.5	14000	2
AT-SY-M010	50	45×12.5×52.5	17500	2
AT-SY-M011	100	45×12.5×102.5	35000	2

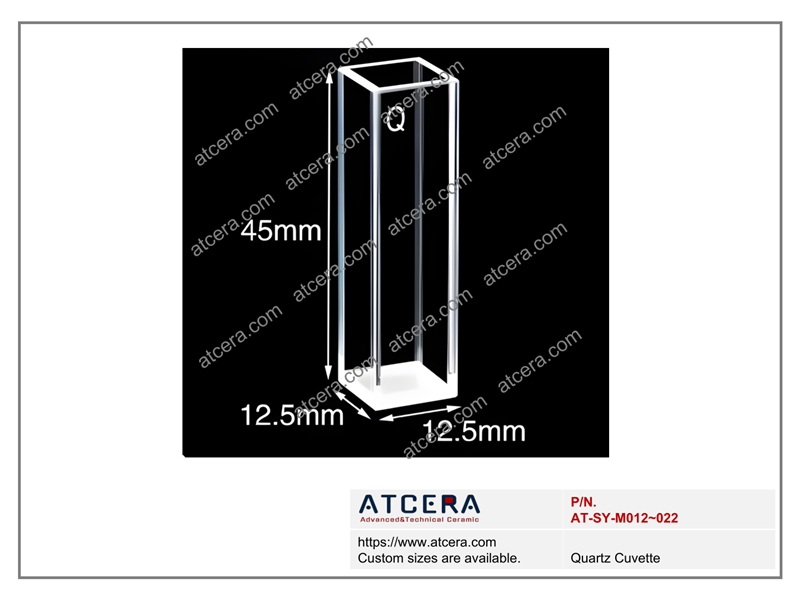

Drawing of Quartz Cuvette

Item NO.	Pathlength (mm)	Exterior Dimensions (mm)	Capacity	Polished Window	Dimension of Hole (mm)
AT-SY-M012	10	45×12.5×12.5	50	2	2*2
AT-SY-M013	10	45×12.5×12.5	50	2	2*2
AT-SY-M014	10	45×12.5×12.5	100	2	3*3
AT-SY-M015	10	45×12.5×12.5	100	2	3*3
AT-SY-M016	10	45×12.5×12.5	200	2	5*4
AT-SY-M017	10	45×12.5×12.5	200	2	5*4
AT-SY-M018	10	45×12.5×12.5	350	2	17.5*2
AT-SY-M019	10×2	45×12.5×12.5	50	4	3*2
AT-SY-M020	10×2	45×12.5×12.5	100	4	5*2
AT-SY-M021	10×2	45×12.5×12.5	200	4	10*2
AT-SY-M022	10×10	45×12.5×12.5	3300	4	33*10

Item NO.	Pathlength (mm)	Exterior Dimensions (mm)	Interior Dimensions (mm)	Capacity	Polished Window
AT-SY-M023	20	21.5×23×23	20×20×20	6000	4
AT-SY-M024	30	31.5×33×33	30×30×30	22500	4
AT-SY-M025	40	41.5×43×43	40×40×40	56000	4
AT-SY-M026	50	52×54×54	50×50×50	112500	4

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When taking the quartz cuvette, only touch the ground glass sides, and avoid touching the optical surfaces, also need to handle gently to avoid damage caused by violent impact.

2. Corrosive substance solution shall not be placed in the cuvette for a long time.

3. Do not place thecuvette on the flame or electric oven for heating or drying.

4. When the cuvette is contaminated, wash it with anhydrous ethanol and wipe it clean in time.

5. Do not contact the transparent surfaces of the cuvette with hard or dirty objects. Do not contain solution fully, to 2/3 of the cuvette height is fine. If there is residual liquid on the optical surface, it can be gently adsorbed with filter paper, and then wiped dry with lens paper or silk.

Valuable Information

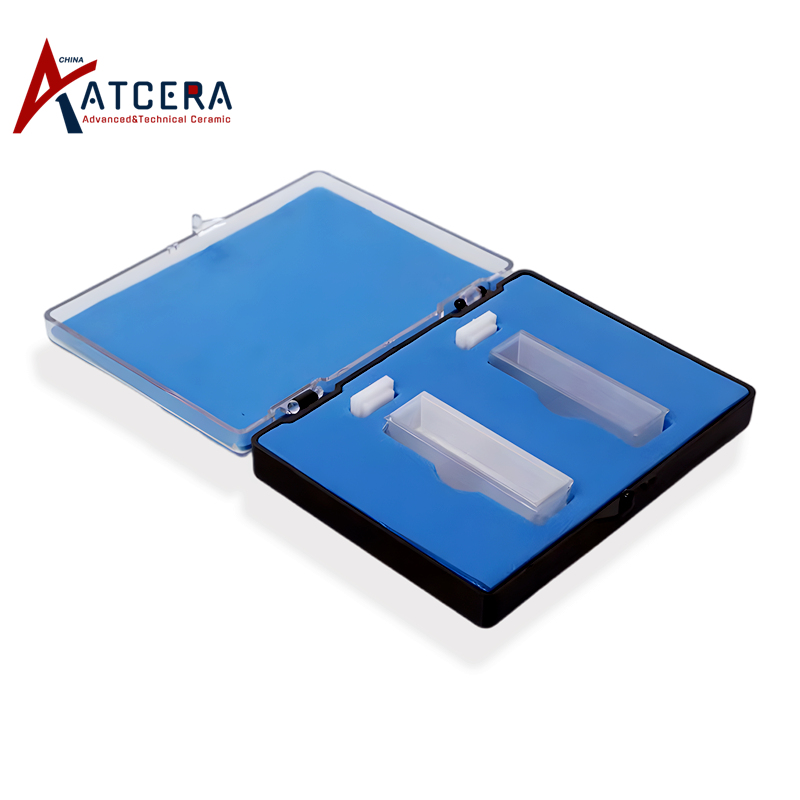

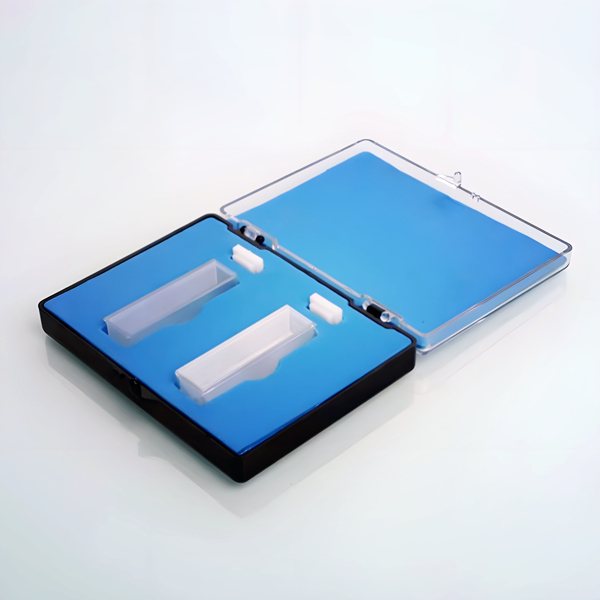

Quartz Cuvette Packing

Quartz cuvettes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
