AlN heating sheet

Aluminum Nitride Heating Sheet

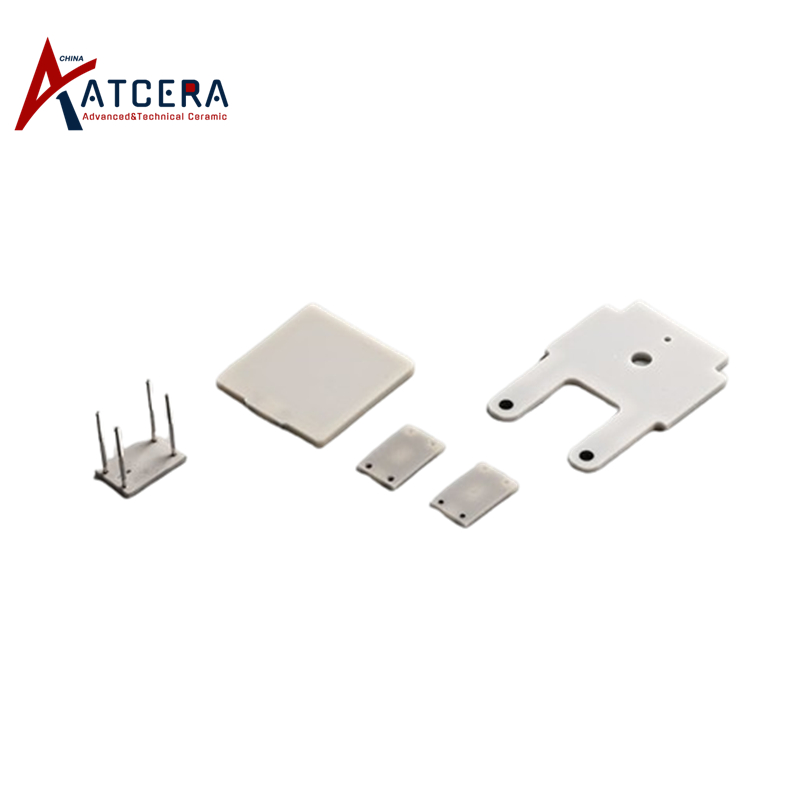

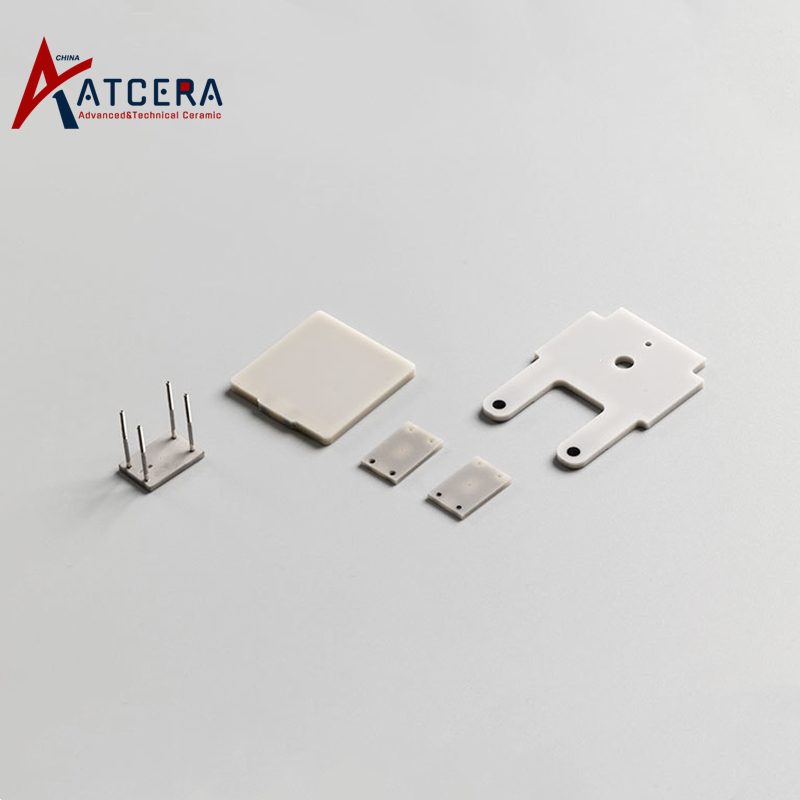

Aluminum nitride ceramic heating sheets are designed for thermal applications that require high performance advanced ceramic heaters to ensure the best results for the equipment or process. It is made of aluminum nitride and uses heat-matched, proprietary heating elements for optimal performance in challenging applications. Aluminum nitride is particularly suitable for applications requiring clean, pollution-free heat sources. In addition, excellent geometric stability ensures consistent part-to-part thermal contact during the heating cycle.

  • Brand:

    ATCERA
  • Item NO.:

    AT-AN-JRP001
  • Materials

    AlN
  • Shapes

    Substrate
  • Applications

    Semiconductor , Electronics and Electricity
Aluminum Nitride Heating Sheet

Properties of Aluminum Nitride Heating Sheet



Aluminum nitride ceramic heating sheets can provide temperatures up to 500 ° C and have ultra-fast heating rates of 150 ° C /s, also depending on application, design and process parameters. In addition to having excellent thermal properties, aluminum nitride ceramic heaters also have high electrical isolation properties and often achieve excellent chemical resistance compared to conventional metal heaters.













Applications of AlN Substrate

Applications of AlN Heating Sheet





Aluminum nitride heating sheet is suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power, usually used as a high-voltage, high-power device packaging substrate, including power module, high-frequency switching power supply, relay, communication module, LED module, etc., widely used in new energy vehicles, rail transit, smart grid, aerospace and other fields.

























Size Chart for Aluminum Nitride Heating Sheet

We are committed to delivering prime aluminum nitride heating sheets tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.





Please inquire ATCera for information or requesst.









Aluminum Nitride Heating Sheet
Item no. Size Thickness Max. working Temp. Max. power density Resistance tolerance of heating line TCR
AT-AN-JRP001 customizable 0.8-3.0mm 500℃ 155W/cm2 ±20% 0.0015±0.0003





Technical Data of Aluminum Nitride Materials

AlN Type ALN-170 ALN-200
ALN-230
Density (g/cm3) 3.3 3.28 3.25
Flexture strength (MPa) 450 400 350
Young Modulus (GPa) 320 / /
Hardness (Hv) 1100 1100
1100
Fracture toughness (MPa*m1/2) 3 2.6 2.4
Maximum working temperature (℃) 1100 1100
1100
Thermal conductivity (W/m*K) 180 200
230
Thermal expansion coefficient (/℃) 4*10-6 4*10-6
4*10-6
Dielectric Constant (at 1MHz) 9 8.7
8.5
Breakdown Voltage (kV/mm) >15 >15
>15



*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.







Valuable Information



Aluminum Nitride Heating Sheet Packing

AlN Heating Sheet Packing



Aluminum nitride heating sheets are carefully packaged in appropriate containers to avoid any potential damage.

























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
