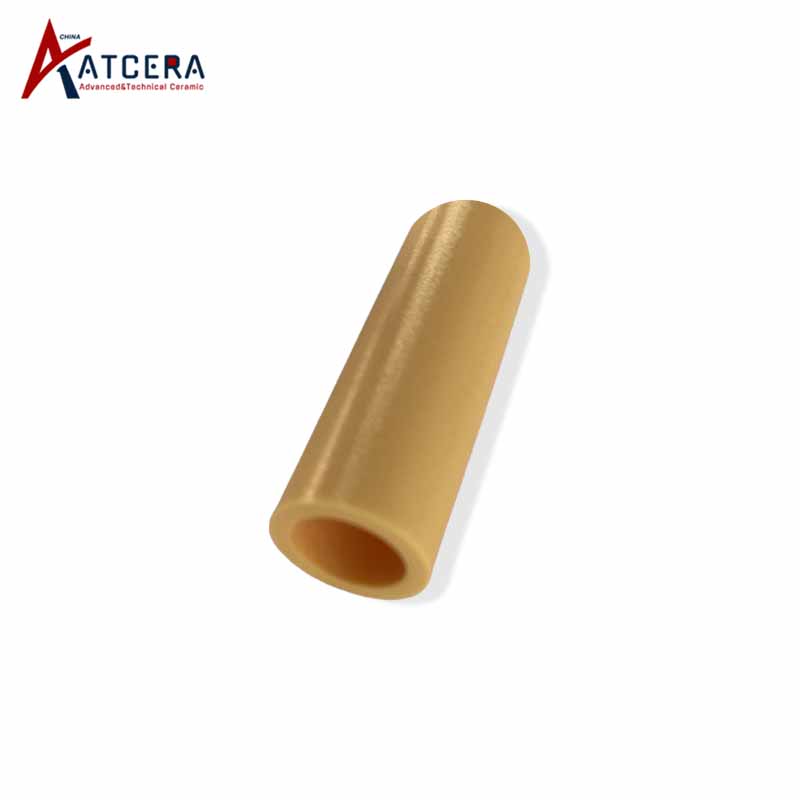

Magnesia Stablized Zirconia Ceramic Tube MSZ Ceramic Pipe

Magnesia stablized zirconia ceramic tube is made of zirconia ceramics with magnesium oxide as stabilizer, with high mechanical strength, good impact resistance, strong abrasion and corrosion resistance, high temperature resistance and good thermal shock resistance. It can be used to make thermal protection tubes, hydraulic cylinders, insulating bushings and so on, which are widely used in the industries of hydraulic system, metallurgy, chemical industry, electronic appliances.

Brand:
ATCERA
Item NO.:
AT-MGO-G1001

Materials
MSZ
Shapes
Tube
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Metallurgy Industry , Biology and Medicine

Inquire Now

Properties of Magnesia Stablized Zirconia Ceramic Tube

1. Magnesia stablized zirconia ceramic tube has high mechanical strength, good impact resistance, good wear resistance and long service life.

2.Magnesia stablized zirconia ceramic tube has a smooth surface, good self-lubricating performance, lubrication-free maintenance, and low operating resistance.

3. Magnesia stablized zirconia ceramic tubes are resistant to high temperature and corrosion, the maximum operating temperature can reach higher than 1000℃, with good thermal shock resistance and chemical stability, can withstand rapid temperature changes, and can be in direct contact with a variety of acidic and alkaline substances, without the risk of corrosion failure.

Applications of MSZ Ceramic Tube

Magnesia stablized zirconia ceramic pipe can be used to make thermal protection tubes, hydraulic cylinders, insulating sleeves, etc. They are widely used in hydraulic systems, metallurgical industry, chemical industry, electronic and electrical appliances and other industries.

Size Chart of MSZ Ceramic Tube

We are committed to delivering magnesia stablized zirconia ceramic tube tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings, parameter requirements and application environment.

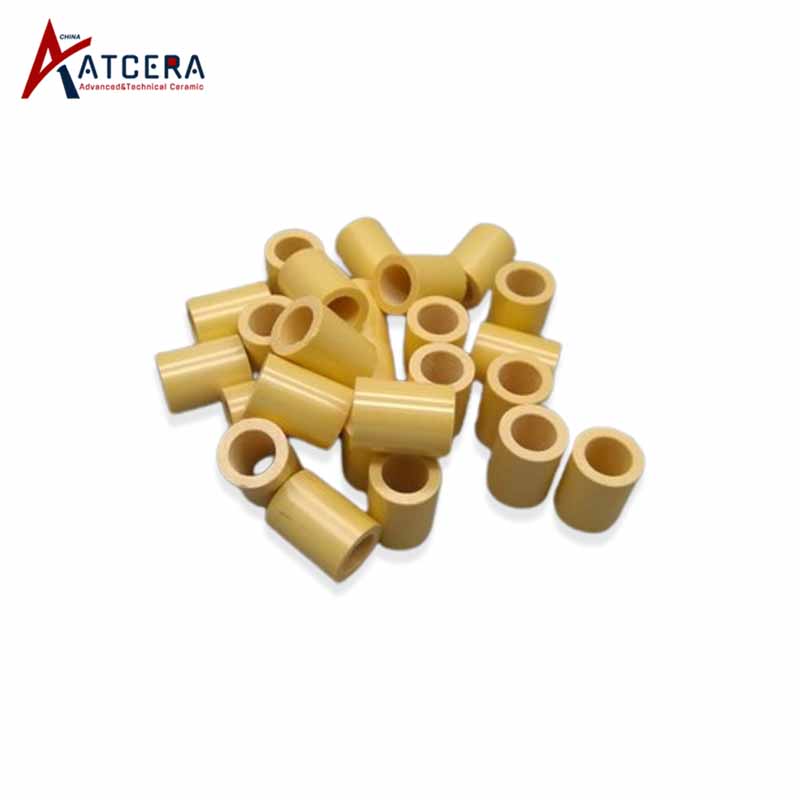

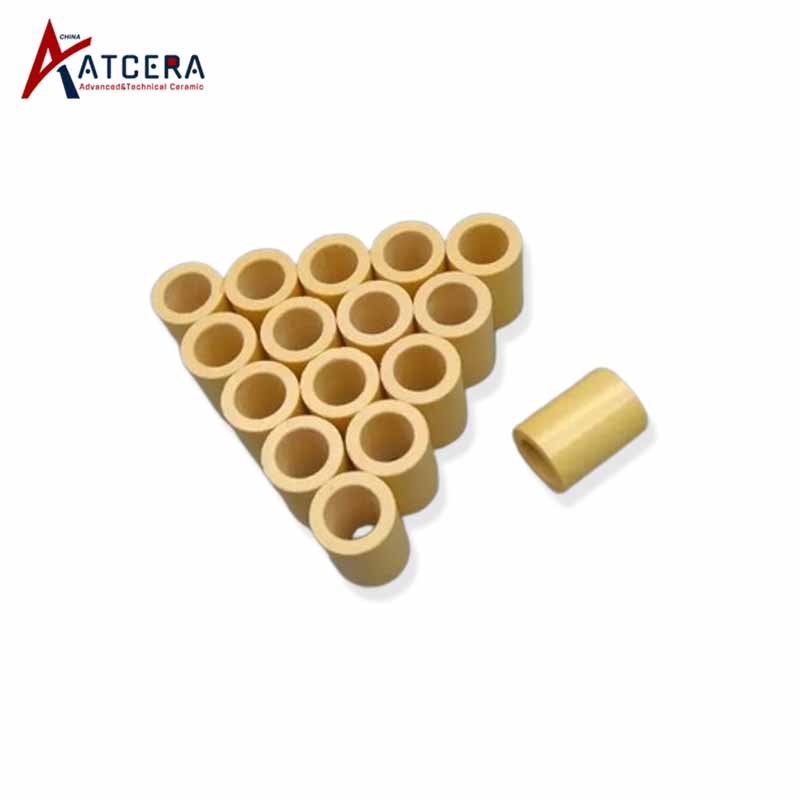

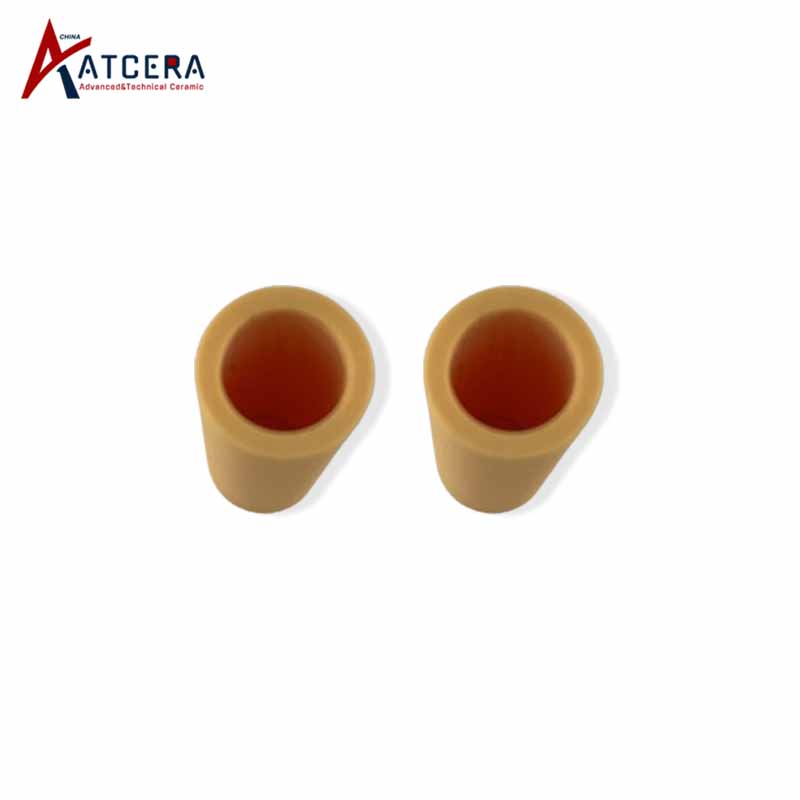

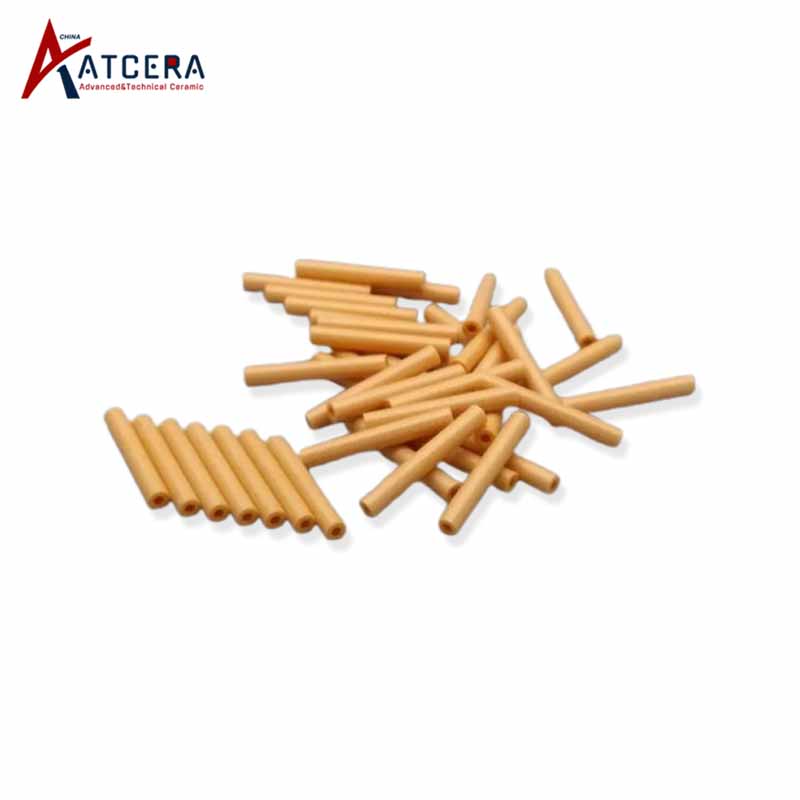

Magnesia stablized zirconia ceramic tube single bore

Magnesia Stablized Zirconia Ceramic Tube
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Length (mm)
AT-MGO-G1001	3	1	20	Single bore tube
AT-MGO-G1002	10	5	20
AT-MGO-G1003	15	7	25
AT-MGO-G1004	30	20	45
AT-MGO-G1005	40	32	50
AT-MGO-G1006	62.5	52.5	87

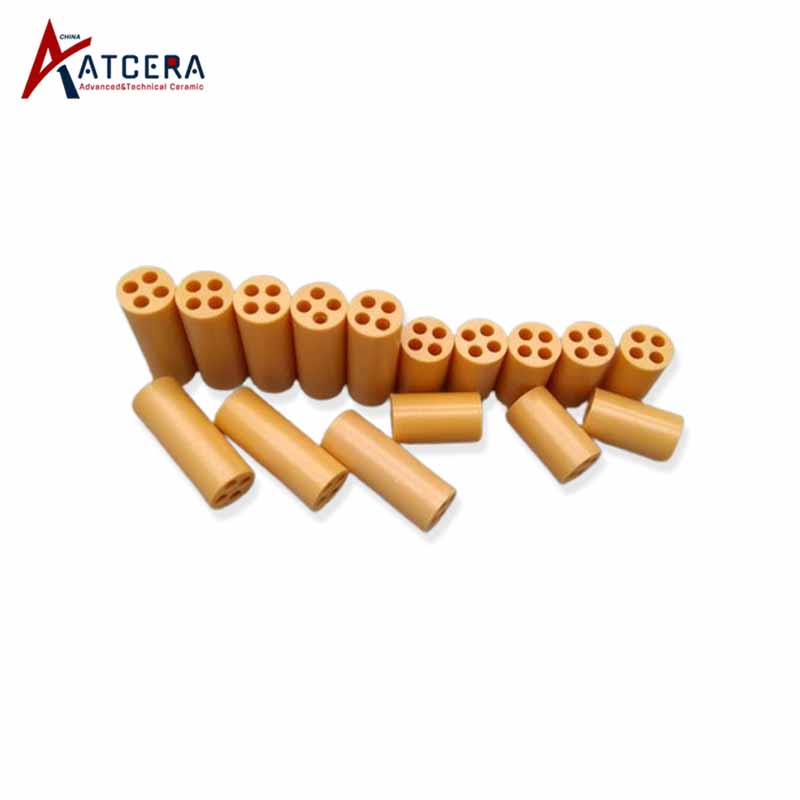

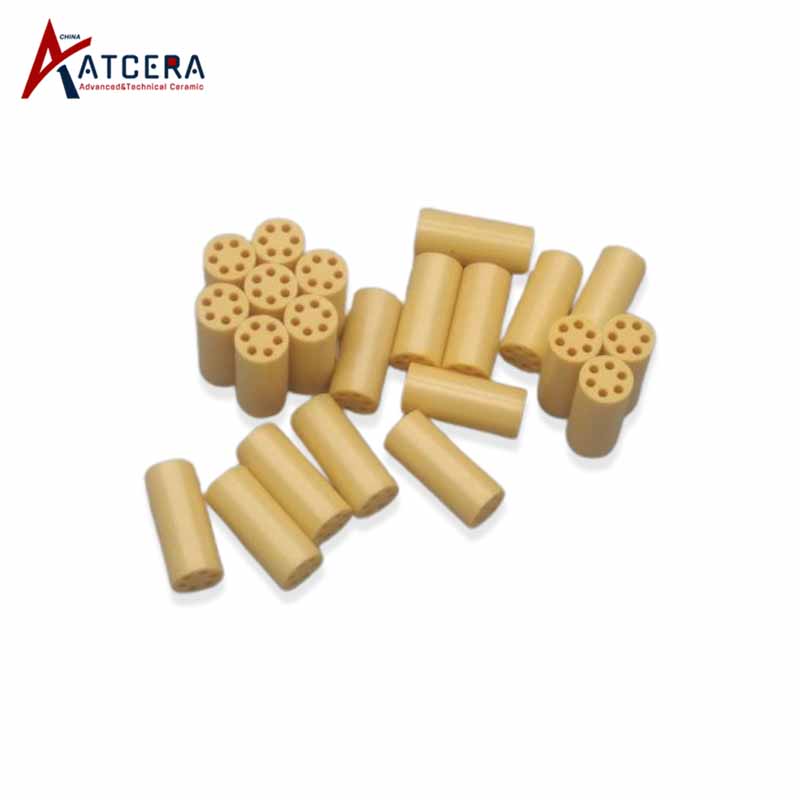

Magnesia stablized zirconia ceramic tube multi

Magnesia Stablized Zirconia Ceramic Tube
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Length (mm)	Number of Bores
AT-MGO-G2001	5	1.2	4	2
AT-MGO-G2002	5	1.2	10	2
AT-MGO-G2003	5.3	1.2	8	4
AT-MGO-G2004	5.3	1.2	15	4
AT-MGO-G2005	6.5	1.2	15	6
AT-MGO-G2006	6.5	1.2	20	6

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Before the installation of magnesia stablized zirconia ceramic tube, the surface should be noted whether there are scratches or cracks, or other defects, if defective, need to be replaced.

2. The surface of the ceramic tube should be cleaned of dust and impurities etc. before installation to avoid affecting its performance.

3. The state of the ceramic tube should be checked regularly, if cracks and other defects start to appear, it is necessary to stop continuing to use it and replace it in time.

Valuable Information

Machining Precision

1. Diameter tolerance: ±0.01mm

2. Hole depth tolerance: ±0.005mm

3. Surfance roughness:Ra0.5

4. Cylindricity:±0.004mm

5. Concentricity:±0.003mm

6. Parallelism:±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
