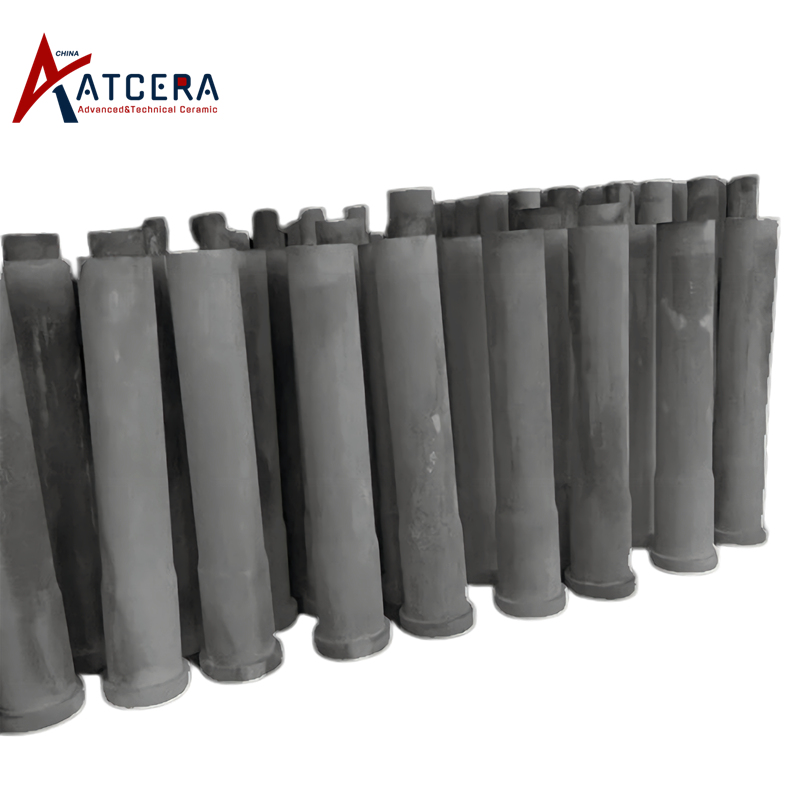

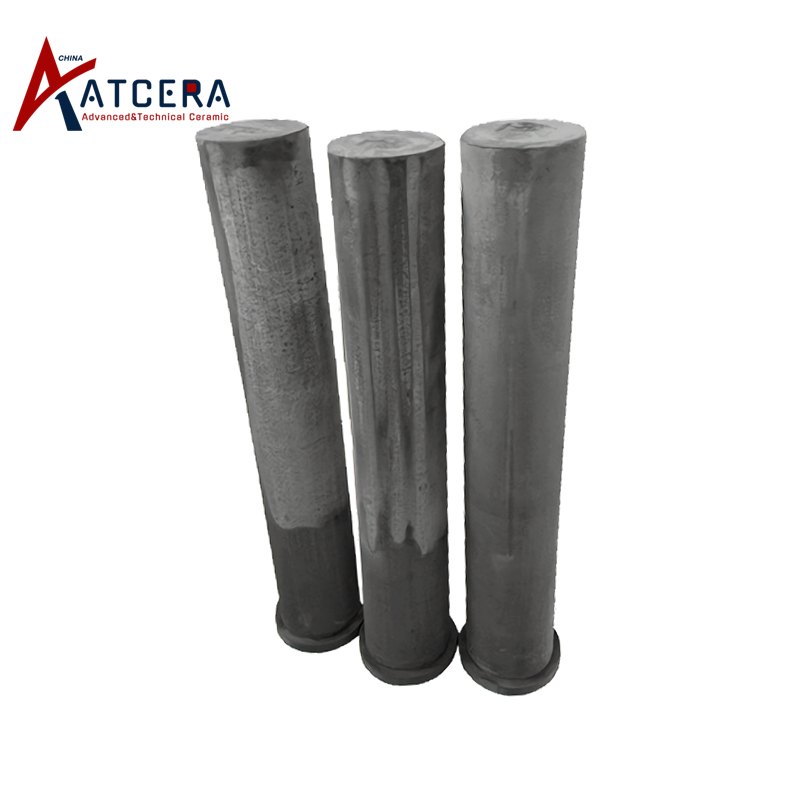

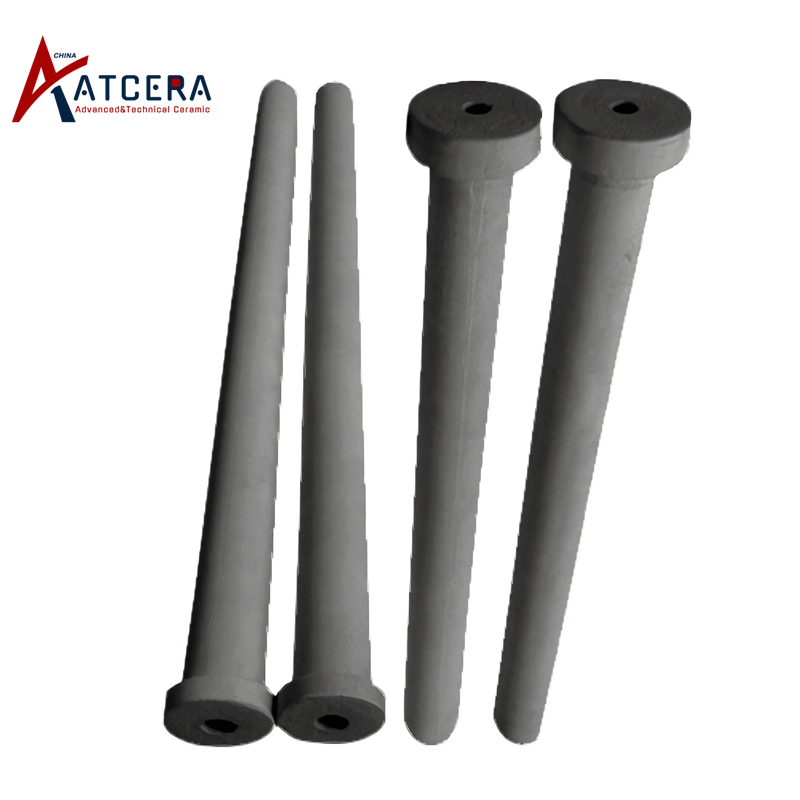

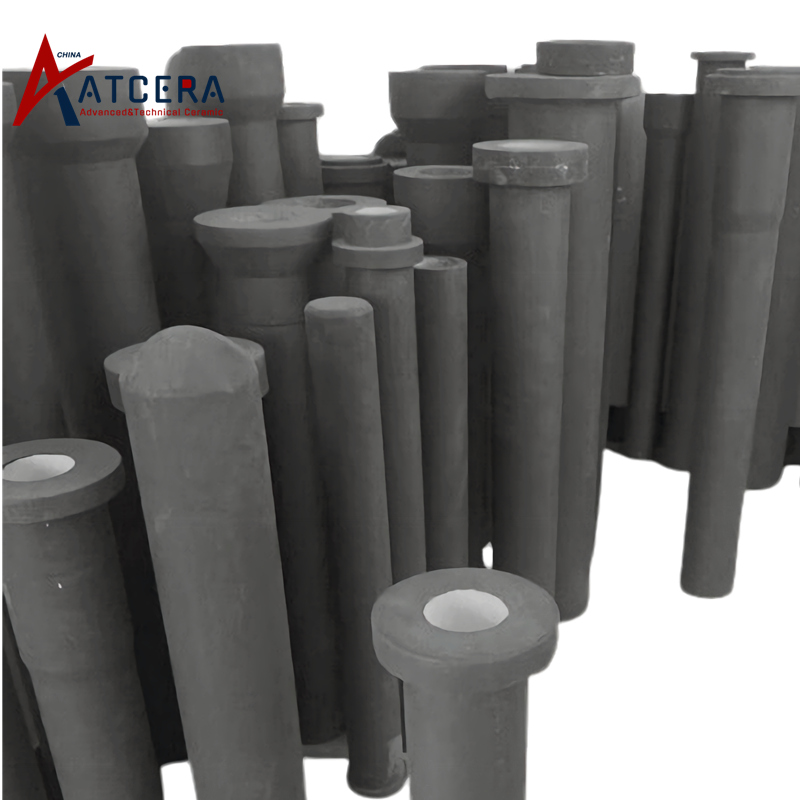

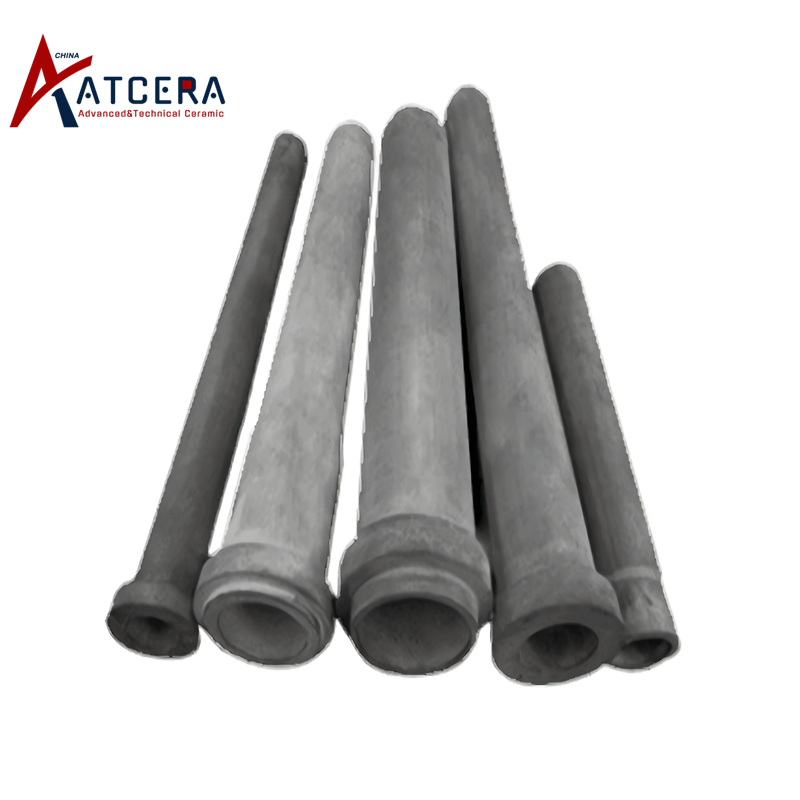

Nitride Bonded Silicon Carbide Riser Tube NBSIC Riser Tube

Nitride-bonded silicon carbide riser tube is produced with silicon carbide as the main raw material, adding a certain proportion of silicon powder, sintered in nitrogen environment at high temperature, has excellent thermal shock resistance and corrosion resistance, with high strength and good air tightness, it is mainly used in low pressure casting machine, to dilver molten aluminum liquid into the mold cavity for casting, and achieve production automation and continuity.



  • Brand:

    ATCERA
  • Item NO.:

    AT-SIC-SY1001
  • Materials

    NBSIC
  • Shapes

    Tube
  • Applications

    Metallurgy Industry
NBSiC riser tube

Advantages of Nitride Bonded Silicon Carbide Riser Tube



1. NBSiC riser tube has good corrosion resistance,it is not easy to be corroded, has longer service life, and will not affect the purity of aluminum liquid and product quality due to the corrosion of the riser tube.





2. NBSiC riser tube has smooth inner surface, it is not easy to produce tumor and hanging slag, the tube is unobstructed and will not be blocked.



NBSiC riser tubes

Applications of NBSIC Riser Tube





Nitride-bonded silicon carbide riser tube is mainly used in low pressure casting machine, to dilver molten aluminum liquid into the mold cavity for casting, to produce automobile, motorcycle wheel hub and other aluminum alloy parts.













Size Chart of NBSIC Riser Tube



Committed to providing optimal NBSIC riser tubes customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Drawing and specification requirements shall be provided if customized design request.

Machining Tolerance: Length ±3mm, Width ±2mm.



NBSIC Riser Tube
Item No. Outer Dia.
(mm)
Inner Dia.
(mm)
Length
(mm)
AT-SIC-SY1001 70 50 500-1100mm
AT-SIC-SY1002 75 54.8 500-1100mm
AT-SIC-SY1003 80 59.5 500-1100mm
AT-SIC-SY1004 82 61.8 500-1100mm
AT-SIC-SY1005 85 64.5 500-1100mm
AT-SIC-SY1006 90 69.5 500-1100mm
AT-SIC-SY1007 100 79.5 500-1100mm
AT-SIC-SY1008 115 94.4 500-1100mm
AT-SIC-SY1009 130 109.5 500-1100mm
AT-SIC-SY1010 142 121.5 500-1100mm
AT-SIC-SY1011 150 129 500-1100mm
AT-SIC-SY1012 180 159.2 500-1100mm
AT-SIC-SY1013 200 179 500-1100mm
AT-SIC-SY1014 215 194 500-1100mm
AT-SIC-SY1015 221 200 500-1100mm







Technical Data of NBSiC Materials

Material Nitride Bonded Silicon Carbide (NBSiC)
SiC (W%) 80
Free SiC (W%) 0
Si₃N₄ (W%) 20
Maximum Working Temperature (℃) ≤1550
Density (g/cm3) 2.8
Porosity (%) 12
Bending Strength (Mpa) 160(20℃)
180(1200℃)
Modulus of Elasticity (Gpa) 1200
Thermal conductivity (W/m*K) 15(1000℃)
Thermal expansion coefficient (K-1×10-6) 5
Hardness (kg/mm²) 2600





*This chart illustrates the standard characteristics of the nitride bonded silicon carbide materials commonly employed in the manufacturing of our nbsic products and parts. Please be aware that the attributes of customized nbsic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.










Usage Instructions







1. Try to reduce mechanical collision, especially in the handling and installation and commissioning process, violent impact or uneven force may greatly shorten the service life of the riser tube.



2. Try to reduce the mechanical vibration, especially in the state of high temperature, continuous force or vibration may greatly shorten the service life of the riser tube.



3. Try to avoid rapid heating and cooling, repeated thermal shock will greatly shorten the service life of the riser tube.

Valuable Information



NBSIC refractory plates

NBSIC Riser Tube Packing





NBSIC riser tubes are carefully packaged in appropriate containers to avoid any potential damage.







Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
