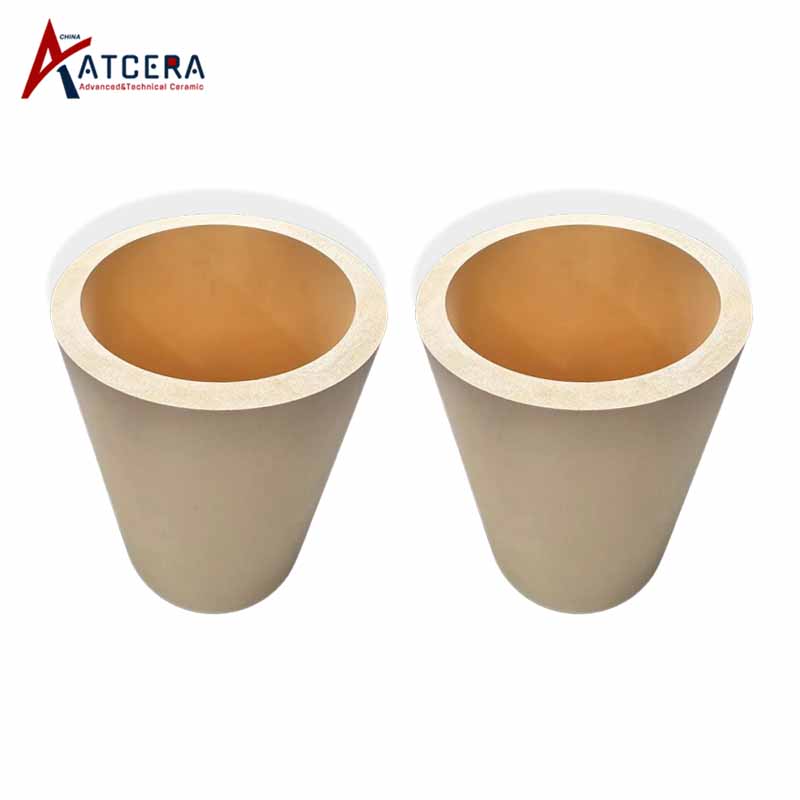

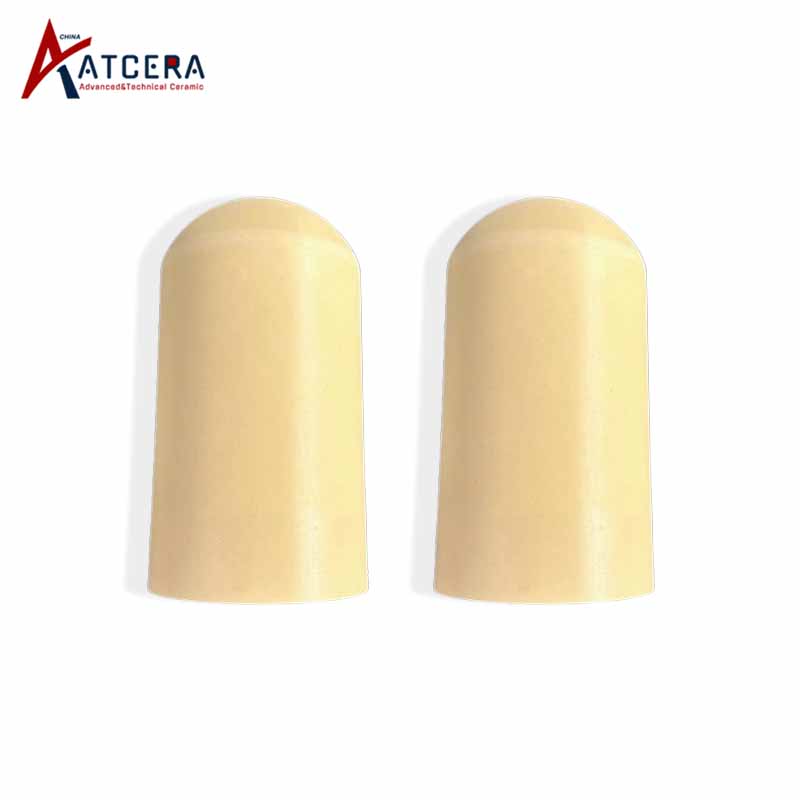

Magnesia Stablized Zirconia Crucible Mg-PSZ crucbile

Magnesia stablized zirconia crucible is made of zirconia ceramic with magnesia as stabilizer, high mechanical strength, good wear resistance and high temperature resistance, which can be used at a temperature of 2000℃, also with good thermal stability and corrosion resistance. Stability to acid, alkali and alkaline melts, glass melts and molten metal is good, and non-wetting to most of the molten metal. It is mainly used high melting point metals melting and calcination test.

Brand:
ATCERA
Item NO.:
AT-MGO-GG1001

Materials
MSZ
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Magnesia Stablized Zirconia Crucible

1, High heat-resistant temperature, can be used under the temperature 2000℃, with good thermal shock resistance.

2, Good chemical stability, good stability to acid and alkali and alkali melt, glass melt and molten metal, non-wetting with most molten metal.

3. Good mechanical strength and oxidation resistance under high temperature, no aging, with long service life.

Applications of Magnesia Stablized Zirconia Crucible

Magnesia stablized zirconia crucible is mainly used for melting and forging all kinds of metals, especially those with high melting point, such as titanium, zirconium, tungsten and so on. In addition, magnesia stablized zirconia crucible can also be used for melting certain alloys, such as titanium alloy and zirconium alloy.

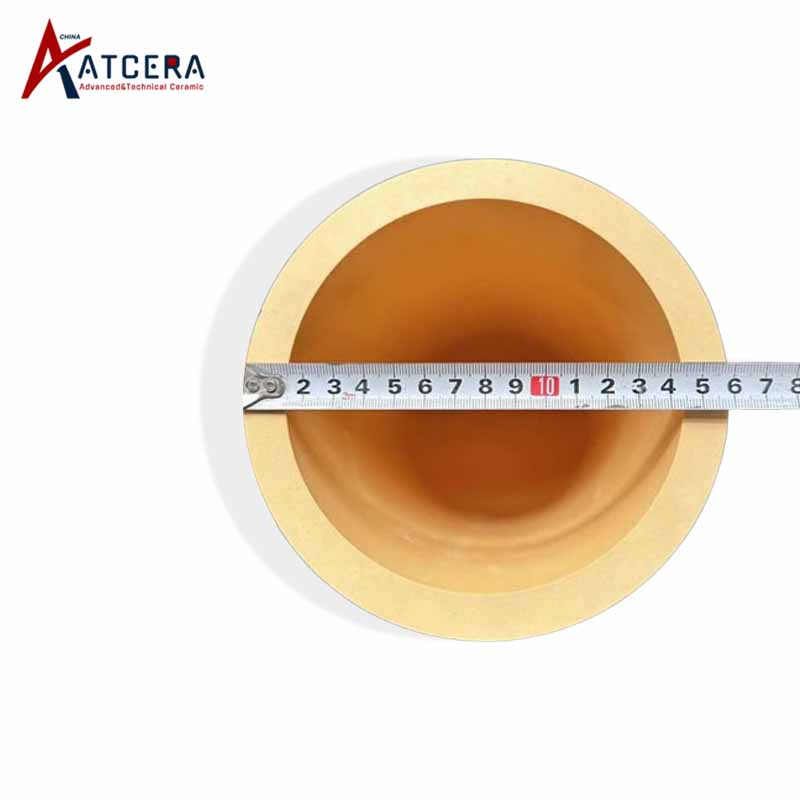

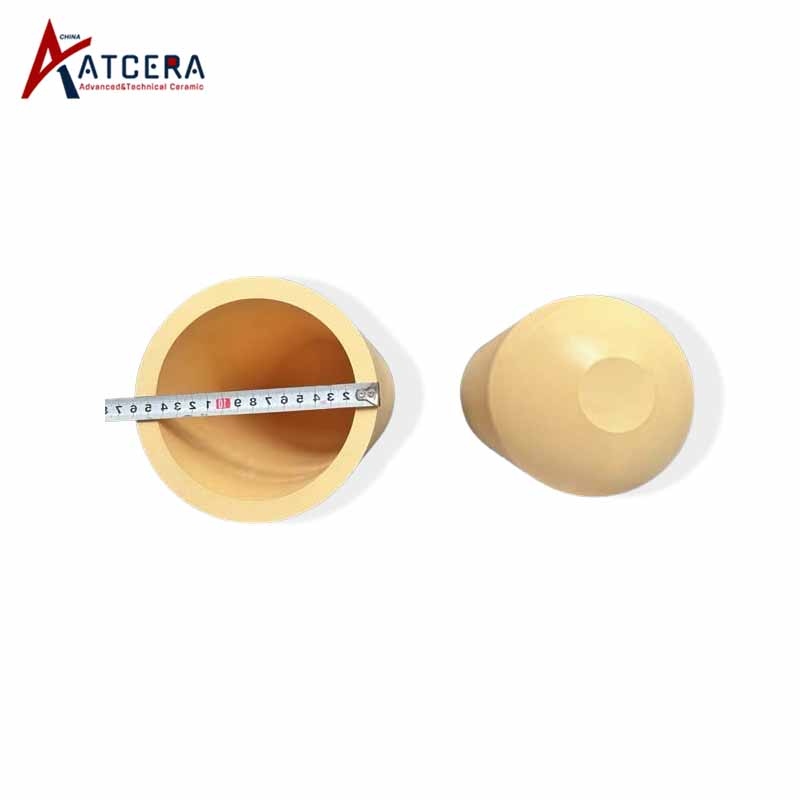

Size Chart of Magnesia Stablized Zirconia Crucible

We are committed to delivering magnesia stablized zirconia crucible tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawing and specification requirements for customization.

Magnesia Stablized Zirconia Crucible
Item NO.	Specifications
AT-MGO-GG1001	Customized

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Can not use gasoline spray gun, acetylene gun, alcohol burner to heat the MSZ ceramic crucible directly.

2. Before using the MSZ ceramic crucible for the first time, put it in the oven at about 105℃ for 120 minutes to remove the water on crucible surface.

3. Heating/cooling speed should not be too fast, below 1200℃ shall not over 5℃/ min; and above 1200℃ shall be controlled within 4℃/ min, too fast heating or cooling may lead to crucible cracking.

4. The distance between the crucible and the heating body (silicon carbon heting tube, heating rod or heating wire) should be no less than 2cm.

5. The bottom should not be in direct contact with the bottom of the furnace. It is recommended to use corundum piece and other temperature resistant substances to lift the crucible to form air convection.

6. The material should be added according to the volume of the crucible, and should not be squeezed too tightly to avoid the metal thermal expansion and cause crack of the crucible.

7. When taking out the metal molten liquid, scoop it out with a spoon, in the case that caliper need to be used, avoid excessive force on the crucible which may shorten the service life.

8. Safety during use: MSZ ceramic crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storage: when store MSZ ceramic crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
