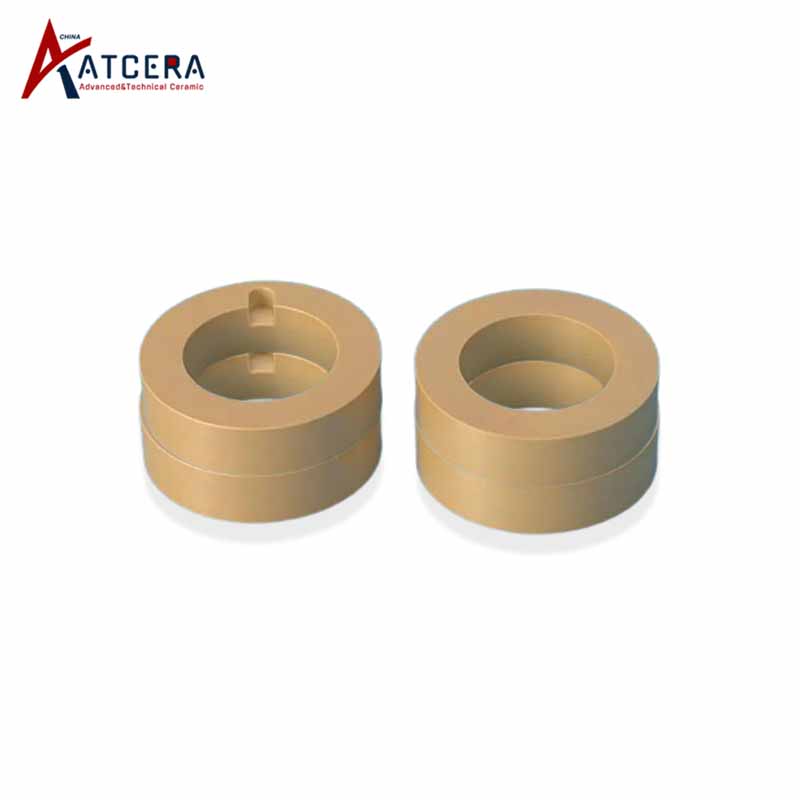

MSZ ceramic ring

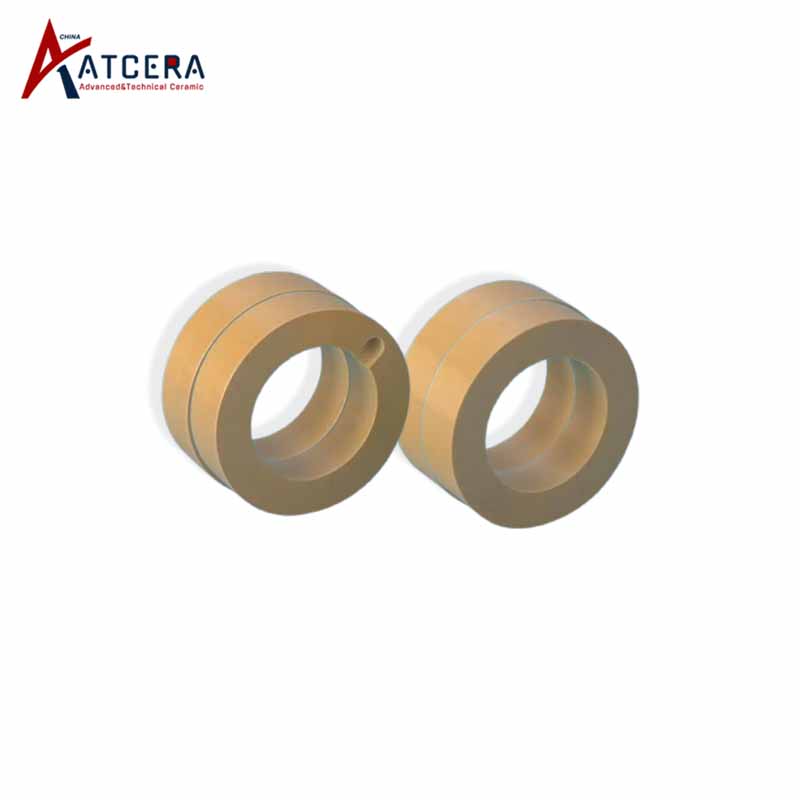

MSZ ceramic ring

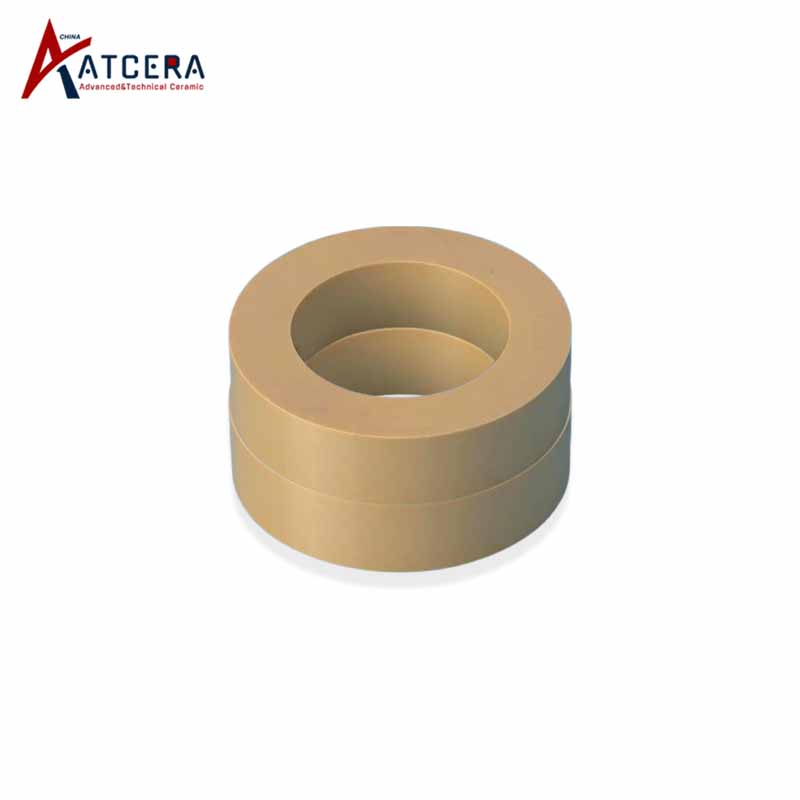

MSZ ceramic ring

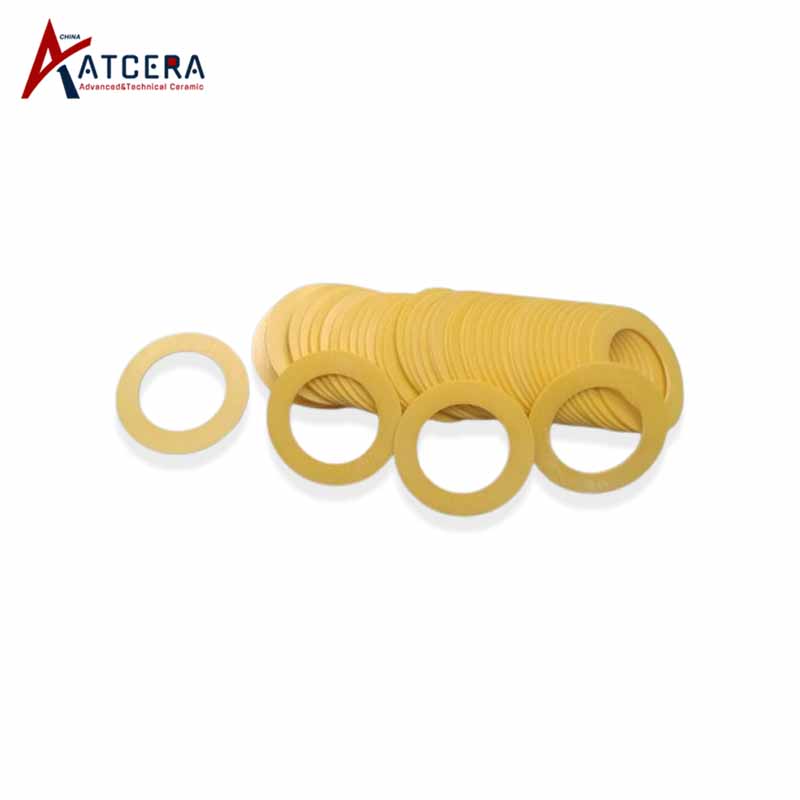

MSZ ceramic ring

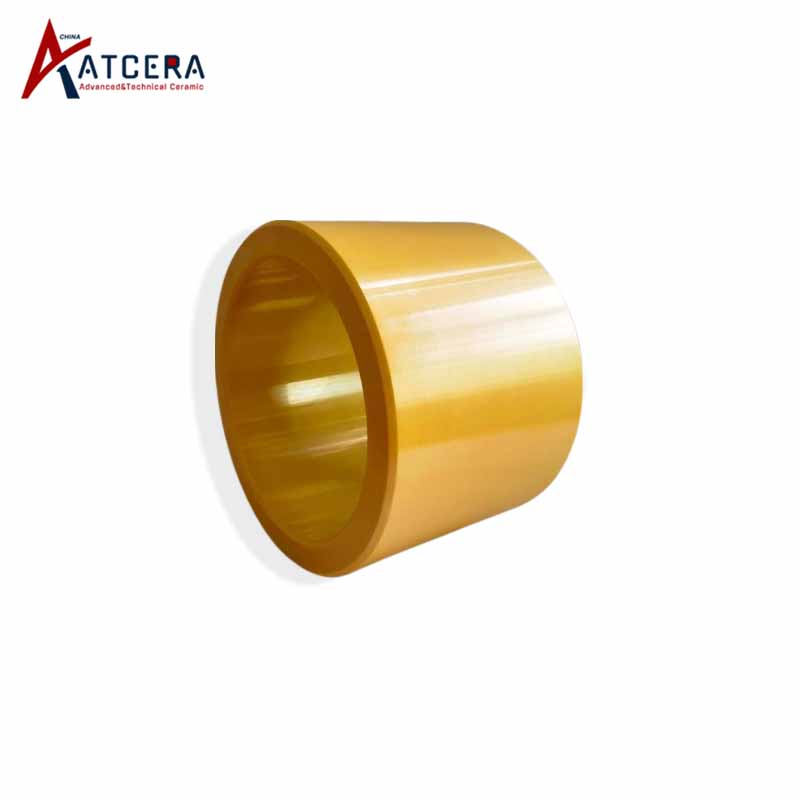

MSZ ceramic ring

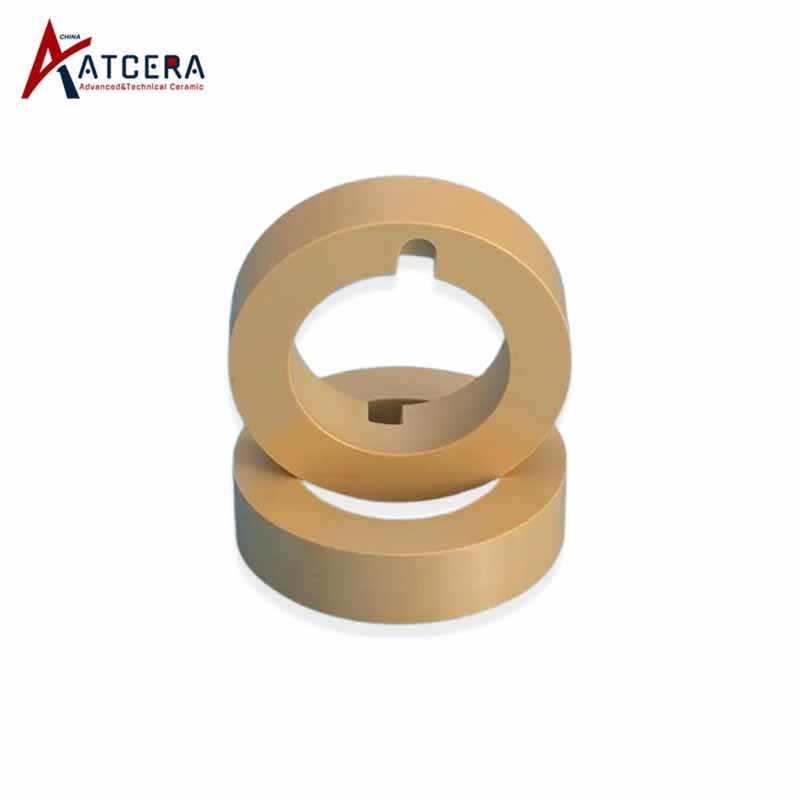

Magnesia Stablized Zirconia Ceramic Ring

Magnesia stablized zirconia ceramic rings made of zirconia ceramics with magnesium oxide as stabilizer, it has good mechanical properties, wear resistance and corrosion resistance, compared with normal zirconia, it has more outstanding thermal shock resistance and stability at high temperature. It can be used for a long time under high temperature conditions, and can adapt to rapid changes.It can be used as a structural component in the production equipment of metallurgy, machining, petrochemical and other industries, to play the role of wear resistance, insulation, heat insulation, etc.



  • Brand:

    ATCERA
  • Item NO.:

    AT-MG-H001
  • Materials

    MSZ
  • Shapes

    Mechanical Parts
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry
Magnesia Stablized Zirconia Ceramic Ring

Properties of Magnesia Stablized Zirconia Ceramic Ring



1. High temperature and good thermal shock resistance

Magnesia stablized zirconia (MSZ) ring has good high temperature resistance and thermal shock resistance, the highest use temperature can reach up to higher than 1000℃, and resistance to oxidation under high temperature is very good.

2. Good corrosion resistance

Magnesia stablized zirconia (MSZ) ceramic ring is resistant to acid, alkali and other chemicals, and can contact directly with a variety of corrosive media.

3. Good wear resistance

Magnesia stablized zirconia (MSZ) ring has high hardness, wear resistance is good, and service life is long.



Magnesia stablized zirconia ceramic ring

Applications of MSZ Ceramic Ring





Magnesia stablized zirconia ceramic rings can be used as a structural component in the production equipment of metallurgy, machining, petrochemical and other industries, to play the role of wear resistance, insulation, heat insulation, etc.













Size Chart of MSZ Ceramic Ring



We are committed to delivering magnesia stablized zirconia ceramic ring tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.





Please provide drawing and parameter requirements for customization.



Magnesia Stablized Zirconia Ceramic Ring
Item NO. Outer Diameter
(mm)
Inner Diameter
(mm)
Height
(mm)
AT-MG-H001 10 5 5
AT-MG-H002 10 5 10
AT-MG-H003 20 10 8
AT-MG-H004 56 23 10
AT-MG-H005 85 60 8
AT-MG-H006 100 60 10
AT-MG-H007 150 120 20
AT-MG-H008 185 125 30
AT-MG-H009 205 150 20
AT-MG-H010 234 180 30
AT-MG-H011 305 225 30
AT-MG-H012 398 296 40









Technical Data of Mg-PSZ Materials



Material Magnesia stablized zirconia (MSZ)
Density (g/cm3) 5.7
Flexture strength (MPa) 540
Young Modulus (GPa) 250
Poisson's ratio 0.31
Compressive strength (MPa) 2500
Hardness (HV) 1100
Fracture toughness (MPa*m1/2) 7.5
Maximum working temperature (℃) 1200
Thermal conductivity (W/m*K) 18
Thermal expansion coefficient (/℃) 8*10-6
Thermal shock resistance (ΔT ℃) 250





*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.






Usage Instructions







1. Select appropriate MSZ ceramic ring according to the design size and working environment, so as to achieve the best effect.



2. Clean the dust and impurities of the MSZ ceramic ring and the mating surface before installation, to ensure the service life and use effect.



3. The ambient temperature of MSZ ceramic ring should not exceed the maximum use temperature, if the temperature is too high, it will cause aging of the ceramic ring and reduce the service life.

Valuable Information



Machining precision

Machining Precision



1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
