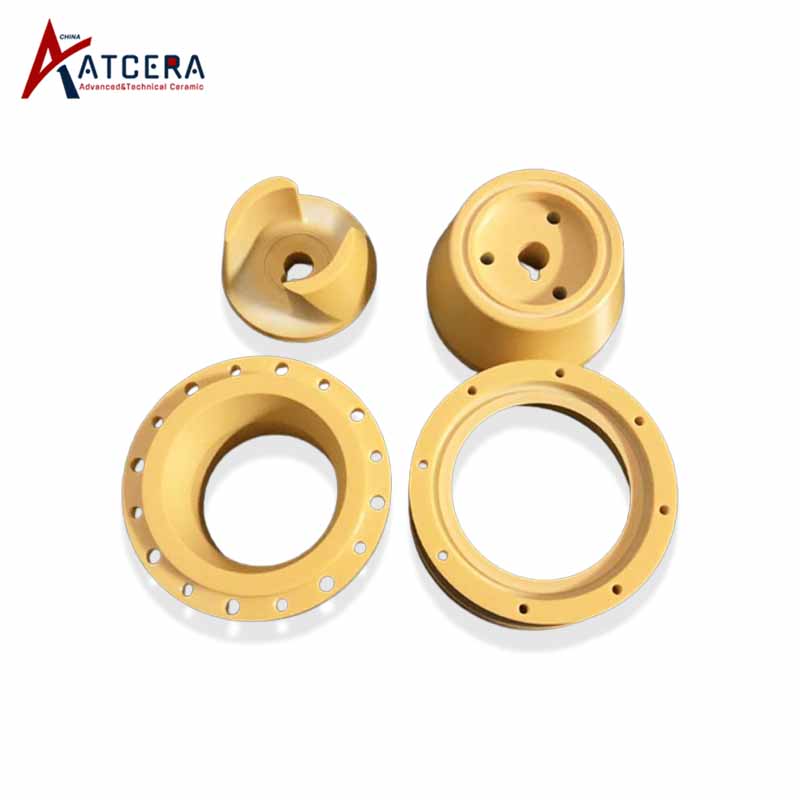

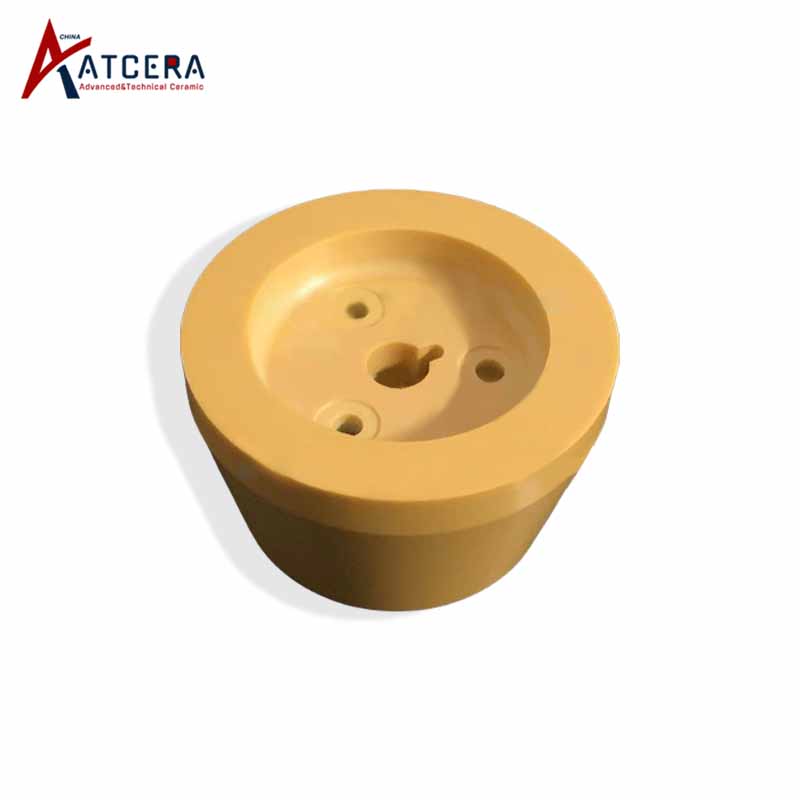

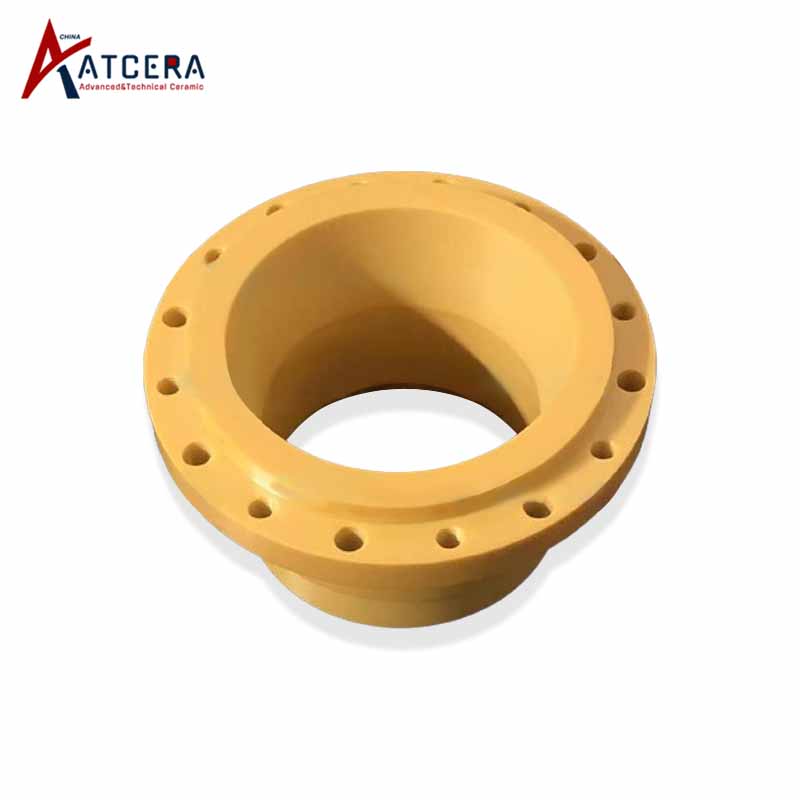

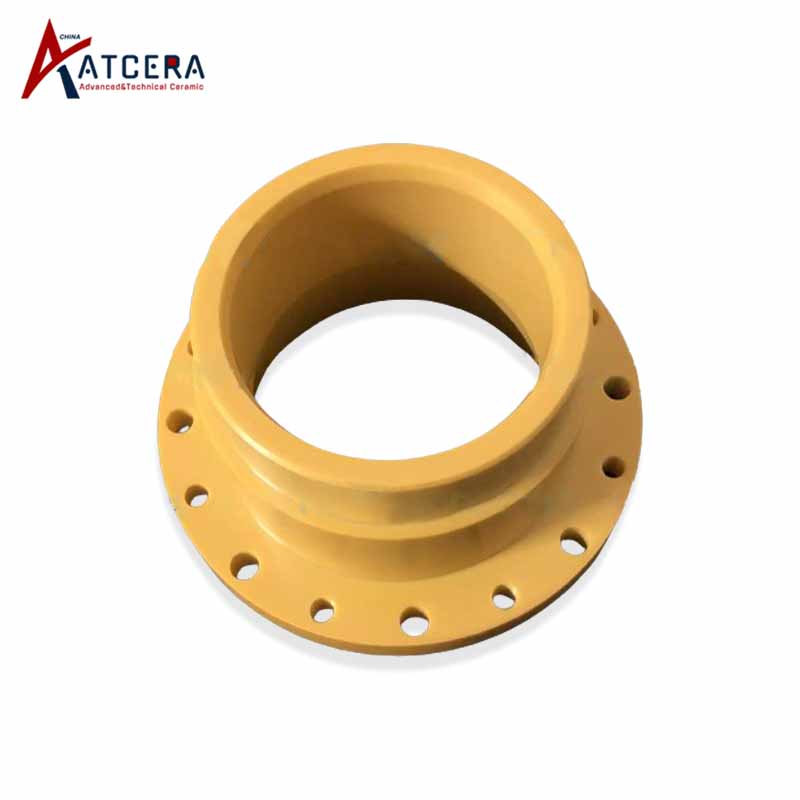

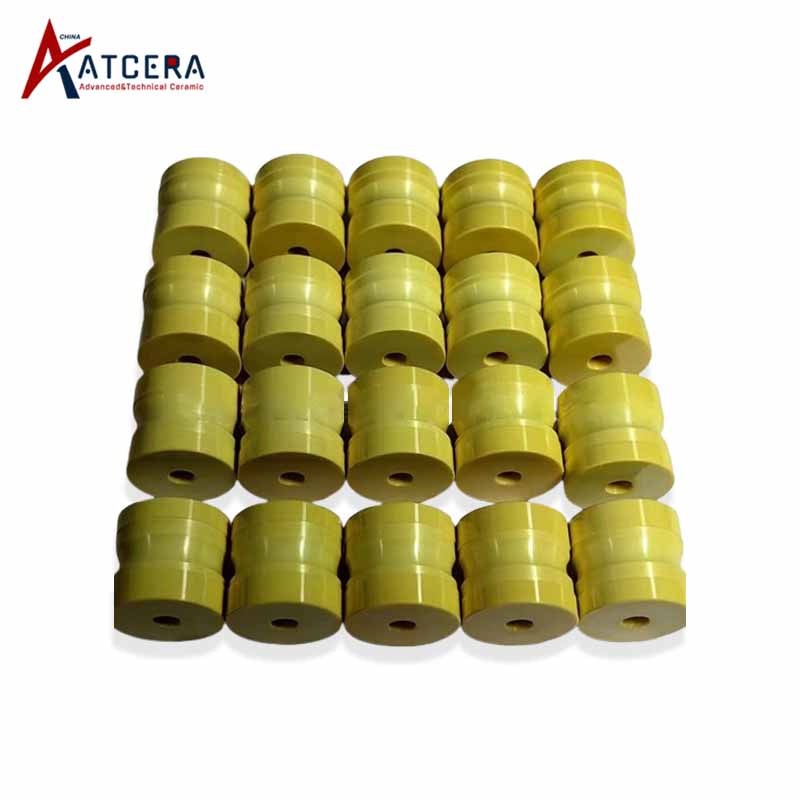

Magnesia Stablized Zirconia Ceramic Valve

Magnesia stablized zirconia ceramic valve is made of zirconia ceramic with magnesia as stabilizer, with high mechanical strength, good impact resistance, strong wear and corrosion resistance, good resistance to high temperature and thermal shock. It is widely used in machinery and equipment, petrochemical industry, biopharmaceutical industry, food processing, power station, water supply, metal smelting, etc., for regulating the flow rate, and it can also be used for switching control, to open or close the pipeline system.

Brand:
ATCERA
Item NO.:
AT-MSZV-0001

Materials
MSZ
Shapes
Valve
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Properties of Magnesia Stablized Zirconia Ceramic Valve

1. Magnesia stablized zirconia ceramic valves have high mechanical strength, good impact resistance, good wear resistance and long service life.

2. Magnesia stablized zirconia ceramic valve has clean surface,with good self-lubricating performance, no need lubrication maintenance and fluid resistance is very low.

3. Magnesia stablized zirconia ceramic valve is resistant to high temperature and corrosion, the maximum operating temperature can reach higher than 1000℃, with good thermal shock resistance and chemical stability, can withstand rapid temperature changes and direct contact with a variety of acidic and alkaline substances, without the risk of corrosion failure.

4. Magnesia stablized zirconia ceramic has good biocompatibility, non-toxic and harmless to human body, and do not contaminate fluid medium.

Applications of Magnesia Stablized Zirconia Ceramic Valve

Magnesia stablized zirconia ceramic valve is widely used in machinery and equipment, petrochemical industry, biopharmaceutical industry, food processing, power station, water supply, metal smelting, etc., for regulating the flow rate, and it can also be used for switching control, to open or close the pipeline system.

Size Chart of Magnesia Stablized Zirconia Ceramic Valve

We are committed to delivering magnesia stablized zirconia ceramic valve tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and specification requirements for customization.

Magnesia Stablized Zirconia Ceramic Valve
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
AT-MSZV-0001	30	6	42

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Select the appropriate MSZ ceramic valve type and specification according to the temperature, pressure, flow and other parameters of the fluid, to ensure that the selected valve meets the requirements of use.

2. Before installation, check whether the appearance of the valve is normal and confirm whether the components are intact.

3. During the installation process, it is necessary to ensure that the valve is installed in the correct direction and avoid severe impact and vibration of the valve.

4. The valve shall be checked regularly during operation, to ensure that sealing performance is normal and no leakage, to ensure safety and reliability of the valve.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
