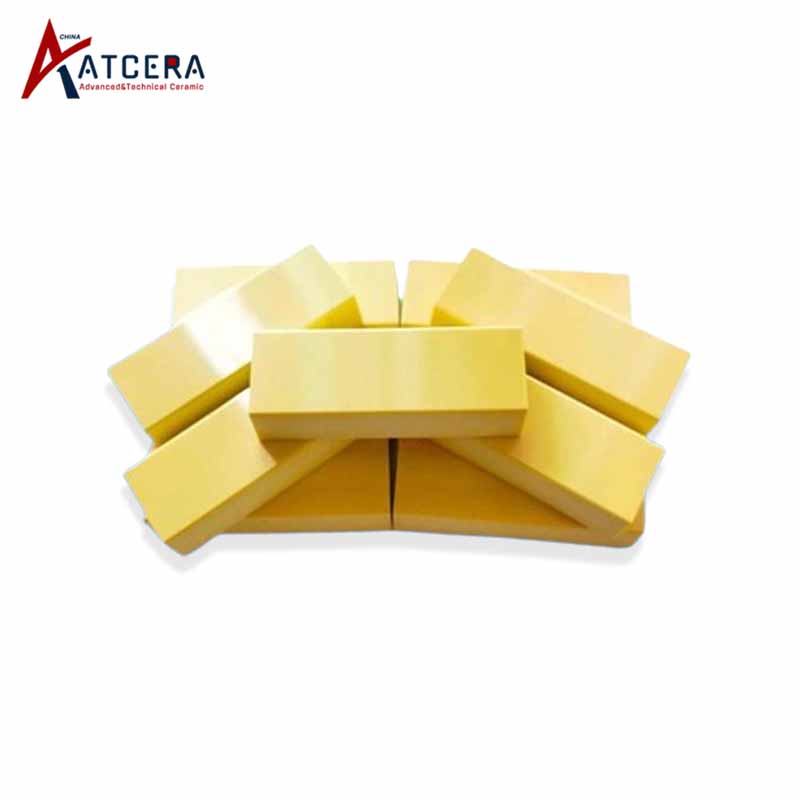

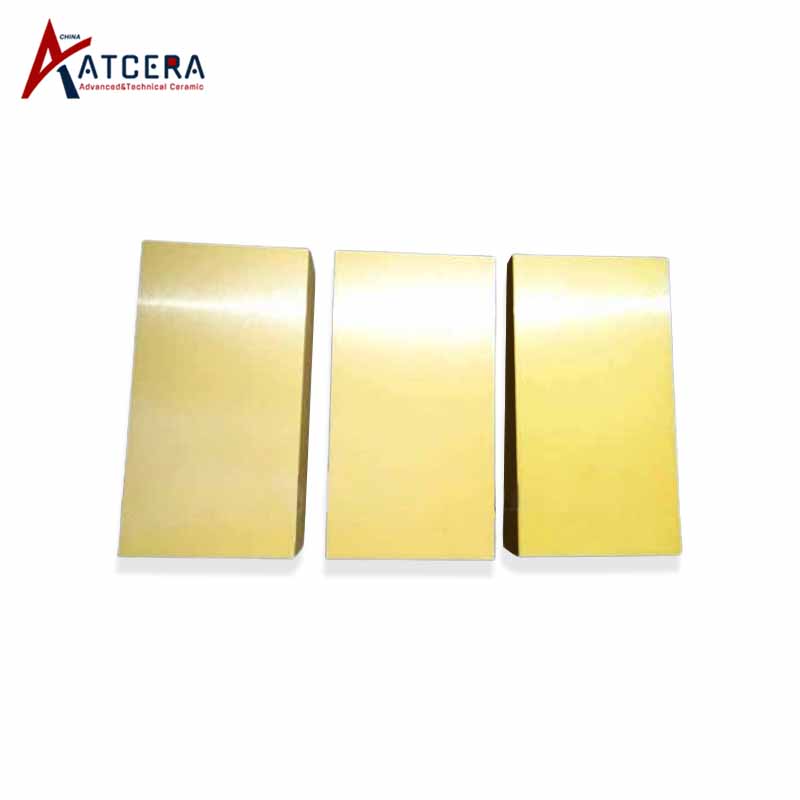

Magnesia stablized zirconia ceramic gauge block is used for length dimension measurement of products and equipment, and can also be used for calibration of other dimension testing instruments. It has high hardness, good wear resistance, dimensional stability, long service life, high temperature resistance, good thermal stability, and is non-conductive and non-magnetic, with a long calibration cycle, and can be used in environments with high temperatures, magnetism and dust.
Brand:
ATCERAItem NO.:
AT-MG-LJ1001Materials
MSZShapes
Mechanical PartsApplications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry
1. MSZ ceramic gauge block has high hardness, good wear resistance, so the service life is long, which is more than 10 times that of steel gauges.
2. MSZ ceramic gauge block has good corrosion resistance, can be in direct contact with acid and alkali, also it has high temperature resistance, can adapt to a variety of harsh working environment.
3. MSZ ceramic gauge block does not rust, no need anti-corrosion treatment, maintenance and storage is very convenient.
4. No aging, no magnetization, no conduction, stable performance, calibration cycle is long.
Magnesia stablized zirconia ceramic gauge block is used for length measurement in machining, electronics manufacturing and other industries, and as a reference,calibration of high-precision gauges and measuring instruments.
We are committed to delivering magnesia stablized zirconia ceramic gauge block tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.
Please provide drawings, including dimensions and specifications for customization.
| Magnesia Stablized Zirconia Ceramic Gauge Block | |
| Item NO. | Specifications |
| AT-MG-LJ1001 | Customized |
| Material | Magnesia stablized zirconia (MSZ) |
| Density (g/cm3) | 5.7 |
| Flexture strength (MPa) | 540 |
| Young Modulus (GPa) | 250 |
| Poisson's ratio | 0.31 |
| Compressive strength (MPa) | 2500 |
| Hardness (HV) | 1100 |
| Fracture toughness (MPa*m1/2) | 7.5 |
| Maximum working temperature (℃) | 1200 |
| Thermal conductivity (W/m*K) | 18 |
| Thermal expansion coefficient (/℃) | 8*10-6 |
| Thermal shock resistance (ΔT ℃) | 250 |
*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.
1. Diameter Tolerance: ±0.01mm
2. Hole Depth Tolerance: ±0.005mm
3. Surfance Roughness: Ra0.5
4. Cylindricity: ±0.004mm
5. Concentricity: ±0.003mm
6. Parallelism: ±0.002mm
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
