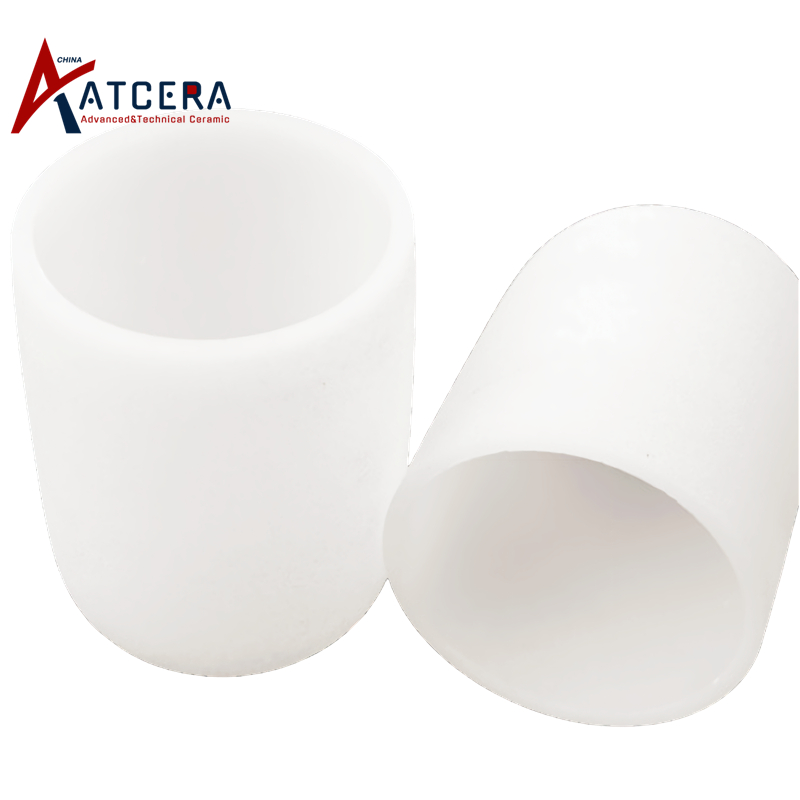

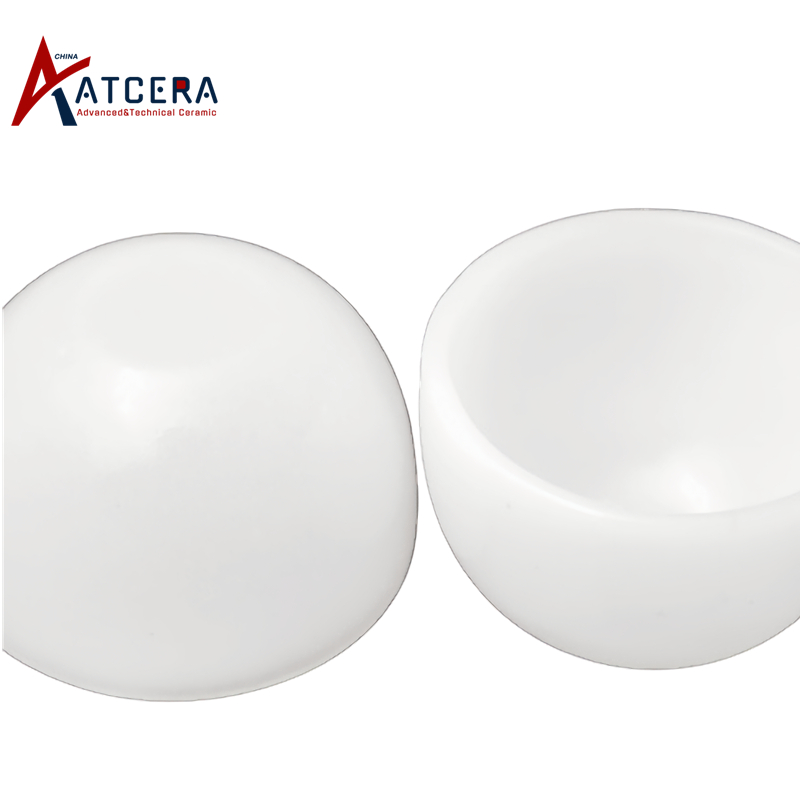

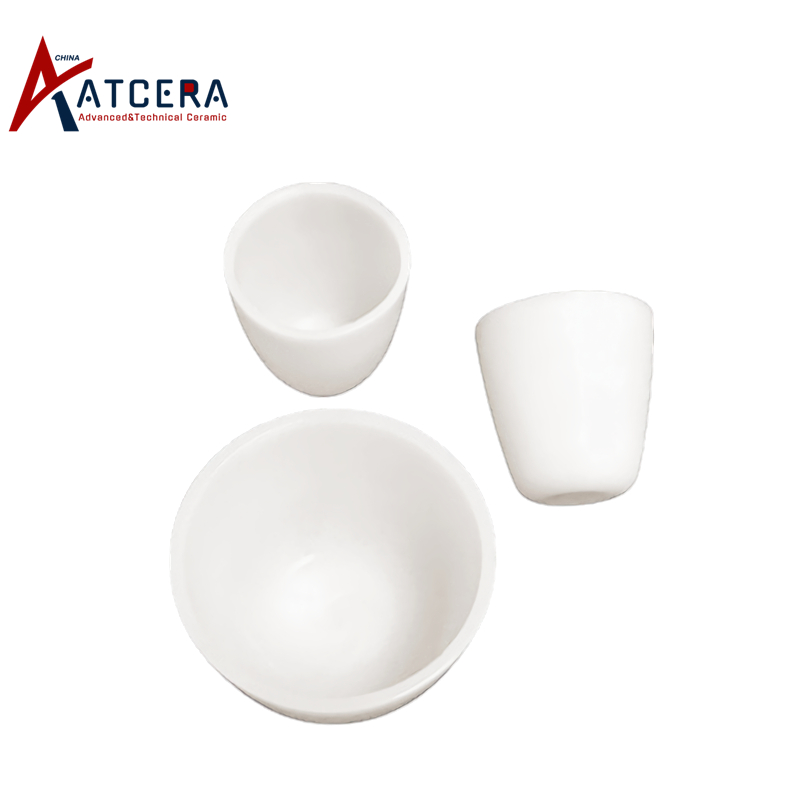

Opaque Quartz Glass Crucible

Opaque quartz crucible contains many small dispersed bubbles, so that it appears milky white colour. It has high temperature resistance, good thermal stability, excellent insulation performance, good wear and corrosion resistance, widely used material analysis experiments and production at high temperature, for the calcination and melting process.

Brand:
ATCERA
Item NO.:
AT-SY-RG001

Materials
Quartz
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Properties of Opaque Quartz Glass Crucible

1. Opaque quartz glass crucible is high temperature resistant, the maximum use temperature is higher than 1100℃, thermal expansion coefficient is small, and the thermal shock resistance is excellent.

2. With acid and alkali corrosion resistance, except hydrofluoric acid and phosphoric acid, it does not react with other acids or alkalis.

Applications of Opaque Quartz Glass Crucible

Opaque quartz glass crucible is widely used in chemical analysis experiments at high temperatures, and industrial material production, testing and analysis, used to calcine and melt various materials, including metals, ceramics, glass, etc.

Product Parameters
Material Parameters

Size Chart of Opaque Quartz Glass Crucible

We are committed to delivering optimal opaque quartz glass crucibles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

Dimension tolerance: ±0.2mm

Send Requirements for Custom Design

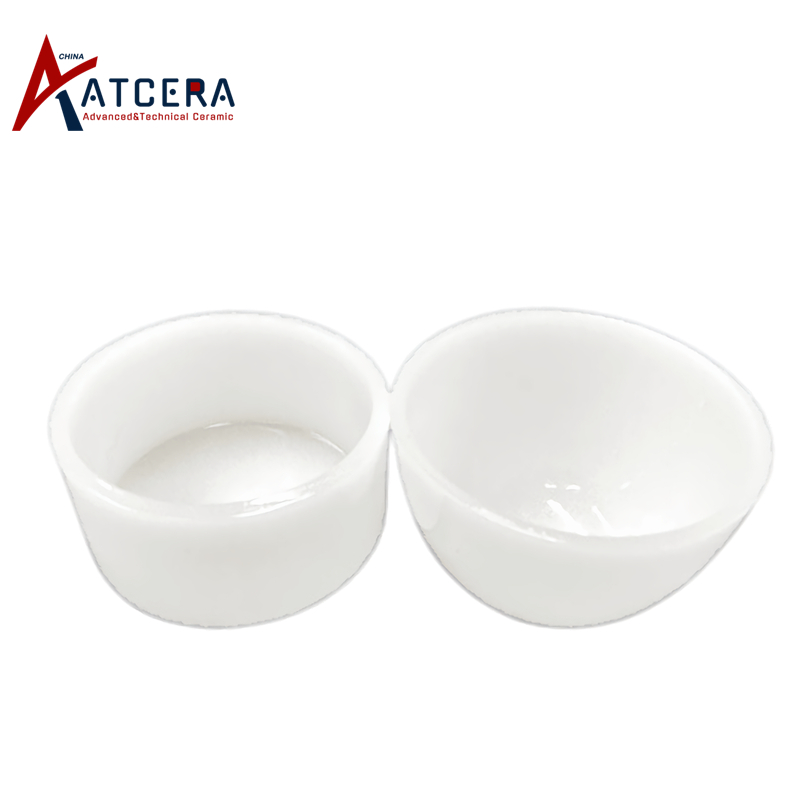

Opaque Quartz Glass Crucible Arch
Item no.	Volume (ml)	Bottom Dia. (mm)	Height (mm)	Si2O's Purity (%)
AT-SY-RG001	5	25	33	99.9-99.98
AT-SY-RG002	10	30	40	99.9-99.98
AT-SY-RG003	15	34	48	99.9-99.98
AT-SY-RG004	20	38	52	99.9-99.98
AT-SY-RG005	25	42	58	99.9-99.98
AT-SY-RG006	30	45	60	99.9-99.98
AT-SY-RG007	50	55	70	99.9-99.98
AT-SY-RG008	100	70	95	99.9-99.98
AT-SY-RG009	150	80	105	99.9-99.98
AT-SY-RG010	200	90	115	99.9-99.98
AT-SY-RG011	250	95	130	99.9-99.98
AT-SY-RG012	500	115	165	99.9-99.98
AT-SY-RG013	1000	140	200	99.9-99.98
AT-SY-RG014	2000	170	245	99.9-99.98

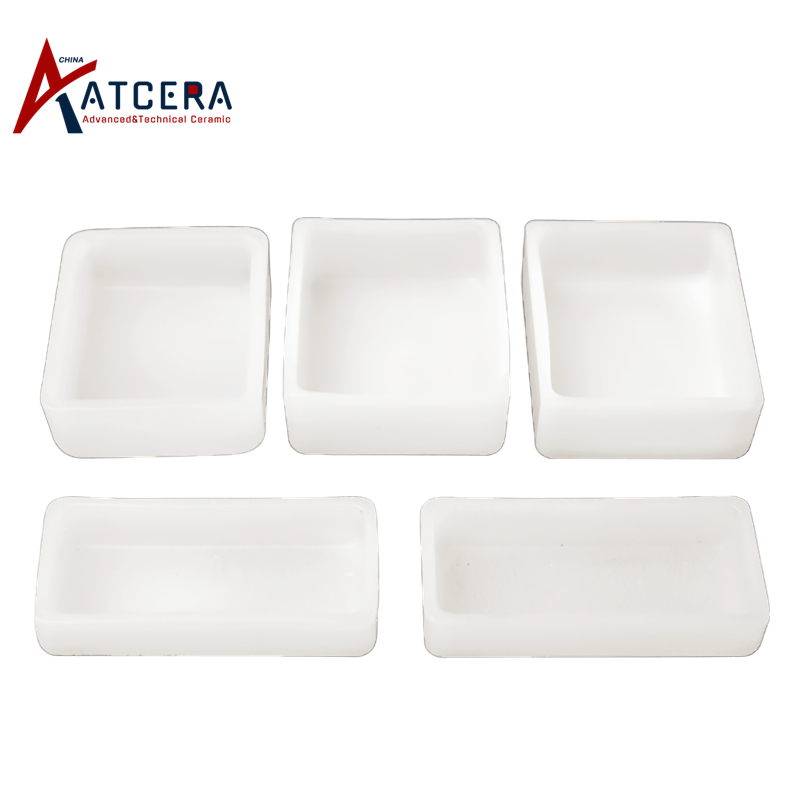

Opaque Quartz Glass Crucible Rectangular
Item no.	Length (ml)	Width (mm)	Height (mm)	Si2O's Purity (%)
AT-SY-RG015	60	40	17	99.9-99.98
AT-SY-RG016	80	25	25	99.9-99.98
AT-SY-RG017	85	85	30	99.9-99.98
AT-SY-RG018	137	73	35	99.9-99.98
AT-SY-RG019	140	80	40	99.9-99.98
AT-SY-RG020	155	94	33	99.9-99.98
AT-SY-RG021	200	200	50	99.9-99.98
AT-SY-RG022	225	56	22	99.9-99.98
AT-SY-RG023	230	94	90	99.9-99.98
AT-SY-RG024	264	175	75	99.9-99.98
AT-SY-RG025	275	125	60	99.9-99.98

Opaque Quartz Glass Crucible Cylindrical
Item no.	Diameter (mm)	Height (mm)	Si2O's Purity (%)
AT-SY-RG026	20	30	99.9-99.98
AT-SY-RG027	25	38	99.9-99.98
AT-SY-RG028	50	15	99.9-99.98
AT-SY-RG029	50	30	99.9-99.98
AT-SY-RG030	128	138	99.9-99.98
AT-SY-RG031	148	120	99.9-99.98
AT-SY-RG032	165	125	99.9-99.98
AT-SY-RG033	182	152	99.9-99.98
AT-SY-RG034	205	165	99.9-99.98

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Opaque Quartz Glass Crucible Packing

Opaque quartz glass crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
