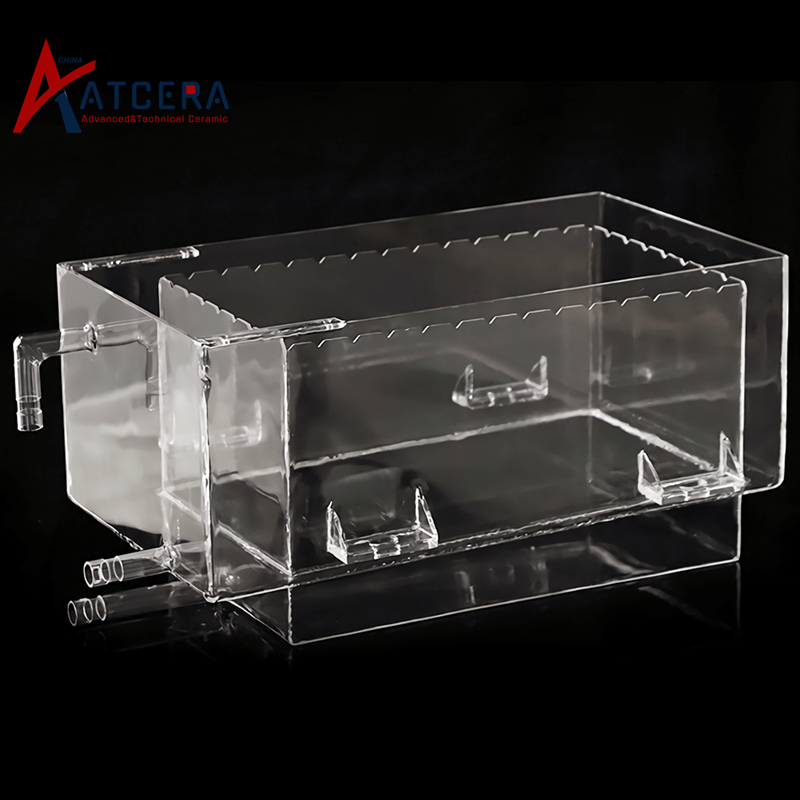

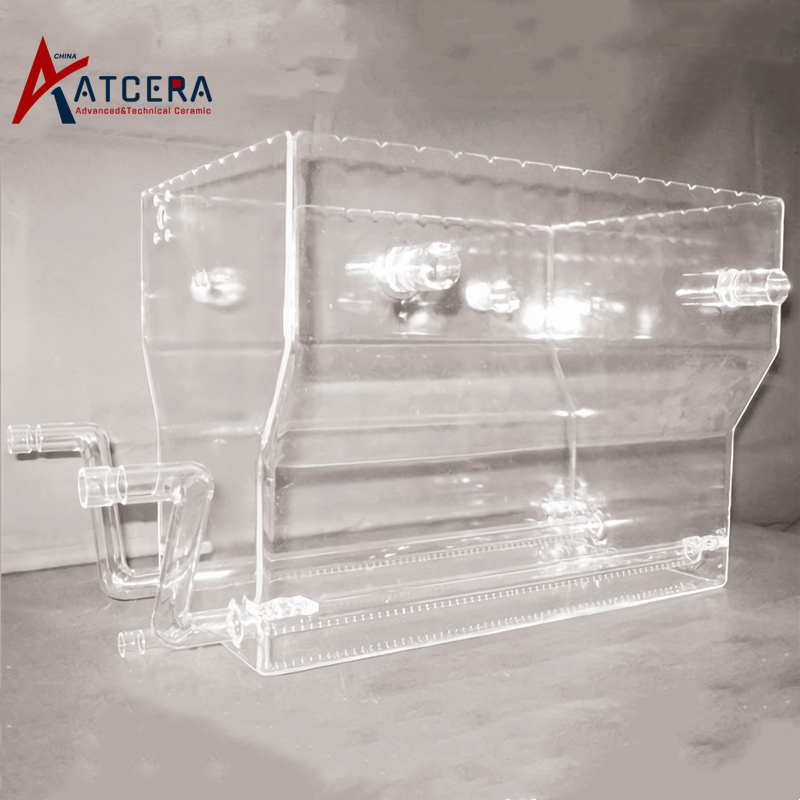

Quartz tank is made of high purity quartz, with high temperature resistance, corrosion resistance, thermal and chemical stability are excellent, it is used in the process of wet etching and wafer cleaning for semiconductor and photovoltaic cell production.
Brand:
ATCERAItem NO.:
AT-SY-FG001Materials
QuartzShapes
CrucibleApplications
Semiconductor , Photovoltaic Cell Industry , Laboratory Equipment and Instruments
Quartz tank has good light transmittance, high temperature resistance, good corrosion resistance, excellent insulation performance.
Quartz tank has excellent optical properties,light transmission efficiency is high, also with good high temperature resistance and thermal stability, corrosion resistance, good chemical stability, excellent electrical insulation properties, it plays an irreplaceable role in the production of semiconductor and photovoltaic cells.
Quartz tank is used in the process of wet etching and wafer cleaning for semiconductor and photovoltaic cell production.
We are committed to delivering optimal quartz tanks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.
Drawing and specification requirements shall be provided if customized design request.
Dimension tolerance to be otherwise stated or required by the user.
| Density (g/cm3) | 2.2 |
| Flexture Strength (MPa) | 48 |
| Elastic Modulus (GPa) | 72 |
| Poisson's Ratio | 0.14-0.17 |
| Compressive strength (MPa) | 1100 |
| Bending strength (MPa) | 67 |
| Moh's hardness | 5.5~6.5 |
| Maximum working temperature (long-term, ℃) | 1100 |
| Maximum working temperature (short-term, ℃) | 1350 |
| Thermal conductivity (W/m*K) | 1.4 |
| Thermal expansion coefficient (/℃) | 5.5*10-7 |
| Specific resistance (Ω*cm) | 7*107 |
*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.
Quartz tanks are carefully packaged in appropriate containers to avoid any potential damage.
1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.
2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.
3. Flexible business cooperation mechanism, support at least one piece of quantity customization.
4. Quickly provide samples and test reports to confirm that the product meets your needs.
5. Provide product use and maintenance suggestions to reduce your cost of use.
Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.
Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.
We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.
In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.
Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.
