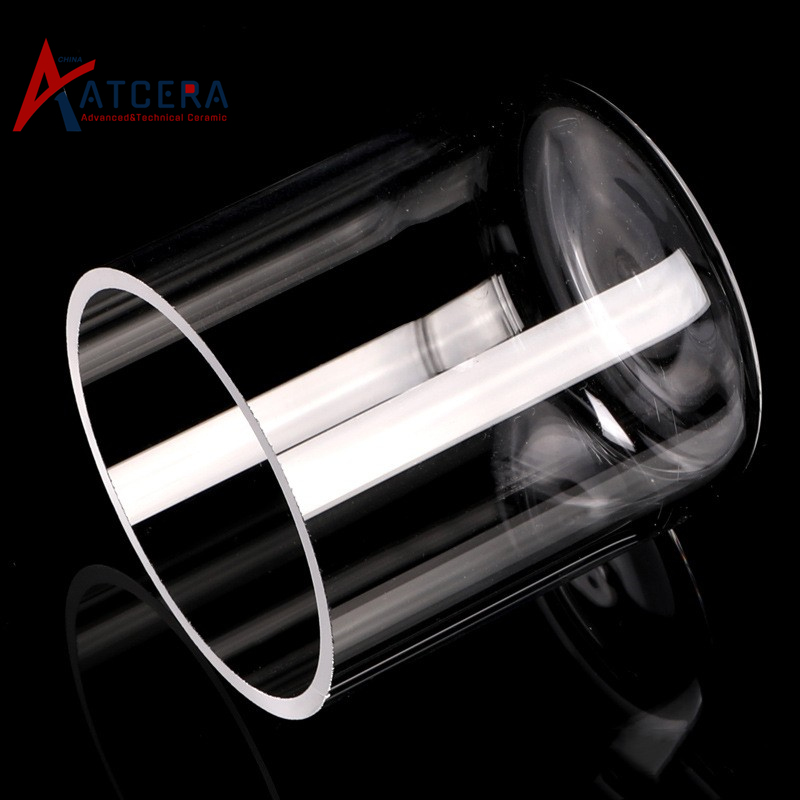

Transparent Quartz Crucible

Transparent quartz crucible is made of high purity quartz as raw materials, SiO2 content is not less than 99.98%. It has excellent thermal stability and light transmission performance, good insulation, high temperature and corrosion resistance, widely used in the manufacture of experimental instruments and optical instruments, as well as metal and non-metallic materials analysis test.

Brand:
ATCERA
Item NO.:
AT-QTZ-B001

Materials
Quartz
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Biology and Medicine , Laboratory Equipment and Instruments

Inquire Now

Properties of Transparent Quartz Crucible

1. Transparent quartz crucible is high temperature resistant, the maximum use temperature is higher than 1100℃, thermal expansion coefficient is small, and the thermal shock resistance is excellent.

2. With acid and alkali corrosion resistance, except hydrofluoric acid and phosphoric acid, it does not react with other acids or alkalis.

3. Good light transmission and insulation.

Applications of Transparent Quartz Crucible

Transparent quartz crucible is widely used in the manufacture of experimental instruments and optical instruments, as well as in the analysis and test of metal and non-metallic materials.

Product Parameters
Material Parameters

Size Chart of Transparent Quartz Crucible

We are committed to delivering optimal transparent quartz crucibles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

JGS-1, JGS-2 and JGS-3 quartz are available, please contact ATCERA if have spectrum demand to the material.

Send Requirements for Custom Design

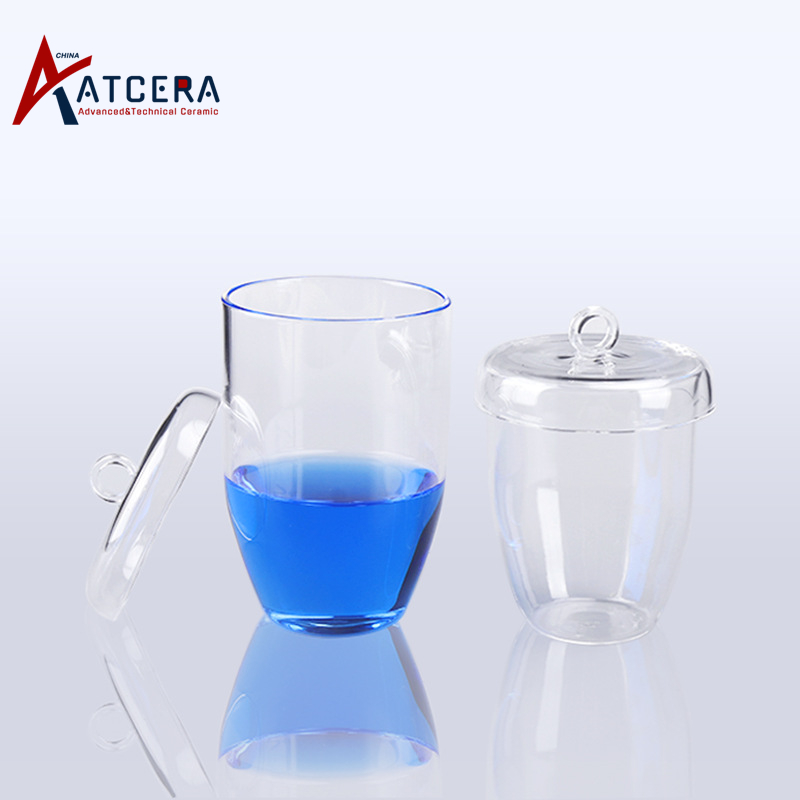

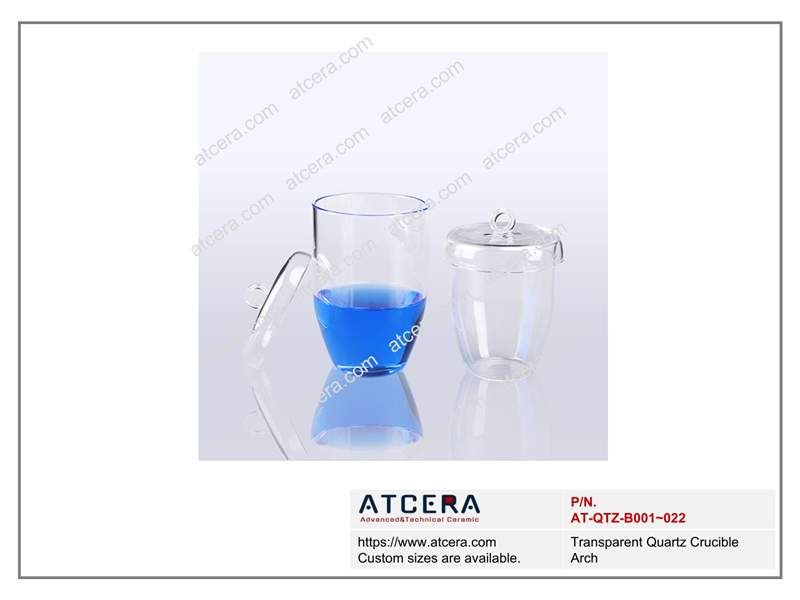

Drawing of Transparent Quartz Crucible Arch

Transparent Quartz Crucible Arch
Item no.	Volume (ml)	Outer Dia. (mm)	Bottom Dia. (mm)	Height (mm)	Wall Thickness (mm)	Si2O's Purity (%)
AT-QTZ-B001	5	25	18	31	1.5	99%-99.99%
AT-QTZ-B002	5	25	18	40	1.5	99%-99.99%
AT-QTZ-B003	10	30	23	42	2	99%-99.99%
AT-QTZ-B004	10	30	23	53	2	99%-99.99%
AT-QTZ-B005	20	35	25	45	2	99%-99.99%
AT-QTZ-B006	20	35	25	59	2	99%-99.99%
AT-QTZ-B007	30	40	30	54	2	99%-99.99%
AT-QTZ-B008	30	40	30	68	2	99%-99.99%
AT-QTZ-B009	50	45	33	63	2	99%-99.99%
AT-QTZ-B010	50	45	33	75	2	99%-99.99%
AT-QTZ-B011	100	54	39	84	2	99%-99.99%
AT-QTZ-B012	100	54	39	100	2	99%-99.99%
AT-QTZ-B013	150	60	43	90	2	99%-99.99%
AT-QTZ-B014	150	60	43	105	2	99%-99.99%
AT-QTZ-B015	200	69	46	91	2.5	99%-99.99%
AT-QTZ-B016	200	69	46	110	2.5	99%-99.99%
AT-QTZ-B017	250	75	50	110	2.5	99%-99.99%
AT-QTZ-B018	250	75	50	130	2.5	99%-99.99%
AT-QTZ-B019	300	80	51	111	2.5	99%-99.99%
AT-QTZ-B020	300	80	51	130	2.5	99%-99.99%
AT-QTZ-B021	500	88	67	137	2.5	99%-99.99%
AT-QTZ-B022	500	88	67	160	2.5	99%-99.99%

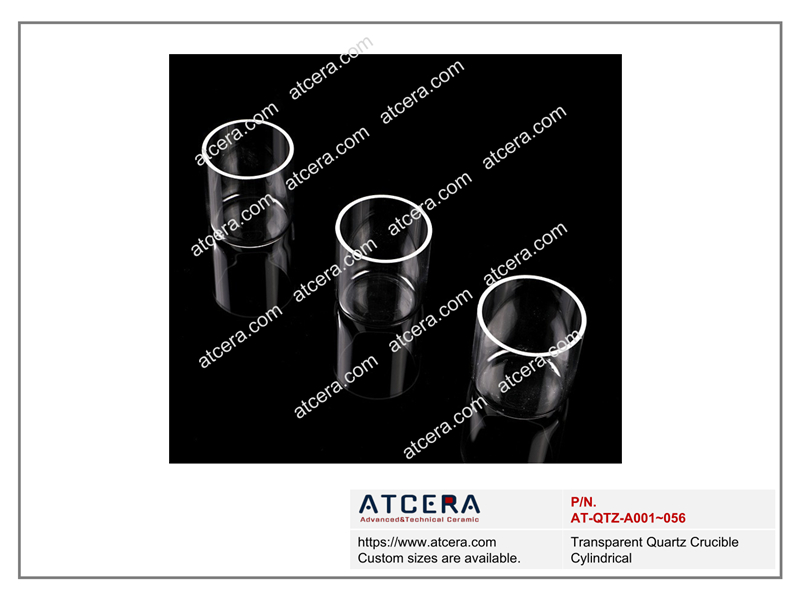

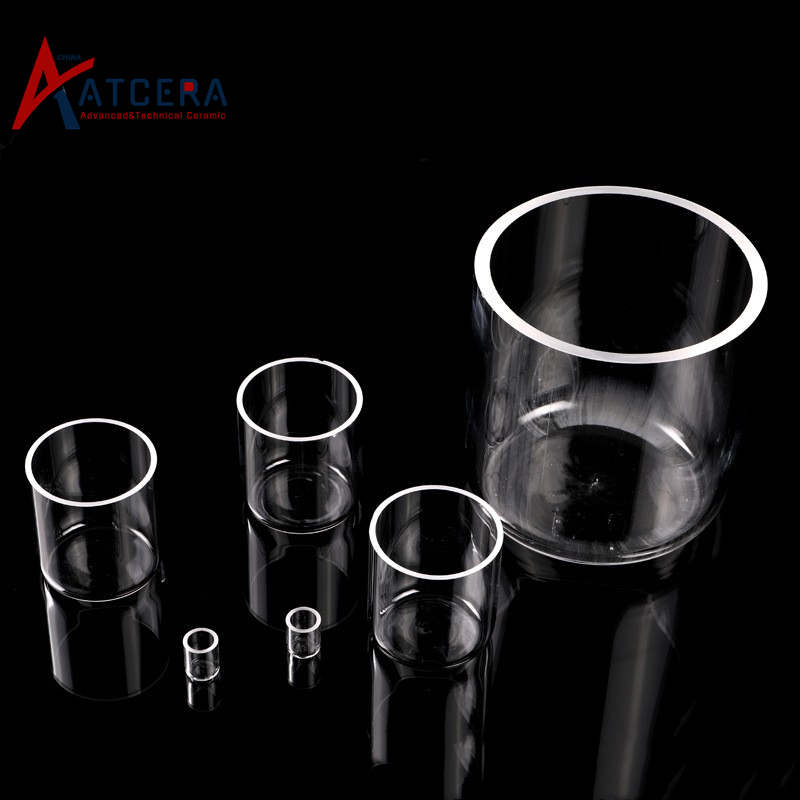

Drawing of Transparent Quartz Crucible Cylindrical

Transparent Quartz Crucible Cylindrical
Item no.	Volume (ml)	Outer Dia. (mm)	Height (mm)	Wall Thickness (mm)	Si2O's Purity (%)
AT-QTZ-A001	0.7	20	4	1.5	99%-99.99%
AT-QTZ-A002	0.6	12	8	1.5	99%-99.99%
AT-QTZ-A003	0.9	12	12	1.5	99%-99.99%
AT-QTZ-A004	0.8	12	10	1.5	99%-99.99%
AT-QTZ-A005	0.9	20	5	1.5	99%-99.99%
AT-QTZ-A006	0.7	12	10	1.5	99%-99.99%
AT-QTZ-A007	1.4	18	8	1.5	99%-99.99%
AT-QTZ-A008	1.3	11	20	1.5	99%-99.99%
AT-QTZ-A009	1.6	12	20	1.5	99%-99.99%
AT-QTZ-A010	1.7	9	40	1.5	99%-99.99%
AT-QTZ-A011	1.5	13	25	1.5	99%-99.99%
AT-QTZ-A012	1.3	10	25	1.5	99%-99.99%
AT-QTZ-A013	5	20	20	1.5	99%-99.99%
AT-QTZ-A014	2	30	5	1.5	99%-99.99%
AT-QTZ-A015	6	22	20	1.5	99%-99.99%
AT-QTZ-A016	3.5	18	18	1.5	99%-99.99%
AT-QTZ-A017	4	16	28	1.5	99%-99.99%
AT-QTZ-A018	0.5	15	5	1.5	99%-99.99%
AT-QTZ-A019	1.2	15	10	1.5	99%-99.99%
AT-QTZ-A020	2.6	15	20	1.5	99%-99.99%
AT-QTZ-A021	3.7	17	21	1.5	99%-99.99%
AT-QTZ-A022	5.2	14	44	1.5	99%-99.99%
AT-QTZ-A023	6	32	10	2	99%-99.99%
AT-QTZ-A024	2	10	40	2	99%-99.99%
AT-QTZ-A025	6	15	50	2	99%-99.99%
AT-QTZ-A026	8	28	17	2	99%-99.99%
AT-QTZ-A027	6	35	8.5	2	99%-99.99%
AT-QTZ-A028	7	16	50	2	99%-99.99%
AT-QTZ-A029	12	54	8	2	99%-99.99%
AT-QTZ-A030	6	17	37	2	99%-99.99%
AT-QTZ-A031	9	16	60	2	99%-99.99%
AT-QTZ-A032	7.5	20	30	2	99%-99.99%
AT-QTZ-A033	7	22	25	2	99%-99.99%
AT-QTZ-A034	10	25	25	2	99%-99.99%
AT-QTZ-A035	9	20	40	2	99%-99.99%
AT-QTZ-A036	12	19	58	2	99%-99.99%
AT-QTZ-A037	16	30	28	2	99%-99.99%
AT-QTZ-A038	17	47	13	2	99%-99.99%
AT-QTZ-A039	20	23	60	2	99%-99.99%
AT-QTZ-A040	17	30	30	2	99%-99.99%
AT-QTZ-A041	24.5	25	60	2	99%-99.99%
AT-QTZ-A042	23	35	30	2	99%-99.99%
AT-QTZ-A043	24	28	58	2	99%-99.99%
AT-QTZ-A044	28	35	35	2	99%-99.99%
AT-QTZ-A045	30	28	58	2	99%-99.99%
AT-QTZ-A046	35	30	60	2	99%-99.99%
AT-QTZ-A047	39	36	45	2	99%-99.99%
AT-QTZ-A048	37	40	35	2	99%-99.99%
AT-QTZ-A049	36	26	82	2	99%-99.99%
AT-QTZ-A050	43	40	40	2	99%-99.99%
AT-QTZ-A051	41	40	40	2.5	99%-99.99%
AT-QTZ-A052	54	40	50	2	99%-99.99%
AT-QTZ-A053	52	40	50	2.5	99%-99.99%
AT-QTZ-A054	63	40	60	2.5	99%-99.99%
AT-QTZ-A055	130	40	120	2.5	99%-99.99%
AT-QTZ-A056	150	60	60	2.5	99%-99.99%

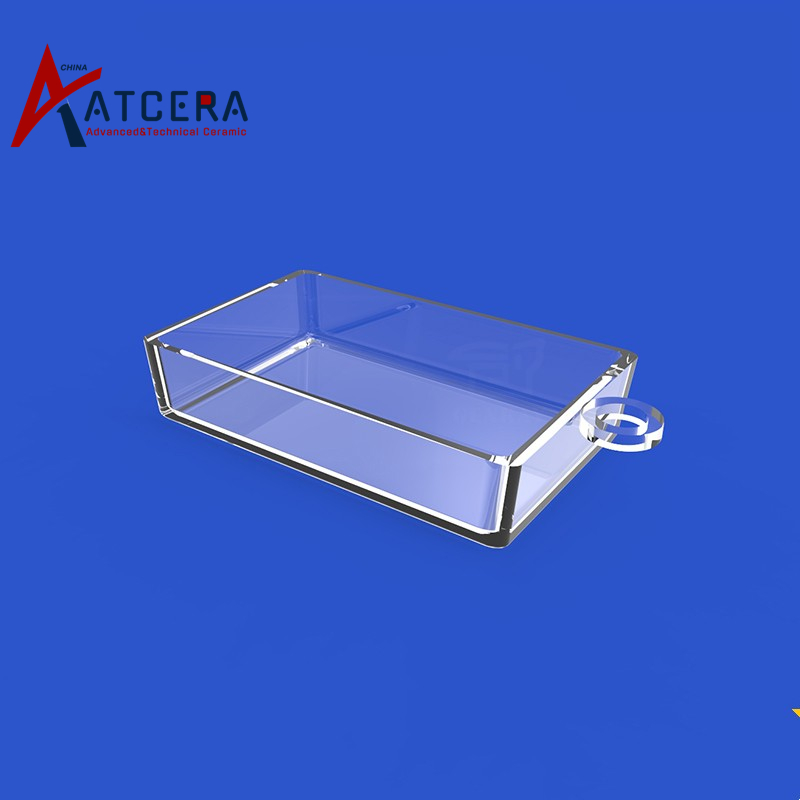

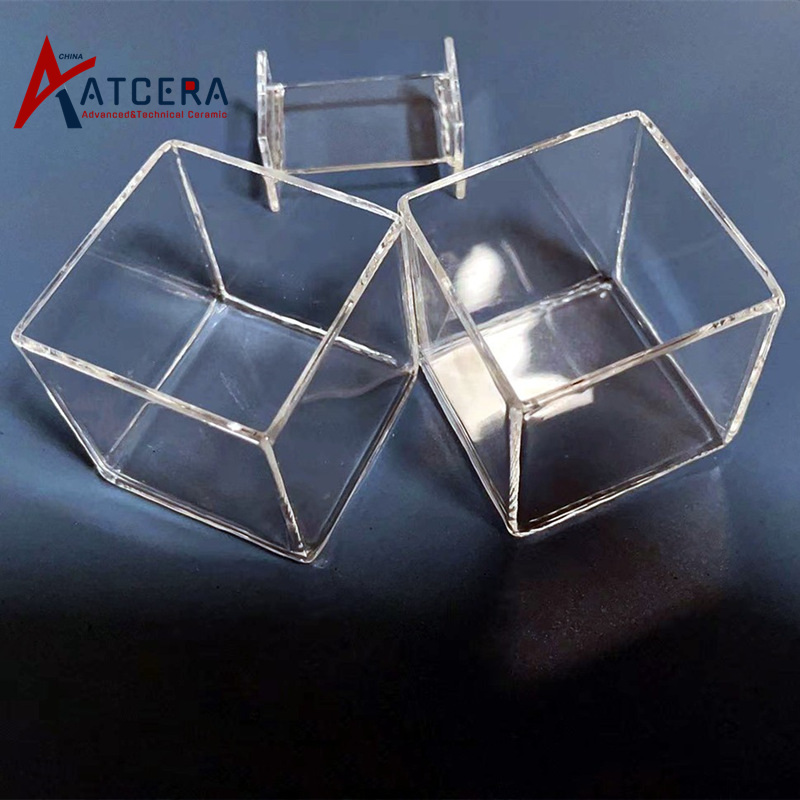

Drawing of Transparent Quartz Crucible Rectangular

Transparent Quartz Crucible Rectangular
Item no.	Length (mm)	Width (mm)	Height (mm)	Wall Thickness (mm)	Si2O's Purity (%)
AT-QTZ-C001	50	10	10	2-3	99%-99.99%
AT-QTZ-C002	100	10	10	2-3	99%-99.99%
AT-QTZ-C003	50	15	10	2-3	99%-99.99%
AT-QTZ-C004	100	15	10	2-3	99%-99.99%
AT-QTZ-C005	50	20	15	2-3	99%-99.99%
AT-QTZ-C006	100	20	15	2-3	99%-99.99%
AT-QTZ-C007	50	30	20	2-3	99%-99.99%
AT-QTZ-C008	100	30	20	2-3	99%-99.99%
AT-QTZ-C009	50	40	25	2-3	99%-99.99%
AT-QTZ-C010	100	40	25	2-3	99%-99.99%
AT-QTZ-C011	50	50	30	2-3	99%-99.99%
AT-QTZ-C012	100	50	30	2-3	99%-99.99%
AT-QTZ-C013	50	50	50	2-3	99%-99.99%
AT-QTZ-C014	100	100	30	2-3	99%-99.99%
AT-QTZ-C015	100	100	50	2-3	99%-99.99%
AT-QTZ-C016	100	100	100	2-3	99%-99.99%
AT-QTZ-C017	200	100	50	2-3	99%-99.99%

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Transparent Quartz Crucible Packing

Transparent quartz crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
