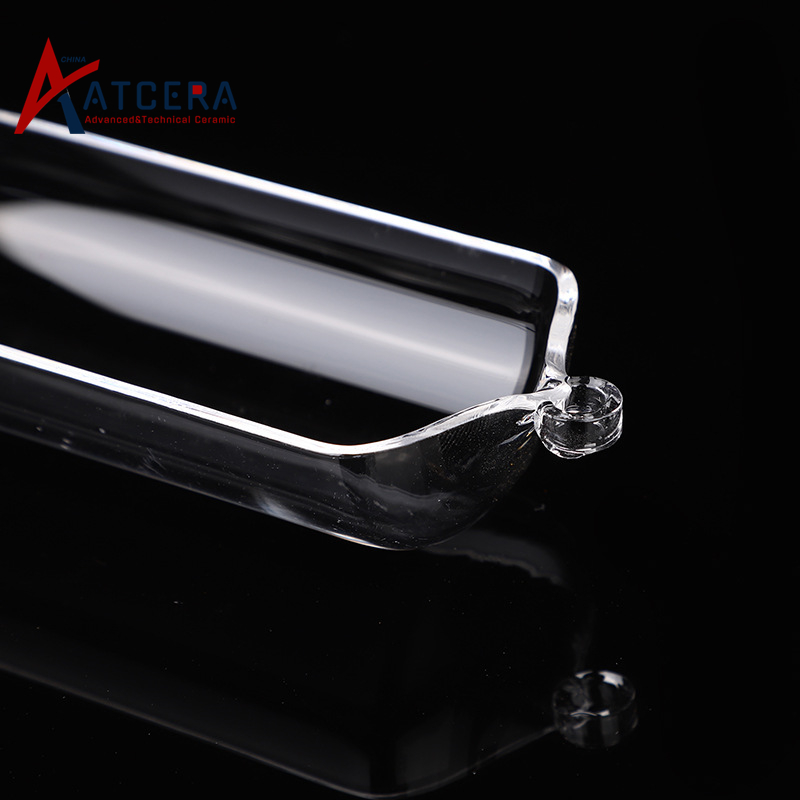

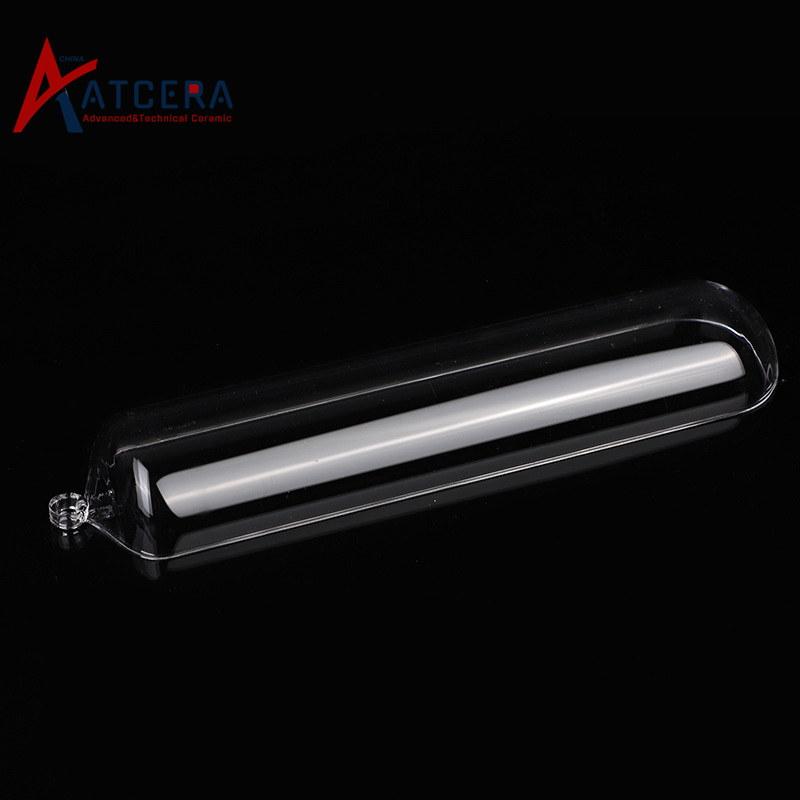

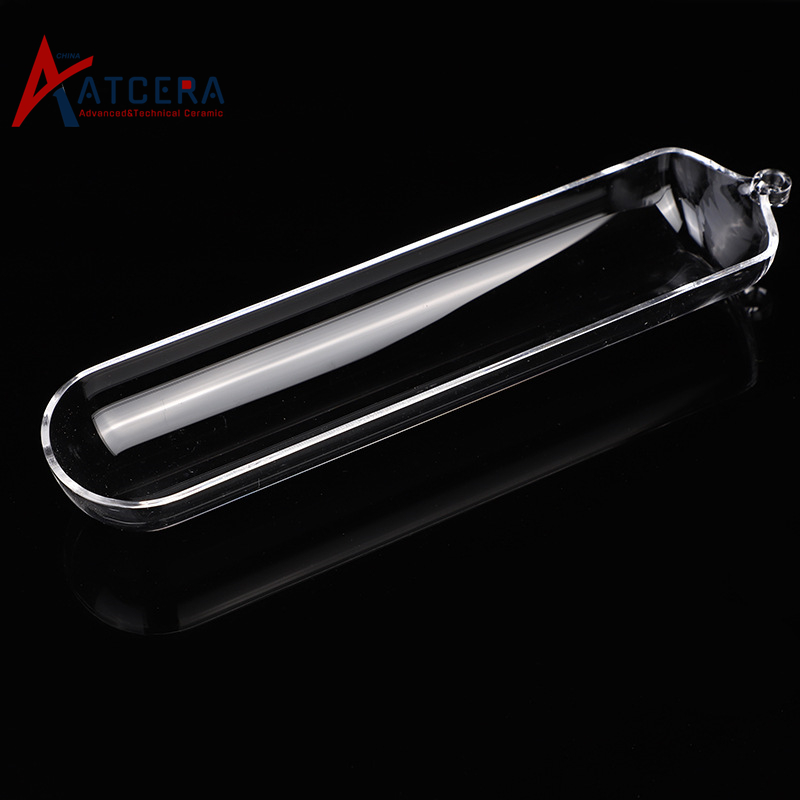

Quartz Combustion Boat Quartz Boat Crucible

Quartz combustion boat is made of high purity quartz as raw materials, SiO2 content is not less than 99.99%. It has excellent thermal stability and light transmission performance, good insulation, high temperature and corrosion resistance. It is widely used in the laboratory and industrial fields to carry, handle and analyze substances.

Brand:
ATCERA
Item NO.:
AT-SY-Z1001

Materials
Quartz
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Boat Crucible

1. Quartz combustion boat is high temperature resistant, the maximum use temperature is higher than 1200℃, thermal expansion coefficient is small, and the thermal shock resistance is excellent.

2. With acid and alkali corrosion resistance, except hydrofluoric acid and phosphoric acid, it does not react with other acids or alkalis.

3. Good light transmission and insulation.

Applications of Quartz Combustion Boat

Quartz combustion boat is widely used in the laboratory and industrial fields to carry, heat, and mix substances, as containers for analysis and chemical reactions.

Product Parameters
Material Parameters

Size Chart of Quartz Combustion Boat

We are committed to delivering optimal quartz combustion boats tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Dimension tolerance: ±0.03mm

Send Requirements for Custom Design

Quartz Combustion Boat
Item no.	Length (ml)	Width (mm)	Height (mm)	Si2O's Purity (%)
AT-SY-Z1001	50	10	5	99.99
AT-SY-Z1002	50	15	7.5	99.99
AT-SY-Z1003	50	20	10	99.99
AT-SY-Z1004	50	25	10	99.99
AT-SY-Z1005	50	30	12.5	99.99
AT-SY-Z1006	50	40	15	99.99
AT-SY-Z1007	50	50	20	99.99
AT-SY-Z1008	100	10	5	99.99
AT-SY-Z1009	100	15	7.5	99.99
AT-SY-Z1010	100	20	10	99.99
AT-SY-Z1011	100	25	12.5	99.99
AT-SY-Z1012	100	30	12.5	99.99
AT-SY-Z1013	100	40	15	99.99
AT-SY-Z1014	100	50	20	99.99
AT-SY-Z1015	100	50	25	99.99
AT-SY-Z1016	100	60	30	99.99
AT-SY-Z1017	150	75	25	99.99
AT-SY-Z1018	200	30	15	99.99
AT-SY-Z1019	200	40	20	99.99
AT-SY-Z1020	200	50	25	99.99
AT-SY-Z1021	200	50	25	99.99
AT-SY-Z1022	200	70	35	99.99
AT-SY-Z1023	200	25	12.5	99.99
AT-SY-Z1024	200	80	40	99.99

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Boat Crucible Packing

Quartz combustion boats are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
