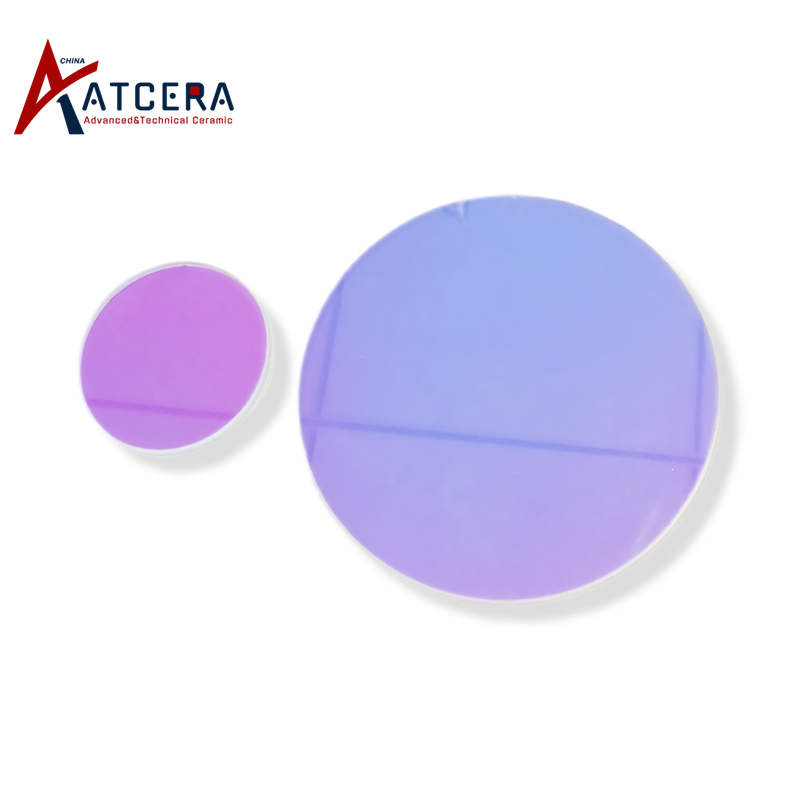

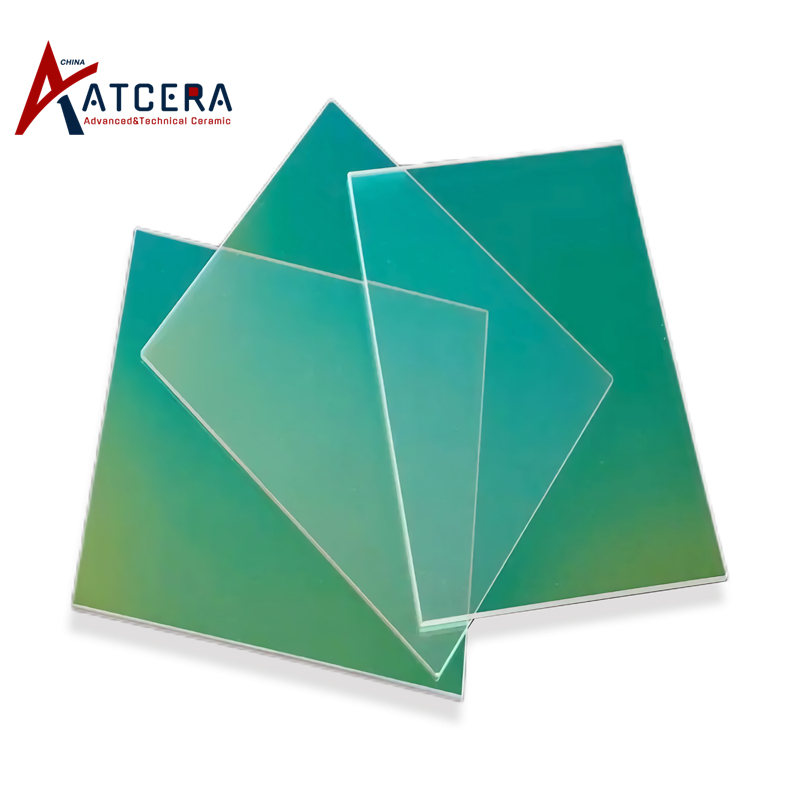

UV Transparent Quartz Plate for UV Curing Machine

UV quartz plate can filter out the infrared and let ultraviolet pass through, it is used with the UV light source, mainly for curing paint and coating.

Brand:
ATCERA
Item NO.:
AT-SY-P2001

Materials
Quartz
Shapes
Plate
Applications
Electronics and Electricity , Mechanical Parts , Laboratory Equipment and Instruments

Inquire Now

Properties of UV Transparent Quartz Plate

UV quartz plate has good light transmittance, high temperature resistance, small thermal expansion, good corrosion resistance, high temperature resistance and excellent insulation performance.

1. High temperature resistance

Quartz plate can be used for a long time at 1100℃, and the temperature of short time use can reach 1450℃, also the coefficient of thermal expansion is small, so it can withstand drastic temperature changes.

2. Good light transmission performance

Quartz plate has good light transmission performance in the whole spectral band from ultraviolet to infrared, visible light transmittance is higher than 93%, and ultraviolet spectral transmittance is higher than 80%.

3. Good corrosion resistance

In addition to hydrofluoric acid, quartz plate almost does not react with other acids, and can maintain chemical stability at high temperature condition.

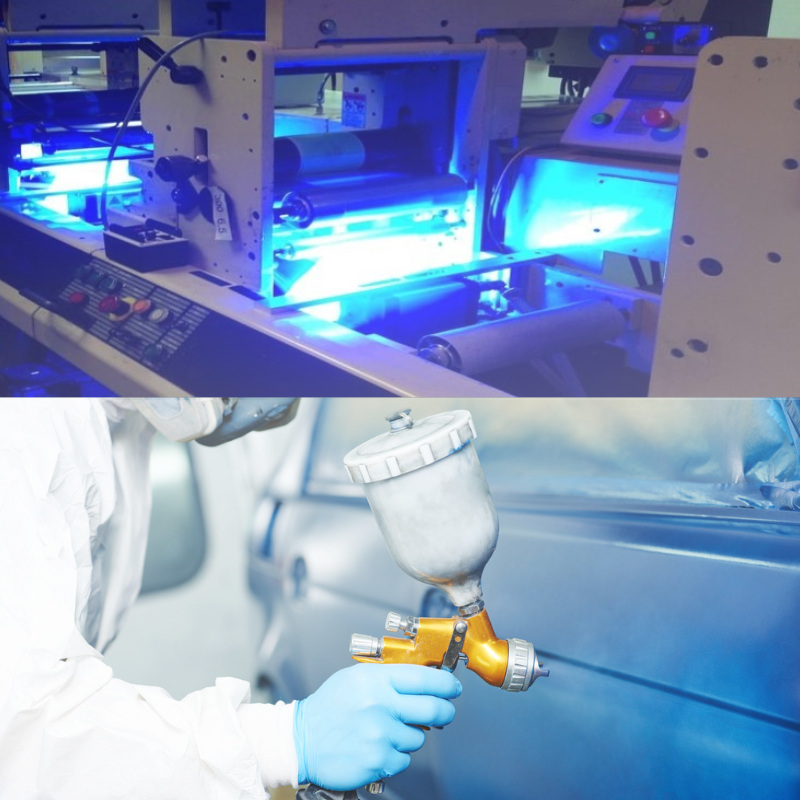

Applications of UV-Grade Quartz Plate

UV quartz plate for curing machine can block infrared ray, while ultraviolet energy can penetrate it, thereby reducing the curing temperature on product surface, so that the product does not deform or change color, and the curing effect is greatly improved.

Size Chart of UV Quartz Plate

We are committed to delivering optimal UV quartz plate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

JGS-1, JGS-2 and JGS-3 quartz are available, please contact ATCERA if have spectrum demand to the material.

Dimension Tolerance:

Length & Width: ±0.03mm

Thickness: ±0.01mm

Send Requirements for Custom Design

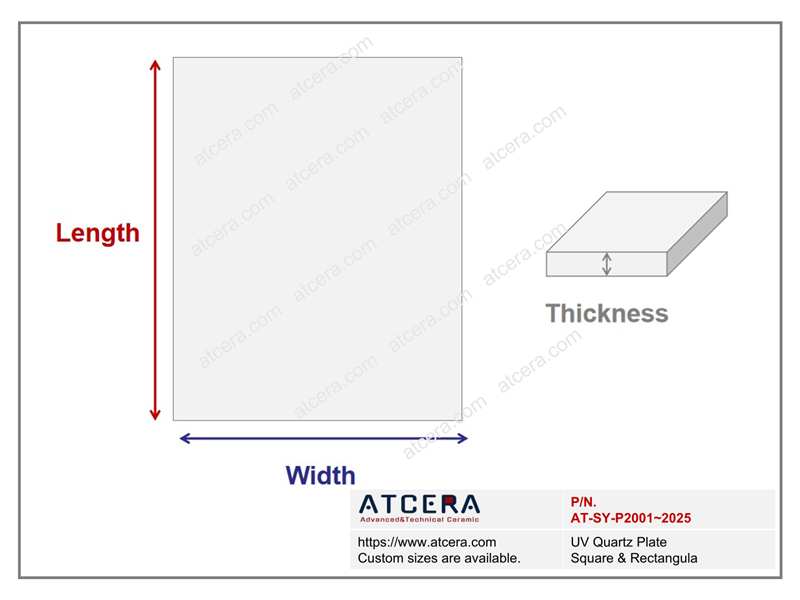

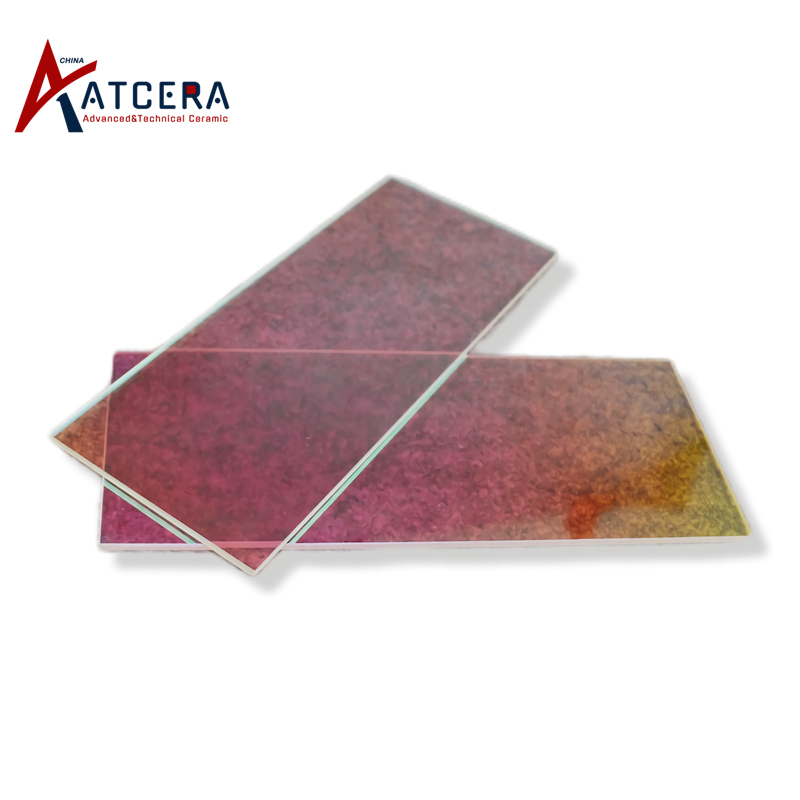

UV Quartz Plate Square & Rectangular

UV Quartz Plate Square & Rectangular
Item no.	*LW (mm)**	Thickness (mm)	Transmittance (%)	Note
AT-SY-P2001	10*10	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2002	25*25	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2003	40*40	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2004	60*60	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2005	75*25	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2006	75*25	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2007	100*100	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2008	120*120	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2009	120*120	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2010	150*150	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2011	150*150	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2012	180*180	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2013	180*180	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2014	250*250	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2015	10-750mm	1-100mm	UV transmission 70%, IR Diffusion 70%	Customized
AT-SY-P2016	135*320	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2017	150*100	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2018	150*200	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2019	195x73.8	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2020	215*160	4	UV transmission 70%, IR Diffusion 70%
AT-SY-P2021	220*130	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2022	280*150	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2023	300*100	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2024	300*150	3	UV transmission 70%, IR Diffusion 70%
AT-SY-P2025	Length：10-750mm Width：10-550mm	3-100mm	UV transmission 70%, IR Diffusion 70%	Customized

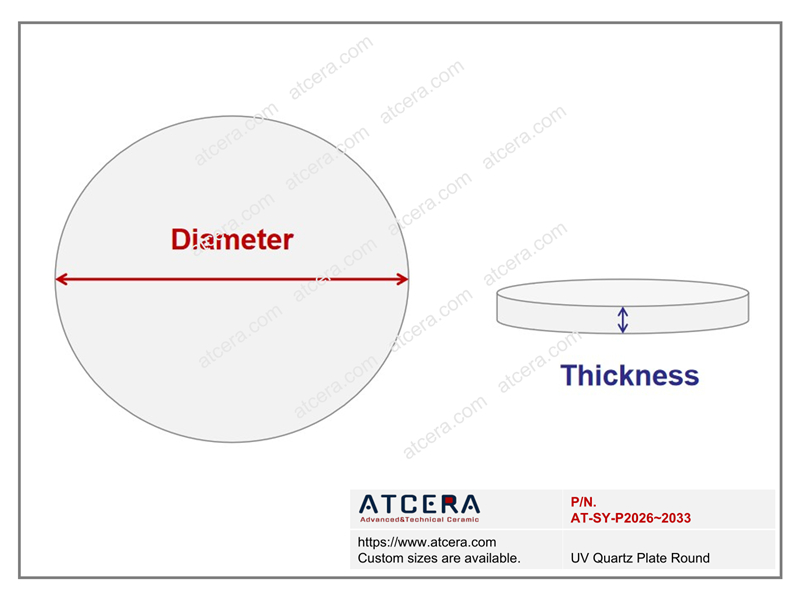

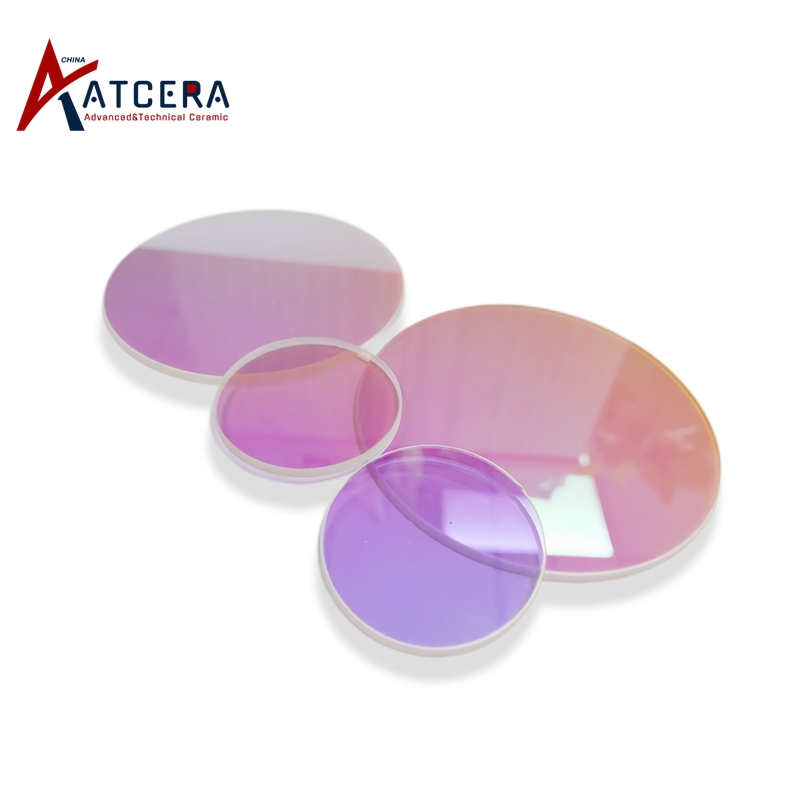

UV Quartz Plate Round

UV Quartz Plate Round
Item no.	Diameter (mm)	Thickness (mm)	Transmittance (%)	Note
AT-SY-P2026	8	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2027	10	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2028	15	1.5	UV transmission 70%, IR Diffusion 70%
AT-SY-P2029	30	1	UV transmission 70%, IR Diffusion 70%
AT-SY-P2030	50	2	UV transmission 70%, IR Diffusion 70%
AT-SY-P2031	100	5	UV transmission 70%, IR Diffusion 70%
AT-SY-P2032	200	10	UV transmission 70%, IR Diffusion 70%
AT-SY-P2033	8-500mm	1-100mm	UV transmission 70%, IR Diffusion 70%	Customized

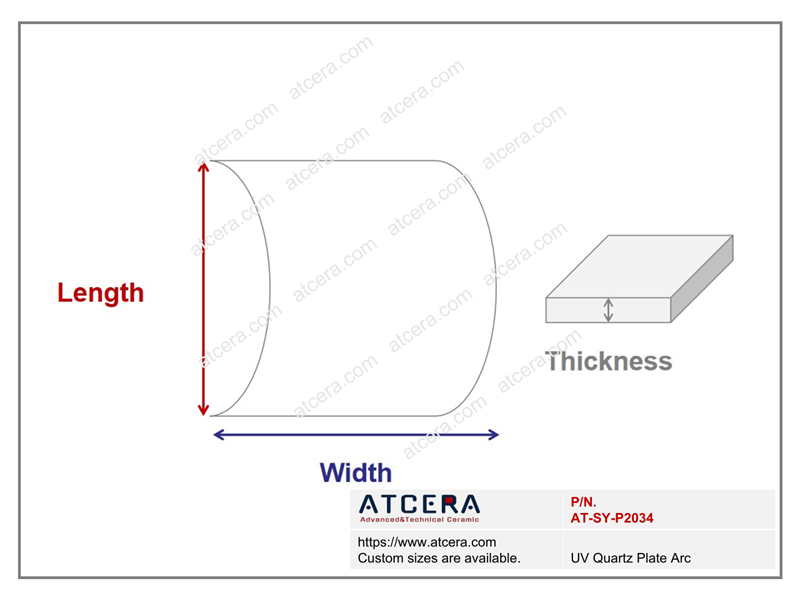

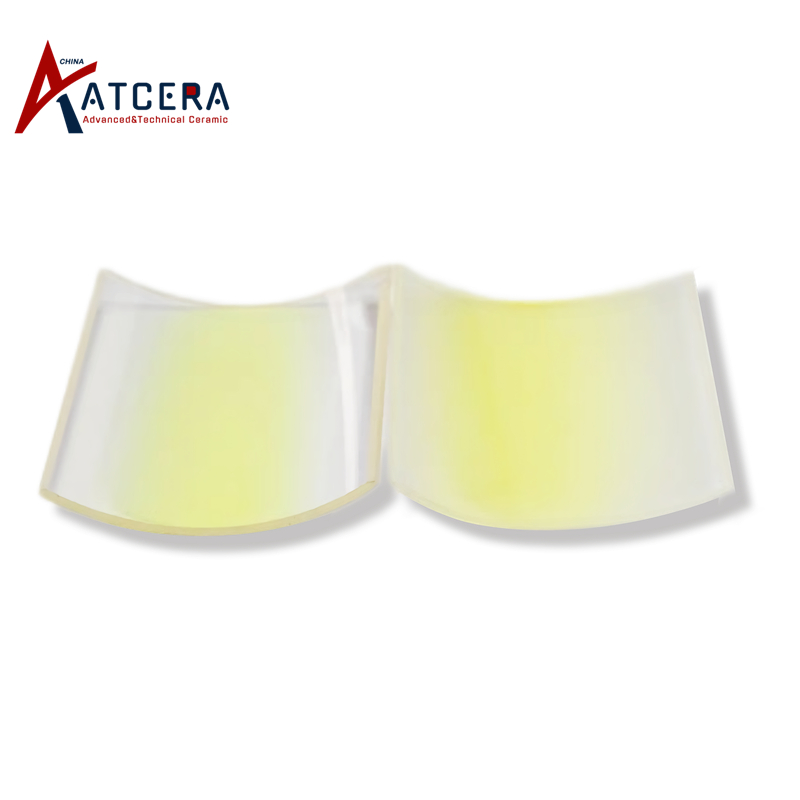

UV Quartz Plate Arc

UV Quartz Plate Arc
Item no.	*LW (mm)**	Thickness (mm)	Radian (°)	Transmittance (%)
AT-SY-P2034	121*62	2.5	68.18°	UV transmission 70%, IR Diffusion 70%

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When using the quartz plate, handle it gently to avoid severe impact or fall, so as to avoid damage.

2. Shall not exceed the maximum use temperature of the quartz plate, otherwise it will cause crystallization or soften deformation.

3. Quartz plate for high temperature conditions must be wiped clean before use, fine thread gloves shall be worn during operation and do not touch it directly with hands.

4. Quartz plate is acidic material, strictly avoid contact with alkaline substances (such as sodium silicate, asbestos, potassium and sodium compounds, etc.) when used at high temperature, otherwise its performance might be influenced.
