Quartz Plate Fused Quartz Sheet with Fine Optical Performance

Quartz plate has excellent optical properties, good high temperature resistance and thermal stability, corrosion resistance, good chemical stability, excellent electrical insulation properties, it has wide range application in semiconductor manufacture, electric light source, laser, optical instruments, experimental instruments, high temperature and chemical machinery and equipment.

Brand:
ATCERA
Item NO.:
AT-SY-P1001

Materials
Quartz
Shapes
Plate
Applications
Electronics and Electricity , Mechanical Parts , Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Plate

Quartz plate has good light transmittance, high temperature resistance, good corrosion resistance, high temperature resistance and excellent insulation performance.

1. High temperature resistance

Quartz plate can be used for a long time at 1100℃, and the temperature of short time use can reach 1450℃, also the coefficient of thermal expansion is small, so it can withstand drastic temperature changes.

2. Good light transmission performance

Quartz plate has good light transmission performance in the whole spectral band from ultraviolet to infrared, visible light transmittance is higher than 93%, and ultraviolet spectral transmittance is higher than 80%.

3. Good corrosion resistance

In addition to hydrofluoric acid, quartz plate almost does not react with other acids, and can maintain chemical stability at high temperature condition.

Applications of Quartz Sheet

Quartz plate optical performance is good, high temperature resistance, corrosion resistance, it can be used to make a variety of optical components, including lenses, prisms, optical windows, etc., as well as electronic parts like surface acoustic wave filters, crystal vibration, in the mechanical field, quartz sheet can be used to make high-precision measuring instruments and machining equipment on the scale.

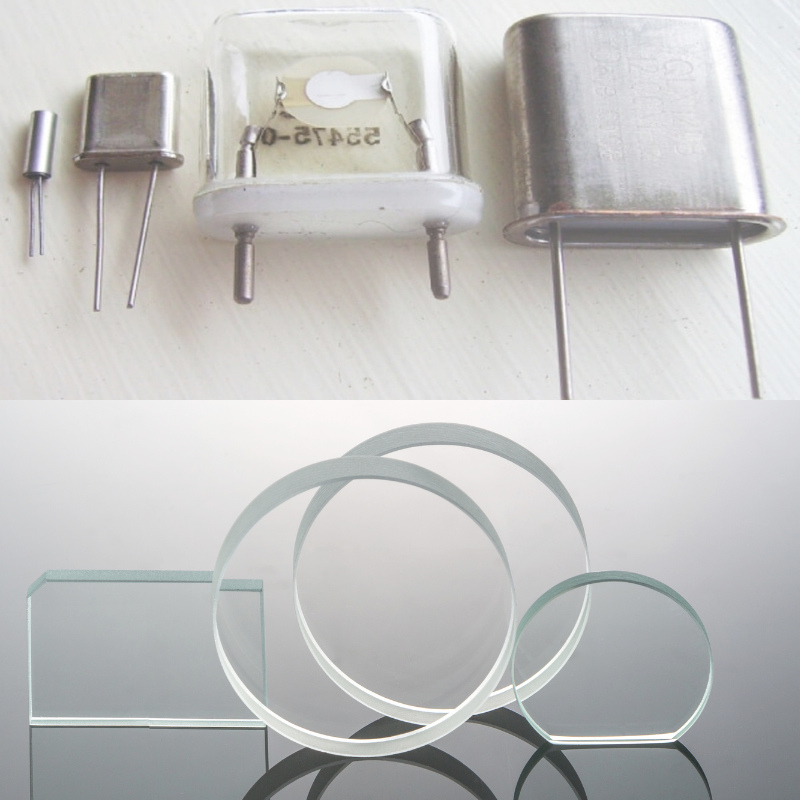

1.Optical field

Quartz plate can be used to make a variety of optical components, such as lenses, prisms, optical windows, filters, etc., with characteristics of anti-radiation, anti-photocorrosion and high transmittance.

2. Electronics

Quartz plate is used to make surface acoustic wave filter, crystal oscillator, ceramic substrate and other components, with high stability, high frequency, low distortion and other excellent characteristics.

3. Mechanical field

Quartz plate can be used to make high-precision measuring instruments, scales, etc., with high hardness and good wear resistance.

Size Chart of Quartz Plate

We are committed to delivering optimal quartz plate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirements shall be provided if customized design request.

JGS-1, JGS-2 and JGS-3 quartz are available, please contact ATCERA if have spectrum demand to the material.

Dimension Tolerance:

Length & Width: ±0.03mm

Thickness: ±0.01mm

Send Requirements for Custom Design

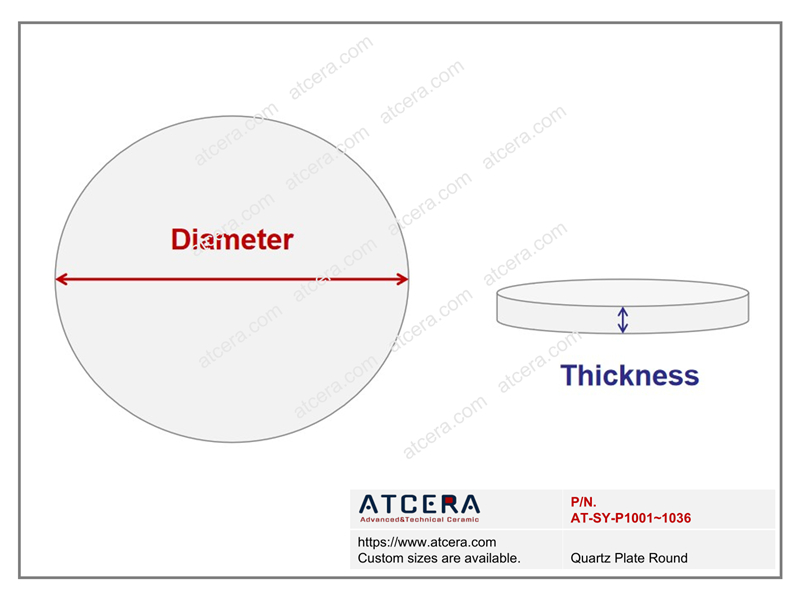

Drawing of Quartz Plate Round

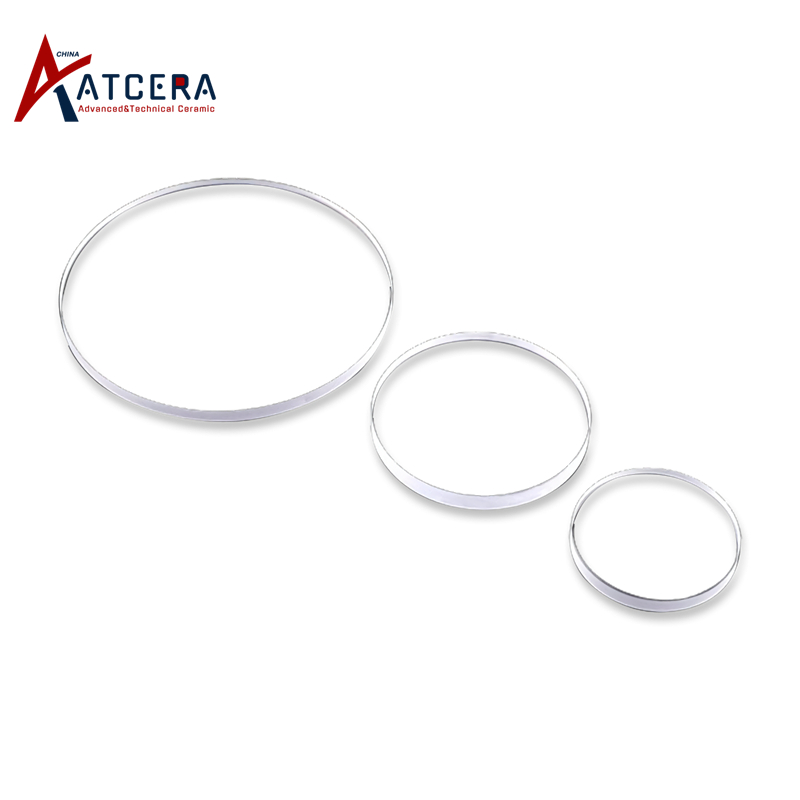

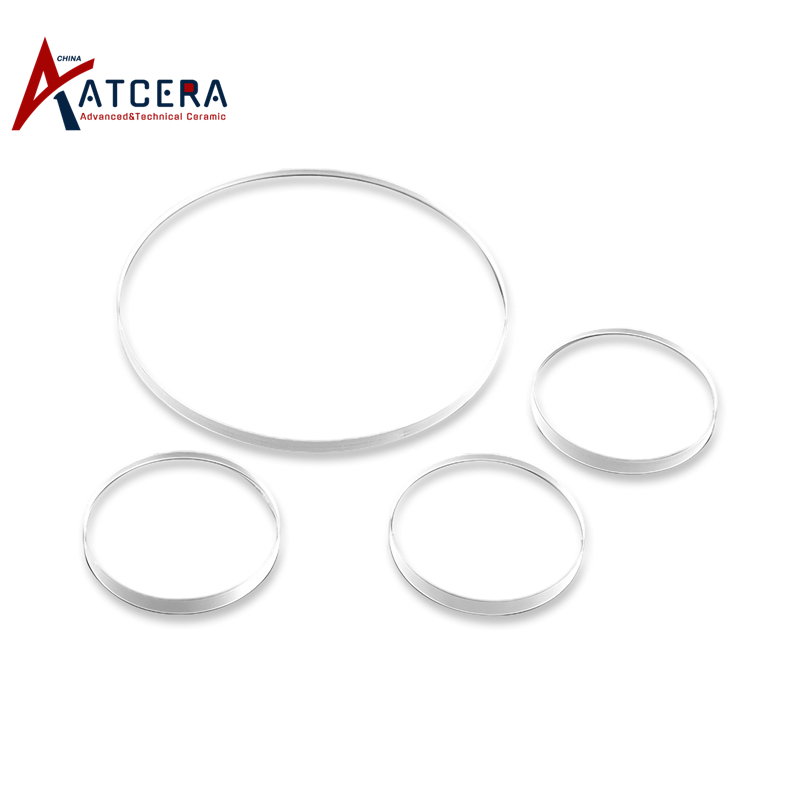

Quartz Plate Round
Item no.	Diameter (mm)	Thickness (mm)	Si2O's Purity (%)	Note
AT-SY-P1001	2	0.5	99.99
AT-SY-P1002	5	0.5	99.99
AT-SY-P1003	10	1	99.99
AT-SY-P1004	10	2	99.99
AT-SY-P1005	12	1	99.99
AT-SY-P1006	13	1	99.99
AT-SY-P1007	15	1	99.99
AT-SY-P1008	15	1.5	99.99
AT-SY-P1009	18	2	99.99
AT-SY-P1010	19.4	2	99.99
AT-SY-P1011	20	1	99.99
AT-SY-P1012	20	1.5	99.99
AT-SY-P1013	20	2	99.99
AT-SY-P1014	24	2	99.99
AT-SY-P1015	25	1	99.99
AT-SY-P1016	30	1	99.99
AT-SY-P1017	30	2	99.99
AT-SY-P1018	30	5	99.99
AT-SY-P1019	35	2	99.99
AT-SY-P1020	36	2.2	99.99
AT-SY-P1021	37	7	99.99
AT-SY-P1022	40	1	99.99
AT-SY-P1023	40	2	99.99
AT-SY-P1024	40	5	99.99
AT-SY-P1025	41.5	4	99.99
AT-SY-P1026	46	2	99.99
AT-SY-P1027	46.8	3	99.99
AT-SY-P1028	50	1	99.99
AT-SY-P1029	50	2	99.99
AT-SY-P1030	50	10	99.99
AT-SY-P1031	67.5	2	99.99
AT-SY-P1032	70	2	99.99
AT-SY-P1033	80	2	99.99
AT-SY-P1034	90	8	99.99
AT-SY-P1035	80	5	99.99
AT-SY-P1036	2-750mm	0.5-100mm	99.99	Customized

Drawing of Quartz Plate Square

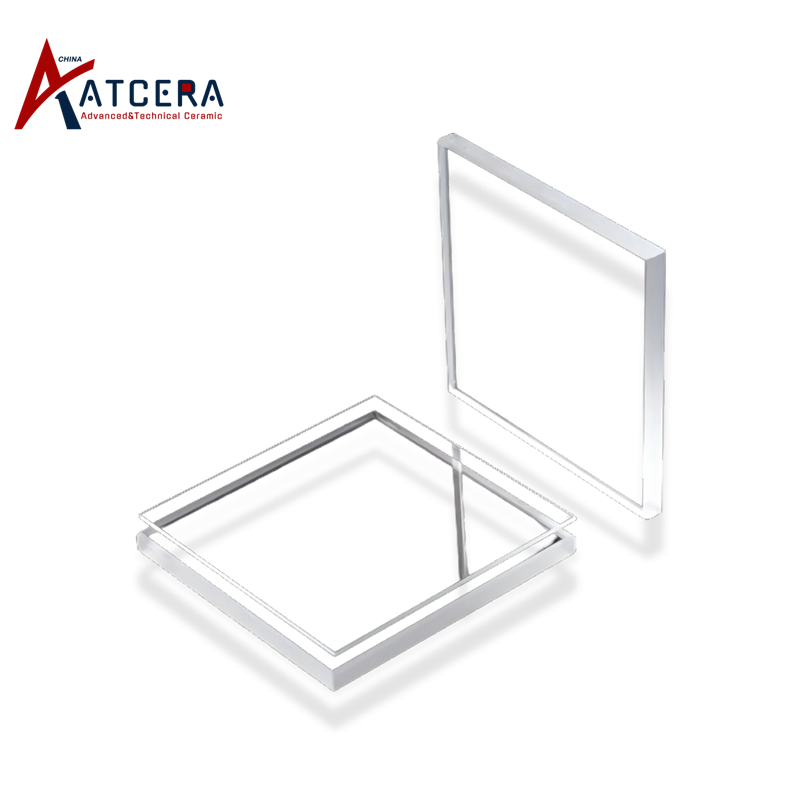

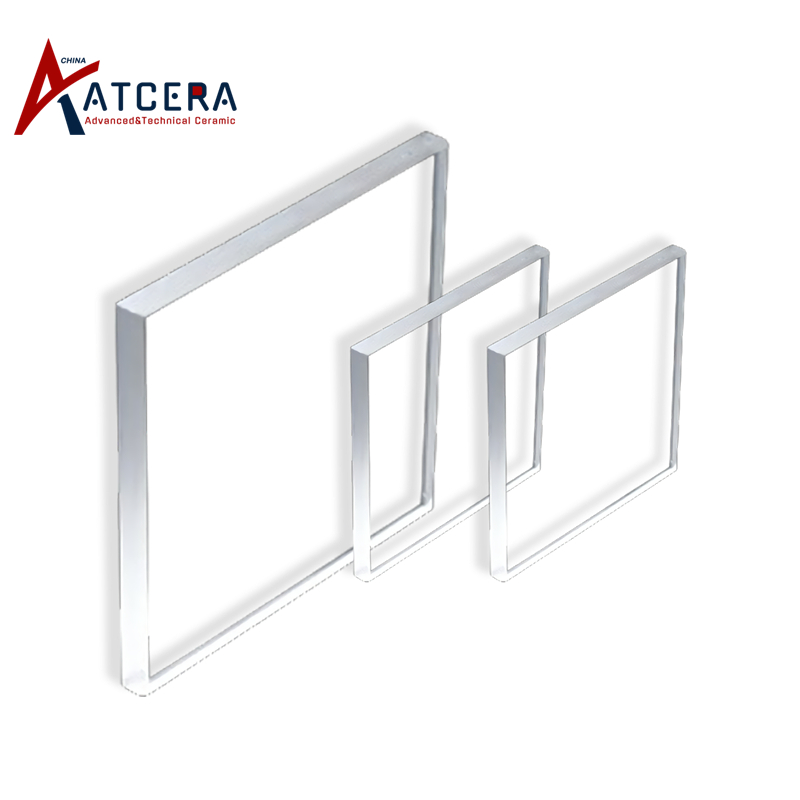

Quartz Plate Square
Item no.	*Length 1Length 2 (mm)**	Thickness (mm)	Si2O's Purity (%)	Note
AT-SY-P1037	2*2	0.5	99.99
AT-SY-P1038	5*5	0.5	99.99
AT-SY-P1039	5*5	1	99.99
AT-SY-P1040	8*8	2	99.99
AT-SY-P1041	10*10	1	99.99
AT-SY-P1042	20*20	1	99.99
AT-SY-P1043	25*25	1	99.99
AT-SY-P1044	30*30	1	99.99
AT-SY-P1045	40*40	1	99.99
AT-SY-P1046	50*50	0.5	99.99
AT-SY-P1047	50*50	1	99.99
AT-SY-P1048	50*50	2	99.99
AT-SY-P1049	50*50	4	99.99
AT-SY-P1050	50*50	5	99.99
AT-SY-P1051	60*60	1	99.99
AT-SY-P1052	60*60	1	99.99
AT-SY-P1053	60*60	3	99.99
AT-SY-P1054	60*60	4	99.99
AT-SY-P1055	60*60	5	99.99
AT-SY-P1056	75*25	1	99.99
AT-SY-P1057	75*25	2	99.99
AT-SY-P1058	100*100	1	99.99
AT-SY-P1059	100*100	2	99.99
AT-SY-P1060	100*100	3	99.99
AT-SY-P1061	100*100	4	99.99
AT-SY-P1062	100*100	5	99.99
AT-SY-P1063	100*100	6	99.99
AT-SY-P1064	100*100	10	99.99
AT-SY-P1065	100*100	8	99.99
AT-SY-P1066	200*200	3	99.99
AT-SY-P1067	300*300	5	99.99
AT-SY-P1068	700*700mm	0.5-100mm	99.99	Customized

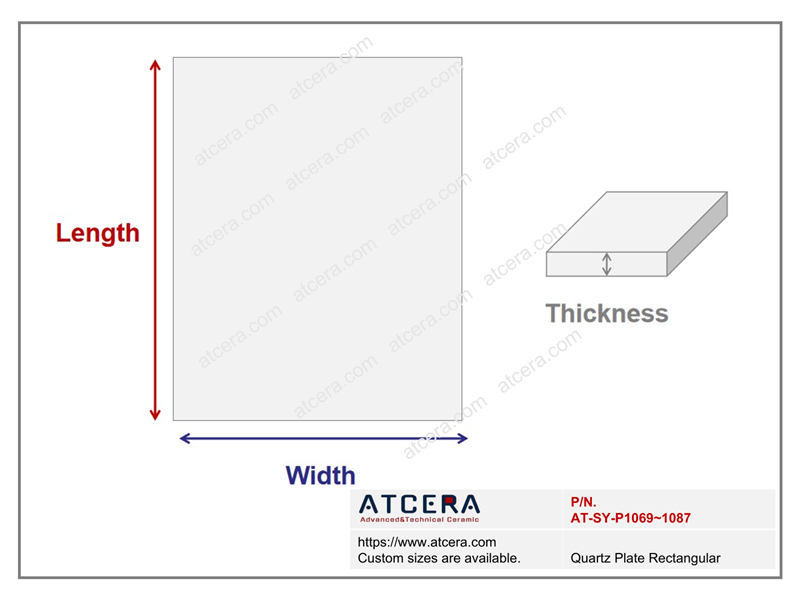

Drawing of Quartz Plate Rectangular

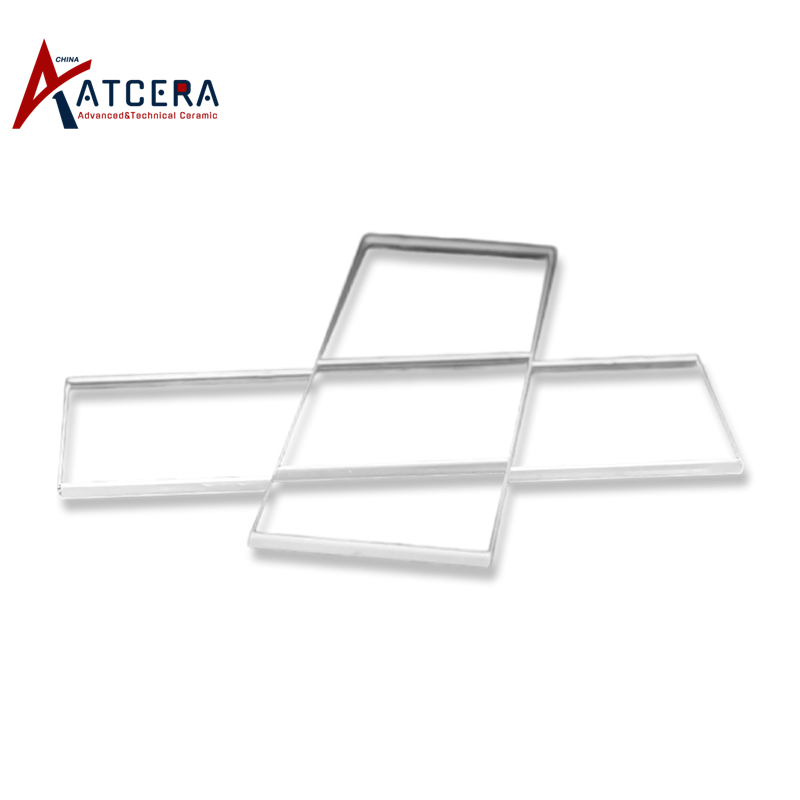

Quartz Plate Rectangular
Item no.	Length (mm)	Width (mm)	Thickness (mm)	Si2O's Purity (%)	Note
AT-SY-P1069	5	2	0.5	99.99
AT-SY-P1070	8	4	0.5	99.99
AT-SY-P1071	10	4	1	99.99
AT-SY-P1072	12	5	1	99.99
AT-SY-P1073	20	4	1	99.99
AT-SY-P1074	30	8	2	99.99
AT-SY-P1075	50	20	1	99.99
AT-SY-P1076	60	40	5	99.99
AT-SY-P1077	80	50	2	99.99
AT-SY-P1078	100	60	5	99.99
AT-SY-P1079	100	40	0.5	99.99
AT-SY-P1080	120	70	0.8	99.99
AT-SY-P1081	120	70	1	99.99
AT-SY-P1082	120	100	2	99.99
AT-SY-P1083	150	60	1	99.99
AT-SY-P1084	200	120	5	99.99
AT-SY-P1085	200	100	5	99.99
AT-SY-P1086	300	100	2	99.99
AT-SY-P1087	5-700mm	2-550mm	0.5-80mm	99.99	Customized

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When using the quartz plate, handle it gently to avoid severe impact or fall, so as to avoid damage.

2. Shall not exceed the maximum use temperature of the quartz plate, otherwise it will cause crystallization or soften deformation.

3. Quartz plate for high temperature conditions must be wiped clean before use, fine thread gloves shall be worn during operation and do not touch it directly with hands.

4. Quartz plate is acidic material, strictly avoid contact with alkaline substances (such as sodium silicate, asbestos, potassium and sodium compounds, etc.) when used at high temperature, otherwise its performance might be influenced.

Valuable Information

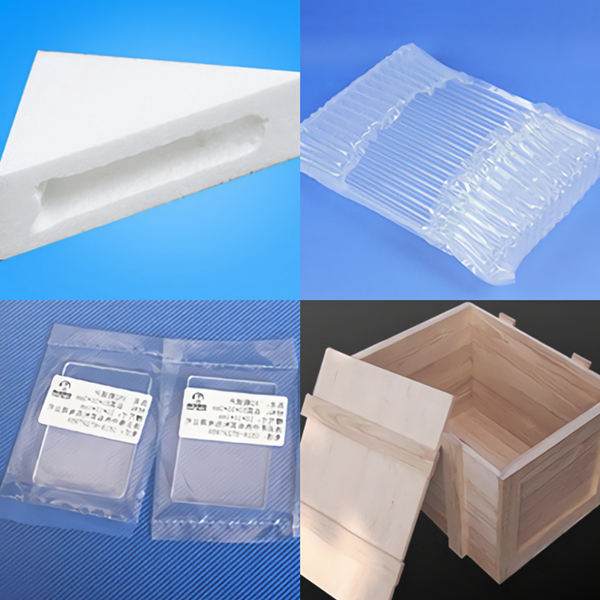

Quartz Plate Packing

Quartz plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
