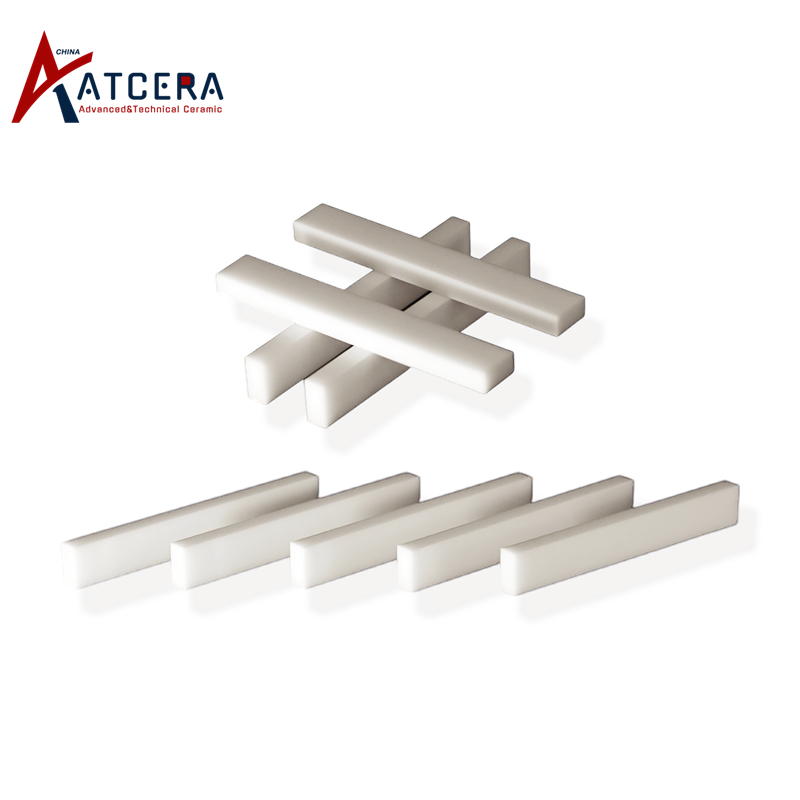

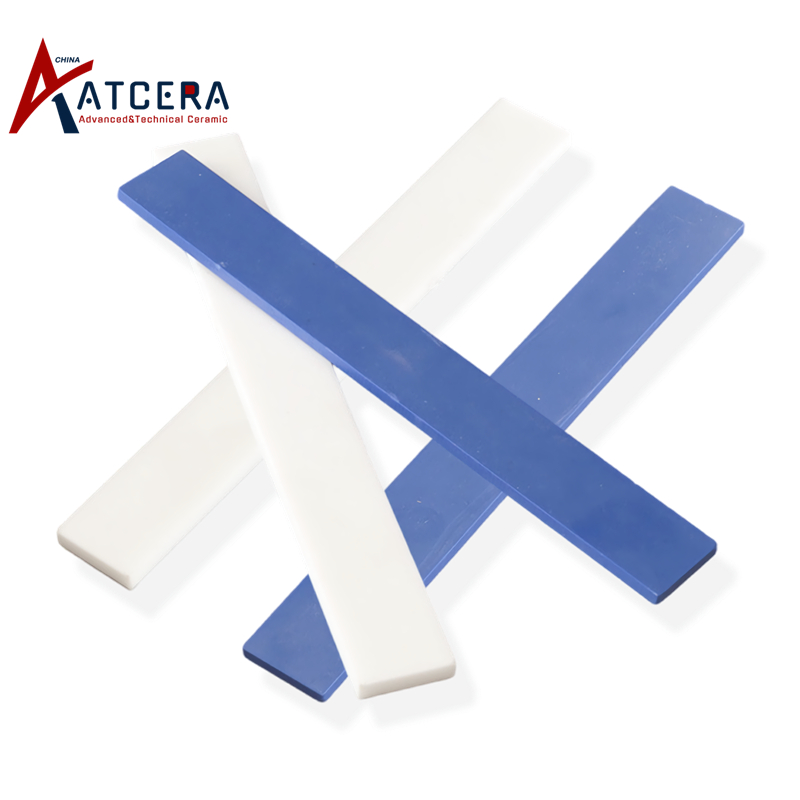

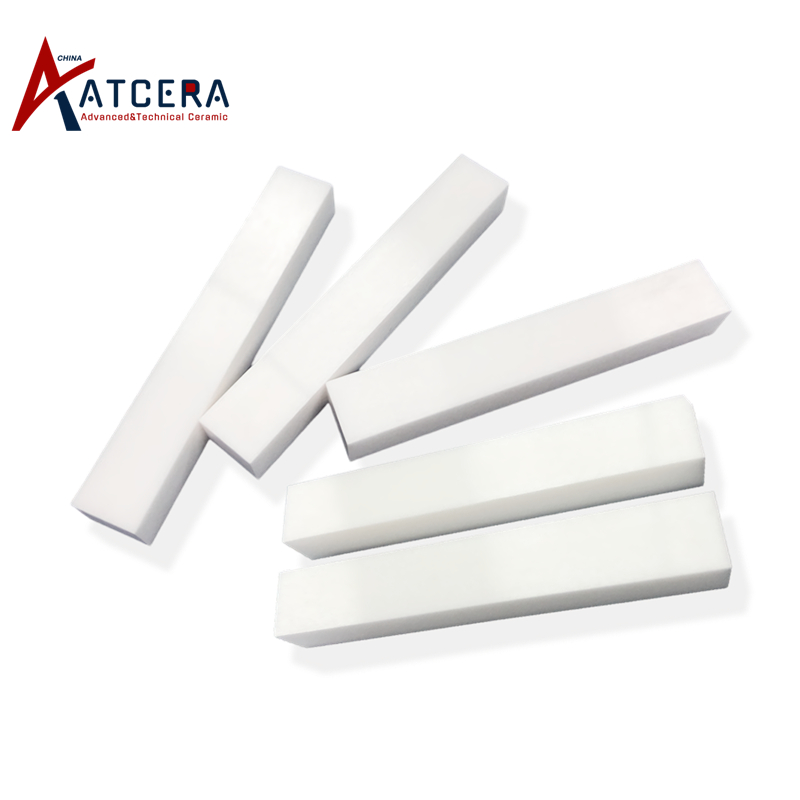

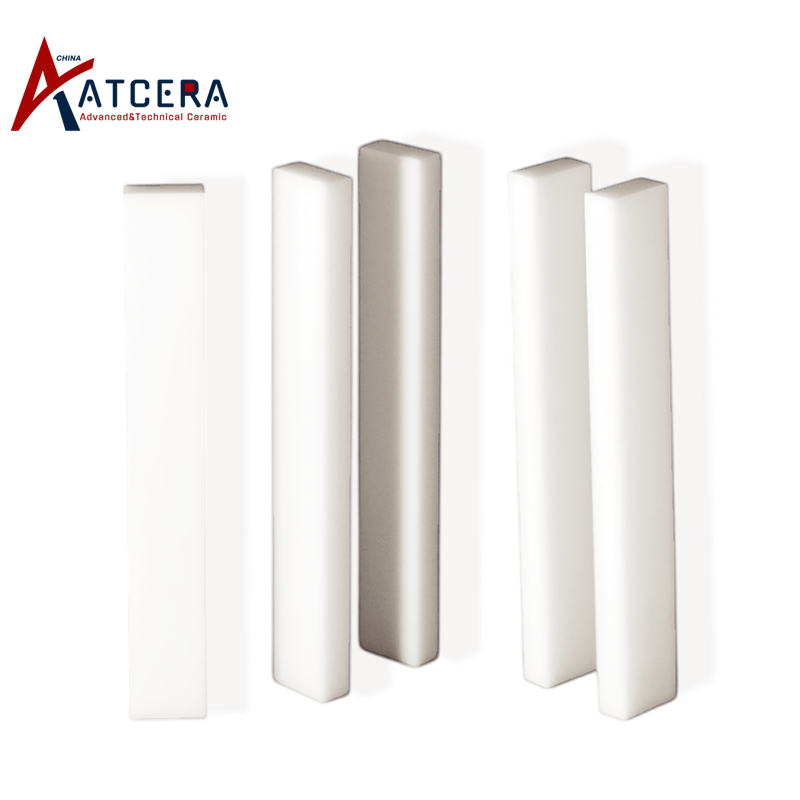

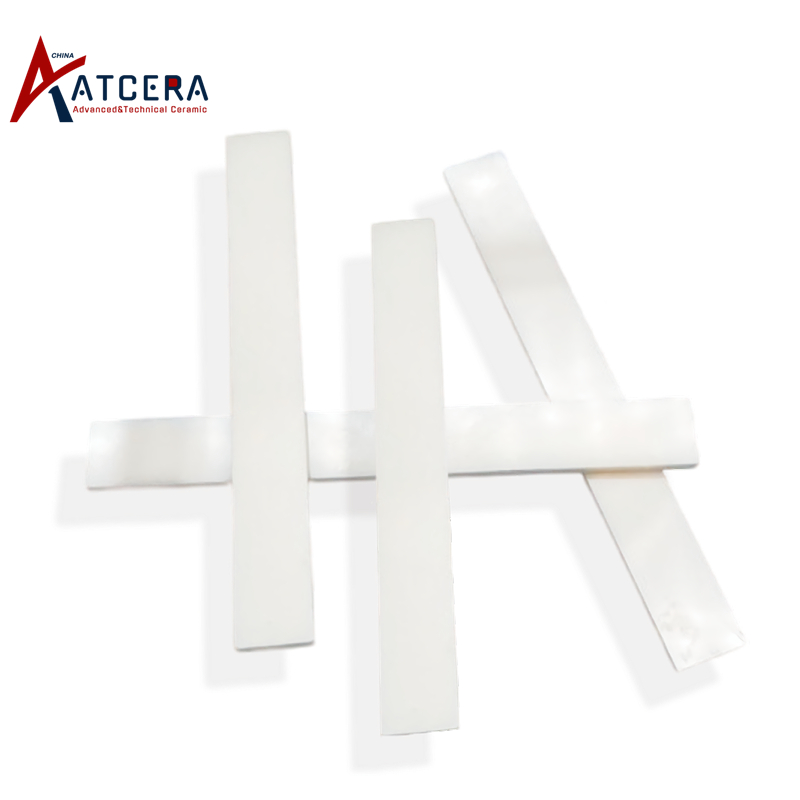

Zirconia Ceramic Bar ZrO2 Ceramic Strip

Zirconia bars are crafted from zirconia powder and stabilizers through molding and sintering processes. They exhibit exceptional hardness, superior wear resistance, high mechanical strength, remarkable heat resistance, corrosion resistance, low thermal conductivity, and excellent electrical insulation, making them suitable for structural components in various mechanical, electronic, and electrical devices.

Brand:
ATCERA
Item NO.:
AT-YHG-T1001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Electronics and Electricity , Petrochemical Industry

Inquire Now

Properties of Zirconia Ceramic Bar

1. Zirconia ceramic bars possess high hardness, superior wear resistance, excellent flexural strength, toughness, and robust impact resistance.

2. They exhibit excellent corrosion resistance, capable of resisting erosion from various corrosive media such as acids, alkalis, and salts.

3. Zirconia ceramic bars are heat-resistant, possess good thermal shock resistance, and maintain stable performance under high-temperature conditions.

4. Zirconia ceramic bars are electrical insulation materials with low dielectric constant and dielectric loss.

Applications of Zirconia Bar

Zirconia ceramic bars are utilized in structural components of various mechanical, electronic, and electrical devices, widely applied in industries such as machinery processing, petrochemicals, electrical engineering, and semiconductors.

Size Chart for Zirconia Ceramic Bar

We are committed to delivering optimal zirconia bars tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Machining Tolerance: 0.001mm

Zirconia Ceramic Bar
Item No.	Length (mm)	Width (mm)	Height (mm)
AT-YHG-T1001	25	5	1.5
AT-YHG-T1002	63.5	7.7	1.5
AT-YHG-T1003	30	10	2
AT-YHG-T1004	191	10.5	3
AT-YHG-T1005	85	12	6
AT-YHG-T1006	204	12.8	3
AT-YHG-T1007	67	14.5	2.5
AT-YHG-T1008	75	15	3
AT-YHG-T1009	180	20	6
AT-YHG-T1010	225	25	6
AT-YHG-T1011	200	50	5
AT-YHG-T1012	10-600mm	1-50mm	1-20mm

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. During handling and use, zirconia ceramic bars should be avoided from falling or colliding with hard objects to prevent damage.

2. Before use, clean the surface of zirconia ceramic bars to remove impurities such as oil stains and dirt to prevent any adverse effects.

3. Regularly inspect zirconia ceramic bars and promptly replace any damaged ones to ensure smooth operation and extend the service life of the equipment.

Valuable Information

Zirconia Ceramic Bar Packing

Zirconia ceramic bars are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
