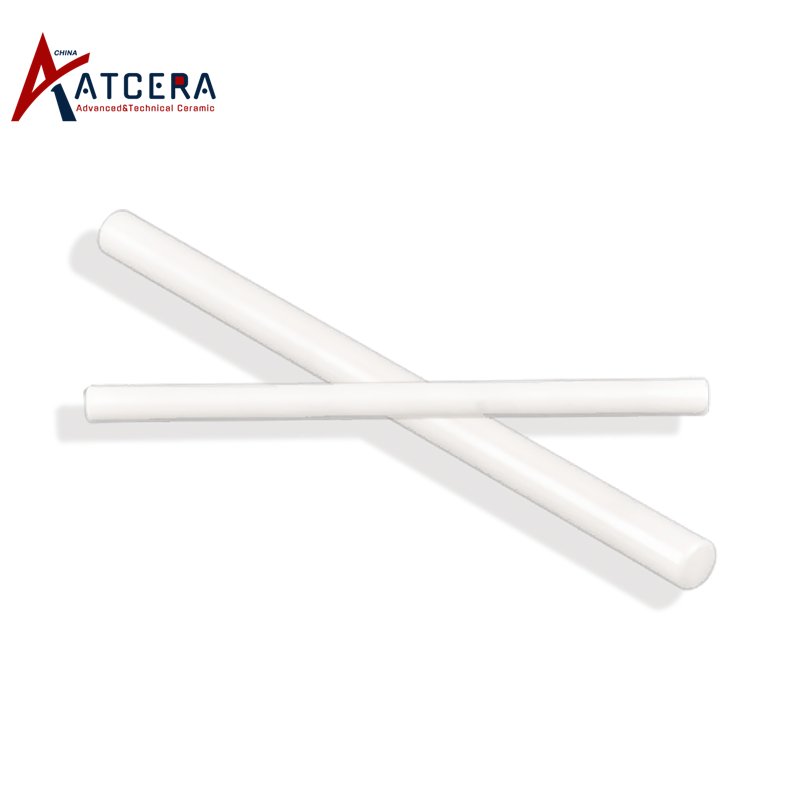

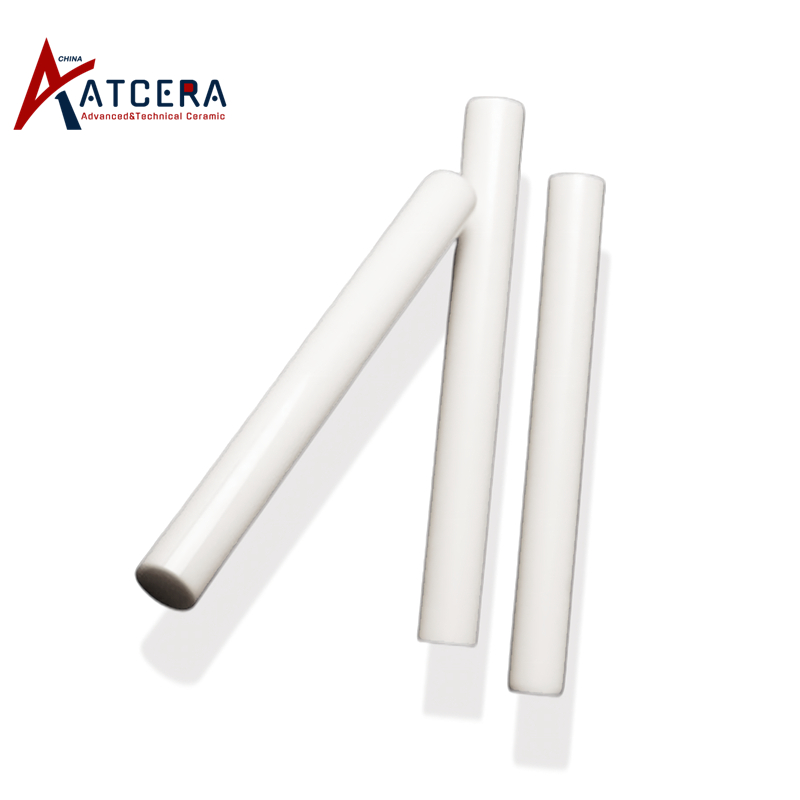

Yttria Stabilized Zirconia (YSZ) Rod Zirconie Ceramic Bar

In order to improve performance of zirconia rod, according to the application scenario and demand, stabilizing agent is added to the zirconia raw material, among which the zirconia with yttrium oxide is called yttrium stabilized zirconia (YSZ), and its wear resistance and toughness can be significantly improved.

Brand:
ATCERA
Item NO.:
AT-YHG-B001

Materials
Zirconia
Shapes
Rod
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Advantages of Yttria Stabilized Zirconia (YSZ) Ceramic Rod

Zirconia rod has the characteristics of high hardness, high toughness, good wear resistance, high temperature resistance, acid & alkali and chemical corrosion resistance, good electrical insulation,etc.

1. High wear resistance and toughness

Zirconia ceramic rod adopts high purity microcrystalline zirconia ceramic powder as raw material, through high pressure isostatic pressing molding and high temperature sintering process, the powder crystal is denser, the internal crystal structure is stable, the processed rod has high hardness, good wear resistance, and high toughness.

2. Strong stability

Zirconia is an inert material that does not react to many substances in nature and has strong weather resistance, so its performance is very stable in various extreme environments.

3. Strong corrosion resistance

Zirconia material chemical stability is good, resistant to a variety of acid and alkali corrosion.

Applications of Yttria Stabilized Zirconia (YSZ) Ceramic Bar

Zirconia ceramic rod is formed by isostatic pressing method and sintered at high temperature, to form uniform, dense and smooth ceramic layer and transition layer, which has superior wear resistance and is suitable for precision ceramic parts.

1. Mechanical Engineering Industry

Zirconia ceramic rod has high compressive strength, good wear resistance and toughness, performance is stable at high temperature, can be made into a variety of mechanical parts, including hydraulic rod, transmission shaft, plunger, grinding rod, etc. Mechanical parts made by ceramic has longer service life than metal, and more adapted to harsh working environment.

2. Chemical and Metallurgical Industries

Zirconia ceramic rod has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, suitable for manufacturing a variety of chemical equipment, such as stirring, support, drainage parts, etc., but also can be used as a variety of catalyst carrier, used in the chemical process.

Size Chart of Yttria Stabilized Zirconia (YSZ) Ceramic Bar

Committed to providing prime zirconia ceramic rods customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.

Send Requirements for Custom Design

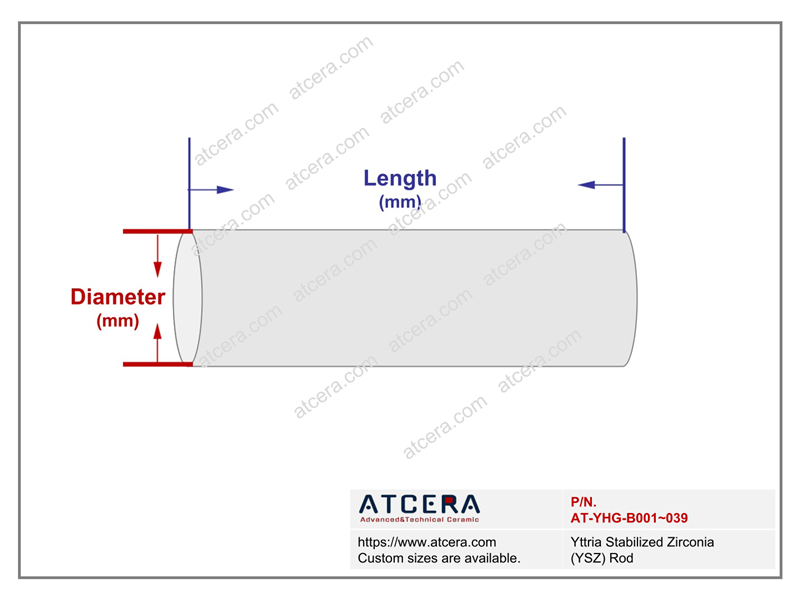

Drawing of Yttria Stabilized Zirconia (YSZ) Rod

Yttria Stabilized Zirconia (YSZ) Rod
Item No.	Diameter (mm)	Length (mm)
AT-YHG-B001	0.2	≤100
AT-YHG-B002	0.3
AT-YHG-B003	0.4
AT-YHG-B004	0.5
AT-YHG-B005	0.6
AT-YHG-B006	0.7
AT-YHG-B007	0.8
AT-YHG-B008	0.9
AT-YHG-B009	1	≤300
AT-YHG-B010	1.1
AT-YHG-B011	1.2
AT-YHG-B012	1.5
AT-YHG-B013	1.6
AT-YHG-B014	1.8
AT-YHG-B015	2
AT-YHG-B016	2.5
AT-YHG-B017	3	≤500
AT-YHG-B018	4
AT-YHG-B019	5
AT-YHG-B020	6
AT-YHG-B021	7
AT-YHG-B022	8
AT-YHG-B023	9
AT-YHG-B024	10
AT-YHG-B025	11	≤600
AT-YHG-B026	12
AT-YHG-B027	13
AT-YHG-B028	13.5
AT-YHG-B029	14
AT-YHG-B030	16
AT-YHG-B031	16.5
AT-YHG-B032	17
AT-YHG-B033	19
AT-YHG-B034	21
AT-YHG-B035	22
AT-YHG-B036	23
AT-YHG-B037	24
AT-YHG-B038	24.5
AT-YHG-B039	42

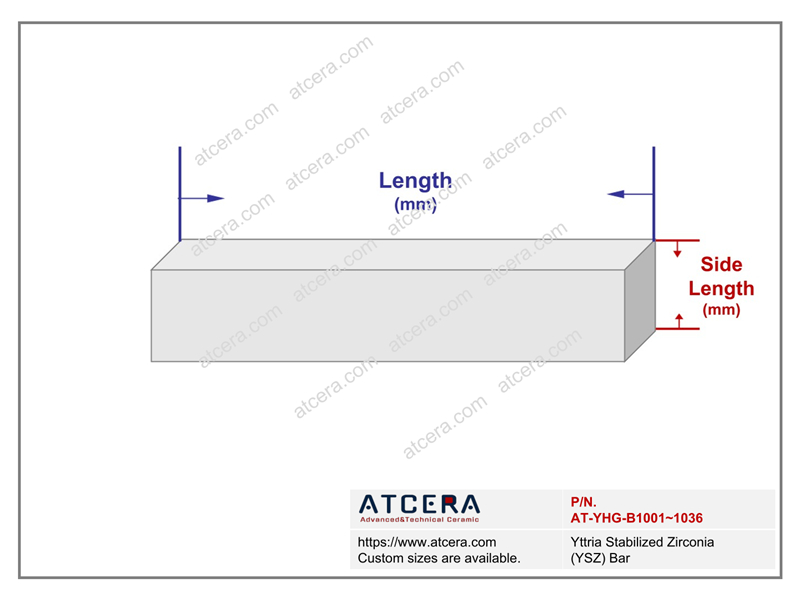

Drawing of Yttria Stabilized Zirconia (YSZ) Bar

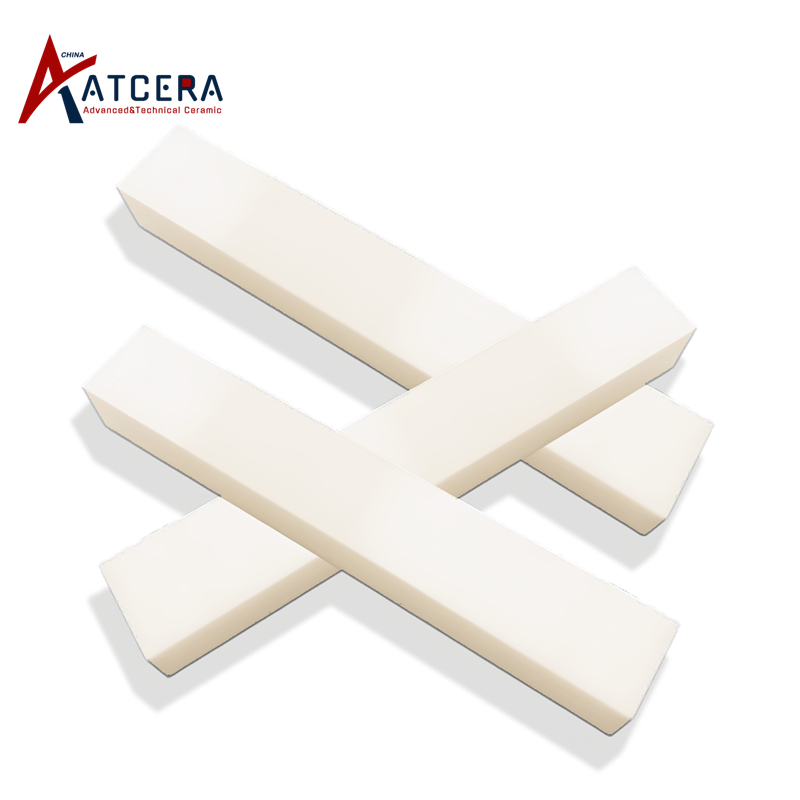

Yttria Stabilized Zirconia (YSZ) Bar
Item No.	Cross-section Length (mm)	Cross-section Height (mm)	Length (mm)
AT-YHG-B1001	2	1	≤300
AT-YHG-B1002	3	2
AT-YHG-B1003	4	2
AT-YHG-B1004	4.3	3	≤600
AT-YHG-B1005	6	4.5
AT-YHG-B1006	6	6
AT-YHG-B1007	7	6
AT-YHG-B1008	8	6
AT-YHG-B1009	8.5	6
AT-YHG-B1010	9	5
AT-YHG-B1011	9.5	7
AT-YHG-B1012	9.5	8
AT-YHG-B1013	10	6.5
AT-YHG-B1014	10	7.5
AT-YHG-B1015	11	8
AT-YHG-B1016	11	9.5
AT-YHG-B1017	13	7
AT-YHG-B1018	13	8.5
AT-YHG-B1019	14	9
AT-YHG-B1020	14	9.5
AT-YHG-B1021	15	8
AT-YHG-B1022	15	10
AT-YHG-B1023	16	12
AT-YHG-B1024	16	13.5
AT-YHG-B1025	17	14
AT-YHG-B1026	17	15.5
AT-YHG-B1027	18	13
AT-YHG-B1028	18	15.5
AT-YHG-B1029	19	16
AT-YHG-B1030	20	15
AT-YHG-B1031	20	17
AT-YHG-B1032	21	16
AT-YHG-B1033	21	18.5
AT-YHG-B1034	23	9
AT-YHG-B1035	23	12.5
AT-YHG-B1036	23	18

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. The type of stabilizing agent will influence the performance of zirconia, and the appropriate material shall be selected according to the working environment;

2. Before installing the zirconia rod, the user shallcheck that whether there are scratches or cracks on the surface, or other defects. If there are any defects, the rod need to be replaced;

3. Dust and impurities on the surface of zirconia rod should be cleaned before installation to avoid affecting its performance;

4. The state of zirconia rod should be checked regularly. If cracks and other defects begin to appear, it need to be stopped and replaced in time.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

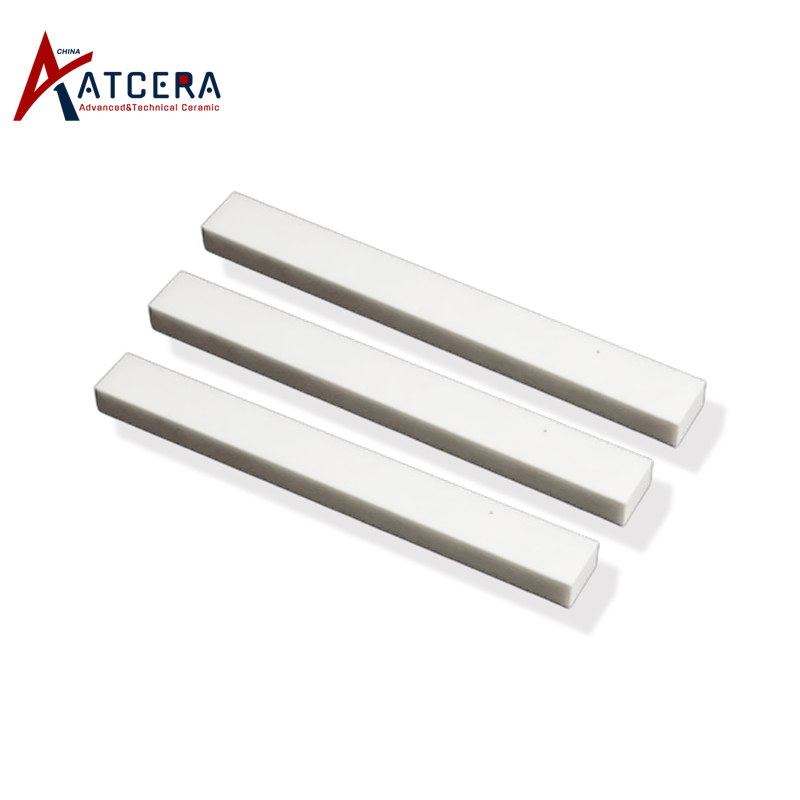

Zirconia Ceramic Bar ZrO2 Ceramic Strip

Zirconia Ceramic Shaft ZrO2 Shaft

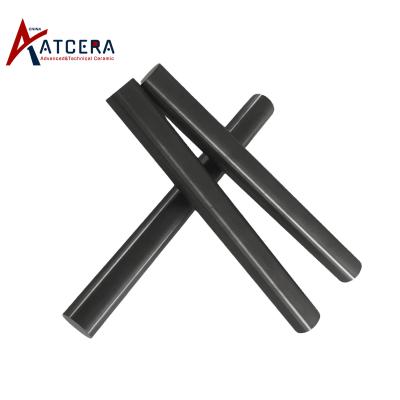

Black Zirconia Ceramic Rod
