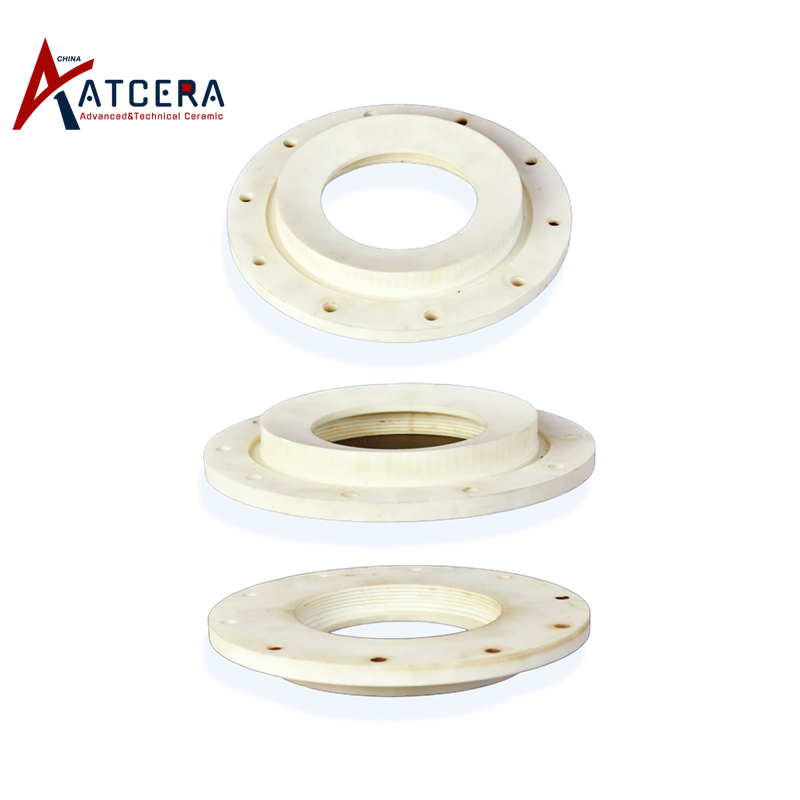

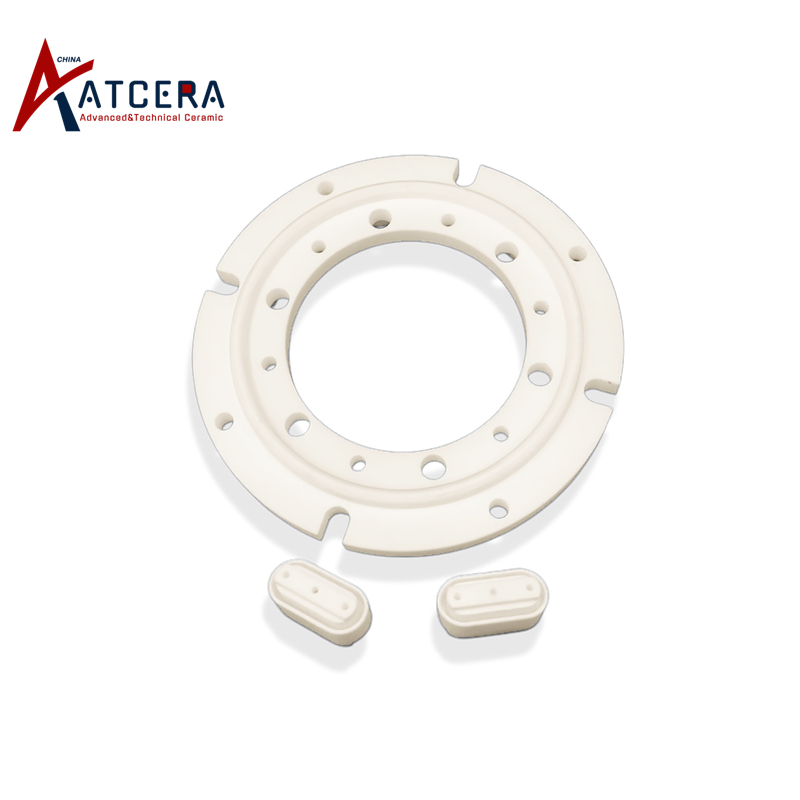

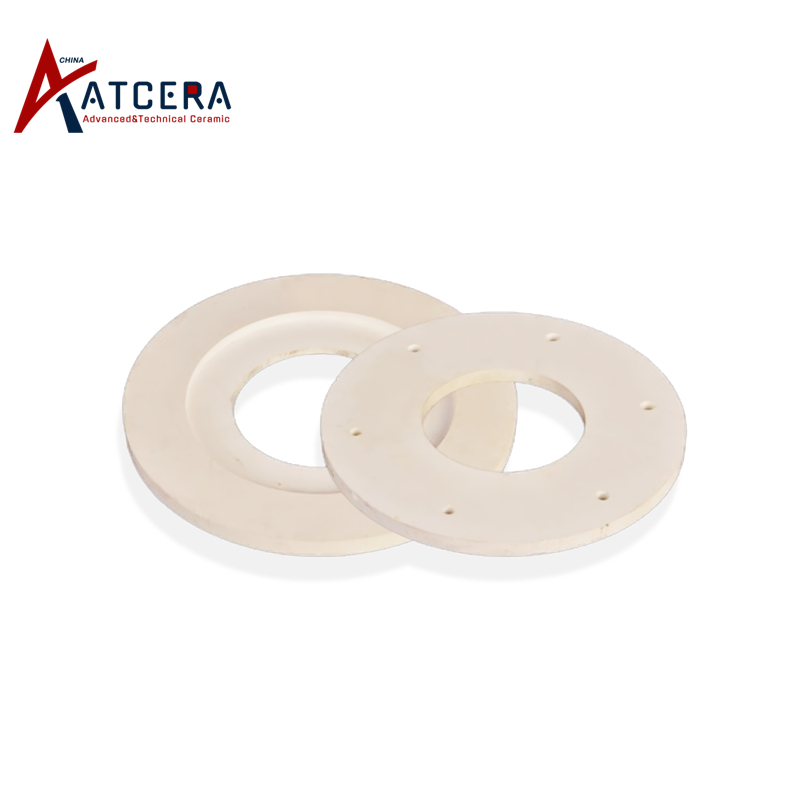

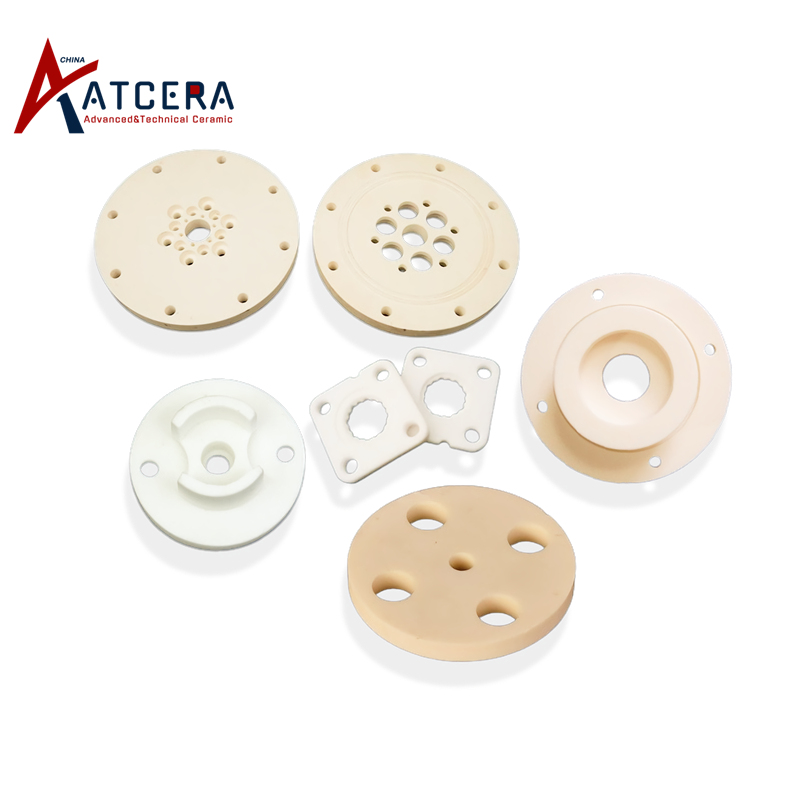

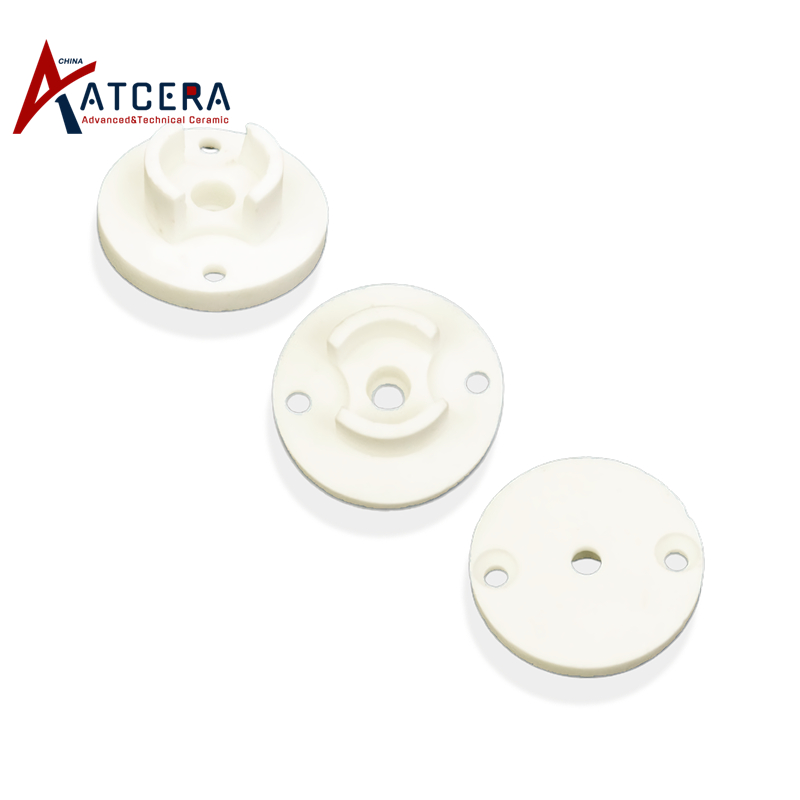

Alumina Ceramic Flange

The alumina ceramic flange is fabricated from high-purity alumina and serves as a connecting component between pipes and other associated equipment. Possessing a lightweight construct, it alleviates the load on the system. Additionally, its resistance to high temperatures and corrosion ensures its suitability in harsh working environments.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHL-FL001
  • Materials

    Alumina
  • Shapes

    Mechanical Parts
  • Applications

    Petrochemical Industry , Metallurgy Industry
al2o3 ceramic flange

Advantages of Alumina Flange



1. High-Temperature Resistance

The alumina ceramic flange exhibits excellent high-temperature resistance, with a maximum operating temperature exceeding 1600℃, satisfying the demands of high-temperature applications.



2. Corrosion Resistance

Boasting superior corrosion resistance, the alumina ceramic flange can be in direct contact with acids, alkalis, and chemicals. It can be used for extended periods in high-humidity conditions without rusting or oxidizing.



3. Lightweight

With a density ranging from 3.7 to 3.9g/cm³, alumina is less than half the weight of steel, significantly reducing the load on equipment.

al2o3 flange

Applications of Alumina Liner Plate



The alumina ceramic flange finds primary applications in high-temperature and corrosive environments, such as in the petroleum, chemical, metallurgical, and aviation industries.



















Customized Design for Alumina Ceramic Flange



We are committed to delivering optimal alumina flange tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Please provide drawings and parameter specifications.



Alumina flange







Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions





1. Before installation, it is necessary to clean and inspect the flange and connecting parts to ensure they are free of contaminants and impurities before assembly.

2. Check the specifications and appearance of the flanges, including surface finish and flatness, to ensure they are intact and compatible with each other.

3. Regular inspections should be conducted on the assembled flanges, especially on critical parts such as the sealing surfaces, threaded ports, support surfaces, and welds. If severe wear, structural loosening, or other quality issues are found, timely replacement or repair is required.

4. When disassembling, specialized tools and methods must be employed to avoid using improvised or inappropriate tools, which may damage the flanges, connecting pipes, or equipment. Particular care should be taken to avoid damaging the sealing surfaces and threaded ports.

Valuable Information



Alumina Ceramic Flange Packing

Alumina Ceramic Flange Packing







Alumina flanges are carefully packaged in appropriate containers to avoid any potential damage.













Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
