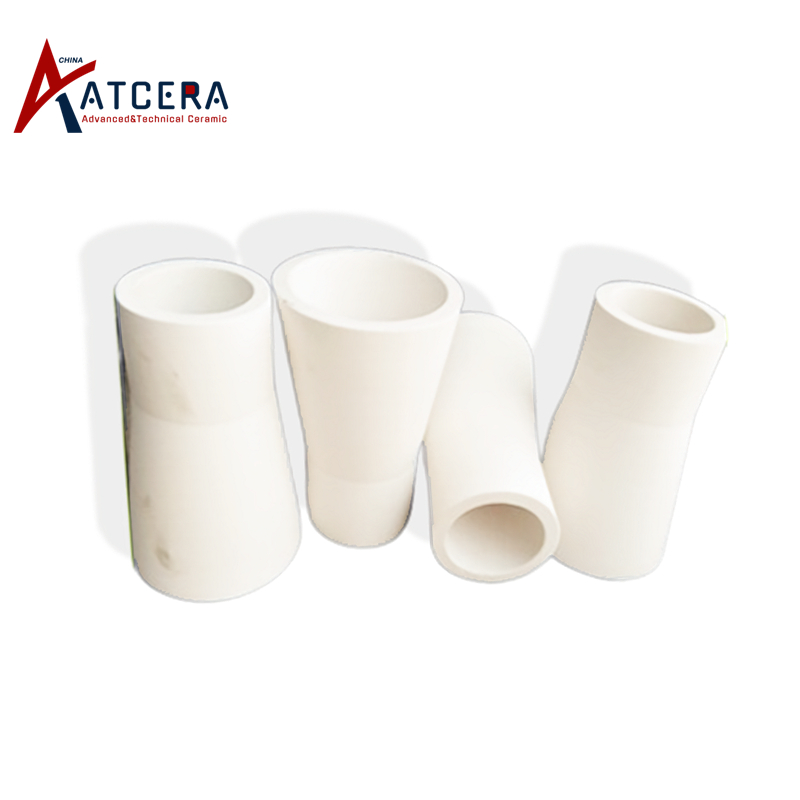

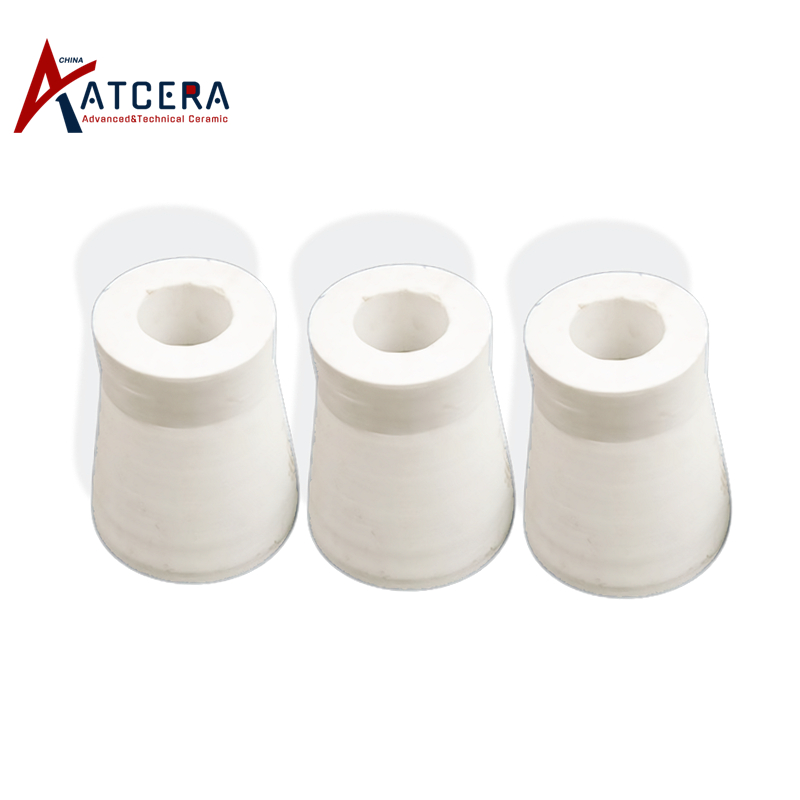

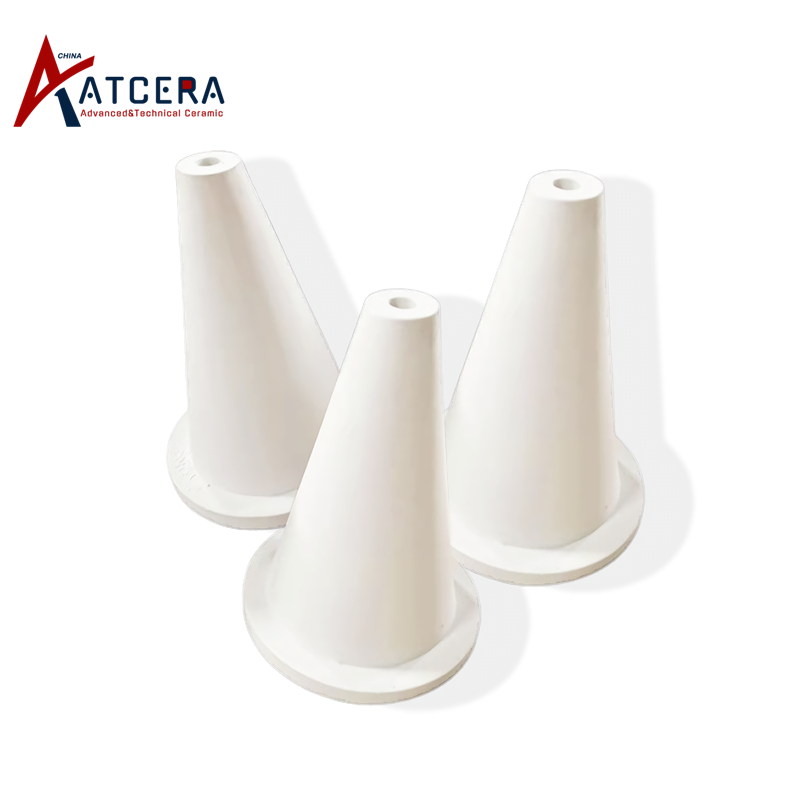

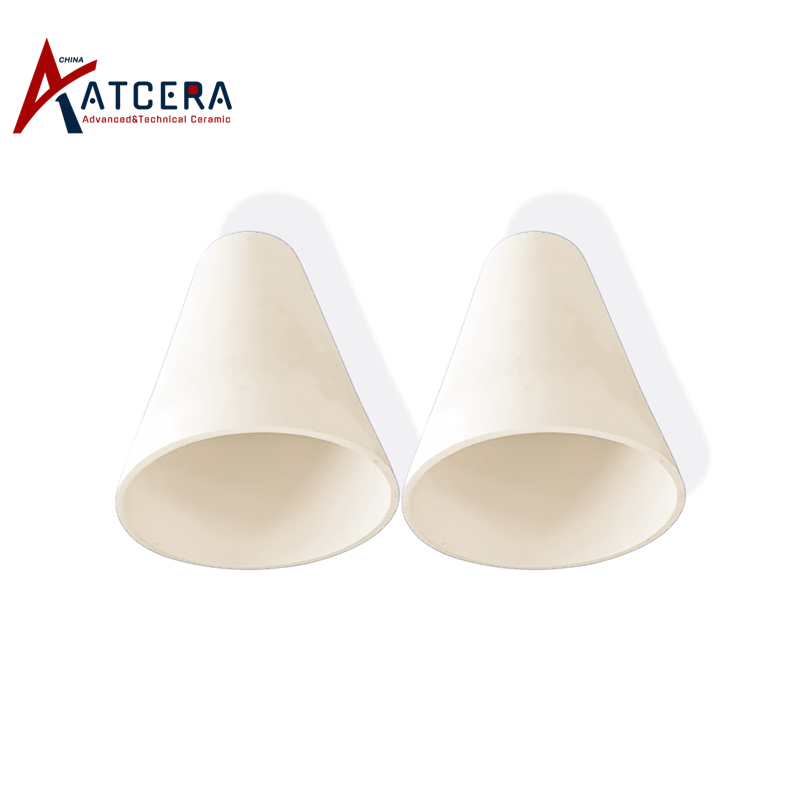

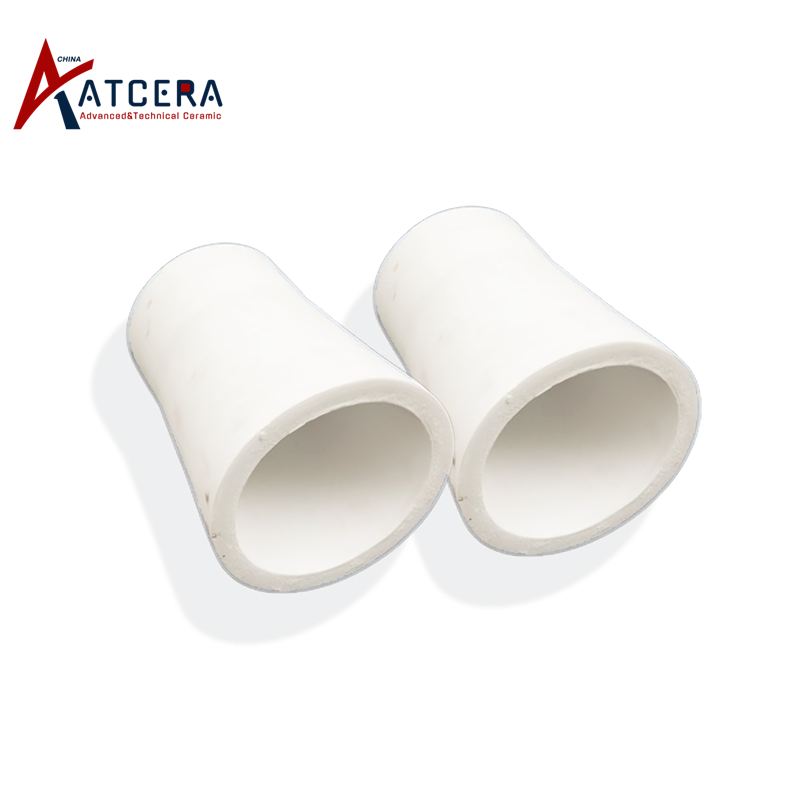

Alumina Ceramic Hydrocyclone Liner

The alumina cyclone liner is fabricated through the sintering process of alumina powder after molding, resulting in a product with high hardness and excellent wear resistance. Installed on the inner wall of the cyclone, it effectively prevents wear caused by solid materials, significantly extending the service life of the cyclone.

Brand:
ATCERA
Item NO.:
AT-YHL-XNC001

Materials
Alumina
Shapes
Tube
Applications
Metallurgy Industry

Inquire Now

Properties of Alumina Hydrocyclone Liner

1. The alumina ceramic lining tube exhibits excellent wear and corrosion resistance, significantly extending the service life of the pipeline.

2. With a high-temperature tolerance, the alumina lining tube can withstand operating temperatures exceeding 1600℃, meeting the demands of high-temperature applications.

3. The smooth interior wall of the alumina lining tube minimizes material transport resistance, allowing for unimpeded flow without material build-up or blockage.

Applications of Alumina Hydrocyclone Liner

Installed on the inner wall of the cyclone, the alumina cyclone liner is utilized for separating particles of different sizes and extracting solid particles from liquids. It finds widespread applications in metallurgy, mining, construction, and water treatment.

In manufacturing, the cyclone sand nozzle facilitates the separation of waste and valuable components, enhancing product purity and quality. In mining and construction, it aids in separating metallic minerals from rocks, improving energy utilization. In water treatment, the cyclone sand nozzle effectively removes solid particles from wastewater, rendering the process more efficient, economical, and safe. By installing the alumina cyclone liner on the inner wall, wear caused by solid materials is prevented, significantly extending the equipment's lifespan.

Size Chart for Alumina Hydrocyclone Liner

We are committed to delivering optimal alumina hydrocyclone liners tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Alumina Hydrocyclone Liner
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Thickness (mm)	Length (mm)	Tolerance (mm)	Al2O3's Purity (%)
AT-YHL-XNC001	30	24	3	200	±0.5mm	92-95
AT-YHL-XNC002	37	30	3.5	198	±0.5mm	92-95
AT-YHL-XNC003	40	30	5	200	±0.5mm	92-95
AT-YHL-XNC004	40	33	3.5	200	±0.5mm	92-95
AT-YHL-XNC005	50	35	12.5	200	±0.5mm	92-95
AT-YHL-XNC006	50	40	5	200	±0.5mm	92-95
AT-YHL-XNC007	55	45	5	200	±0.5mm	92-95
AT-YHL-XNC008	58	48	5	200	±0.5mm	92-95
AT-YHL-XNC009	62	50	6	200	±0.5mm	92-95
AT-YHL-XNC010	65	53	6	370	±0.5mm	92-95
AT-YHL-XNC011	67	55	6	300	±0.5mm	92-95
AT-YHL-XNC012	72	60	6	400	±0.5mm	92-95
AT-YHL-XNC013	76	64	6	400	±0.5mm	92-95
AT-YHL-XNC014	80	64	8	400	±0.5mm	92-95
AT-YHL-XNC015	81	65	8	400	±0.5mm	92-95
AT-YHL-XNC016	86	70	8	320	±0.5mm	92-95
AT-YHL-XNC017	95	75	10	320	±0.5mm	92-95
AT-YHL-XNC018	96	80	8	330	±0.5mm	92-95
AT-YHL-XNC019	106	90	8	330	±1mm	92-95
AT-YHL-XNC020	111	95	8	330	±1mm	92-95
AT-YHL-XNC021	116	100	8	400	±1mm	92-95
AT-YHL-XNC022	120	100	10	400	±1mm	92-95
AT-YHL-XNC023	130	110	10	400	±1mm	92-95
AT-YHL-XNC024	140	120	10	400	±1mm	92-95
AT-YHL-XNC025	145	125	10	400	±1mm	92-95
AT-YHL-XNC026	150	130	10	400	±1mm	92-95
AT-YHL-XNC027	155	135	10	400	±1mm	92-95
AT-YHL-XNC028	160	140	10	390	±1mm	92-95
AT-YHL-XNC029	165	145	10	400	±1mm	92-95
AT-YHL-XNC030	170	150	10	390	±1mm	92-95
AT-YHL-XNC031	200	175	12.5	370	±1.5mm	92-95
AT-YHL-XNC032	200	180	10	320	±1.5mm	92-95
AT-YHL-XNC033	224	200	12	300	±1.5mm	92-95
AT-YHL-XNC034	255	220	17.5	300	±2.5mm	92-95
AT-YHL-XNC035	280	250	15	500	±2.5mm	92-95
AT-YHL-XNC036	290	250	20	500	±2.5mm	92-95
AT-YHL-XNC037	306	270	18	500	±2.5mm	92-95
AT-YHL-XNC038	340	300	20	500	±2.5mm	92-95
AT-YHL-XNC039	406	370	18	500	±2.5mm	92-95
AT-YHL-XNC040	440	400	20	500	±2.5mm	92-95
AT-YHL-XNC041	451	415	18	500	±2.5mm	92-95
AT-YHL-XNC042	520	480	20	500	±2.5mm	92-95

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. During installation, ensure that the alumina ceramic liner is securely adhered to the inner surface of the cyclone with proper alignment of the centerline, avoiding misalignment, gaps, and looseness.

2. Regularly inspect the wear condition of the alumina ceramic liner. Replace it promptly if severe wear is observed to maintain its performance.

3. Avoid prolonged exposure of the alumina ceramic liner to corrosive media to prevent compromising its corrosion resistance.

4. Be mindful of the alumina ceramic liner's operating temperature range, avoiding exceeding its thermal endurance limit.

Valuable Information

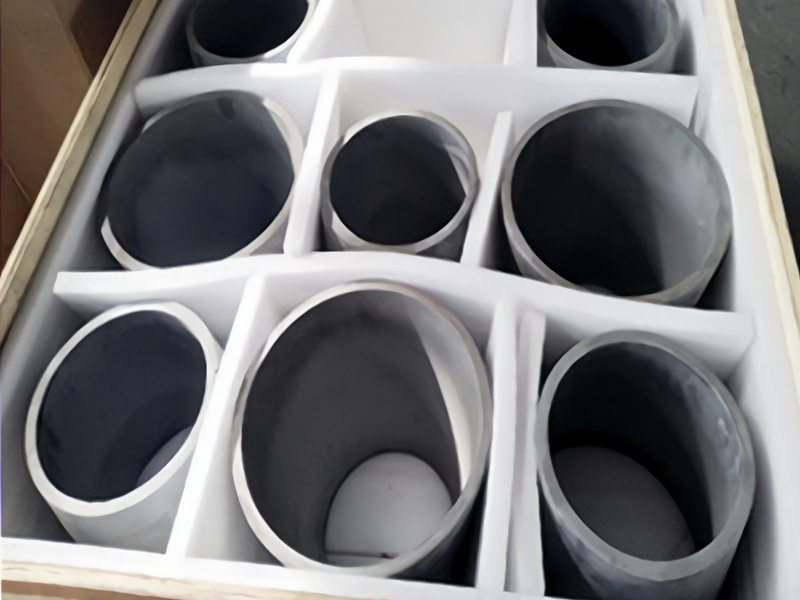

Alumina Hydrocyclone Liner Packing

Alumina hydrocyclone liners are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
