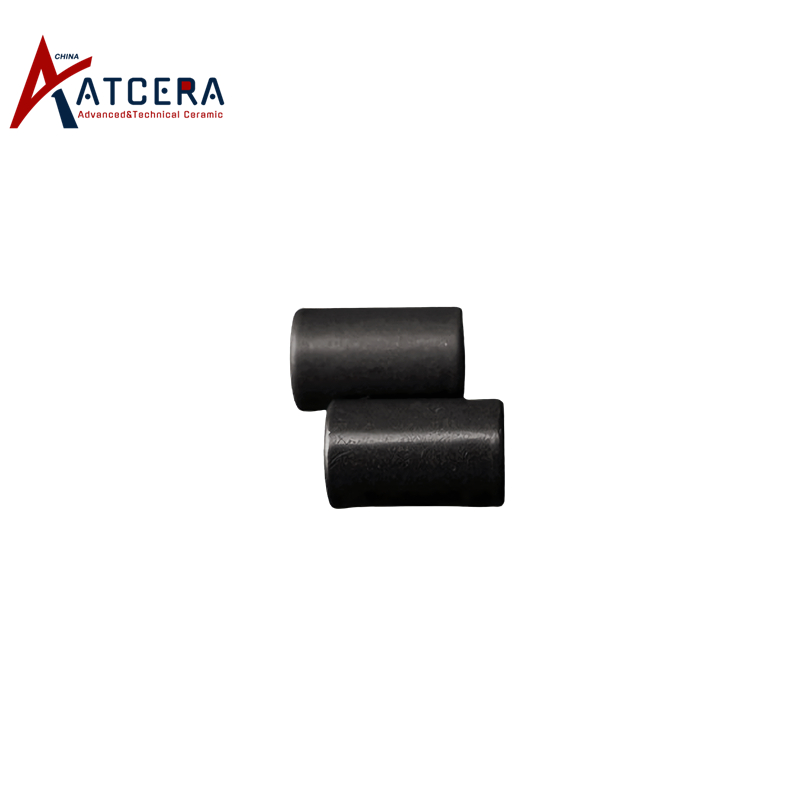

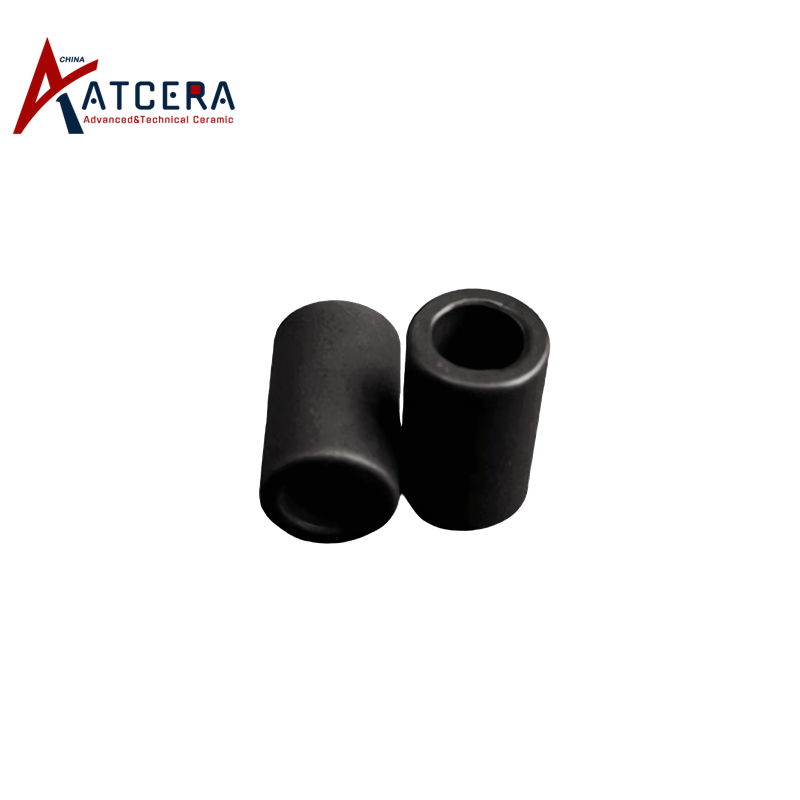

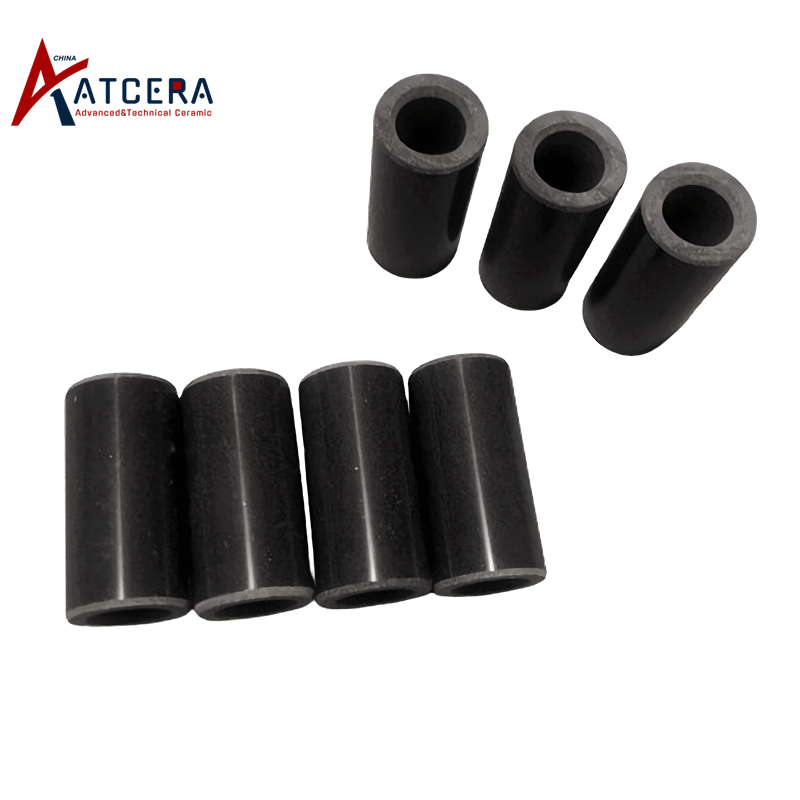

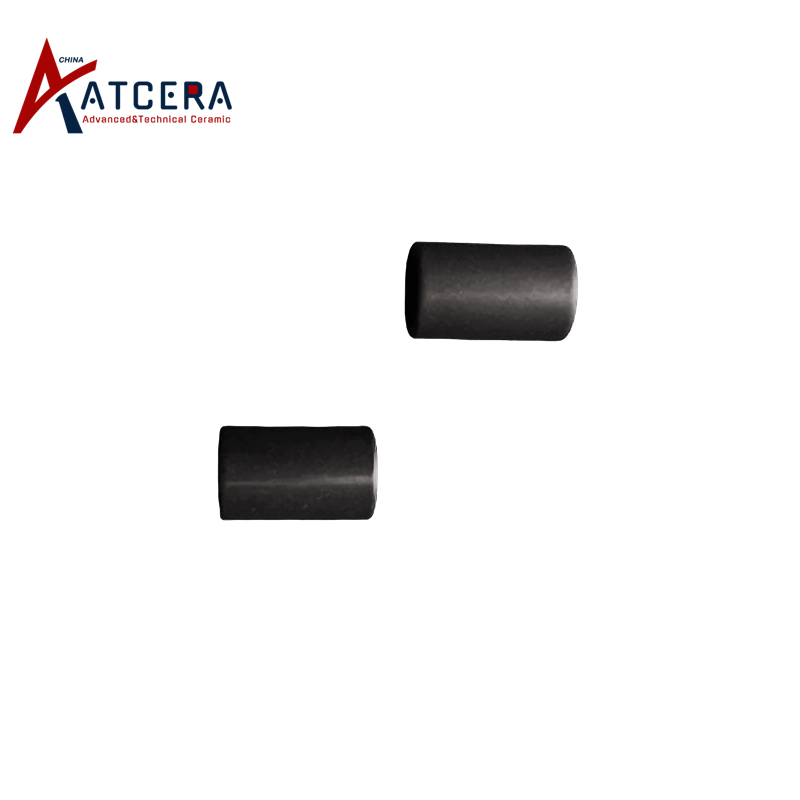

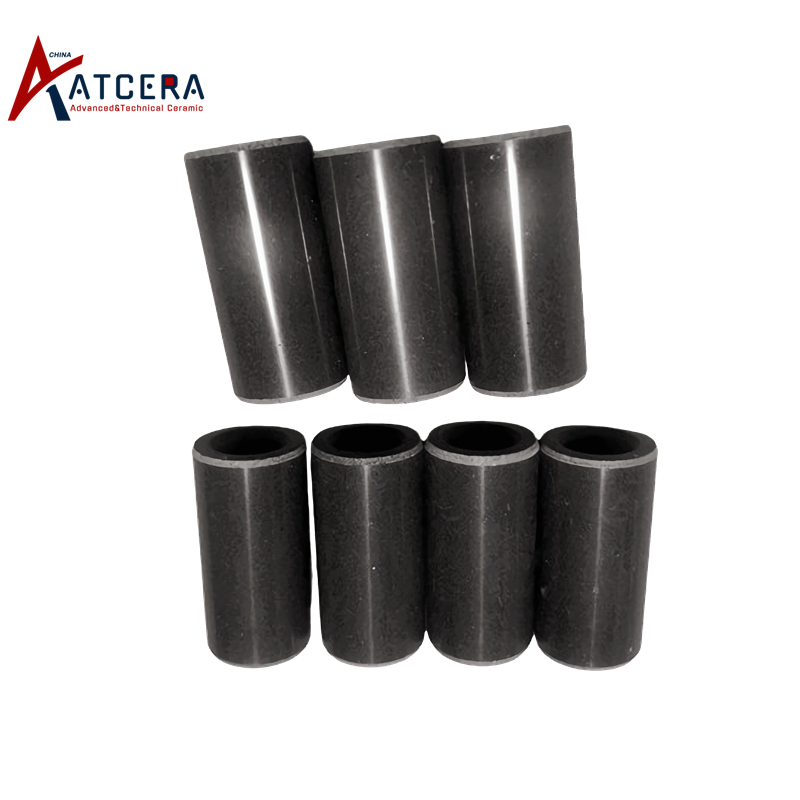

Black Alumina Ceramic Tube

The black alumina ceramic tube, with alumina as its primary constituent, undergoes a unique processing technique to achieve its distinctive black hue. This not only retains alumina's inherent properties such as excellent insulation, high-temperature resistance, corrosion resistance, and wear durability, but also possesses remarkable light-shielding capabilities, catering to specific applications and requirements.

  • Brand:

    ATCERA
  • Item NO.:

    AT-AO-HG001
  • Materials

    Alumina
  • Shapes

    Tube
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry
alumina ceramic tube black

Properties of Black Alumina Ceramic Tube







1. The black color fulfills the requirements for light-blocking applications.



2. It boasts superior insulation properties and a high breakdown voltage.



3. Its high hardness, excellent wear resistance, and extended service life ensure durability.



4. It can withstand high temperatures, exhibit good thermal shock resistance, and is resilient against acids, alkalis, and other chemical corrosion.

ceramic black alumina tube

Applications of Black Alumina Ceramic Tube









The black alumina tube, owing to its high-temperature and corrosion resistance as well as its superior light-shielding properties, serves as an ideal choice for housings or protective tubes for various electronic components and optical elements.











Size Chart for Black Alumina Ceramic Tube



We are committed to delivering optimal alumina tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Please provide drawings and parametric specifications for customization.



Black Alumina Ceramic Tube
Item no. Outer Diameter
(mm)
Inner Diameter
(mm)
Length
(mm)
Content of Alumina
(%)
AT-AO-HG001 3 1 2 95-99
AT-AO-HG002 10 6 30 95-99
AT-AO-HG003 18 11 36 95-99
AT-AO-HG004 20 12 50 95-99
AT-AO-HG005 25 15 100 95-99









Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.












Usage Instructions



1. Avoid impact or drops, as well as rapid temperature changes, to prevent damage to the ceramic tube.



2. Prior to use, clean the surface impurities and dirt to ensure optimal performance.



3. Regularly inspect the tube during use, and promptly replace it if any cracks or damage are detected.

Valuable Information



Black Alumina Ceramic Rods Packing

Black Alumina Ceramic Tube Packing





Alumina tubes are carefully packaged in appropriate containers to avoid any potential damage.















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
