Alumina Pipes Single Bore One End Closed Tube

Alumina closed-end tubes excel in thermal conductivity, thermal shock resistance, and corrosion/wear resistance. Widely used in high-temperature refractory, chemical, and metallurgical industries, they are also non-polluting, non-toxic, and biologically inert, making them valuable in medicine and biology.

  • Item NO.:

    TE-AT-10001
  • Materials

    Alumina
  • Shapes

    Tube
  • Applications

    Semiconductor , Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Properties of Al2O3 Ceramic One End Closed Tube



Alumina closed end tube  can be used as high thermocouple tubes, heaters, and various biological and chemical experimental equipment owing to the properties below,



⩟ High temperature resistance, excellent thermal shock resistance



⩟ High hardness, good wear resistance, long service life



⩟ Excellent resistance to oil and chemical corrosion



⩟ Non-toxic and harmless, good biological compatibility

Applications

Alumina closed end tube has good thermal conductivity, strong thermal shock resistance, good corrosion and wear resistance, it's widely used in high temperature refractory, chemical industry, metallurgy and other industries. Meanwhile, it has no pollution, non-toxic and harmless, good biological inert characteristics, in the field of medicine and biology also has important applications.

1. Aluminum oxide head tube can be used as a protective tube of thermocouple, used to protect the temperature measuring element, isolate the temperature measuring element from the outside world, reduce or prevent the element from being corroded, oxidized or damaged by external substances during use, suitable for air, water vapor, hydrogen, argon, carbon monoxide and vacuum medium temperature measurement of 600~1700°C;

2. It can be used as a heater shell to effectively protect the heating element and internal structure of the electric furnace from being eroded by high temperature gases and chemical reactants;

3. It can be used to make experimental equipment, such as test tubes, biological culture tubes, etc., for medical and chemical experiments.

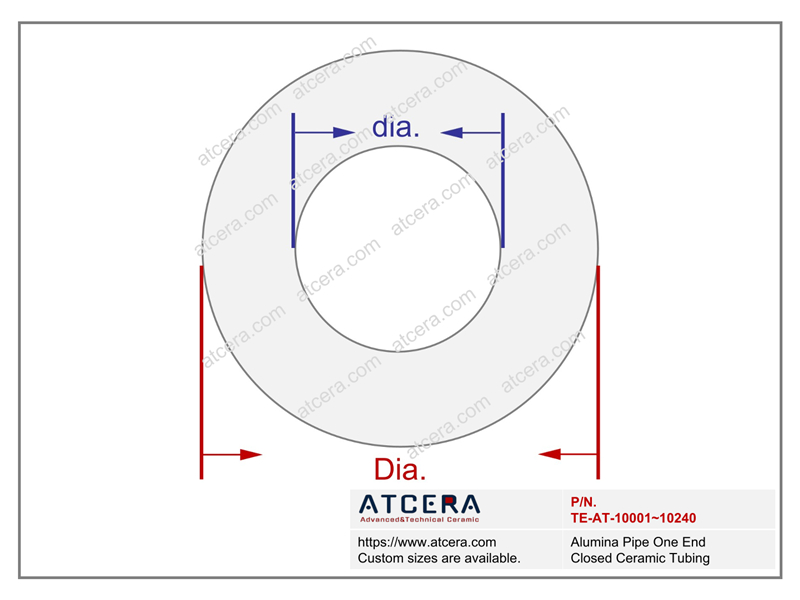

Size Chart of Alumina Pipe One End Closed Ceramic Tubing



Dedicated to delivering high-quality alumina ceramic tubes tailored to your specific requirements. Our committed team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique needs.





Alumina Pipe One End Closed Ceramic Tubing
Item No. Diameter (mm) diameter (mm) Length (mm) Purity (%)
TE-AT-10001 3 1 20-2000 99
TE-AT-10002 3 1.5 20-2000 99
TE-AT-10003 3 20-2000 99
TE-AT-10004 3.2 0.8 20-2000 99
TE-AT-10005 3.2 0.9 20-2000 99
TE-AT-10006 3.5 1.3 20-2000 99
TE-AT-10007 3.5 20-2000 99
TE-AT-10008 3.5 2.1 20-2000 99
TE-AT-10009 3.5 2.2 20-2000 99
TE-AT-10010 3.5 2.4 20-2000 99
TE-AT-10011 3.5 2.5 20-2000 99
TE-AT-10012 3.6 0.4 20-2000 99
TE-AT-10013 3.6 0.9  20-2000 99
TE-AT-10014 3.6 1.8 20-2000 99
TE-AT-10015 3.7 0.7 20-2000 99
TE-AT-10016 3.7 20-2000 99
TE-AT-10017 3.8 1.1 20-2000 99
TE-AT-10018 3.8 1.8 20-2000 99
TE-AT-10019 4 0.6 20-2000 99
TE-AT-10020 4 0.5 20-2000 99
TE-AT-10021 4 20-2000 99
TE-AT-10022 4 1.9 20-2000 99
TE-AT-10023 4 2.4 20-2000 99
TE-AT-10024 4 2.5 20-2000 99
TE-AT-10025 4 2.8 20-2000 99
TE-AT-10026 4 20-2000 99
TE-AT-10027 4.1 1.7 20-2000 99
TE-AT-10028 4.1 3.1 20-2000 99
TE-AT-10029 4.2 1.2 20-2000 99
TE-AT-10030 4.2 2.4 20-2000 99
TE-AT-10031 4.3 3 20-2000 99
TE-AT-10032 4.4 3 20-2000 99
TE-AT-10033 4.5 1.5 20-2000 99
TE-AT-10034 4.5 2 20-2000 99
TE-AT-10035 4.5 3 20-2000 99
TE-AT-10036 4.6 3.8 20-2000 99
TE-AT-10037 4.7 20-2000 99
TE-AT-10038 4.8 0.6 20-2000 99
TE-AT-10039 4.8 3 20-2000 99
TE-AT-10040 4.8 3.3 20-2000 99
TE-AT-10041 4.8 3.5 20-2000 99
TE-AT-10042 4.8 3.8 20-2000 99
TE-AT-10043 4.9 4.3 20-2000 99
TE-AT-10044 5 20-2000 99
TE-AT-10045 5 3.5 20-2000 99
TE-AT-10046 5 4 20-2000 99
TE-AT-10047 5.5 3 20-2000 99
TE-AT-10048 5.5 4 20-2000 99
TE-AT-10049 5.8 4.2 20-2000 99
TE-AT-10050 6 1.5 20-2000 99
TE-AT-10051 6 2 20-2000 99
TE-AT-10052 6 3 20-2000 99
TE-AT-10053 6 3.5 20-2000 99
TE-AT-10054 6 4.5 20-2000 99
TE-AT-10055 6.3 3.2 20-2000 99
TE-AT-10056 6.35 20-2000 99
TE-AT-10057 6.35 4.5 20-2000 99
TE-AT-10058 6.5 3 20-2000 99
TE-AT-10059 6.7 3 20-2000 99
TE-AT-10060 6.7 4 20-2000 99
TE-AT-10061 7 3 20-2000 99
TE-AT-10062 7 4 20-2000 99
TE-AT-10063 7 4.5 20-2000 99
TE-AT-10064 7 5 20-2000 99
TE-AT-10065 7.5 2 20-2000 99
TE-AT-10066 7.5 3 20-2000 99
TE-AT-10067 7.5 4 20-2000 99
TE-AT-10068 8 1 20-2000 99
TE-AT-10069 8 2 20-2000 99
TE-AT-10070 8 2.5 20-2000 99
TE-AT-10071 8 3 20-2000 99
TE-AT-10072 8 3.5 20-2000 99
TE-AT-10073 8 4 20-2000 99
TE-AT-10074 8 5 20-2000 99
TE-AT-10075 8.5 2 20-2000 99
TE-AT-10076 8.5 5 20-2000 99
TE-AT-10077 9 20-2000 99
TE-AT-10078 9 2.5 20-2000 99
TE-AT-10079 9 3 20-2000 99
TE-AT-10080 9 3.5 20-2000 99
TE-AT-10081 9 4 20-2000 99
TE-AT-10082 9 5 20-2000 99
TE-AT-10083 9 6 20-2000 99
TE-AT-10084 9 20-2000 99
TE-AT-10085 9.5 3 20-2000 99
TE-AT-10086 9.5 3.5 20-2000 99
TE-AT-10087 9.5 4.5 20-2000 99
TE-AT-10088 9.5 5.5 20-2000 99
TE-AT-10089 9.5 6 20-2000 99
TE-AT-10090 9.5 20-2000 99
TE-AT-10091 10 1 20-2000 99
TE-AT-10092 10 3.5 20-2000 99
TE-AT-10093 10 4 20-2000 99
TE-AT-10094 10 2 20-2000 99
TE-AT-10095 10 2.5 20-2000 99
TE-AT-10096 10 4.5 20-2000 99
TE-AT-10097 10 5 20-2000 99
TE-AT-10098 10 5.5 20-2000 99
TE-AT-10099 10 6 20-2000 99
TE-AT-10100 10 6.5 20-2000 99
TE-AT-10101 10 7 20-2000 99
TE-AT-10102 10 8 20-2000 99
TE-AT-10103 11 1 20-2000 99
TE-AT-10104 11 3 20-2000 99
TE-AT-10105 11 3.5 20-2000 99
TE-AT-10106 11 4 20-2000 99
TE-AT-10107 11 5 20-2000 99
TE-AT-10108 11 7 20-2000 99
TE-AT-10109 12 7 20-2000 99
TE-AT-10110 12 8 20-2000 99
TE-AT-10111 12 9 20-2000 99
TE-AT-10112 12 10 20-2000 99
TE-AT-10113 13 7 20-2000 99
TE-AT-10114 13 8 20-2000 99
TE-AT-10115 13 9 20-2000 99
TE-AT-10116 13 10 20-2000 99
TE-AT-10117 13 6 20-2000 99
TE-AT-10118 14 3 20-2000 99
TE-AT-10119 14 4 20-2000 99
TE-AT-10120 14 6 20-2000 99
TE-AT-10121 14 9 20-2000 99
TE-AT-10122 14 10  20-2000 99
TE-AT-10123 15 6 20-2000 99
TE-AT-10124 15 7 20-2000 99
TE-AT-10125 15 8 20-2000 99
TE-AT-10126 15 9 20-2000 99
TE-AT-10127 15 10 20-2000 99
TE-AT-10128 15 11 20-2000 99
TE-AT-10129 16 6 20-2000 99
TE-AT-10130 16 8 20-2000 99
TE-AT-10131 16 9 20-2000 99
TE-AT-10132 16 10 20-2000 99
TE-AT-10133 16 11 20-2000 99
TE-AT-10134 16 12 20-2000 99
TE-AT-10135 17 1 20-2000 99
TE-AT-10136 17 10  20-2000 99
TE-AT-10137 17 11  20-2000 99
TE-AT-10138 17 12 20-2000 99
TE-AT-10139 17 13 20-2000 99
TE-AT-10140 17 14 20-2000 99
TE-AT-10141 18 10 20-2000 99
TE-AT-10142 18 11 20-2000 99
TE-AT-10143 18 12 20-2000 99
TE-AT-10144 18 13 20-2000 99
TE-AT-10145 18 14  20-2000 99
TE-AT-10146 18 8.5 20-2000 99
TE-AT-10147 19 1 20-2000 99
TE-AT-10148 19 9 20-2000 99
TE-AT-10149 19 10  20-2000 99
TE-AT-10150 19 11  20-2000 99
TE-AT-10151 19 12 20-2000 99
TE-AT-10152 19 13  20-2000 99
TE-AT-10153 19 14  20-2000 99
TE-AT-10154 19 15  20-2000 99
TE-AT-10155 20 8 20-2000 99
TE-AT-10156 20 10 20-2000 99
TE-AT-10157 20 11 20-2000 99
TE-AT-10158 20 14 20-2000 99
TE-AT-10159 20 15 20-2000 99
TE-AT-10160 20 16 20-2000 99
TE-AT-10161 20 17 20-2000 99
TE-AT-10162 21 3 20-2000 99
TE-AT-10163 21 2.5 20-2000 99
TE-AT-10164 21 10 20-2000 99
TE-AT-10165 21 14 20-2000 99
TE-AT-10166 21 16 20-2000 99
TE-AT-10167 22 2.5 20-2000 99
TE-AT-10168 22 16 20-2000 99
TE-AT-10169 22 17 20-2000 99
TE-AT-10170 22 19 20-2000 99
TE-AT-10171 23 3.5 20-2000 99
TE-AT-10172 23 12 20-2000 99
TE-AT-10173 23 15  20-2000 99
TE-AT-10174 23 16  20-2000 99
TE-AT-10175 23 17  20-2000 99
TE-AT-10176 23 18  20-2000 99
TE-AT-10177 23 19  20-2000 99
TE-AT-10178 24 5 20-2000 99
TE-AT-10179 24 17 20-2000 99
TE-AT-10180 24 18 20-2000 99
TE-AT-10181 24 19 20-2000 99
TE-AT-10182 24 14 20-2000 99
TE-AT-10183 25 14 20-2000 99
TE-AT-10184 25 15 20-2000 99
TE-AT-10185 25 16 20-2000 99
TE-AT-10186 25 17 20-2000 99
TE-AT-10187 25 18 20-2000 99
TE-AT-10188 25 19 20-2000 99
TE-AT-10189 25 20 20-2000 99
TE-AT-10190 25 21 20-2000 99
TE-AT-10191 26 8 20-2000 99
TE-AT-10192 26 14  20-2000 99
TE-AT-10193 26 15  20-2000 99
TE-AT-10194 26 16  20-2000 99
TE-AT-10195 26 17  20-2000 99
TE-AT-10196 26 18  20-2000 99
TE-AT-10197 26 19  20-2000 99
TE-AT-10198 26 20  20-2000 99
TE-AT-10199 26 21  20-2000 99
TE-AT-10200 27 21 20-2000 99
TE-AT-10201 27 22 20-2000 99
TE-AT-10202 28 19 20-2000 99
TE-AT-10203 28 20  20-2000 99
TE-AT-10204 28 21  20-2000 99
TE-AT-10205 28 22  20-2000 99
TE-AT-10206 28 23 20-2000 99
TE-AT-10207 28 23.5 20-2000 99
TE-AT-10208 28 24 20-2000 99
TE-AT-10209 28 25 20-2000 99
TE-AT-10210 29 23 20-2000 99
TE-AT-10211 29 24  20-2000 99
TE-AT-10212 29 25  20-2000 99
TE-AT-10213 30 15 20-2000 99
TE-AT-10214 30 20 20-2000 99
TE-AT-10215 30 21 20-2000 99
TE-AT-10216 30 22 20-2000 99
TE-AT-10217 30 24 20-2000 99
TE-AT-10218 30 26 20-2000 99
TE-AT-10219 31 23 20-2000 99
TE-AT-10220 31 25 20-2000 99
TE-AT-10221 31 26 20-2000
TE-AT-10222 31 27 20-2000
TE-AT-10223 32 26 20-2000
TE-AT-10224 32 27 20-2000
TE-AT-10225 33 28 20-2000
TE-AT-10226 34 18 20-2000
TE-AT-10227 34 22 20-2000
TE-AT-10228 34 23 20-2000
TE-AT-10229 34 30 20-2000
TE-AT-10230 35 27 20-2000
TE-AT-10231 35 29.5 20-2000
TE-AT-10232 36 30 20-2000
TE-AT-10233 36 31 20-2000
TE-AT-10234 37 29 20-2000
TE-AT-10235 37 31.5 20-2000
TE-AT-10236 37 32 20-2000
TE-AT-10237 38 31 20-2000
TE-AT-10238 45 38.5 20-2000
TE-AT-10239 46 38.5 20-2000
TE-AT-10240 60 30 20-2000





Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. When used as a thermocouple protective sleeve, the temperature measuring element is installed in the protective tube, and then the open end and the uniform head are sealed with high temperature glue. When measuring temperature, slowly insert the closed end into the temperature measuring area.

2. When condition permits, regular cleaning is helpful to keep the ceramic tube performance and extend service life.

Valuable Information

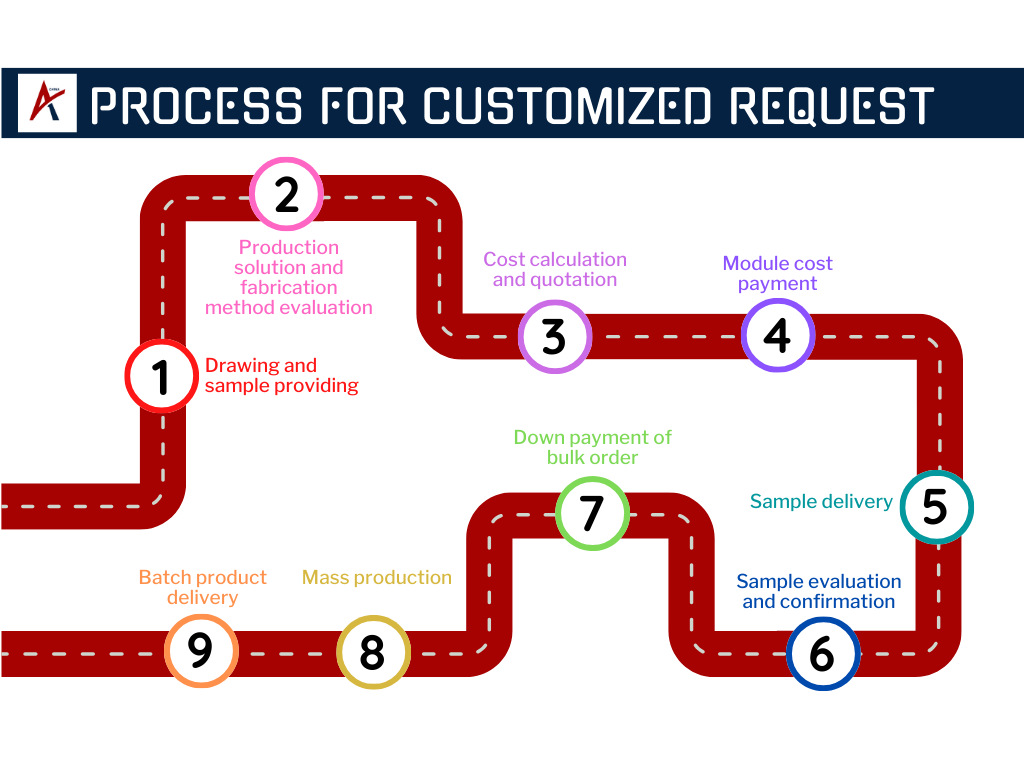

Process for Customized Request

Process for Customized Request



1. Drawing and sample providing

2. Production solution and fabrication method evaluation

3. Calculation and quotation module cost payment

4. Sample delivery

5. Sample evaluation and confirmation

6. Down payment of bulk order

7. Mass production

8. Batch product delivery

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Related Blog
Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives
In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...
Application Requirements Of Aluminum Nitride Substrate
Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...
Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls
  Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...
Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls
Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...
Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media
With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...
Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field
With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...
Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field
With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...
Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing
Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...
Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing
Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...
Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology
In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Related Products

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

Send Your inquiry

Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now

Contact With Us

Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
