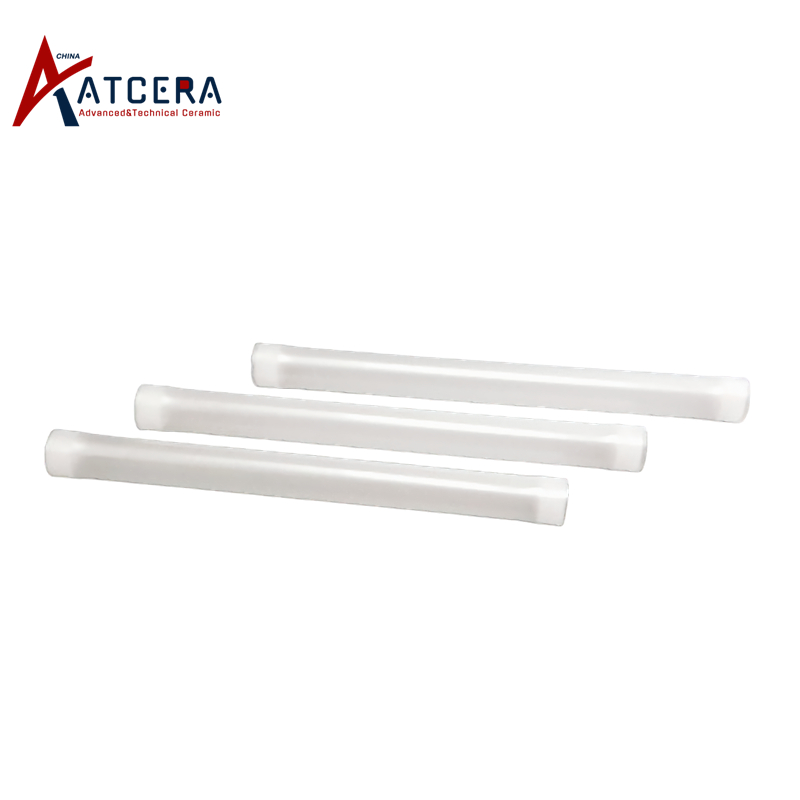

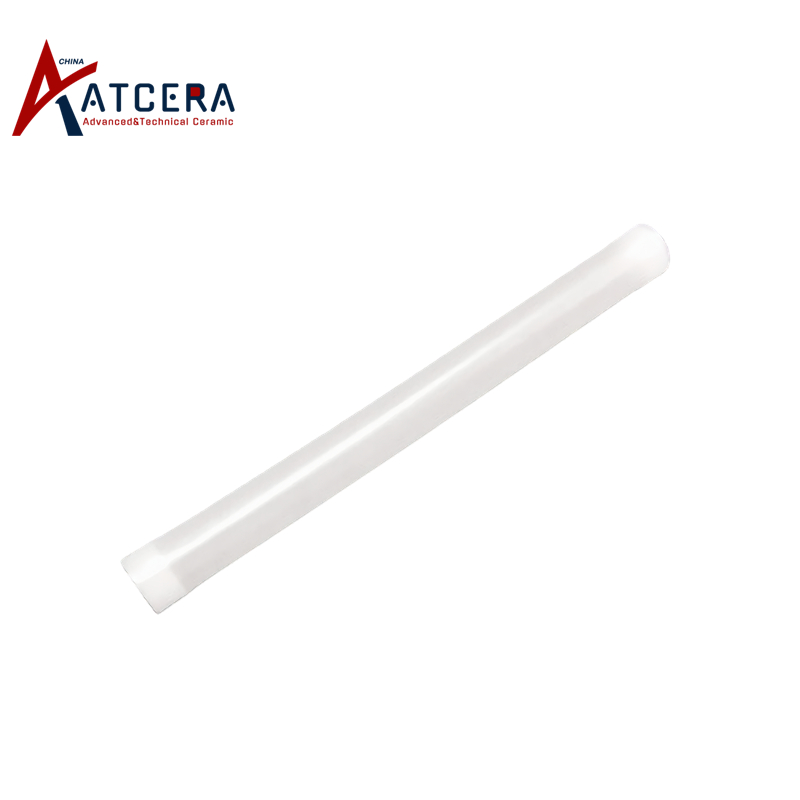

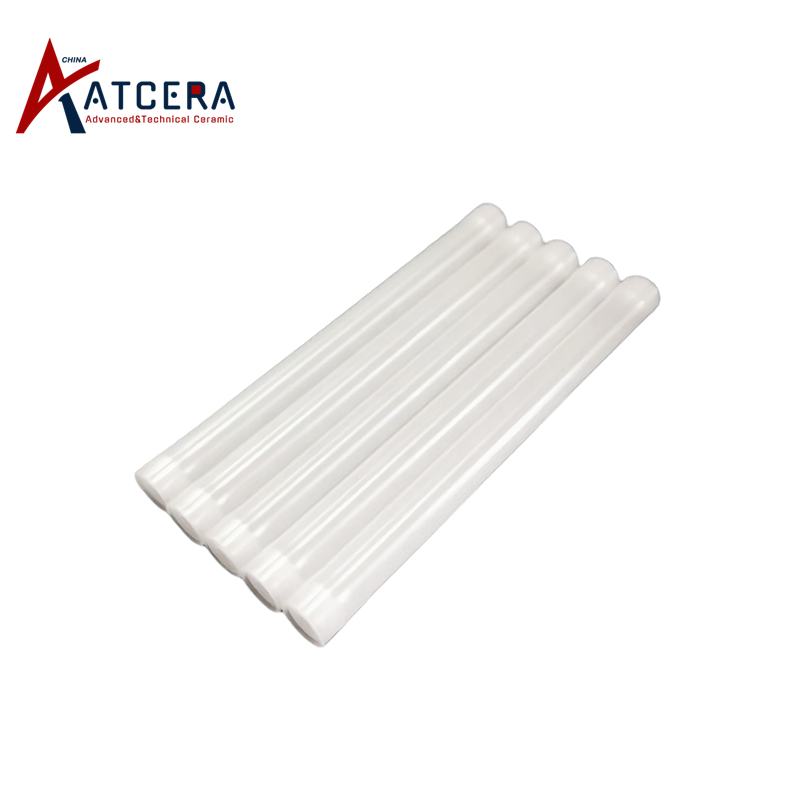

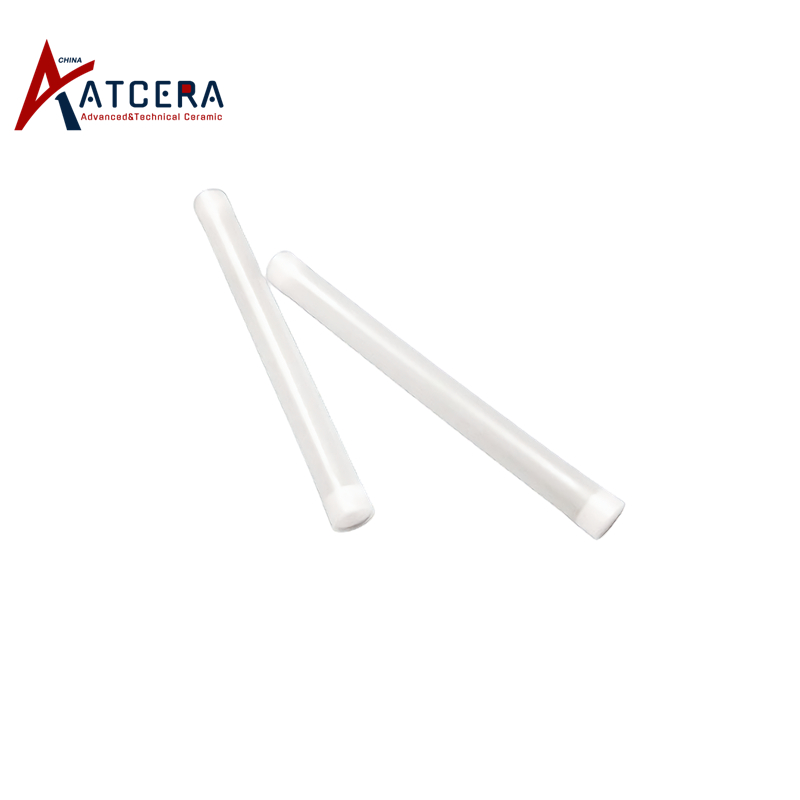

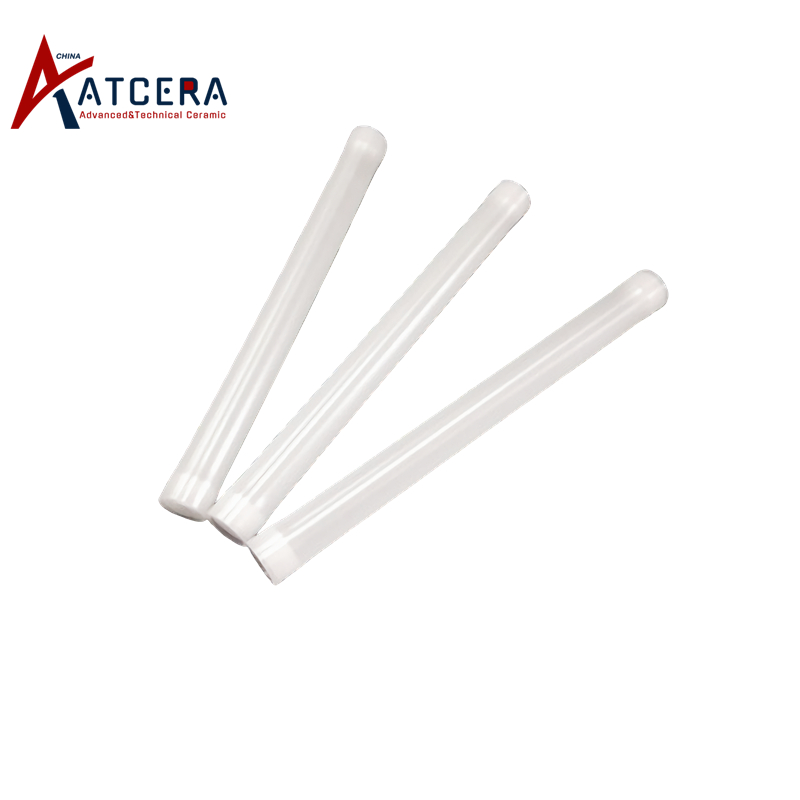

Alumina High Pressure Sodium Lamp Arc Tube

The alumina high-pressure sodium lamp arc tube is crafted from polycrystalline translucent alumina ceramic, serving as the core component of high-pressure sodium lamps. It is resistant to high temperatures and corrosion from high-pressure sodium vapor, while possessing excellent visible light penetrability, ensuring non-aging properties and prolonged service life.

Brand:
ATCERA
Item NO.:
AT-AO-DG1001

Materials
Alumina
Shapes
Tube
Applications
Electronics and Electricity

Inquire Now

Properties of Alumina Sodium Lamp Arc Tube

1. The alumina high-pressure sodium lamp arc tube boasts high temperature and corrosion resistance, resulting in a long service life.

2. It exhibits high mechanical strength, stable and reliable structure, excellent sealing capabilities, effectively minimizing sodium loss.

3. It offers excellent light transmission, high luminous efficacy, and energy-saving capabilities.

Applications of Alumina Sodium Lamp Arc Tube

Alumina high-pressure sodium lamps are widely utilized for lighting applications such as roads, highways, airports, docks, shipyards, stations, plazas, intersections, industrial and mining enterprises, parks, courtyards, and plant cultivation.

Product Parameters
Material Parameters

Size Chart for Alumina Sodium Lamp Arc Tube

We are committed to delivering optimal alumina sodium lamp arc tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Alumina High Pressure Sodium Lamp Arc Tube
Item no.	Dimension (mm)
AT-AO-DG1001	4*43.2
AT-AO-DG1002	4*44.4
AT-AO-DG1003	4*52.5
AT-AO-DG1004	5*58
AT-AO-DG1005	5.8*70
AT-AO-DG1006	7.4*230
AT-AO-DG1007	7.8*162
AT-AO-DG1008	11*184

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Valuable Information

Alumina Sodium Lamp Arc Tube Packing

Alumina sodium lamp arc tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
