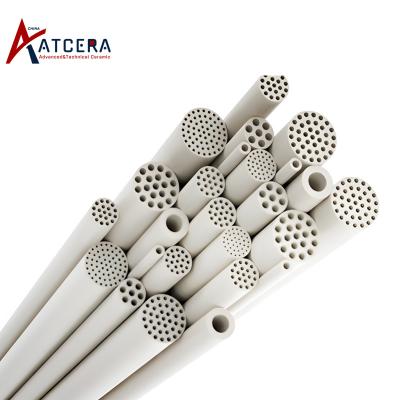

Alumina Multi-Bores Tubings Alumina Pipe

The alumina multi-pore ceramic tube offers excellent insulation, mechanical strength, corrosion resistance, and high-temperature performance. It serves as a wire protection tube in electronics, is widely used in various industries, and is environmentally friendly. In medicine and chemistry, it is utilized for tubular filters.

  • Item NO.:

    TE-AT-60001
  • Materials

    Alumina
  • Shapes

    Tube
  • Applications

    Semiconductor , Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Aluminium Oxide Ceramic Tubes

Advantages of Alumina Multi-bores Pipe



·Alumina multi-pore tube can be used as wire protection tube and tubular filters thanks to the properties as follow,



· Outstanding electrical insulation capabilities with a high breakdown voltage



· Exceptional resistance to high temperatures and impressive thermal shock resistance



· Superior resistance to oil and chemical corrosion



· Non-toxic and harmless, displaying excellent biological compatibility







Alumina Al2O3 Pipes Ceramic Tubes
Applications



Alumina multi-pore ceramic tube has excellent insulation performance, high mechanical strength, corrosion resistance, high temperature refractory and heat shock performance, can be used as wire protection tube,  widely used in electronic and electrical, high temperature fire resistance and other industries, while it has no pollution, non-toxic and harmless, good biological inert characteristics, in the field of medicine and chemistry can be used to make tubular filters.



1. As a protective tube of temperature measuring metal wire, it can effectively prevent the thermocouple temperature sensing wire from being oxidized or corroded in high temperature environment, and interference of external substances, so to improve the accuracy of temperature measurement;



2. Used as insulation tube of wire to prevent short circuit failure of electronic and electrical equipment and ensure normal operation of equipment;



3. It can used to produce tubular filter, to filter impurities in various liquids, with high filtration efficiency while no pollution to liquids.



Size Chart of Alumina Multi-Bores Pipe

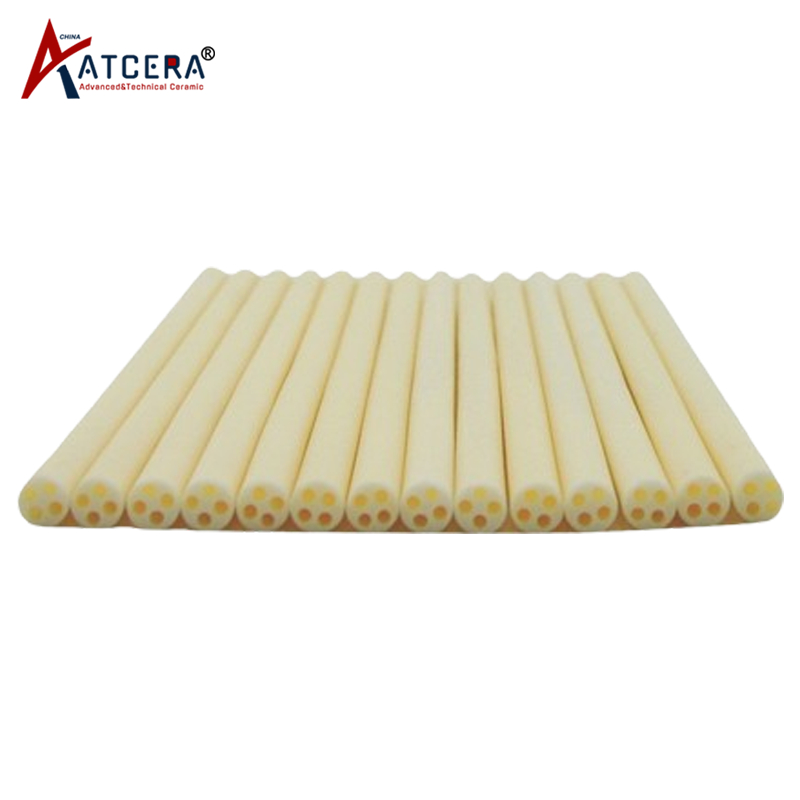

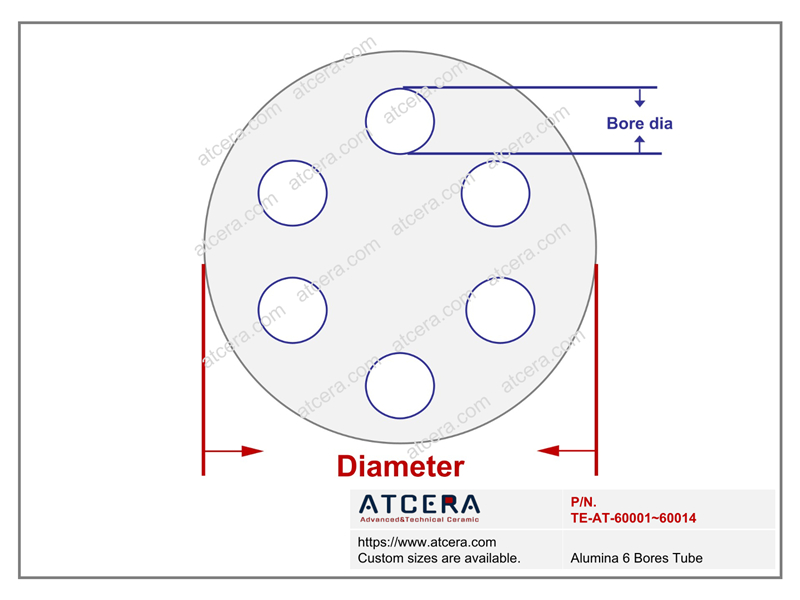

Alumina 6 Bores Tubes
Item No. Diameter (mm) Bore dia (mm) Length (mm)
TE-AT-60001 1.85 0.2 ≤1500
TE-AT-60002 4.5 0.8 ≤2500
TE-AT-60003 4.6 0.8 ≤2500
TE-AT-60004 4.7 0.8 ≤2500
TE-AT-60005 5.8 1 ≤2500
TE-AT-60006 6 1 ≤2500
TE-AT-60007 7.8 1.25 ≤2500
TE-AT-60008 7.8 1.1 ≤2500
TE-AT-60009 8 0.8 ≤2500
TE-AT-60010 8 1.15 ≤2500
TE-AT-60011 8.2 1.15 ≤2500
TE-AT-60012 10 1.3 ≤2500
TE-AT-60013 15 1 ≤2500
TE-AT-60014 20 1.5 ≤2500

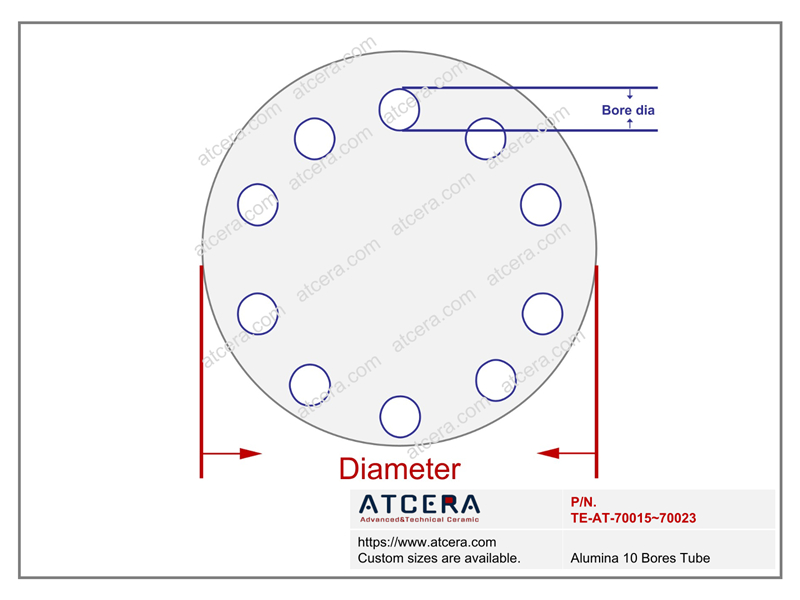

Alumina 10 Bores Tubes
Item No. Diameter (mm) Bore dia (mm) Length (mm)
TE-AT-70015 6 0.8 ≤1500
TE-AT-70016 6.5 0.8 ≤1500
TE-AT-70017 6.5 0.9 ≤1500
TE-AT-70018 7 0.9 ≤1500
TE-AT-70019 7 1 ≤2500
TE-AT-70020 8 1.1 ≤2500
TE-AT-70021 14 1.5 ≤2500
TE-AT-70022 16 1.5 ≤2500
TE-AT-70023 20 1.5 ≤2500

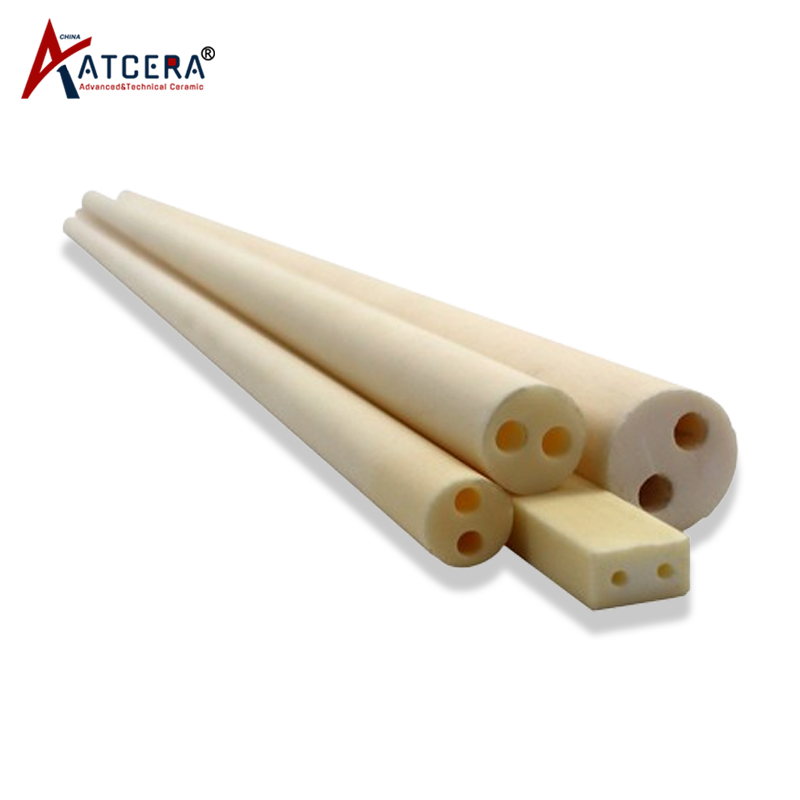

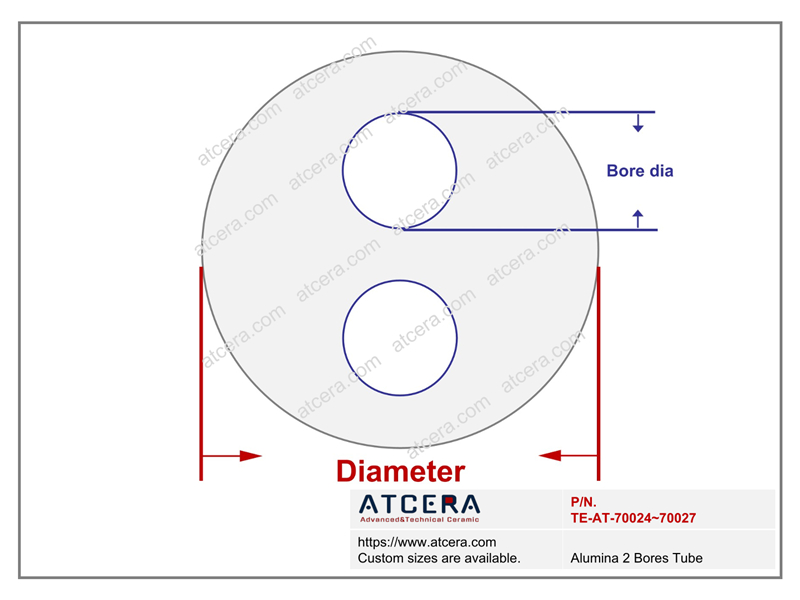

Alumina Two Bores Tubes
Item No. Diameter (mm) Bore dia (mm) Length (mm)
TE-AT-70024 2.5 0.6 ≤1000
TE-AT-70025 3 0.8 ≤1000
TE-AT-70026 4 1 ≤1000
TE-AT-70027 10 3 ≤1000







Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.





Usage Instructions

1. When used in a high temperature environment, the temperature change rate shall be controlled within 5℃/minute, and the long-term use temperature shall not be higher than than 1650℃.
2. When condition permits, regular cleaning is helpful to keep the ceramic tube performance and extend service life.
3.External impact or collision of the ceramic tube shall be avoided, so to prevent from damage or cracks.




Valuable Information

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
