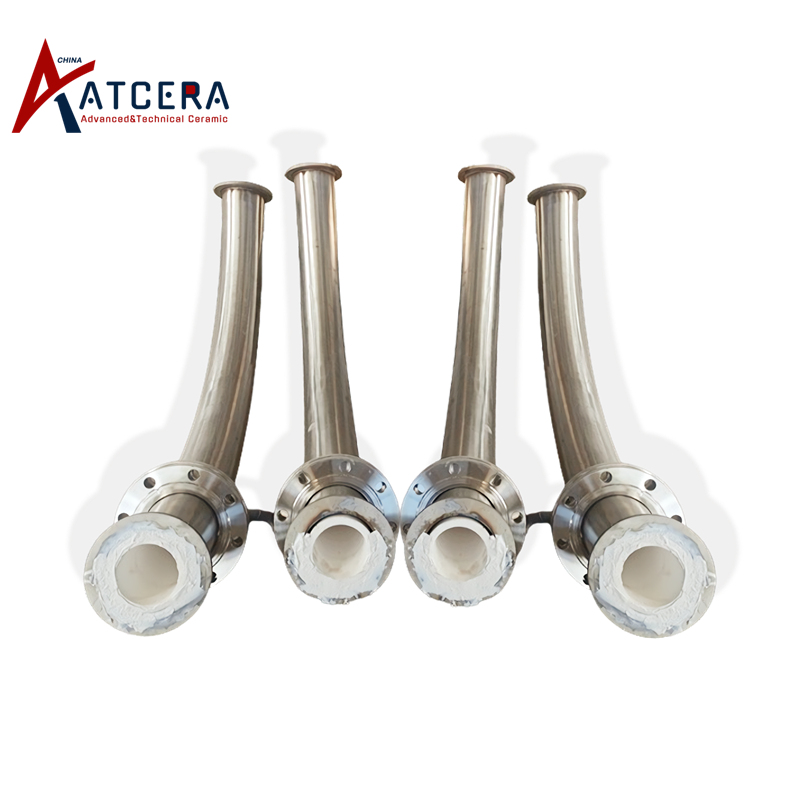

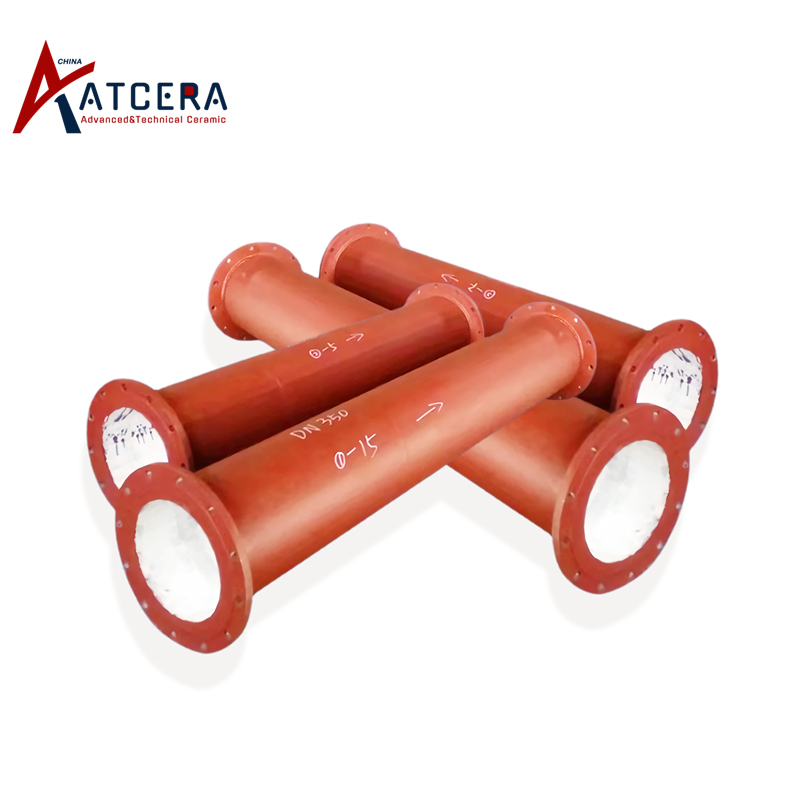

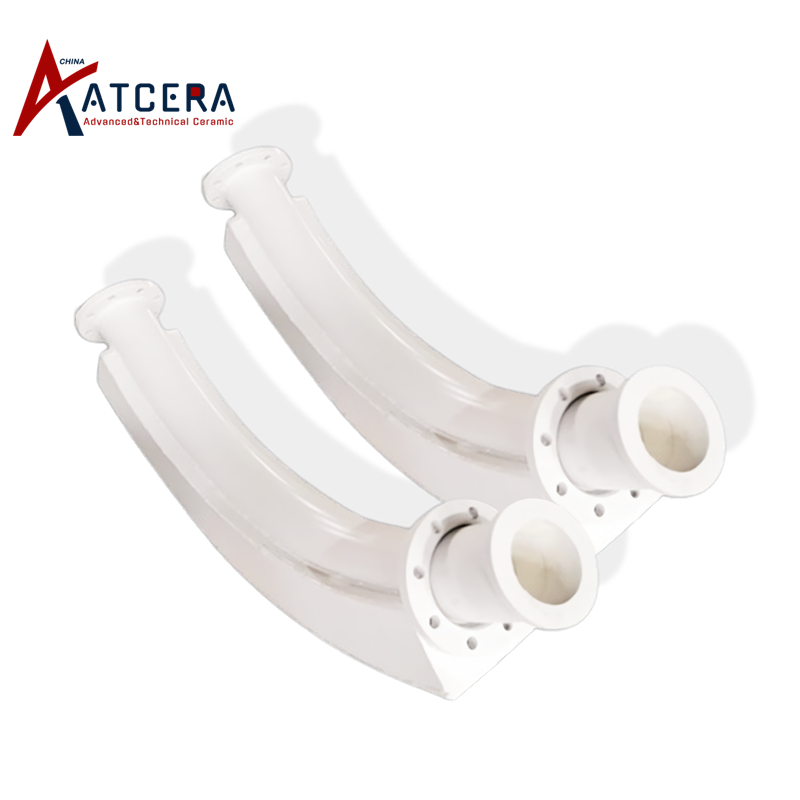

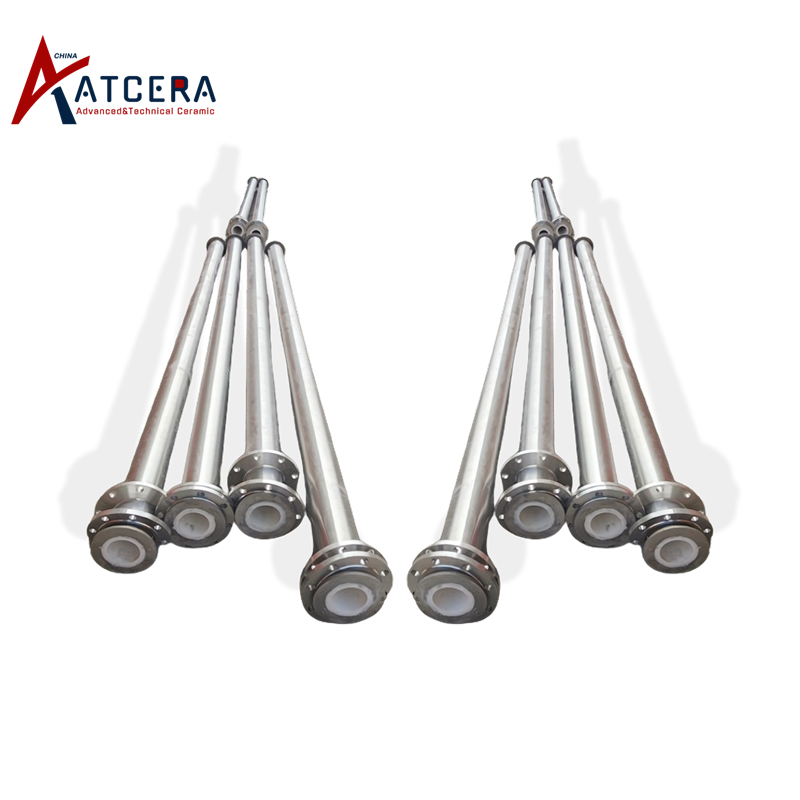

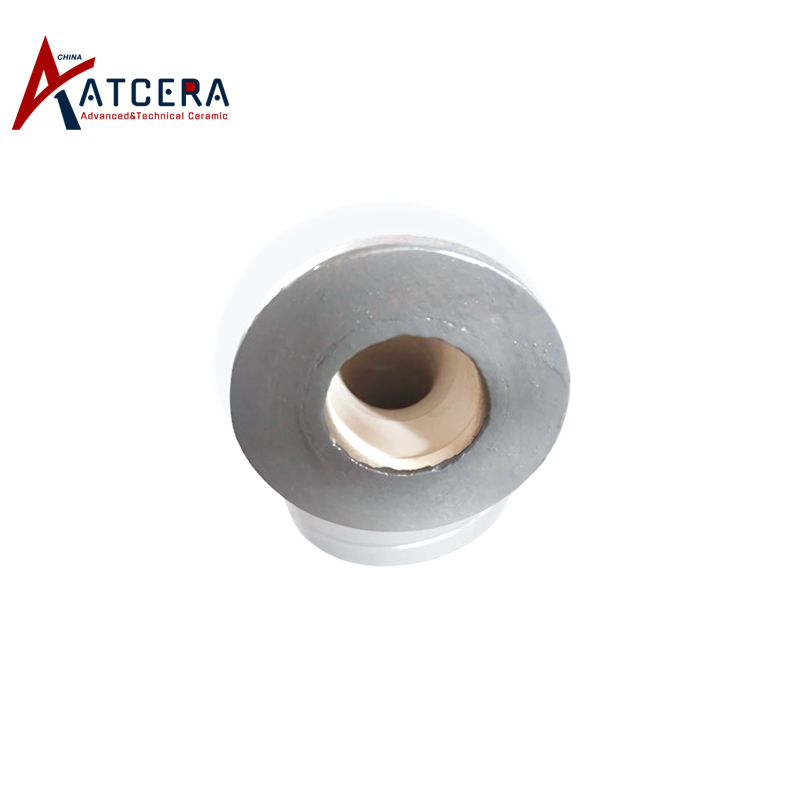

Alumina Ceramic Lining Tube

The alumina ceramic lining tube is designed to be integrated with steel pipes, installed on the inner wall of the steel pipe to form a robust and wear-resistant layer, creating a seamless wear-resistant ceramic pipeline. This ceramic tube effectively isolates the material from the steel pipe, preventing wear and tear on the steel pipe, thus extending the pipeline's lifespan and preventing contamination of the transported material. Furthermore, its smooth interior wall ensures unobstructed material flow, significantly reducing friction and resistance during transportation.

Brand:
ATCERA
Item NO.:
AT-YHL-CG001

Materials
Alumina
Shapes
Tube
Applications
Metallurgy Industry

Inquire Now

Properties of Alumina Lining Tube

1. The alumina ceramic lining tube exhibits excellent wear and corrosion resistance, significantly extending the service life of the pipeline.

2. With a high-temperature tolerance, the alumina lining tube can withstand operating temperatures exceeding 1600℃, meeting the demands of high-temperature applications.

3. The smooth interior wall of the alumina lining tube minimizes material transport resistance, allowing for unimpeded flow without material build-up or blockage.

Applications of Alumina Lining Tube

The alumina lining tube is suitable for coal transportation systems, material handling systems, pulverizing systems, ash handling and dust removal systems in various industries such as thermal power, steel, metallurgy, coal mining, chemicals, and cement. It effectively protects the pipeline from material wear, thereby prolonging its service life.

Customized Design for Alumina Lining Tube

We are committed to delivering optimal alumina lining tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

al2o3 ceramic lining tube

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. During installation, ensure excellent adhesion between the alumina ceramic lining tube and the steel pipe surface, aligning the centerlines to avoid misalignment, gaps, or looseness. For cutting operations, carbide grinding wheels or plasma cutting machines can be used.

2. Regularly inspect the wear condition of the alumina ceramic lining tube. Timely replacement is necessary in case of severe wear to maintain its effectiveness.

3. Avoid prolonged exposure of the alumina ceramic lining tube to corrosive media to preserve its corrosion resistance.

4. Pay attention to the operating temperature range of the alumina ceramic lining tube to prevent exceeding its thermal limits.

Valuable Information

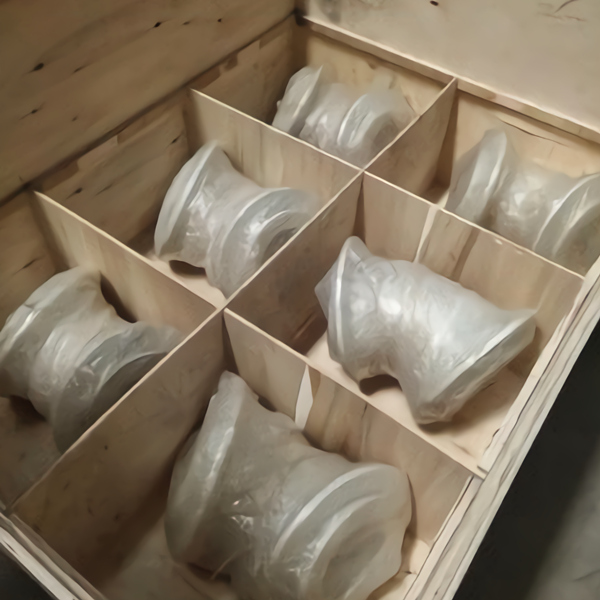

Alumina Lining Tube Packing

Alumina lining tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
