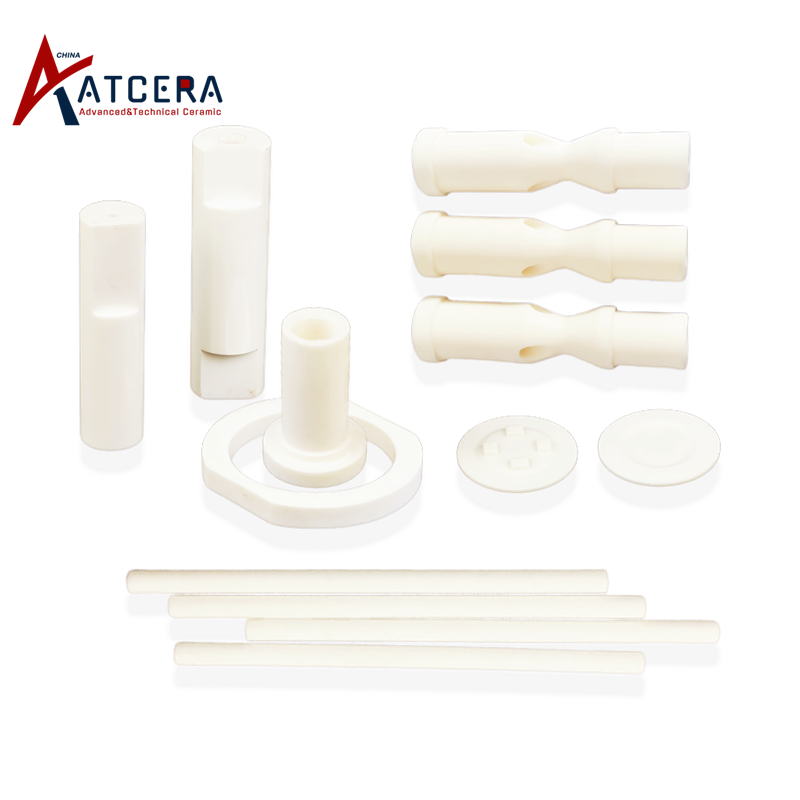

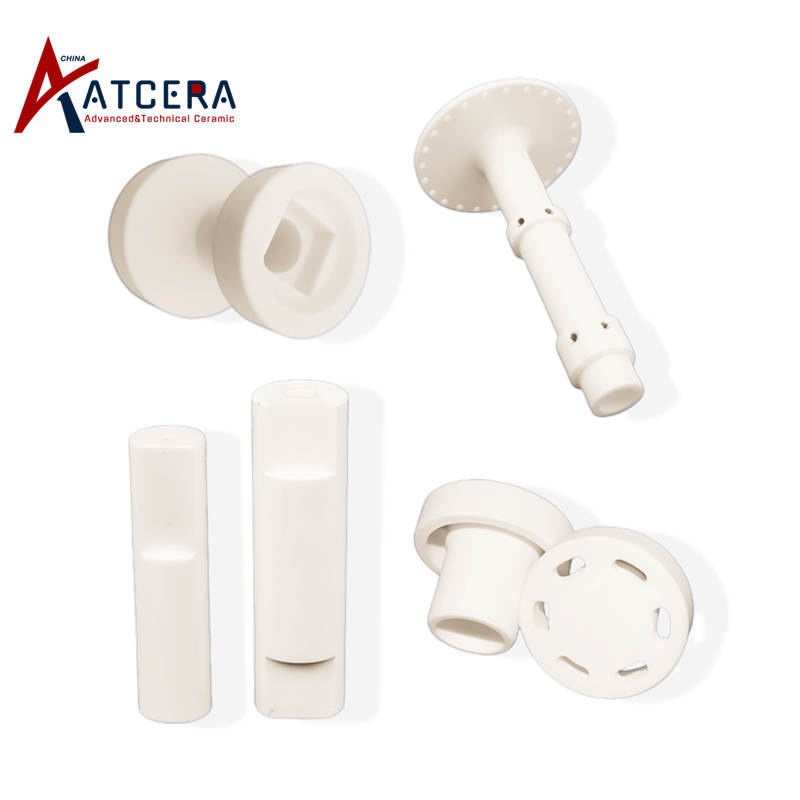

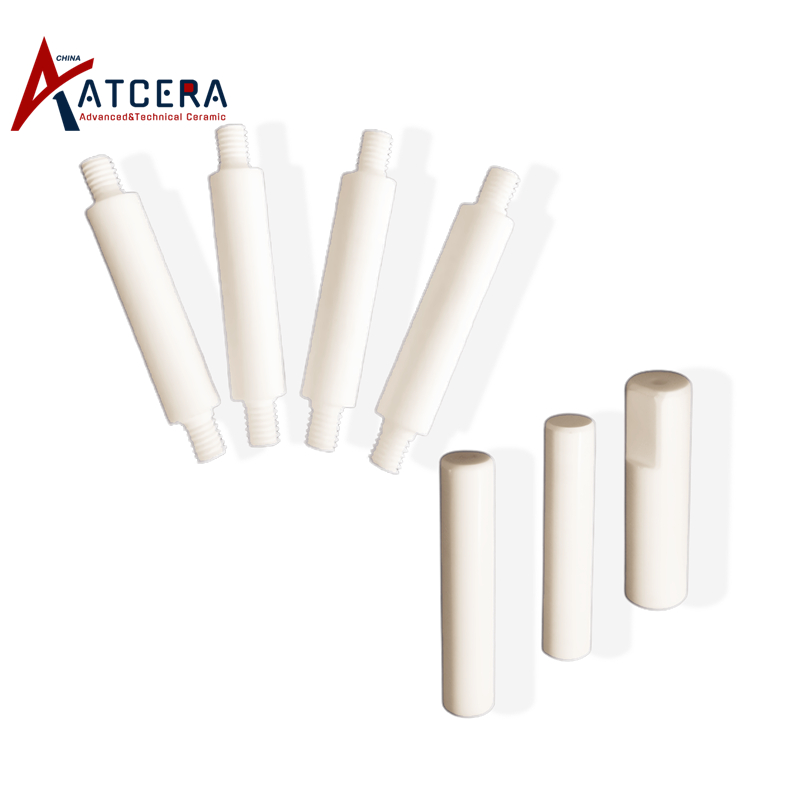

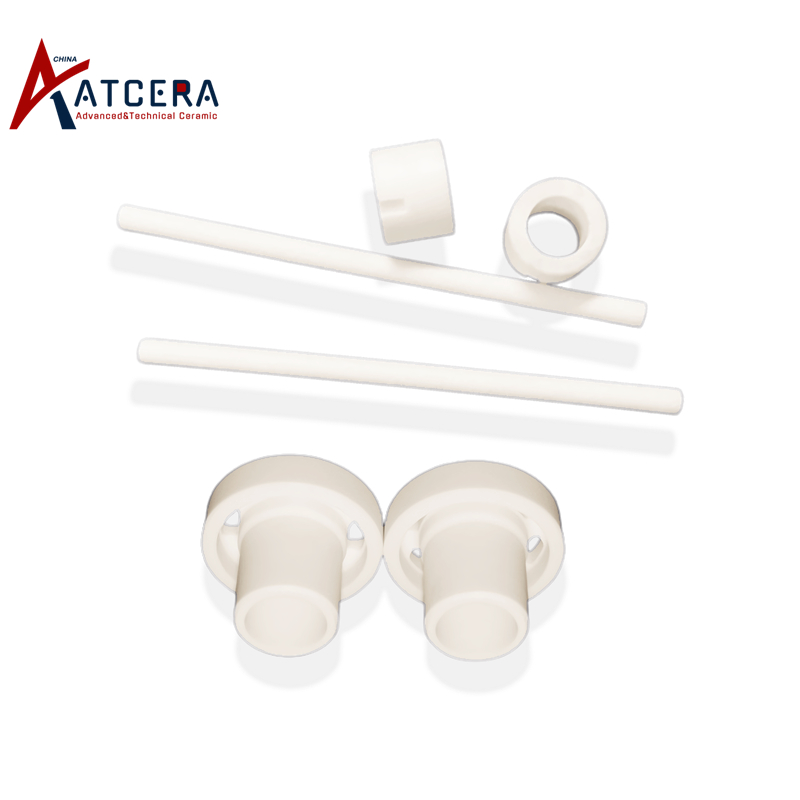

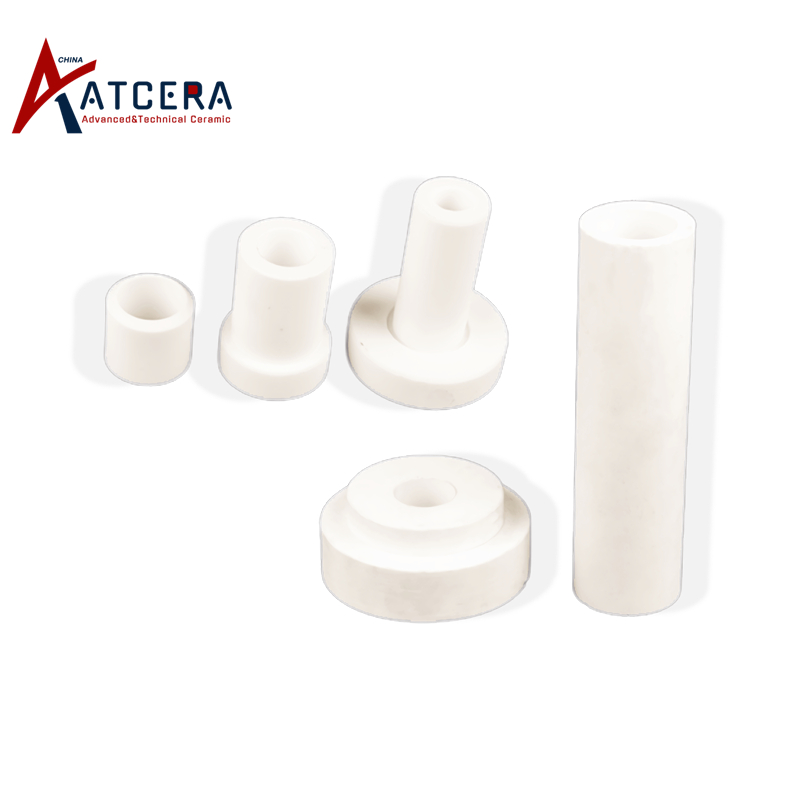

Alumina Ceramic Supporting Shaft

The alumina support shaft is crafted from high-purity alumina ceramic, boasting a superior compressive strength, remarkable hardness, excellent wear resistance, and resilience against high temperatures and corrosion. This shaft is capable of operating in harsh environments such as high temperatures, high humidity, and corrosive conditions, primarily utilized in mechanical equipment in industries like chemical processing and metallurgy.

Brand:
ATCERA
Item NO.:
AT-AX-001

Materials
Alumina
Shapes
Rod
Applications
Mechanical Parts

Inquire Now

Properties of Alumina Supporting Shaft

1. The alumina support shaft exhibits exceptional hardness, wear resistance, and compressive strength, enabling it to provide robust support.

2. The shaft is resilient against high temperatures and corrosion, making it suitable for operation in adverse environments, including high temperatures, high humidity, and corrosive conditions.

3. With its low density and lightweight nature, the alumina support shaft reduces the overall weight of equipment, thereby minimizing operational loads.

Applications of Alumina Supporting Shaft

The alumina support shaft, withstanding the rigors of high temperatures, high humidity, and corrosion, finds widespread application in various industries' mechanical equipment, encompassing chemical processing, metallurgy, mining, and more.

It serves as a crucial component in mechanical equipment, fulfilling functions such as support, fixation, guidance, and kinetic energy transmission, ensuring the smooth operation of the machinery.

Size Chart of Alumina Ceramic Supporting Shaft

We are committed to delivering optimal alumina supporting shafts tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Provide drawings, including dimensions and specifications if customization requirements needed.

Alumina Ceramic Supporting Shaft
Item NO.	Top Diameter (mm)	Top Inner Diameter (mm)	Bottom Diameter (mm)	Bottom Inner Diameter (mm)	Width of Ring (mm)	Thickness of Ring (mm)	Total Height (mm)	Al2O3's Purity (%)
AT-AX-001	24	14	18	14	8	3	35	96%-99%
AT-AX-002	26	16	20	16	10	3	45	96%-99%
AT-AX-003	28	18	22	18	11	3	50	96%-99%
AT-AX-004	30	18	24	18	13	3	75	96%-99%
AT-AX-005	50	40	45	35	9	2.5	100	96%-99%
AT-AX-006	60	50	53	43	12	3.5	200	96%-99%
AT-AX-007	70	60	61	51	15	4.5	300	96%-99%
AT-AX-008	80	70	73	63	30	3.5	400	96%-99%

Alumina Ceramic Supporting Shaft
Item NO.	Top Side Length 1 (mm)	Top Side Length 2 (mm)	Bottom Diameter (mm)	Total Height (mm)	Al2O3's Purity (%)
AT-AX-009	8	8	4	20	96%-99%
AT-AX-010	10	10	6	40	96%-99%
AT-AX-011	16	16	12	35	96%-99%
AT-AX-012	20	20	14	70	96%-99%
AT-AX-013	22	22	15	80	96%-99%
AT-AX-014	24	24	18	50	96%-99%
AT-AX-015	28	28	20	65	96%-99%
AT-AX-016	30	30	15	70	96%-99%
AT-AX-017	35	35	22	90	96%-99%
AT-AX-018	38	38	28	100	96%-99%
AT-AX-019	40	40	30	120	96%-99%
AT-AX-020	50	50	35	160	96%-99%

Alumina Ceramic Supporting Shaft
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Length (mm)	Al2O3's Purity (%)
AT-AX-021	5	3	10	96%-99%
AT-AX-022	7	3	120	96%-99%
AT-AX-023	10	6	50	96%-99%
AT-AX-024	16	11	70	96%-99%
AT-AX-025	20	14	200	96%-99%
AT-AX-026	35	30	80	96%-99%
AT-AX-027	40	30	120	96%-99%
AT-AX-028	58	48	130	96%-99%
AT-AX-029	60	50	150	96%-99%
AT-AX-030	80	70	200	96%-99%

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Avoid Collision: During handling, installation, and usage, utmost care should be taken to prevent violent collisions or impacts on the alumina support shaft, lest it sustain damage.

2. Maintain Cleanliness: The alumina support shaft must be kept clean, free from prolonged residue of dirt, dust, or moisture, to ensure optimal performance.

3. Prevent Overheating and Overload: Operating beyond the shaft's maximum usage or design load must be avoided to prevent damage.

4. Regular Inspection and Maintenance: Periodic inspections and maintenance of the alumina support shaft are necessary, including checking for wear and tear, loose fasteners, etc., to ensure its seamless operation.

Valuable Information

Alumina Ceramic Supporting Shaft Packing

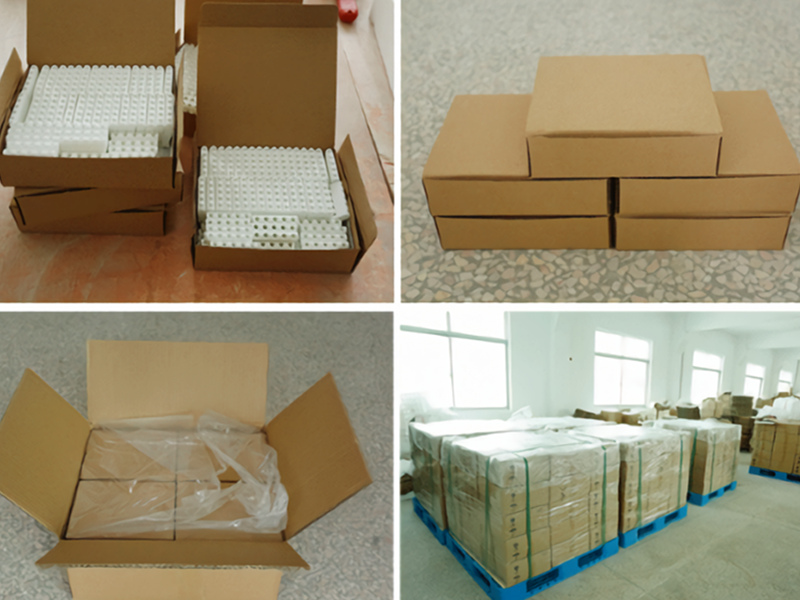

Alumina Supporting Shaft Packing

Alumina supporting shafts are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
