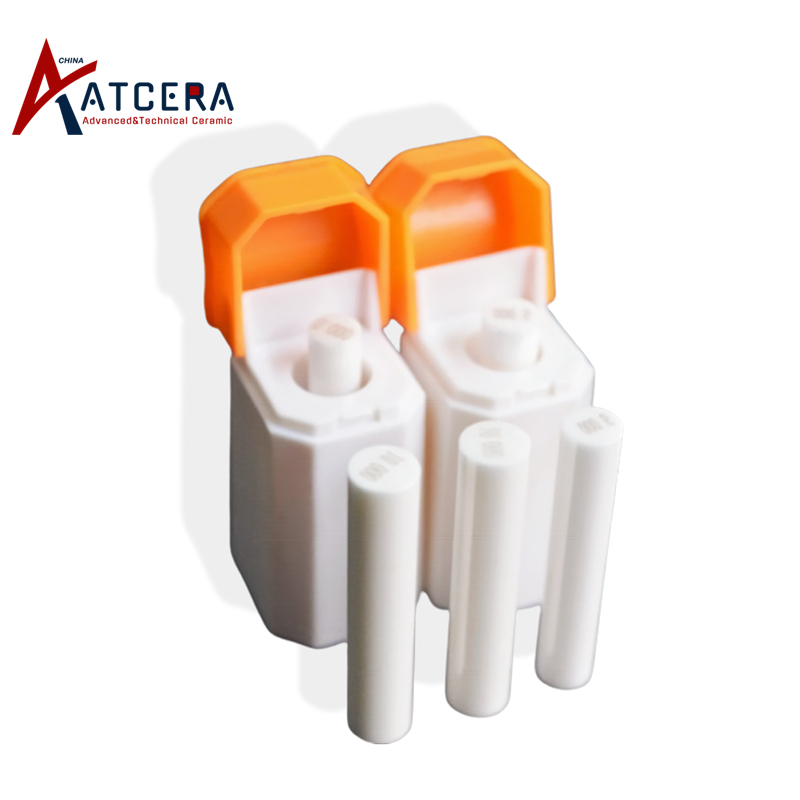

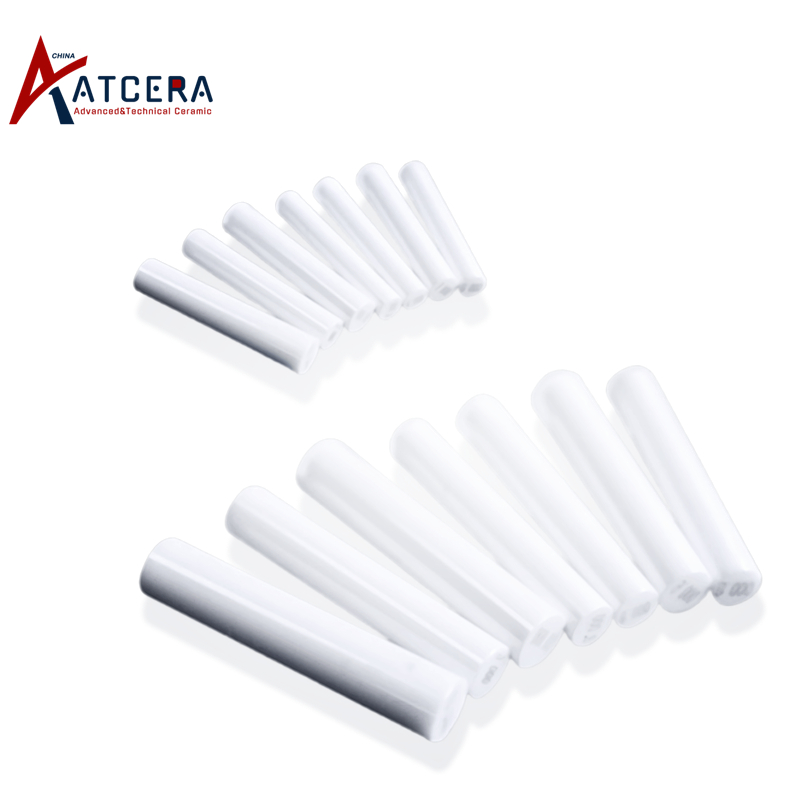

Alumina Gauge Pins Set Ceramic Gage Pins

The alumina ceramic guage pin is fabricated from alumina material, exhibiting exceptional resistance to high temperatures and chemical corrosion, along with stable performance. It necessitates no painting or protective coating on its surface or cutting edges. This tool is utilized for dimensional measurements of products and equipment, encompassing length, spacing, outer diameter, inner diameter, and other attributes. Additionally, it can be employed for the calibration of other dimensional inspection instruments.

Brand:
ATCERA
Item NO.:
CS-CMT-1001

Materials
Alumina
Shapes
Rod
Applications
Mechanical Parts

Inquire Now

Properties of Alumina Gage Pins

1. Alumina gauge exhibit high hardness, excellent wear resistance, and a prolonged lifespan, outlasting steel measuring tools by a factor of over 10.

2. These alumina gauge possess exceptional corrosion resistance, allowing direct contact with acids and bases, as well as resilience to high temperatures, ensuring adaptability to various harsh working environments.

3. Alumina gauge pins are rust-free, eliminating the need for corrosion protection measures and simplifying both maintenance and storage procedures.

4. Characterized by their non-aging, non-magnetic, and non-conductive properties, alumina gauge pins offer stable performance and enjoy extended calibration cycles.

Applications of Alumina Gauge Pins

Alumina ceramic gauge is used for accurate length measurement, inner and outer diameter measurement, as well as as a reference for calibration of other high-precision measuring instruments.

Size Chart of Alumina Gage Pins

We are committed to delivering optimal alumina gauge pins tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Provide drawings, including dimensions and specifications if customization requirements needed.

Alumina Gage Pins
Item NO.	Gauge Size(mm)	Increments(mm)	Tolerance	Weight (g)
CS-CMT-1001	0.30-0.699	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	50
CS-CMT-1002	0.70-0.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	60
CS-CMT-1003	1.0-2.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	70
CS-CMT-1004	3.0-3.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	80
CS-CMT-1005	4.0-4.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	90
CS-CMT-1006	5.0-5.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	100
CS-CMT-1007	6.0-6.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	110
CS-CMT-1008	7.0-7.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	120
CS-CMT-1009	8.0-8.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	130
CS-CMT-1010	9.0-9.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	140
CS-CMT-1011	10.0-10.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	145
CS-CMT-1012	11.0-11.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	150
CS-CMT-1013	12.0-12.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	155
CS-CMT-1014	13.0-13.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	160
CS-CMT-1015	14.0-14.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	165
CS-CMT-1016	15.0-15.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	170
CS-CMT-1017	16.0-16.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	175
CS-CMT-1018	17.0-17.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	180
CS-CMT-1019	18.0-18.999	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	185
CS-CMT-1020	20.2-40mm	0.001/0.005/0.01/0.02/0.05/0.1/0.5/1.0mm	±0.001/0.0005mm	190

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. According to the measured size and tolerance, select alumina gauge with appropriate specifications;

2. Check the alumina gauge before using, to ensure that the surface is clean and free of oil, no dust or other impurities;

3. It is strictly prohibited to force the alumina gauge into the thread to avoid excessive wear, which may affect the accuracy of gauge;

4. Perform regular inspection and calibration of the alumina gauge.

Valuable Information

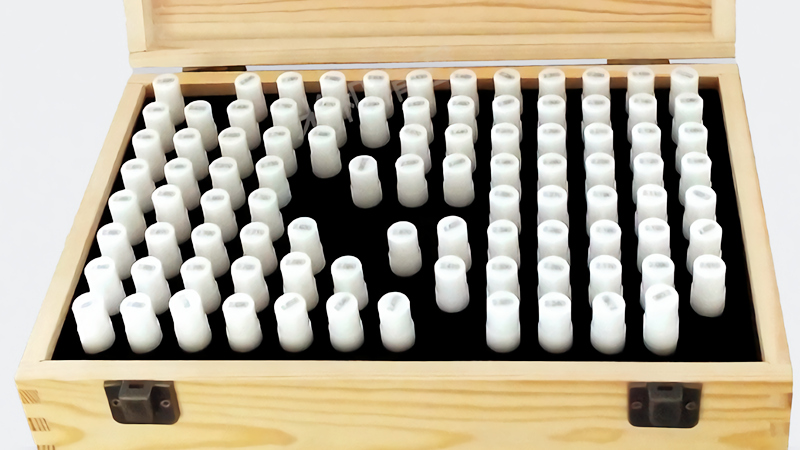

Alumina Gauge Pin Packing

Alumina gauge pins are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
