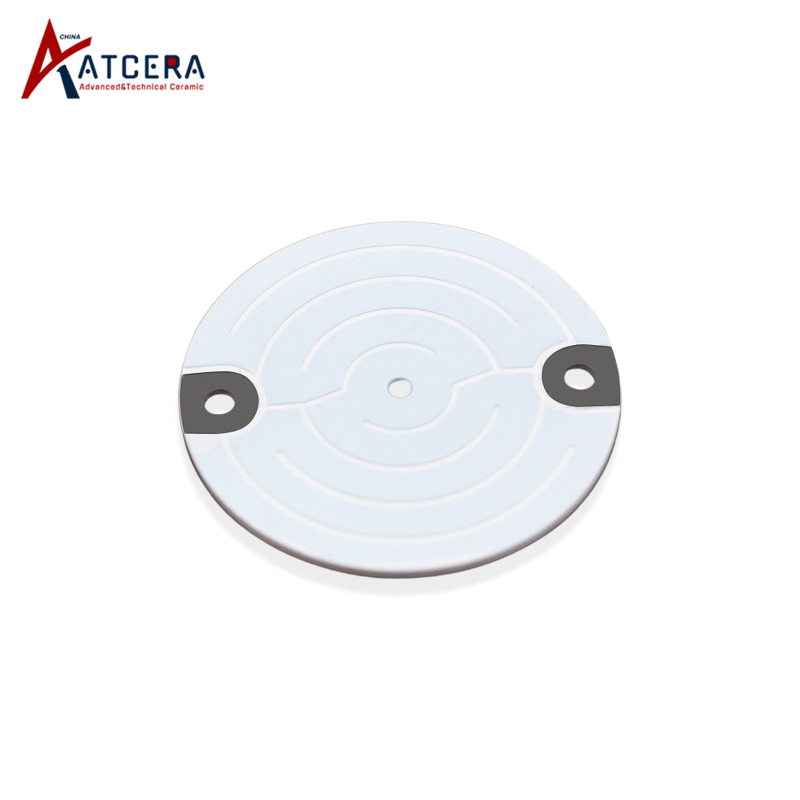

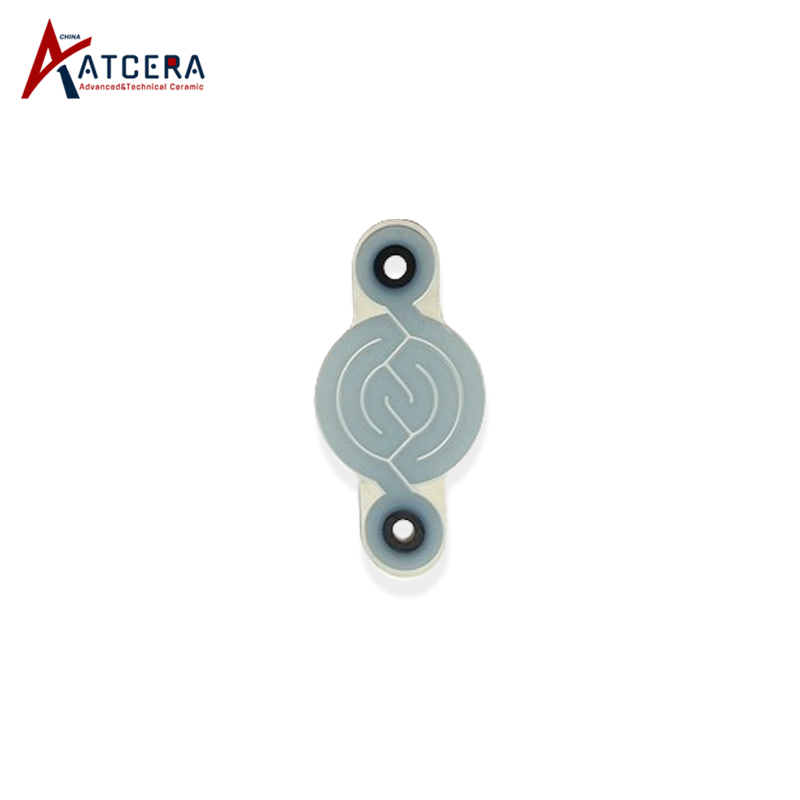

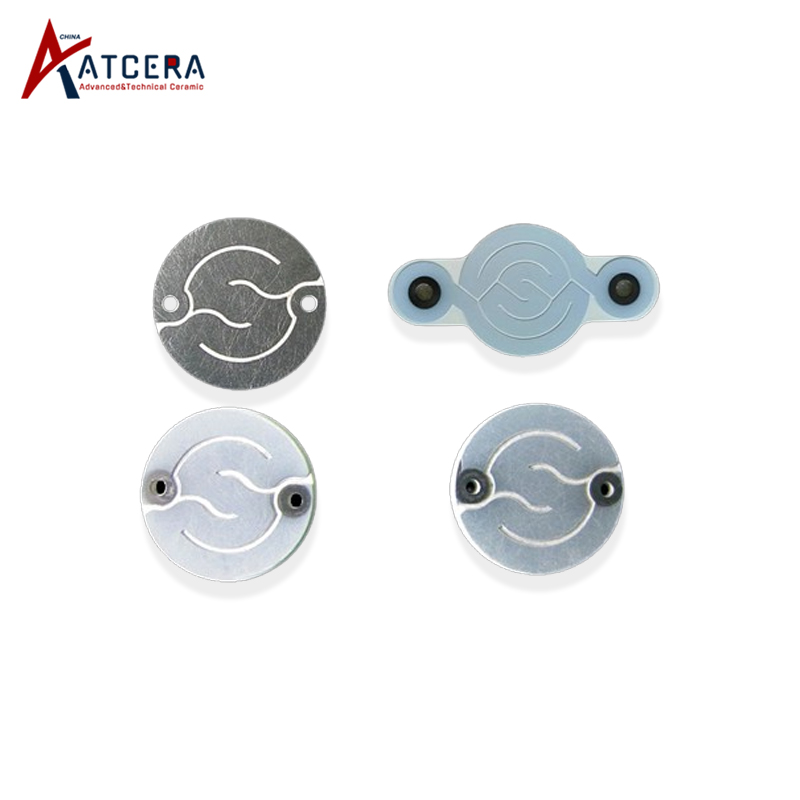

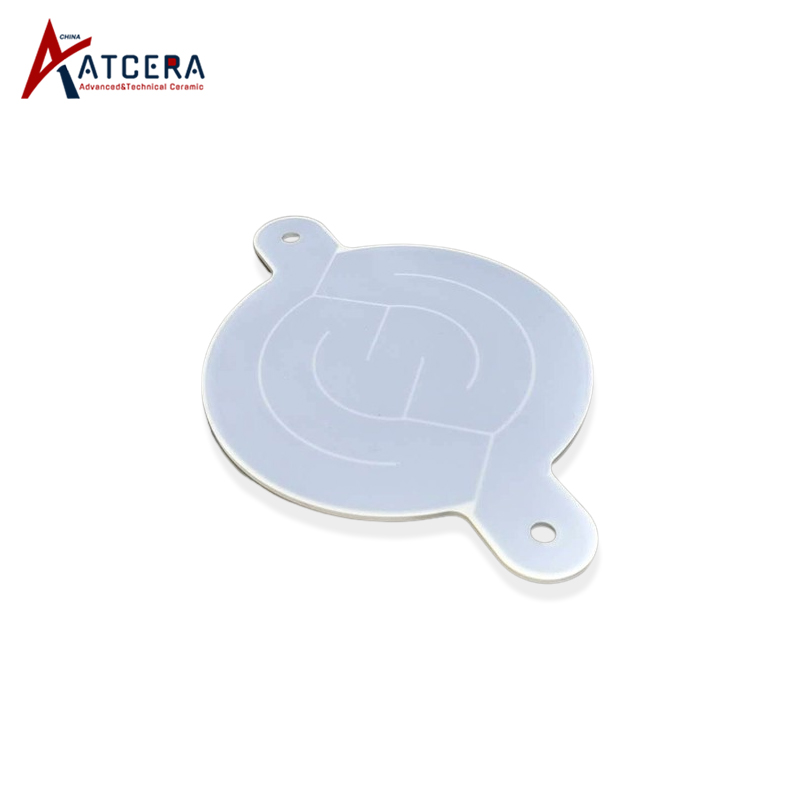

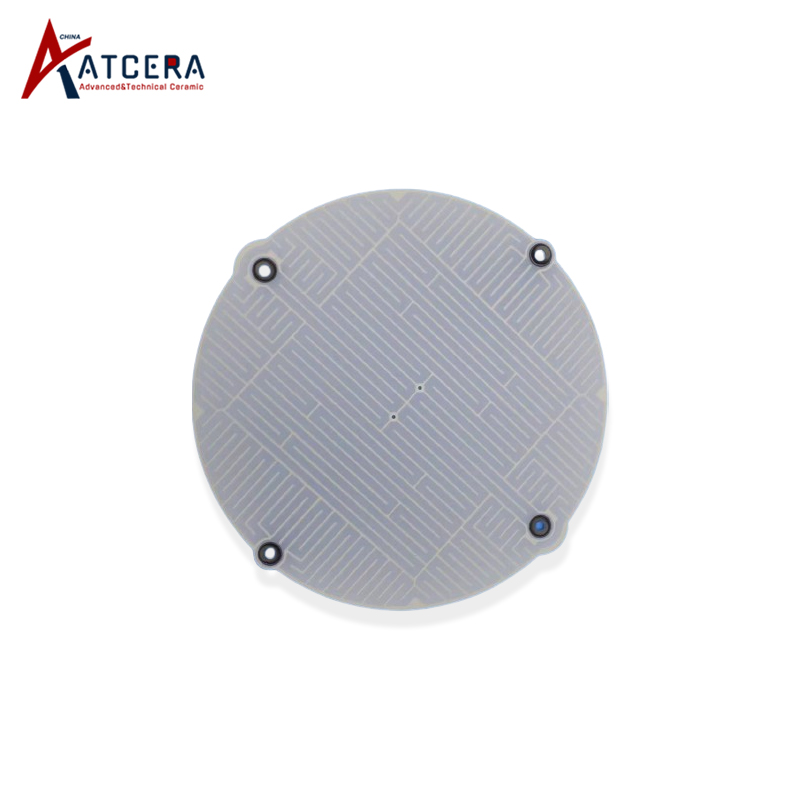

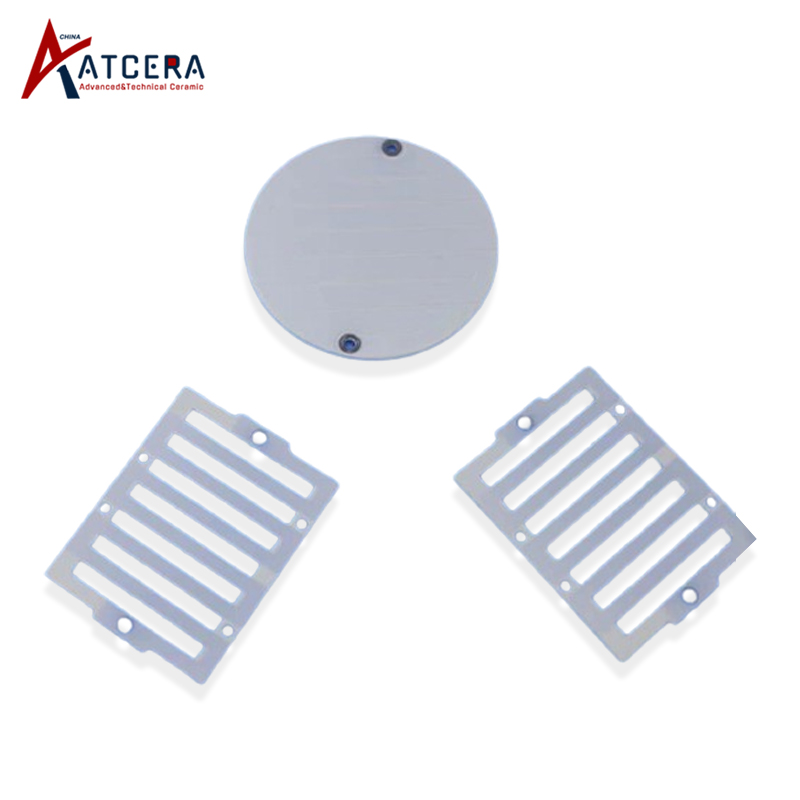

Boron Nitride Heater PBN Ceramic Heating Plate

Boron nitride ceramic heater is composed of three layers of ultra-high purity materials, the upper and lower layers are pyrolytic boron nitride (PBN), and the middle layer is pyrolytic graphite (PG), that is, the structure of PBN-PG-PBN. PBN as insulating layers, PG as a resistance element and produces heating. Pyrolytic boron nitride and pyrolytic graphite are manufactured by high temperature chemical vapor deposition (CVD), have very good thermal shock resistance, good thermal conductivity, and very good thermal shock resistance and anisotropy. It is widely used in various metallurgical equipment and semiconductor manufacturing equipment.

  • Brand:

    ATCERA
  • Item NO.:

    AT-PBN/PG-1001
  • Materials

    Boron Nitride (BN ) Ceramic
  • Shapes

    Mechanical Parts
  • Applications

    Petrochemical Industry , Metallurgy Industry
Boron nitride ceramic heater

Advantages of Boron Nitride Ceramic Heater





Boron nitride ceramic heater is composed of pyrolytic boron nitride and pyrolytic graphite,both of them are manufactured by high temperature chemical vapor deposition (CVD),which have very good thermal shock resistance, good thermal conductivity, and very good thermal shock resistance and anisotropy.



Application of Boron nitride ceramic heater PBN

Applications of PBN Ceramic Heating Plate





PBN ceramic heating plate is widely used in various metallurgical equipment and semiconductor manufacturing equipment.











Size Chart of High Purity PBN/PG Heater

Committed to providing boron nitride ceramic heater customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Please provide drawing and parameter requirements. (shall include but not limited to working temperature, current, power supply voltage)



Technical Data of Boron Nitride Materials



Items Pyrolytic Boron Nitride Hot Pressed Boron Nitride
Purity (%) 99.99% 99.5%
Density (g/cm3) 2.15-2.19 1.96-2
Bending strength (MPa) 173 (A direction) 310
Tensile strength (MPa) 112 (A direction) 110
Compressive strength (MPa) 154 (A direction) 120
Hardness (HV0.5) 651 62
Maximum working temperature (℃) 1000(air), 2300(vacuum) 900(air), 1850(vacuum)
Thermal conductivity (W/m*K) 60 (A direction) 55
Thermal expansion coefficient (/℃) 6*10-7 1.8*10-6
Volume resistivity (Ohm*cm) 2*1014 1.2*1014
Dielectric strength (kV/mm) 55 76



*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.











Boron Nitride Heater PBN Ceramic Heating Plate

Valuable Information



PBN ceramic heating plate

PBN Ceramic Heating Plates Packing



PBN ceramic heating plates are carefully packaged in appropriate containers to avoid any potential damage.



Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
