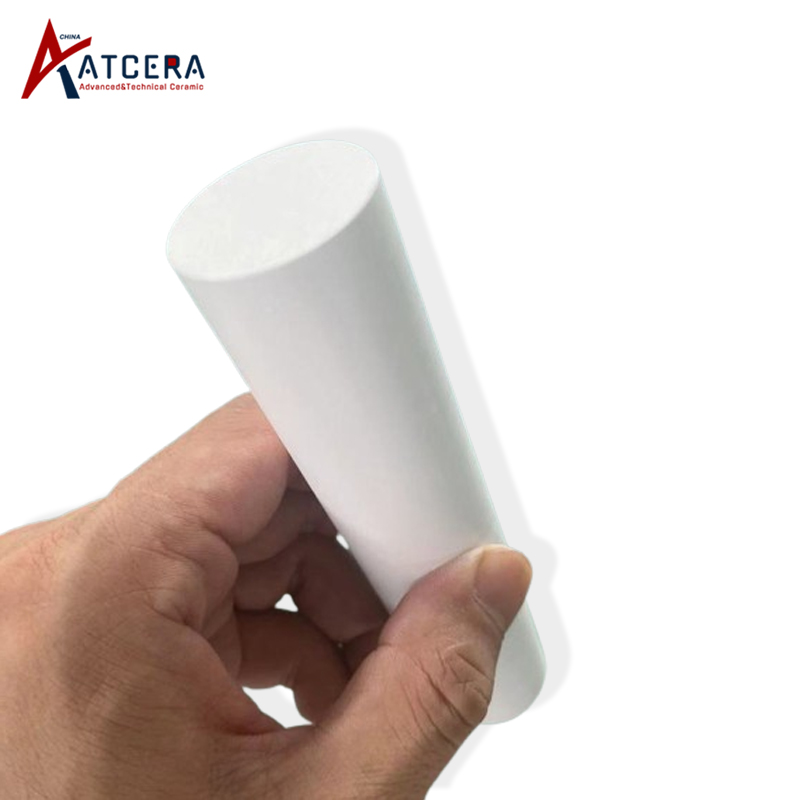

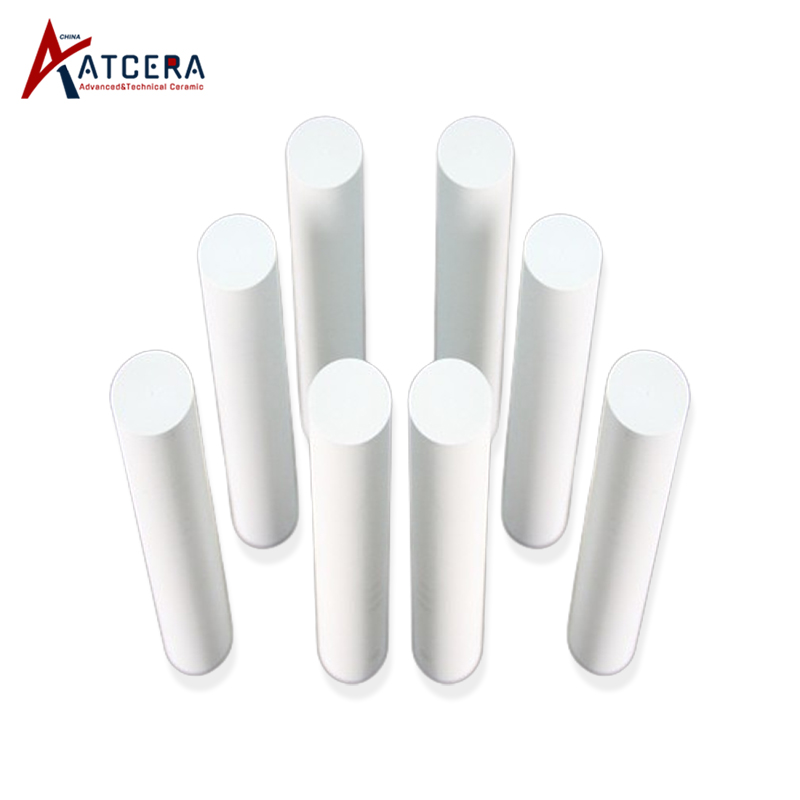

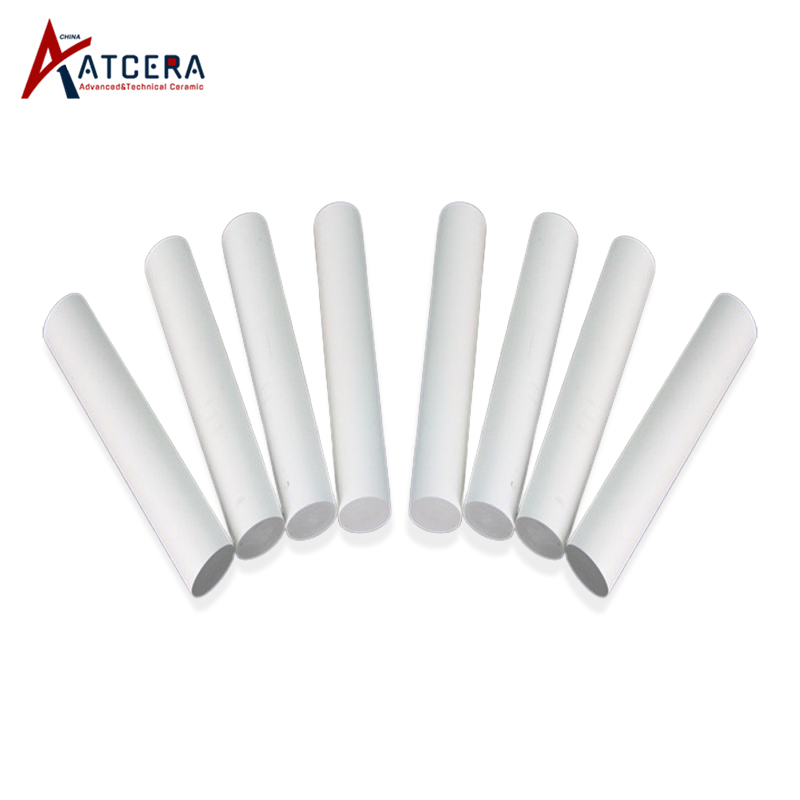

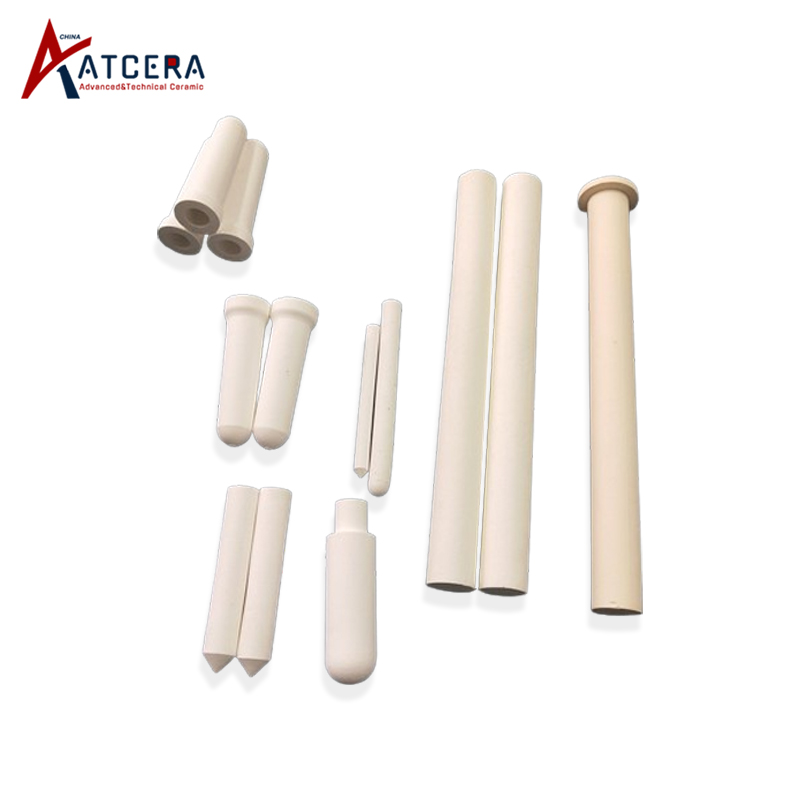

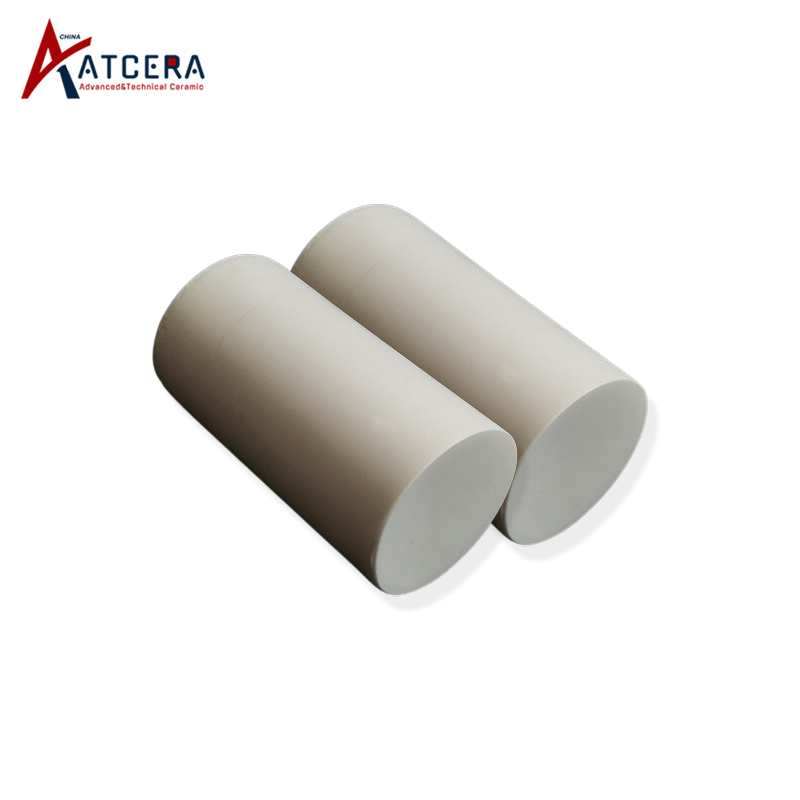

Boron Nitride Rod BN Ceramic Rods

Boron nitride ceramic rod has high temperature resistance, high thermal conductivity, good thermal stability, corrosion resistance, good chemical stability, and has good electrical insulation and dielectric strength. It can be used to manufacture various parts for machining, petrochemical, electric power, metallurgy, semiconductor and other industries.

Brand:
ATCERA
Item NO.:
AT-BN-B1001

Materials
BN
Shapes
Rod
Applications
Electronics and Electricity , Petrochemical Industry , Metallurgy Industry

Inquire Now

Advantages of Boron Nitride Ceramic Rod

BN ceramic cods has high temperature resistance, high thermal conductivity, good thermal stability, corrosion resistance, good chemical stability, and has good electrical insulation and dielectric strength.

Applications of Boron Nitride Rods

Boron nitride rod can be used to manufacture various parts for machining, petrochemical, electric power, metallurgy, semiconductor and other industries.

Size Chart of Boron Nitride Ceramic Rods

Committed to providing BN ceramic rods customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Drawing and parameter requirements shall be provided if customized design request.

Hexagonal Boron Nitride Ceramic Rod
Item NO.	Diameter (mm)	Length (mm)	Purity (%)
AT-BN-B1001	10	100	99.5
AT-BN-B1002	10	200	99.5
AT-BN-B1003	10	300	99.5
AT-BN-B1004	12	100	99.5
AT-BN-B1005	15	100	99.5
AT-BN-B1006	15	200	99.5
AT-BN-B1007	15	300	99.5
AT-BN-B1008	20	100	99.5
AT-BN-B1009	20	200	99.5
AT-BN-B1010	20	300	99.5
AT-BN-B1011	25	100	99.5
AT-BN-B1012	25	200	99.5
AT-BN-B1013	25	300	99.5
AT-BN-B1014	30	100	99.5
AT-BN-B1015	30	200	99.5
AT-BN-B1016	30	300	99.5
AT-BN-B1017	35	100	99.5
AT-BN-B1018	35	200	99.5
AT-BN-B1019	35	300	99.5
AT-BN-B1020	40	100	99.5
AT-BN-B1021	40	200	99.5
AT-BN-B1022	40	300	99.5
AT-BN-B1023	45	100	99.5
AT-BN-B1024	45	200	99.5
AT-BN-B1025	45	300	99.5
AT-BN-B1026	50	100	99.5
AT-BN-B1027	50	200	99.5
AT-BN-B1028	50	300	99.5
AT-BN-B1029	60	100	99.5
AT-BN-B1030	60	200	99.5
AT-BN-B1031	60	300	99.5
AT-BN-B1032	70	100	99.5
AT-BN-B1033	70	200	99.5
AT-BN-B1034	70	300	99.5
AT-BN-B1035	80	100	99.5
AT-BN-B1036	80	200	99.5
AT-BN-B1037	80	300	99.5
AT-BN-B1038	90	100	99.5
AT-BN-B1039	90	200	99.5
AT-BN-B1040	90	300	99.5
AT-BN-B1041	100	100	99.5
AT-BN-B1042	100	200	99.5
AT-BN-B1043	100	300	99.5

Boron Nitride Lubricating Rod
Item NO.	Diameter (mm)	Length (mm)
AT-BN-LB001	60	210
AT-BN-LB002	70	100
AT-BN-LB003	70	110
AT-BN-LB004	70	120
AT-BN-LB005	70	130

Technical Data of Boron Nitride Materials

Items	Pyrolytic Boron Nitride	Hot Pressed Boron Nitride
Purity (%)	99.99%	99.5%
Density (g/cm3)	2.15-2.19	1.96-2
Bending strength (MPa)	173 (A direction)	310
Tensile strength (MPa)	112 (A direction)	110
Compressive strength (MPa)	154 (A direction)	120
Hardness (HV0.5)	651	62
Maximum working temperature (℃)	1000(air), 2300(vacuum)	900(air), 1850(vacuum)
Thermal conductivity (W/m*K)	60 (A direction)	55
Thermal expansion coefficient (/℃)	6*10-7	1.8*10-6
Volume resistivity (Ohm*cm)	2*1014	1.2*1014
Dielectric strength (kV/mm)	55	76

*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Boron Nitride Ceramic Rods Packing

Boron nitride ceramic rods are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
