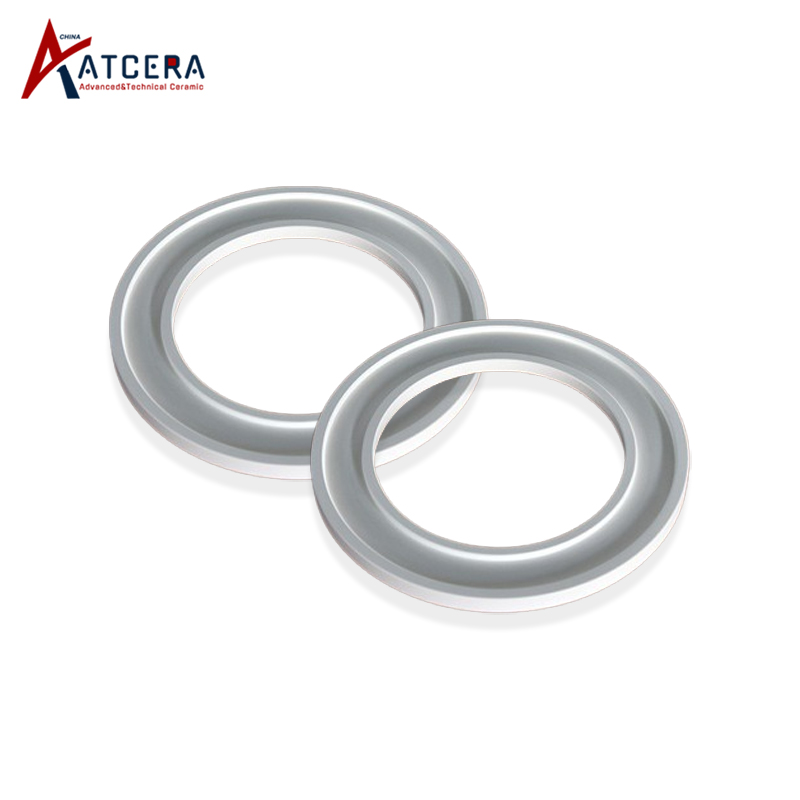

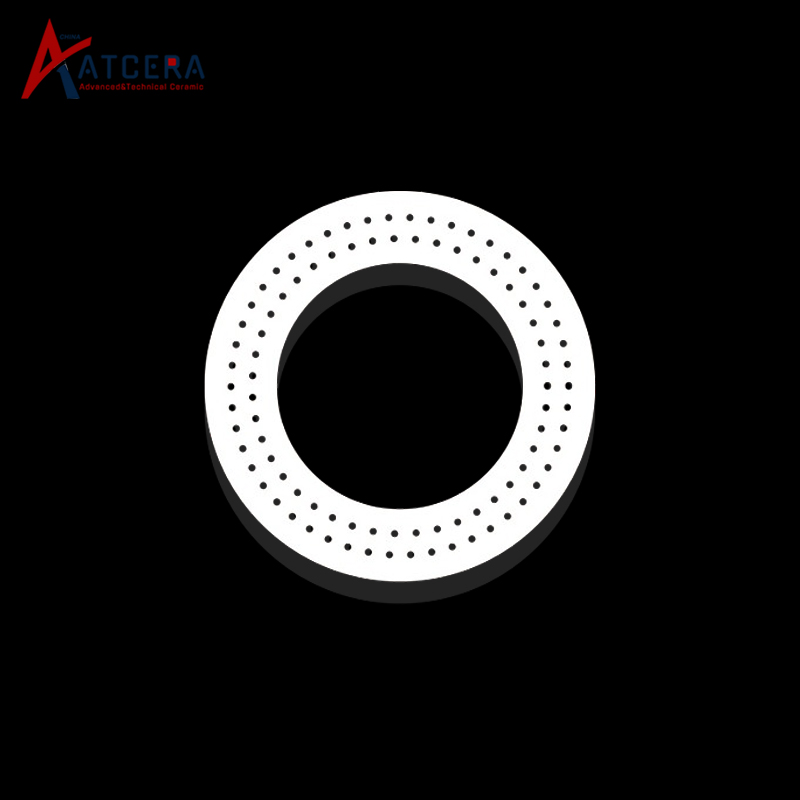

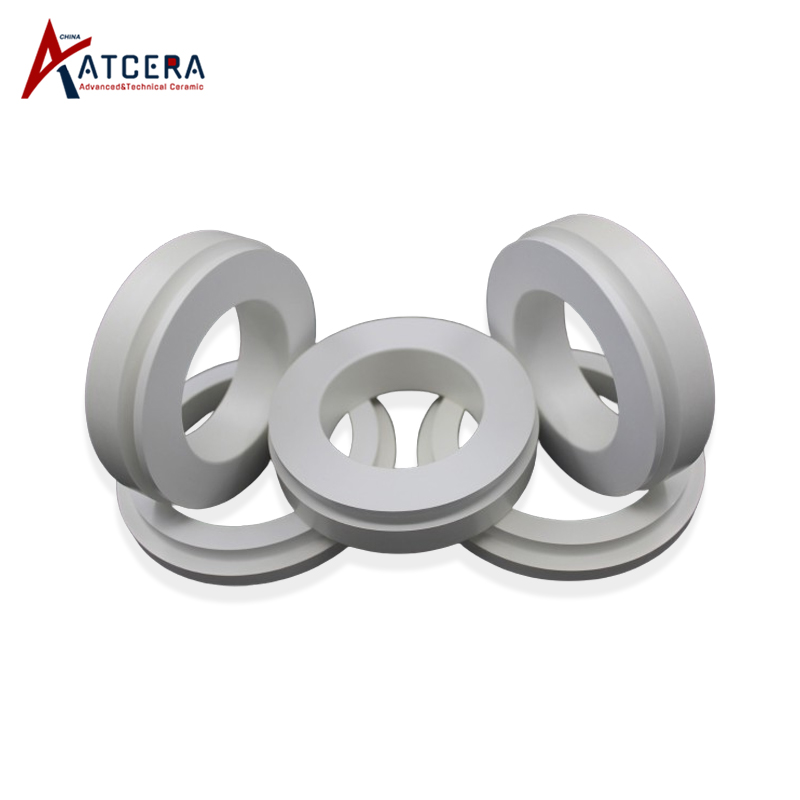

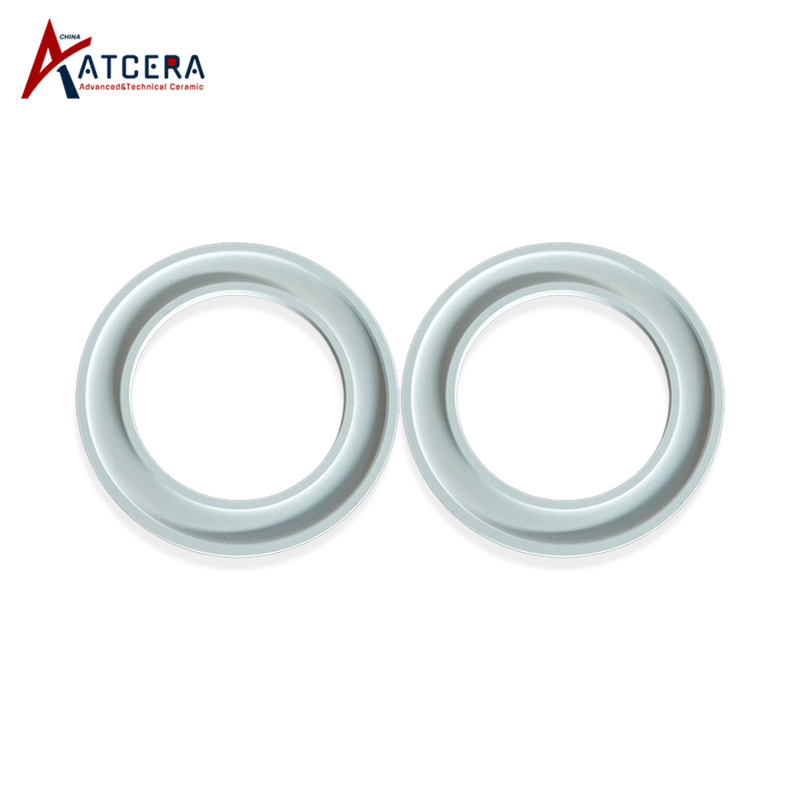

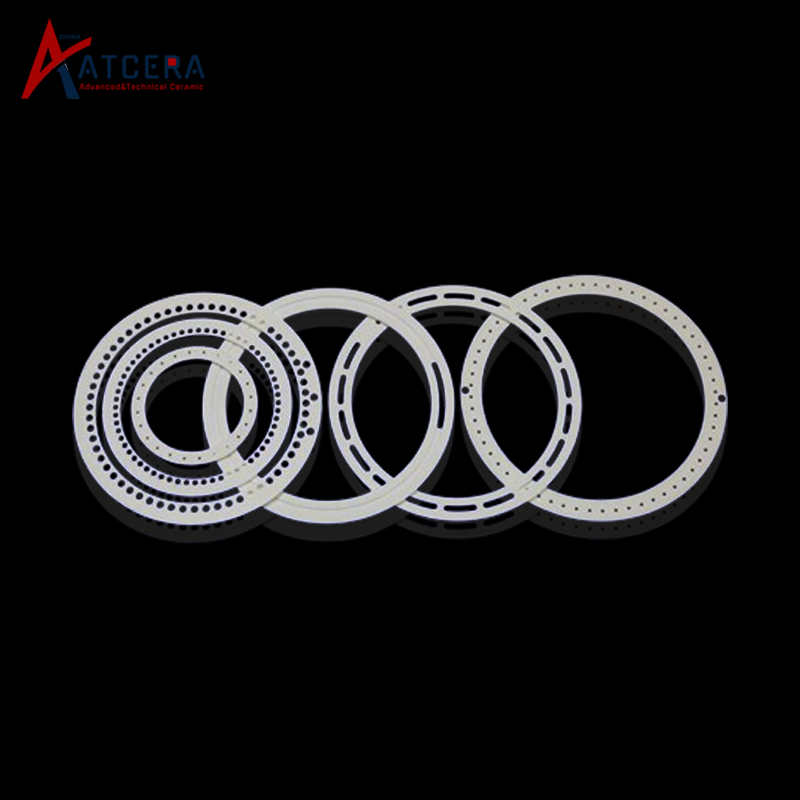

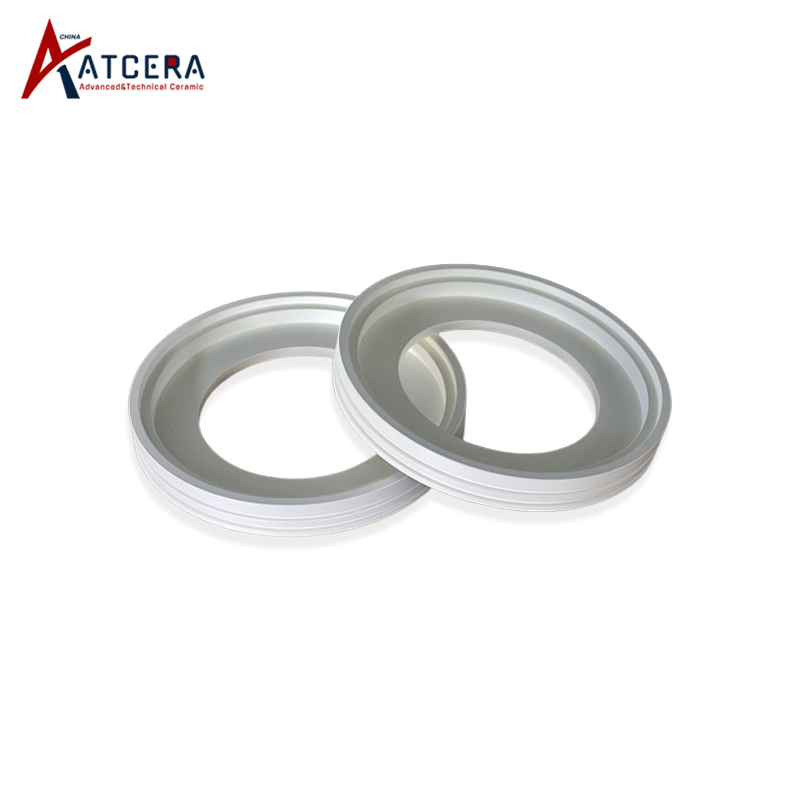

Boron Nitride Rings BN Ceramic Insulator Ring

Boron nitride ceramic ring is made by hot press sintering or pyrolysis process, with high temperature resistance, good thermal shock resistance, corrosion resistance, good insulation performance. It can be used in a variety of high temperature equipment, semiconductor and electrical equipment, play a sealing, heat insulation and insulation role.

  • Brand:

    ATCERA
  • Item NO.:

    AT-PBN-H1001
  • Materials

    BN
  • Shapes

    Mechanical Parts
  • Applications

    Electronics and Electricity
Hexagonal Boron Nitride 2

Advantages of Boron Nitride Ceramic Insulation Ring



Boron nitride ceramic insulation ring has high temperature resistance, good thermal shock resistance, corrosion resistance, good insulation performance.



BN ceramic ring

Applications of Boron Nitride Ceramic Ring



Boron nitride ceramic ring can be used in a variety of high temperature equipment, semiconductor and electrical equipment, play a sealing, heat insulation and insulation role.











Size Chart of Boron Nitride Ceramic Insulator Ring



Committed to providing boron nitride insulator ceramic ring customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Drawing and parameter requirements shall be provided if customized design request.

Pyrolytic Boron Nitride Ring
Item NO. Diameter
(mm)
Thickness
(mm)
AT-PBN-H1001 Customized



Hexagonal Boron Nitride Insulating Ring
Item NO. Diameter
(mm)
Thickness
(mm)
AT-BN-H1001 Customized



Boron Nitride Separation Ring
Item NO. Diameter
(mm)
Thickness
(mm)
AT-BNC-H1001 Customized







Technical Data of Boron Nitride Materials



Items Pyrolytic Boron Nitride Hot Pressed Boron Nitride
Purity (%) 99.99% 99.5%
Density (g/cm3) 2.15-2.19 1.96-2
Bending strength (MPa) 173 (A direction) 310
Tensile strength (MPa) 112 (A direction) 110
Compressive strength (MPa) 154 (A direction) 120
Hardness (HV0.5) 651 62
Maximum working temperature (℃) 1000(air), 2300(vacuum) 900(air), 1850(vacuum)
Thermal conductivity (W/m*K) 60 (A direction) 55
Thermal expansion coefficient (/℃) 6*10-7 1.8*10-6
Volume resistivity (Ohm*cm) 2*1014 1.2*1014
Dielectric strength (kV/mm) 55 76



*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.











Valuable Information



boron nitride rings

Boron Nitride Rings Packing





Boron nitride ceramic rings are carefully packaged in appropriate containers to avoid any potential damage.



Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
