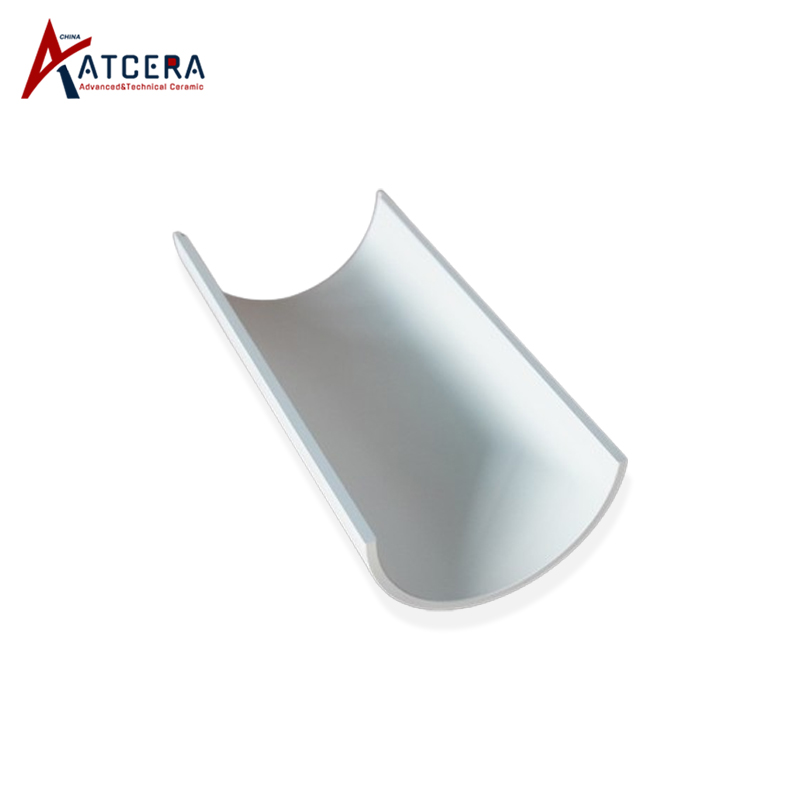

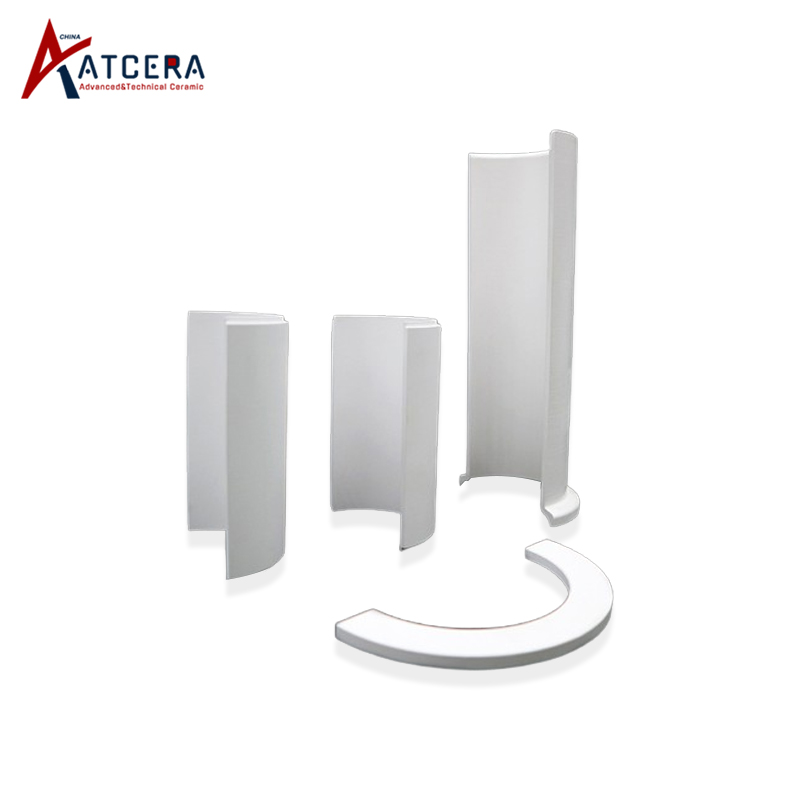

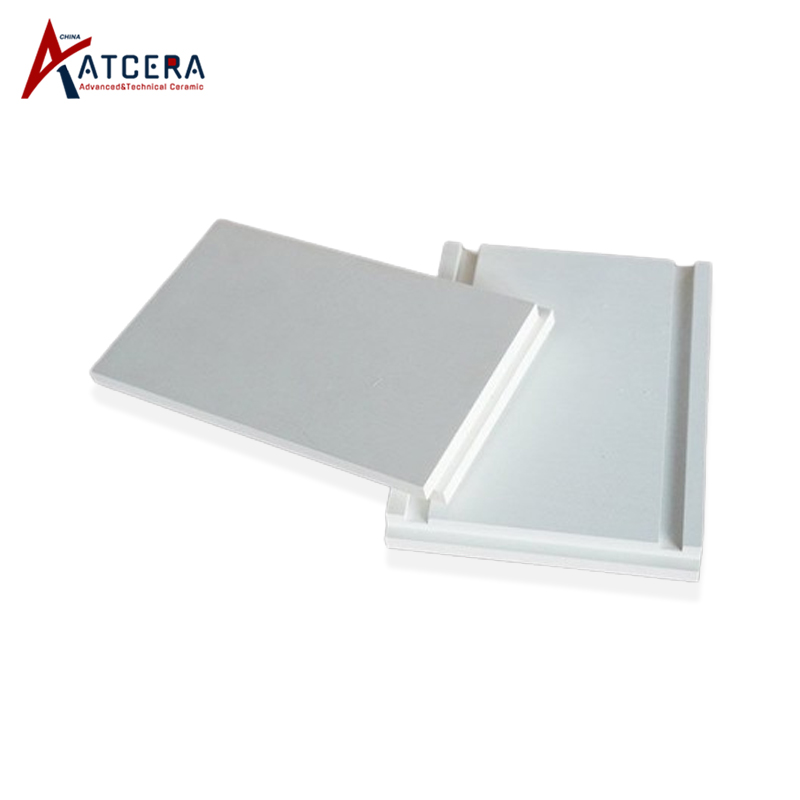

Boron Nitride Ceramic Gasket BN Insulation Gaskets

Boron nitride insulation gasket usually has hexagonal crystal structure, with excellent insulation performance, high temperature and thermal shock resistance, good corrosion resistance, also the hardness is low and processing is easy. It can be used for various high-voltage electrical equipment, high-power electronic components, can adapt the environment of high temperature or with corrosive media.

  • Brand:

    ATCERA
  • Item NO.:

    AT-BN-JYD001
  • Materials

    BN
  • Shapes

    Mechanical Parts
  • Applications

    Electronics and Electricity
Boron nitride insulation gasket 2

Advantages of Boron Nitride Insulation Gasket



High purity BN gasket usually has excellent insulation performance, high temperature and thermal shock resistance, good corrosion resistance, also the hardness is low and processing is easy.



BN insulation gasket

Applications of BN Insulation Gasket



BN insulation gaskets can be used for various high-voltage electrical equipment, high-power electronic components, can adapt the environment of high temperature or with corrosive media.











Size Chart of Boron Nitride Ceramic Insulation Gaskets



Committed to providing boron nitride insulation gaskets customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Drawing and parameter requirements shall be provided if customized design request.

Boron Nitride Insulation Gasket
Item NO. Specifications
AT-BN-JYD001 Customized







Technical Data of Boron Nitride Materials



Items Pyrolytic Boron Nitride Hot Pressed Boron Nitride
Purity (%) 99.99% 99.5%
Density (g/cm3) 2.15-2.19 1.96-2
Bending strength (MPa) 173 (A direction) 310
Tensile strength (MPa) 112 (A direction) 110
Compressive strength (MPa) 154 (A direction) 120
Hardness (HV0.5) 651 62
Maximum working temperature (℃) 1000(air), 2300(vacuum) 900(air), 1850(vacuum)
Thermal conductivity (W/m*K) 60 (A direction) 55
Thermal expansion coefficient (/℃) 6*10-7 1.8*10-6
Volume resistivity (Ohm*cm) 2*1014 1.2*1014
Dielectric strength (kV/mm) 55 76



*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.











Valuable Information



boron nitride insulation gaskets

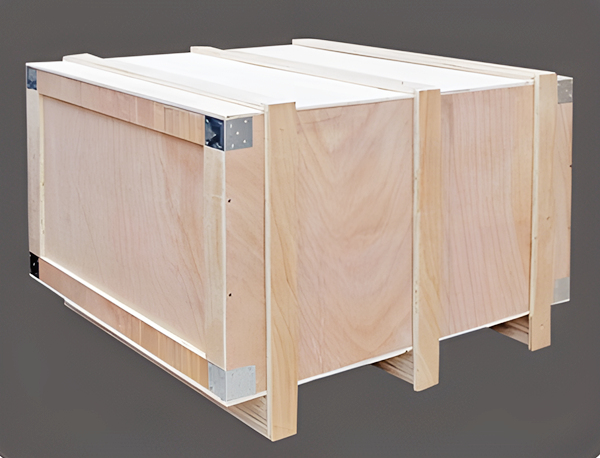

Boron Nitride Insulation Gaskets Packing



Boron nitride insulation gaskets are carefully packaged in appropriate containers to avoid any potential damage.



Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
