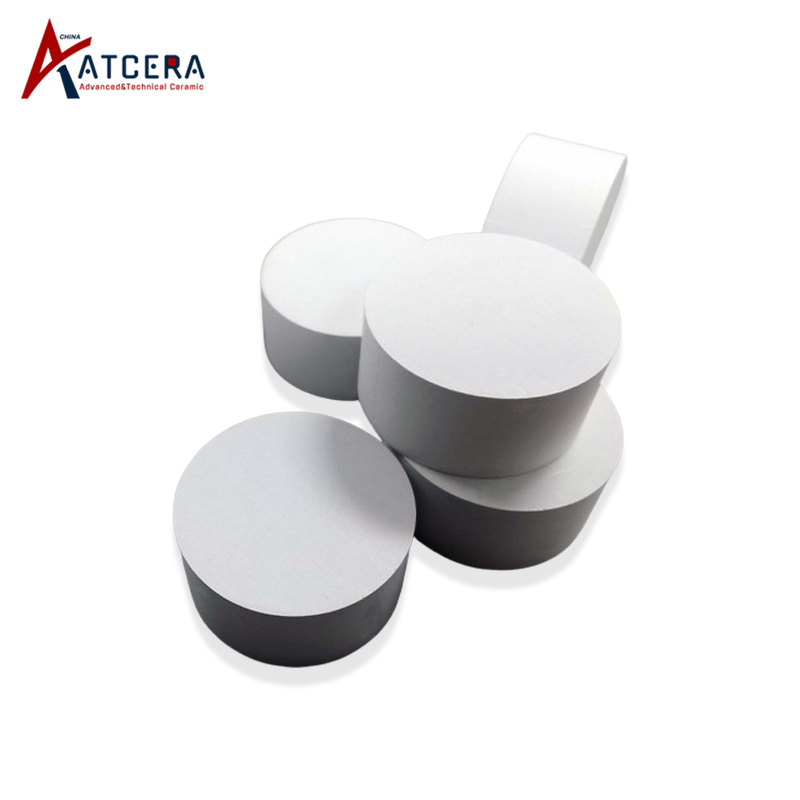

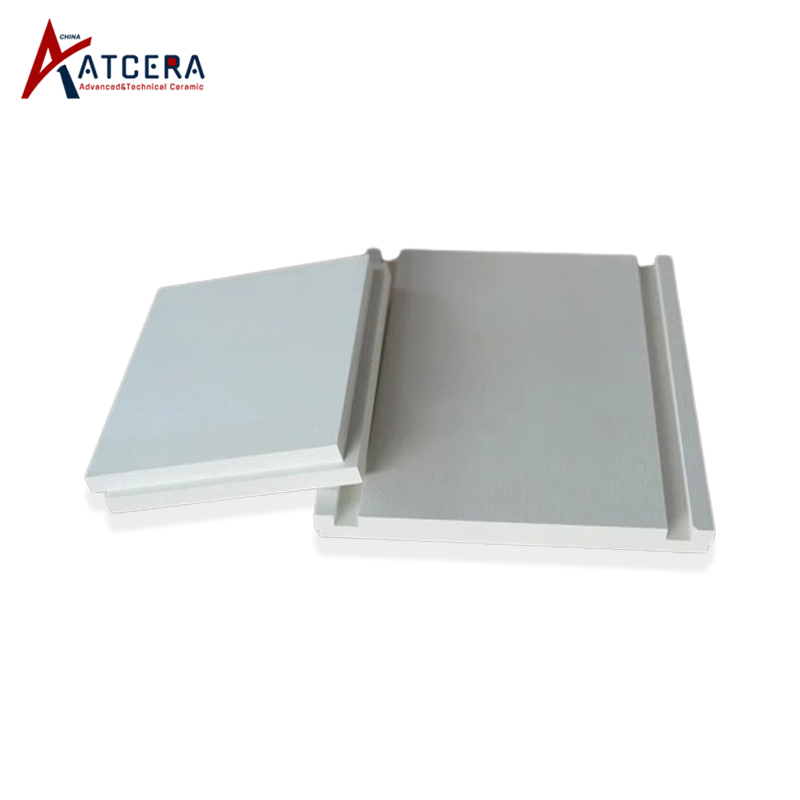

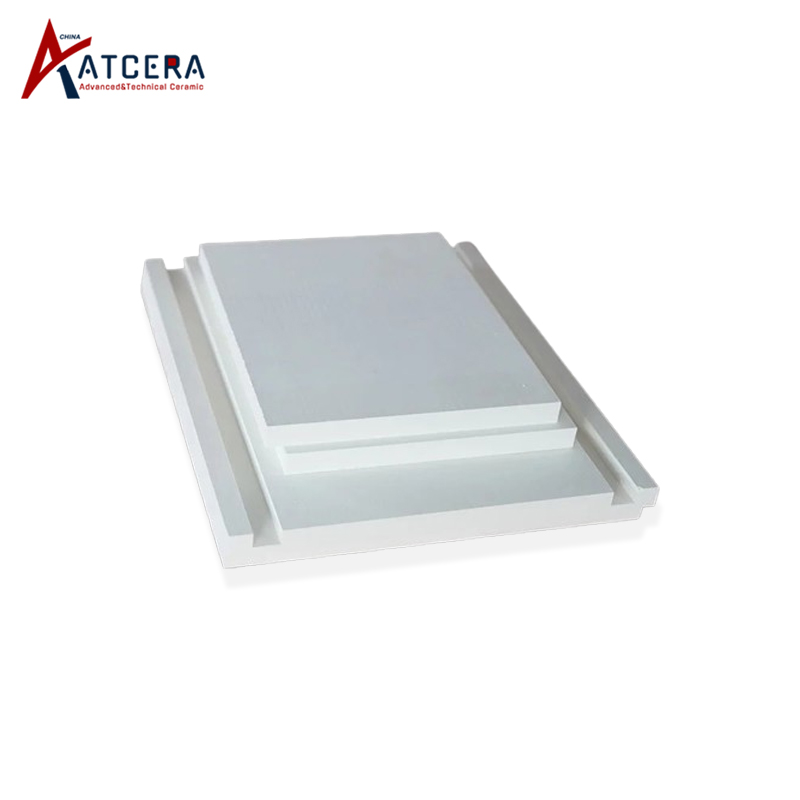

Boron Nitride Plate Hexgonal BN Ceramic Sheet

Hexagonal boron nitride plate is commonly made by hot pressing sintering process, with resistant to high temperature and corrosion, resistant to metal melt and slag erosion, good thermal conductivity and electrical insulation, also the hardness is low and easy to be processed. It can be used to make heat sinks and insulation sheets, used in semiconductor, chemical industry, metallurgy and other industries.

Brand:
ATCERA
Item NO.:
AT-BN-B001

Materials
BN
Shapes
Plate
Applications
Petrochemical Industry , Metallurgy Industry

Inquire Now

Advantages of Hexagonal Boron Nitride Sheet

Boron nitride sheet has resistant to high temperature and corrosion, resistant to metal melt and slag erosion, good thermal conductivity and electrical insulation, also the hardness is low and easy to be processed.

Applications of Boron Nitride Plate

Boron nitride plate can be used to make heat sinks and insulation sheets, used in semiconductor, chemical industry, metallurgy and other industries.

Size Chart of Boron Nitride Ceramic Plate

Committed to providing boron nitride ceramic plate customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Drawing and parameter requirements shall be provided if customized design request.

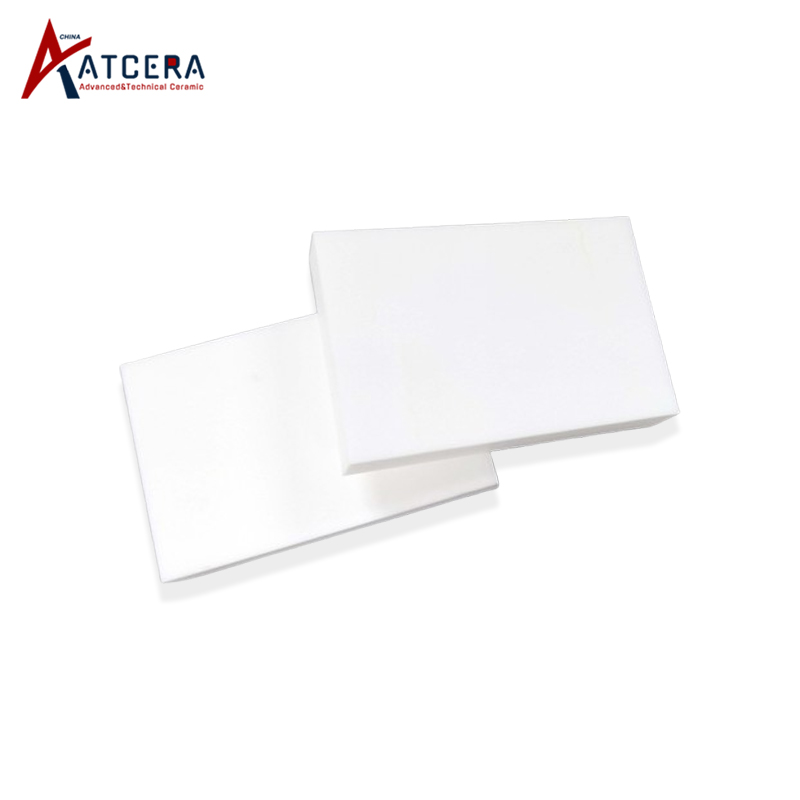

Boron Nitride Square Plate
Item NO.	Length（mm)	Width（mm)	Thickness（mm)	Shape
AT-BN-B001	100	100	2	Square
AT-BN-B002	100	100	3
AT-BN-B003	100	100	5
AT-BN-B004	150	150	2
AT-BN-B005	150	150	3
AT-BN-B006	150	60	5
AT-BN-B007	150	100	20
AT-BN-B008	150	100	30
AT-BN-B009	160	160	3
AT-BN-B010	170	170	3
AT-BN-B011	200	200	3

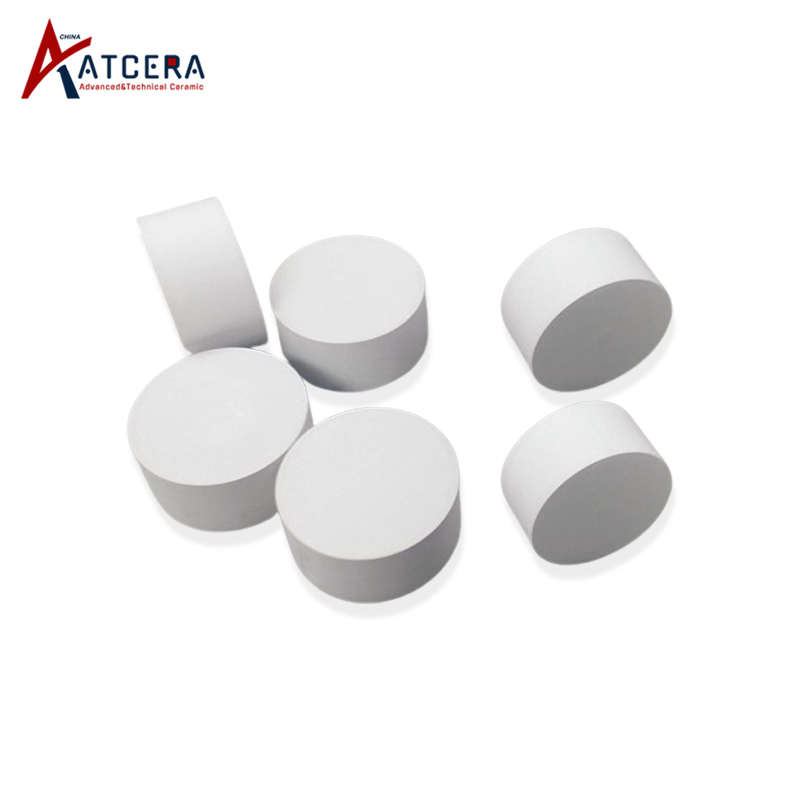

Boron Nitride Round Plate
Item NO.	Diameter（mm)	Thickness（mm)	Shape
AT-BN-B2001	10	2	Round
AT-BN-B2002	20	2
AT-BN-B2003	22	4
AT-BN-B2004	50	2
AT-BN-B2005	50	2.5
AT-BN-B2006	50	3
AT-BN-B2007	50	5
AT-BN-B2008	50	10
AT-BN-B2009	50	15
AT-BN-B2010	50	20
AT-BN-B2011	50	25
AT-BN-B2012	50	30
AT-BN-B2013	60	5
AT-BN-B2014	60	10
AT-BN-B2015	60	15
AT-BN-B2016	60	20
AT-BN-B2017	60	25
AT-BN-B2018	60	30
AT-BN-B2019	80	5
AT-BN-B2020	80	10
AT-BN-B2021	80	15
AT-BN-B2022	80	20
AT-BN-B2023	80	25
AT-BN-B2024	80	30
AT-BN-B2025	100	5
AT-BN-B2026	100	10
AT-BN-B2027	100	15
AT-BN-B2028	100	20
AT-BN-B2029	100	25
AT-BN-B2030	100	30

Technical Data of Boron Nitride Materials

Items	Pyrolytic Boron Nitride	Hot Pressed Boron Nitride
Purity (%)	99.99%	99.5%
Density (g/cm3)	2.15-2.19	1.96-2
Bending strength (MPa)	173 (A direction)	310
Tensile strength (MPa)	112 (A direction)	110
Compressive strength (MPa)	154 (A direction)	120
Hardness (HV0.5)	651	62
Maximum working temperature (℃)	1000(air), 2300(vacuum)	900(air), 1850(vacuum)
Thermal conductivity (W/m*K)	60 (A direction)	55
Thermal expansion coefficient (/℃)	6*10-7	1.8*10-6
Volume resistivity (Ohm*cm)	2*1014	1.2*1014
Dielectric strength (kV/mm)	55	76

*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Hexagonal Boron Nitride Plate Packing

Hexagonal boron nitride plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
