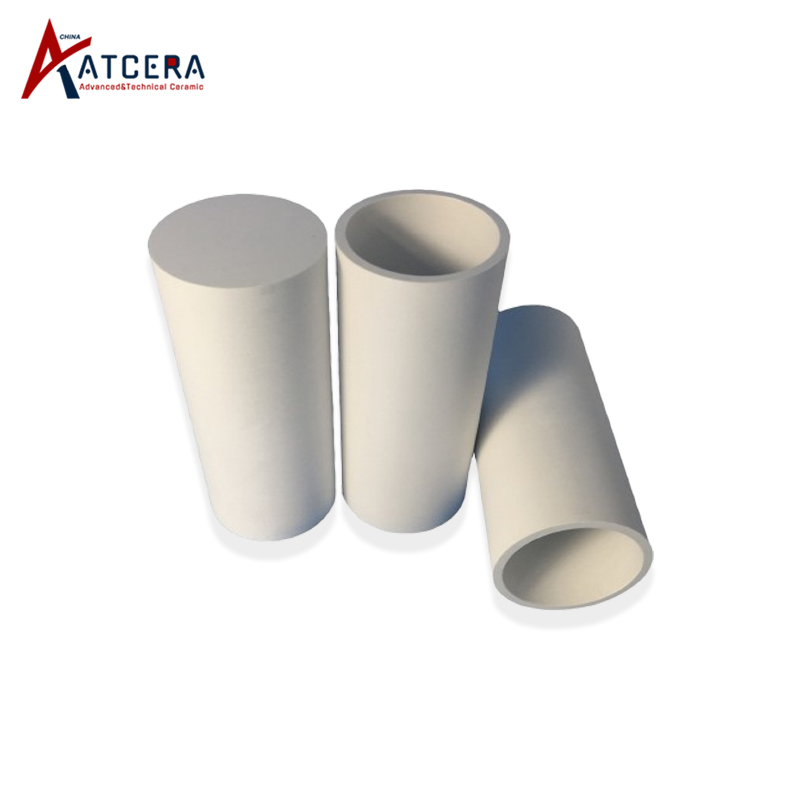

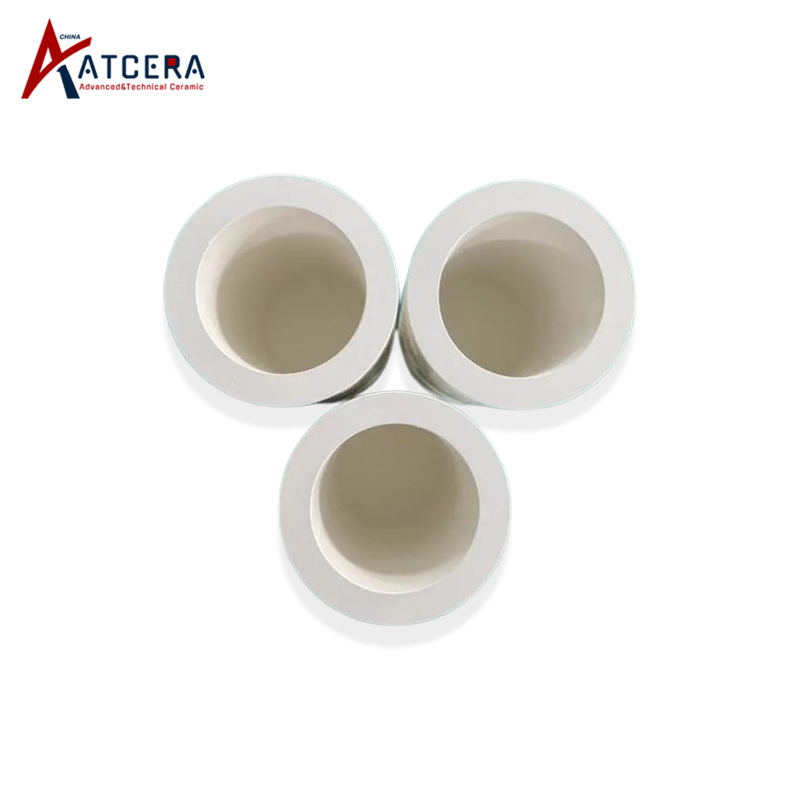

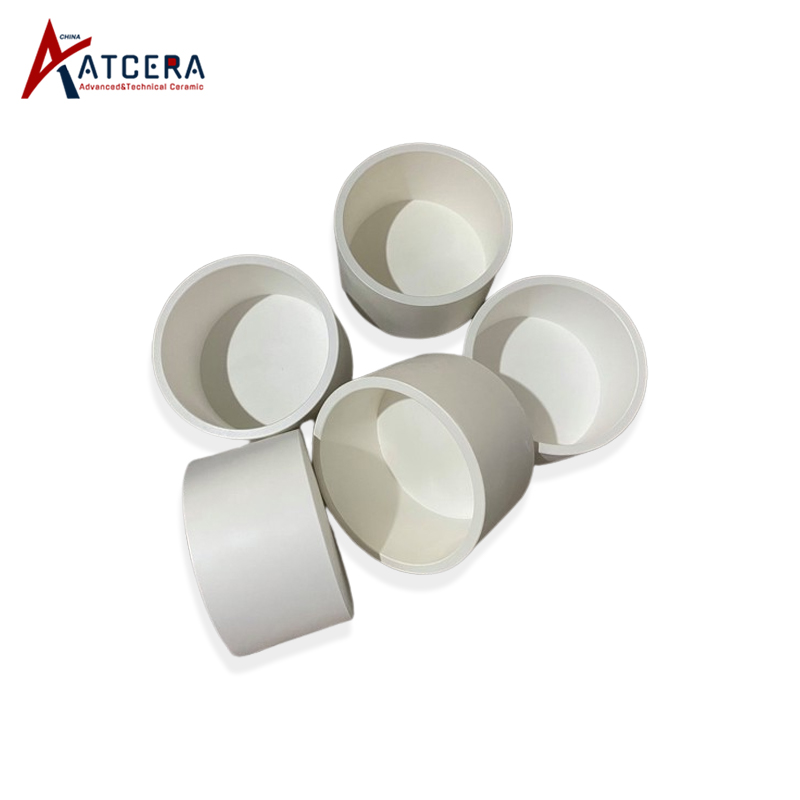

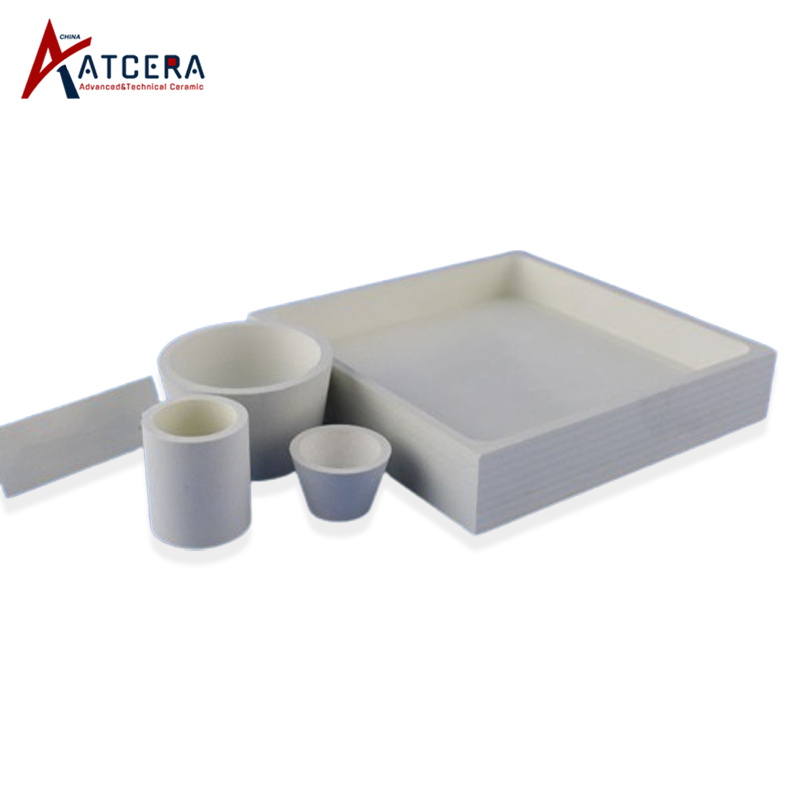

Boron Nitride Crucible Hexagonal BN Ceramic Crucibles

High purity boron nitride crucible is fabricated through hot press sintering process, it has high temperature and corrosion resistance, good thermal stability and thermal conductivity, can be used for metal melting, high temperature forging test of materials and GaAs crystal synthesis.

Brand:
ATCERA
Item NO.:
AT-BN-GG1001

Materials
BN
Shapes
Crucible
Applications
Metallurgy Industry

Inquire Now

Advantages of Hot Pressed Boron Nitride Crucible

High purity boron nitride crucible has high temperature and corrosion resistance, good thermal stability and thermal conductivity, service life is long.

Applications of Hot Pressed BN Crucible

Boron nitride crucible can be used for metal melting, high temperature forging test of materials and GaAs crystal synthesis.

Size Chart of Boron Nitride Ceramic Crucible

Committed to providing boron nitride ceramic crucible customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Drawing, parameter requirement and application information shall be provided if customized design request.

Hot Pressed Boron Nitride Rectangular Crucible
Item No.	Capacities （ml)	Outer Diameter （mm）	Inner Diameter （mm)	Height （mm)
AT-BN-GG1001	0.5	9	6	19
AT-BN-GG1002	1.8	13	10	25
AT-BN-GG1003	2	16	12	20
AT-BN-GG1004	3	20	16	18
AT-BN-GG1005	5	24	20	22
AT-BN-GG1006	10	28	24	30
AT-BN-GG1007	20	32	26	32
AT-BN-GG1008	24	36	31	37
AT-BN-GG1009	30	36	30	40
AT-BN-GG1010	40	40	34	45
AT-BN-GG1011	50	47	41	45
AT-BN-GG1012	100	58	50	58

Hot Pressed Boron Nitride Rectangular Crucible
Item No.	Length （mm)	Width （mm)	Height （mm)
AT-BN-GG2001	45	22	15
AT-BN-GG2002	50	15	15
AT-BN-GG2003	50	20	20
AT-BN-GG2004	60	30	15
AT-BN-GG2005	100	15	15
AT-BN-GG2006	100	20	20
AT-BN-GG2007	100	25	25
AT-BN-GG2008	100	40	20
AT-BN-GG2009	100	50	30
AT-BN-GG2010	120	20	20

Hot Pressed Boron Nitride Crucible
Item No.	Outer diameter of the upper port （mm)	Height （mm)
AT-BN-GG3001	30	17
AT-BN-GG3002	32	17
AT-BN-GG3003	35	17
AT-BN-GG3004	37	15
AT-BN-GG3005	40	20
AT-BN-GG3006	42	22
AT-BN-GG3007	50	25
AT-BN-GG3008	55	25
AT-BN-GG3009	60	30

Hot Pressed Boron Nitride Conical Crucible
Item No.	Capacities （ml)
AT-BN-GG5001	0.25
AT-BN-GG5002	0.5
AT-BN-GG5003	1
AT-BN-GG5004	2
AT-BN-GG5005	3

Technical Data of Boron Nitride Materials

Items	Pyrolytic Boron Nitride	Hot Pressed Boron Nitride
Purity (%)	99.99%	99.5%
Density (g/cm3)	2.15-2.19	1.96-2
Bending strength (MPa)	173 (A direction)	310
Tensile strength (MPa)	112 (A direction)	110
Compressive strength (MPa)	154 (A direction)	120
Hardness (HV0.5)	651	62
Maximum working temperature (℃)	1000(air), 2300(vacuum)	900(air), 1850(vacuum)
Thermal conductivity (W/m*K)	60 (A direction)	55
Thermal expansion coefficient (/℃)	6*10-7	1.8*10-6
Volume resistivity (Ohm*cm)	2*1014	1.2*1014
Dielectric strength (kV/mm)	55	76

*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Boron Nitride Crucible Packing

Boron nitride crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
