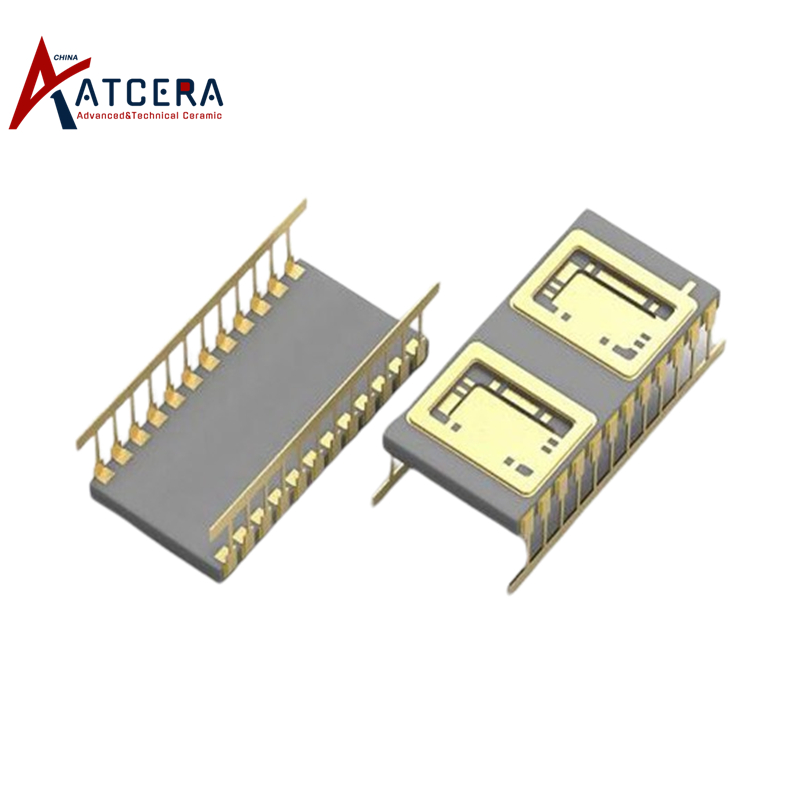

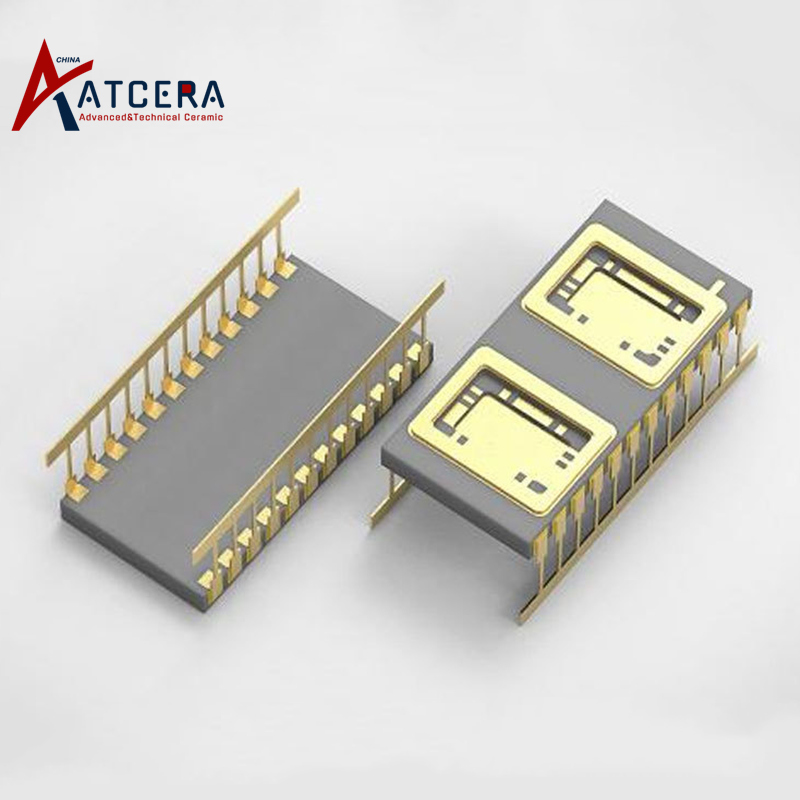

CDIP Ceramic Dual In-Line Housing AlN HTCC Substrate

Aluminum nitride HTCC substrate is made of aluminum nitride as raw material with accurate thickness and good densification of raw ceramic sheet, using tungsten, molybdenum, manganese and other metal slurry, and the designed circuit diagram is formed on the raw ceramic sheet through drilling, micro-hole grouting, printing and other processes, and then laminated together and sintered at 1500℃~1850℃. Finally through electroplating, brazing and other processes, a monolithic structure of three-dimensional wiring system is formed. Aluminum nitride HTCC substrate has high mechanical strength, good heat dissipation performance, high temperature and corrosion resistance, high wiring density, it 's suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power.

Brand:
ATCERA
Item NO.:
AT-DIP04B

Materials
AlN
Shapes
Substrate
Applications
Semiconductor , Electronics and Electricity

Inquire Now

Properties of Aluminum Nitride CDIP Ceramic Dual In-Line Housing

Ceramic dual-in-line shell is a plug-in shell, the general pin pitch is 2.54mm, the span is generally 15.24mm, 10.16mm and 7.62mm and other common specifications, the product is widely used in the number of leading end, assembly density requirements are not high all kinds of integrated circuits, optocouplers, MEMS and other packaging. There are parallel sealing welding and alloy solder sealing and other sealing methods to choose from.

Applications of AlN CDIP Ceramic Dual In-Line Housing

Aluminum nitride HTCC substrate is suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power, usually used as a high-voltage, high-power device packaging substrate, including power module, high-frequency switching power supply, relay, communication module, LED module, etc., widely used in new energy vehicles, rail transit, smart grid, aerospace and other fields.

Product Parameters
Material Parameters

Size Chart for CDIP Ceramic Dual In-Line Housing

We are committed to delivering prime aluminum nitride CDIP ceramic dual in-line housing tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please inquire ATCera for information or requesst.

Send Requirements for Custom Design

CDIP Ceramic Dual In-Line Housing
Item no.	Terminal number	Leading end pitch	Core cavity size	Ceramic dimension	Sealing form	Whether it has heat sink
AT-DIP04B	4	2.54	5.4*3.2	7.4*5.2	Flat seal	no
AT-DIP04C	4	2.54	5.3*2.65	7.4*5.1	Flat seal	no
AT-DIP04D	4	2.54	5.4*3.2	7.4*5.2	Flat seal	no
AT-DIP04S2	4	2.54	5.0*2.6	7.3*5	Flat seal	no
AT-DIP06B	6	2.54	6.6*5.4	8.4*7.4	Flat seal	no
AT-DIP06C	6	2.54	6.6*5.4	8.51*7.49	Flat seal	no
AT-DIP06D	6	2.54	6.6*5.4	8.4*7.4	Flat seal	no
AT-DIP06E	6	2.54	5.16*4	9*7.4	Flat seal	no
AT-DIP06S3	6	2.54	5.2*4.2	9.3*7.4	Flat seal	no
AT-DIP08A	8	2.54	7.7*5.4	9.7*7.4	Flat seal	no
AT-DIP08AL	8	2.54	10.08*7.37	8*5.72	Flat seal	no
AT-DIP08M	8	2.54	17.1*6.6	19.46*9.91	Flat seal	no
AT-DIP08S2	8	2.54	5.72*5.21	10.28*7.37	Flat seal	no
AT-DIP12	12	2.54	5.6*3.8	15.24*7.37	Flat seal	no
AT-DIP14	14	2.54	5.6*3.8	17.9*7.5	Flat seal	no
AT-DIP16	16	2.54	5.6*4.32	20.32*7.37	Flat seal	no
AT-DIP16A	16	2.54	5.59*4.19	20.32*7.42	Flat seal	no
AT-DIP16B	16	2.54	5.6*3.8	20.32*7.5	Flat seal	no
AT-DIP16C	16	2.54	5.4*4.5	23.6*7.4	Flat seal	no
AT-DIP16S2	16	2.54	18.2*4.9	20.6*7.37	Flat seal	no
AT-DIP20A	20	2.54	5.6*3.8	25.14*7.37	Flat seal	no
AT-DIP24	24	2.54	5.75*3.8	30.48*7.49	Flat seal	no
AT-DIP28A	28	2.54	5.6*4.2	40*25.1	Flat seal	no
AT-DIP32	32	2.54	10*6.2	40.64*9.91	Flat seal	no

Technical Data of Aluminum Nitride Materials

AlN Type	ALN-170	ALN-200	ALN-230
Density (g/cm³)	3.3	3.28	3.25
Flexture strength (MPa)	450	400	350
Young Modulus (GPa)	320	/	/
Hardness (Hv)	1100	1100	1100
Fracture toughness (MPa*m^1/2)	3	2.6	2.4
Maximum working temperature (℃)	1100	1100	1100
Thermal conductivity (W/m*K)	180	200	230
Thermal expansion coefficient (/℃)	4*10^-6	4*10^-6	4*10^-6
Dielectric Constant (at 1MHz)	9	8.7	8.5
Breakdown Voltage (kV/mm)	>15	>15	>15

*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

CDIP Ceramic Dual In-Line Housing Packing

Aluminum nitride CDIP ceramic dual in-line housings are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
