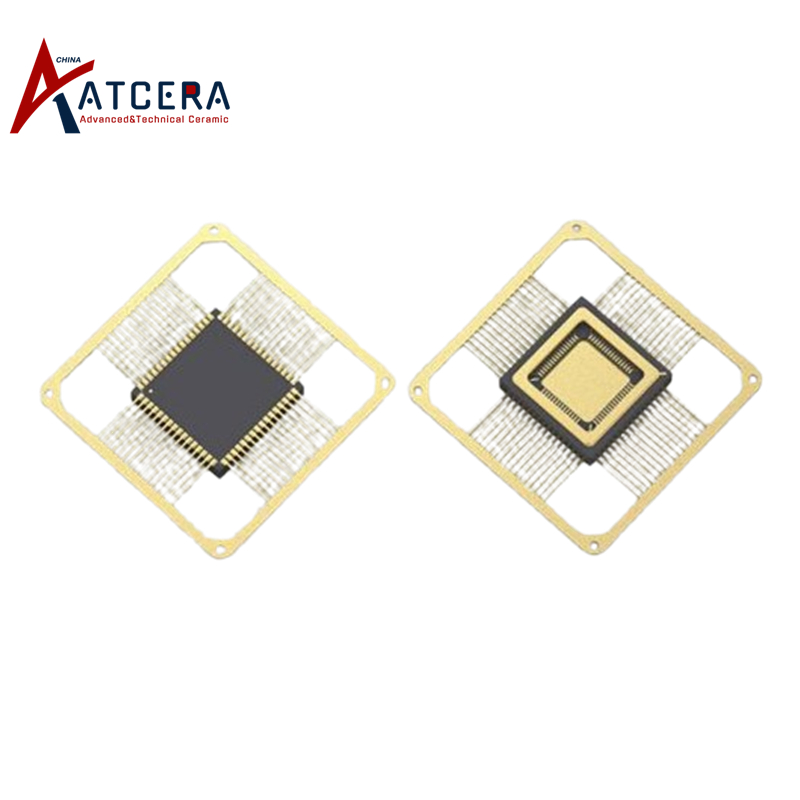

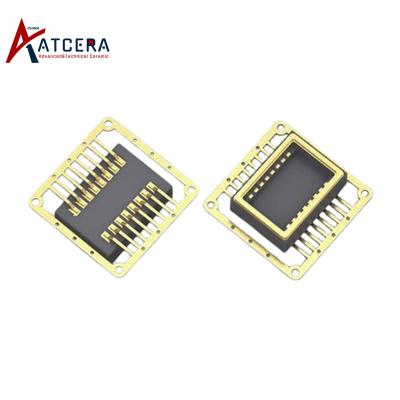

CQFP Ceramic Four-Sided Flat Housing AlN HTCC Substrate

Aluminum nitride HTCC substrate is made of aluminum nitride as raw material with accurate thickness and good densification of raw ceramic sheet, using tungsten, molybdenum, manganese and other metal slurry, and the designed circuit diagram is formed on the raw ceramic sheet through drilling, micro-hole grouting, printing and other processes, and then laminated together and sintered at 1500℃~1850℃. Finally through electroplating, brazing and other processes, a monolithic structure of three-dimensional wiring system is formed. Aluminum nitride HTCC substrate has high mechanical strength, good heat dissipation performance, high temperature and corrosion resistance, high wiring density, it 's suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power.

Brand:
ATCERA
Item NO.:
AT-CQFP24A

Materials
AlN
Shapes
Substrate
Applications
Semiconductor , Electronics and Electricity

Inquire Now

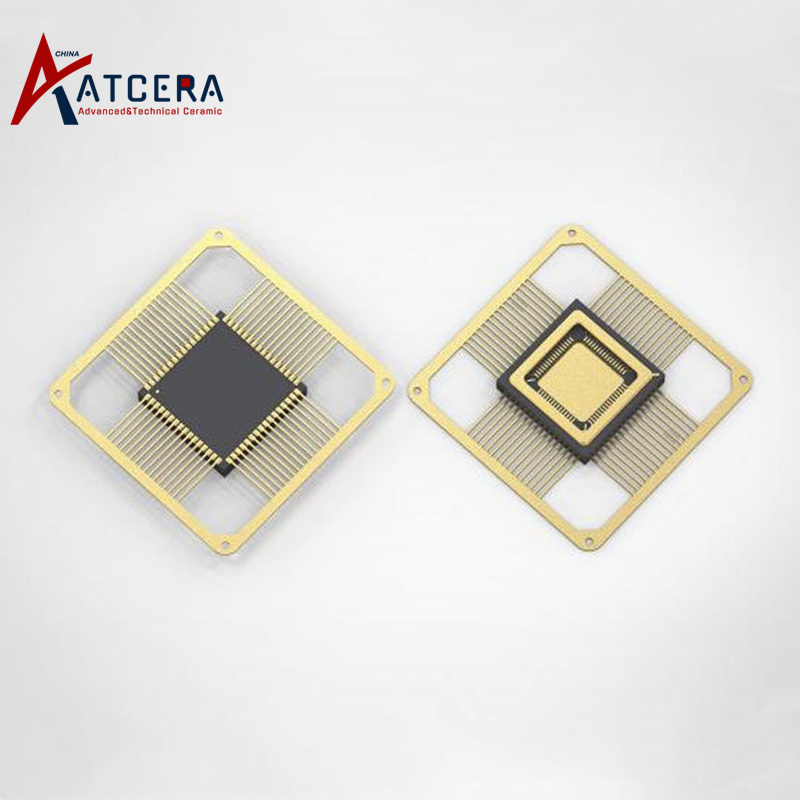

Properties of Aluminum Nitride CQFP Ceramic Four-Sided Flat Housing

It has small size, light weight, high package density, good thermoelectric performance, suitable for surface installation, and the commonly used lead pitch are 1.27mm, 1.00mm, 0.80mm, 0.65mm and 0.50mm, etc., suitable for various large-scale integrated circuit packages, such as ECL and CMOS gate array circuits.

Applications of AlN CQFP Ceramic Four-Sided Flat Housing

Aluminum nitride HTCC substrate is suitable for electronic components those need to work at high temperature environment, with high thermal stability requirements and large power, usually used as a high-voltage, high-power device packaging substrate, including power module, high-frequency switching power supply, relay, communication module, LED module, etc., widely used in new energy vehicles, rail transit, smart grid, aerospace and other fields.

Product Parameters
Material Parameters

Size Chart for CQFP Ceramic Four-Sided Flat Housing

We are committed to delivering prime aluminum nitride CQFP ceramic four-sided flat housing tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please inquire ATCera for information or requesst.

Send Requirements for Custom Design

CQFP Ceramic Four-Sided Flat Housing
Item no.	Terminal number	Leading end pitch	Core cavity size	Ceramic dimension	Sealing form	Whether it has heat sink
AT-CQFP24A	24	0.65	3.3*3.3	6.6*6.8	au-sn alloy	yes
AT-CQFP28	28	1.27	7.6*7.6	12*12	au-sn alloy	no
AT-CQFP28B	28	1.27	5.5*5.5	11.43*11.43	Flat seal	yes
AT-CQFP28D	28	0.8	4.2*4.2	9*9	au-sn alloy	yes
AT-CQFP28E	28	0.8	4.5*4.5	7*7	au-sn alloy	yes
AT-CQFP28F	28	0.8	4.2*4.2	9*9	au-sn alloy	yes
AT-CQFP40B	40	1.27	4.8*4.8	14.6*14.6	au-sn alloy	no
AT-CQFP40D	40	0.5	4.6*4.6	11*11	au-sn alloy	yes
AT-CQFP44	44	0.8	6.1*6.1	10*10	au-sn alloy	no
AT-CQFP44B	44	0.8	6.4*6.4	10*10	au-sn alloy	no
AT-CQFP44C	44	0.8	6.9*6.9	10*10	au-sn alloy	no
AT-CQFP44E	44	0.8	5.13*5.13	10.6*10.6	au-sn alloy	no
AT-CQFP44F	44	1.27	8.1*8.1	16.51*16.51	au-sn alloy	no
AT-CQFP48A	48	0.5	4.2*4.2	8.5*8.5	au-sn alloy	no
AT-CQFP48B	48	1	6*6	14.22*14.22	au-sn alloy	no
AT-CQFP48C	48	1	8.9*8.9	14.22*14.22	au-sn alloy	no
AT-CQFP48D	48	1	8.7*8.7	14.22*14.22	au-sn alloy	no
AT-CQFP64A	64	0.8	5*5	14514.5	au-sn alloy	no
AT-CQFP64B	64	0.8	6.4*6.4	14.6*14.6	au-sn alloy	no
AT-CQFP64C	64	1	5*5	18.4*18.4	au-sn alloy	no
AT-CQFP64D	64	0.8	8*8	14.6*14.6	au-sn alloy	no
AT-CQFP64E	64	1	9.2*9.2	18.4*18.4	au-sn alloy	no
AT-CQFP64P	64	0.5	7*7	11*11	au-sn alloy	no
AT-CQFP80A	80	0.5	7.8*7.8	12.2*12.2	au-sn alloy	no
AT-CQFP84	84	1.27	15.1*15.1	29.3*29.3	au-sn alloy	no
AT-CQFP100B	100	0.65	7.6*7.6	22*16	au-sn alloy	no

Technical Data of Aluminum Nitride Materials

AlN Type	ALN-170	ALN-200	ALN-230
Density (g/cm³)	3.3	3.28	3.25
Flexture strength (MPa)	450	400	350
Young Modulus (GPa)	320	/	/
Hardness (Hv)	1100	1100	1100
Fracture toughness (MPa*m^1/2)	3	2.6	2.4
Maximum working temperature (℃)	1100	1100	1100
Thermal conductivity (W/m*K)	180	200	230
Thermal expansion coefficient (/℃)	4*10^-6	4*10^-6	4*10^-6
Dielectric Constant (at 1MHz)	9	8.7	8.5
Breakdown Voltage (kV/mm)	>15	>15	>15

*This chart illustrates the standard characteristics of the aluminum nitride materials commonly employed in the manufacturing of our AlN products and parts. Please be aware that the attributes of customized aluminum nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

CQFP Ceramic Four-Sided Flat Housing Packing

Aluminum nitride CQFP ceramic four-sided flat housings are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Exploration Of Laser Processing Technology Of AlN Substrate To Realize High Quality Flat Machining Surface

With the rapid development of electronic technology, the integration and performance requirements of large-scale integrated circuits are increasing day by day. As a key supporting material, aluminum nitride ceramics have become an ideal cooling substrate and packaging material because of their excellent thermal conductivity, mechanical strength, corrosion resistance and excellent electrical proper...

ELID Grinding Process Of AlN Substrate: Solving The Difficult Problem Of Machining High-hardness Brittleness

With the rapid development of microelectronics technology, the requirements for electronic packaging materials are increasingly stringent. Aluminum nitride ceramics, with its excellent thermal conductivity, excellent mechanical properties, corrosion resistance and excellent electrical properties, become the leader of large-scale integrated circuit cooling substrate and packaging materials. However...

AlN Ceramic Magnetorheological Polishing Process Achieves High-Quality Surface For AlN Substrate

Today, with the rapid development of the electronics industry, aluminum nitride ceramics have become the first choice for large-scale integrated circuit cooling substrates and packaging materials because of their excellent thermal conductivity, excellent mechanical properties, corrosion resistance and good electrical properties. Especially in the pursuit of miniaturization and high performance int...

Chemical Mechanical Polishing Of AlN Substrate: The Key Path To Overcome Micro-cracks And Subsurface Damage

In the field of microelectronic packaging, aluminum nitride ceramics are gradually becoming the preferred material for high-performance chip cooling substrates due to their excellent thermal conductivity, mechanical strength and electrical properties. However, its high hardness and high brittleness can easily cause surface micro-cracks and sub-surface damage during processing, which directly affec...

Study On Thermal Conductivity Of Aluminum Nitride Substrate And Analysis Of Influence Of Oxygen Impurity

For a long time, most of the substrate materials of high-power hybrid integrated circuits have been using Al2O3 and BeO ceramics, but the thermal conductivity of the Al2O3 substrate is low, and the thermal expansion coefficient is not well matched with Si. Although the comprehensive performance of BeO is excellent, its high production cost and highly toxic shortcomings limit its application and pr...

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

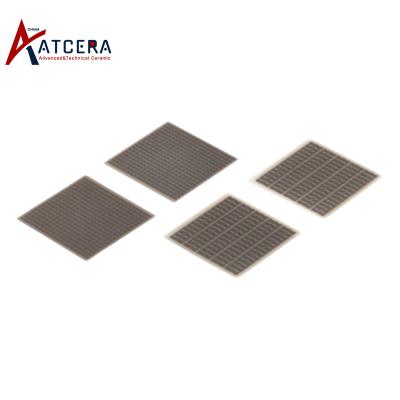

Aluminum Nitride Ceramic Substrate AlN Substrate

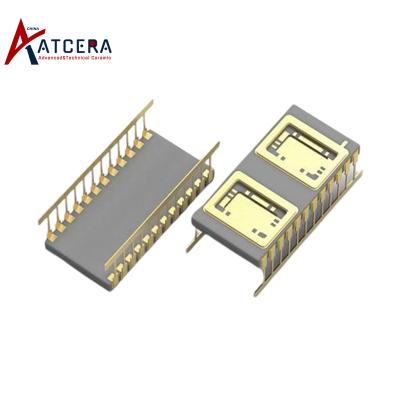

CDIP Ceramic Dual In-Line Housing AlN HTCC Substrate
