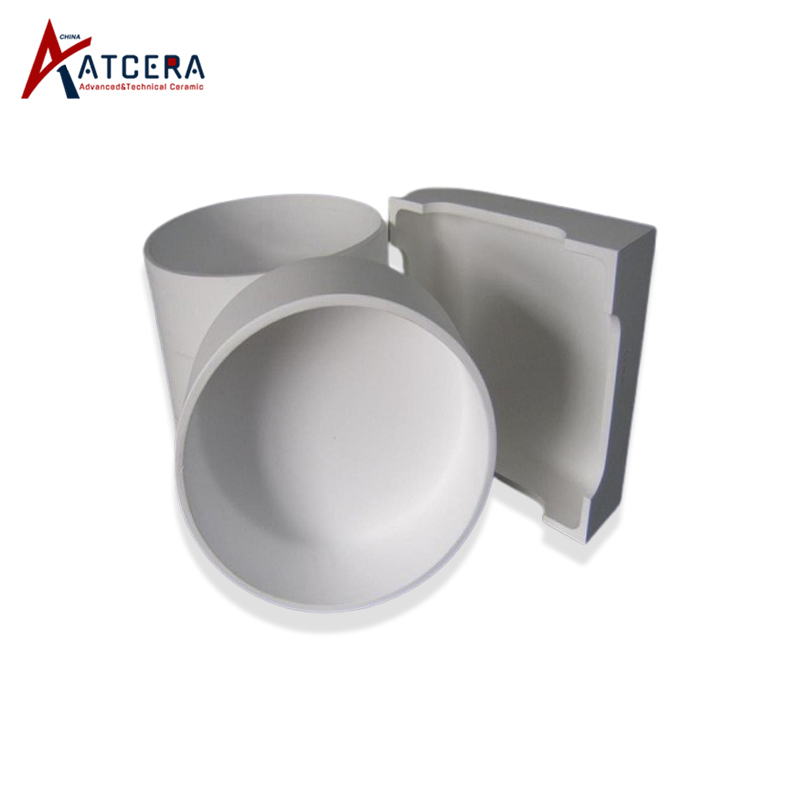

High Purity Quartz Ceramic Crucibles for Melting

Quartz ceramic crucible is high temperature resistant, the highest working temperature is above 1650℃, thermal expansion coefficient is small, and thermal shock resistance is good. It has excellent corrosion resistance, and the service life is long, can be used for smelting of special glass, non-ferrous metallurgy, and calcination of rare earth material, high purity alumina (sapphire grade), battery materials, etc.

Brand:
ATCERA
Item NO.:
AT-TCY-G1001

Materials
Quartz Ceramics
Shapes
Crucible
Applications
Metallurgy Industry , Lithium Battery Production

Inquire Now

Advantages of Quartz Ceramic Crucibles for Melting

application of Ceramic Crucible Cylinder

Applications of Quartz Ceramic Crucibles

Quartz ceramic crucible can be used for smelting of special glass, non-ferrous metallurgy, and calcination of rare earth material, high purity alumina (sapphire grade), battery materials, etc.

Product Parameters
Material Parameters

Size Chart of Quartz Ceramic Crucible

Committed to providing optimal quartz ceramic crucible customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

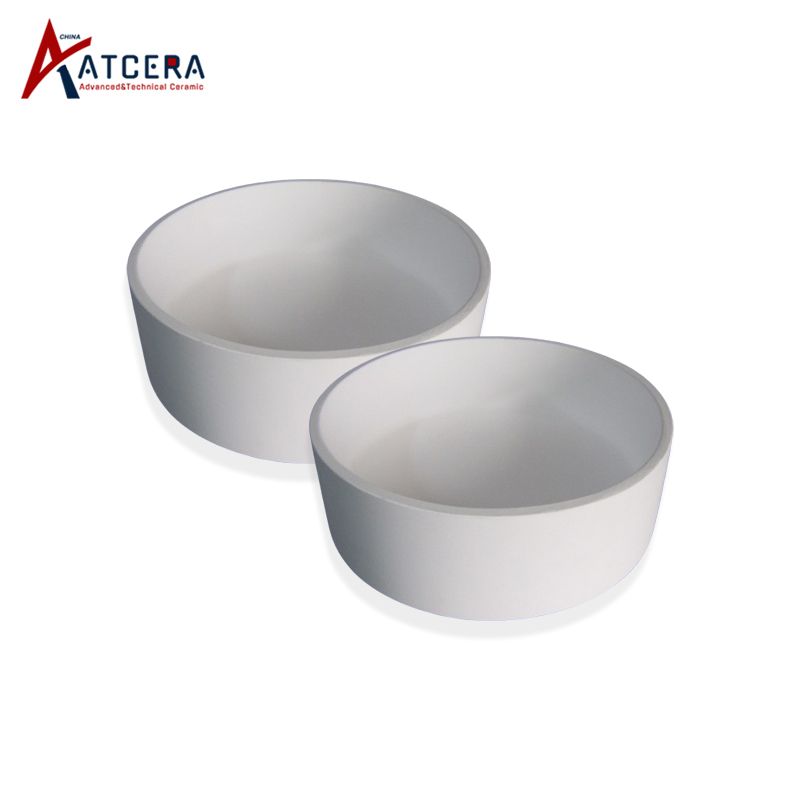

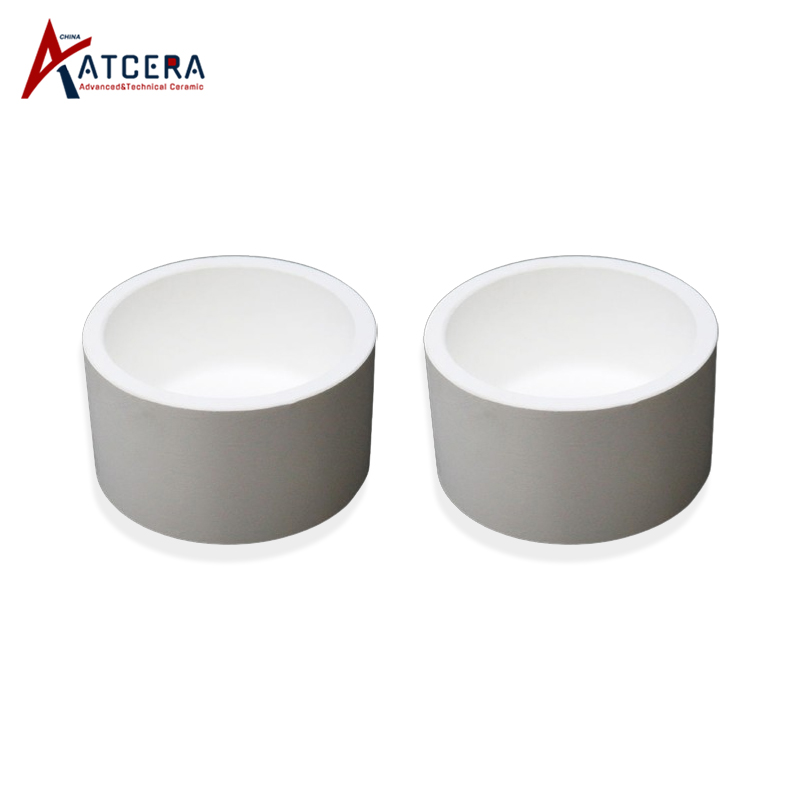

Quartz Ceramic Crucible Cylinder
Item NO.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)	Thickness (mm)
AT-TCY-G1001	60	40	90	5
AT-TCY-G1002	82	70	130	6
AT-TCY-G1003	100	80	60	10
AT-TCY-G1004	100	74	300	13
AT-TCY-G1005	100	88	120	6
AT-TCY-G1006	117	106	205	5.5
AT-TCY-G1007	120	110	125	5
AT-TCY-G1008	128	102	300	13
AT-TCY-G1009	140	120	130	10
AT-TCY-G1010	160	140	170	10
AT-TCY-G1011	190	164	300	13
AT-TCY-G1012	200	175	164	12.5
AT-TCY-G1013	305	265	300	20
AT-TCY-G1014	305	265	400	20

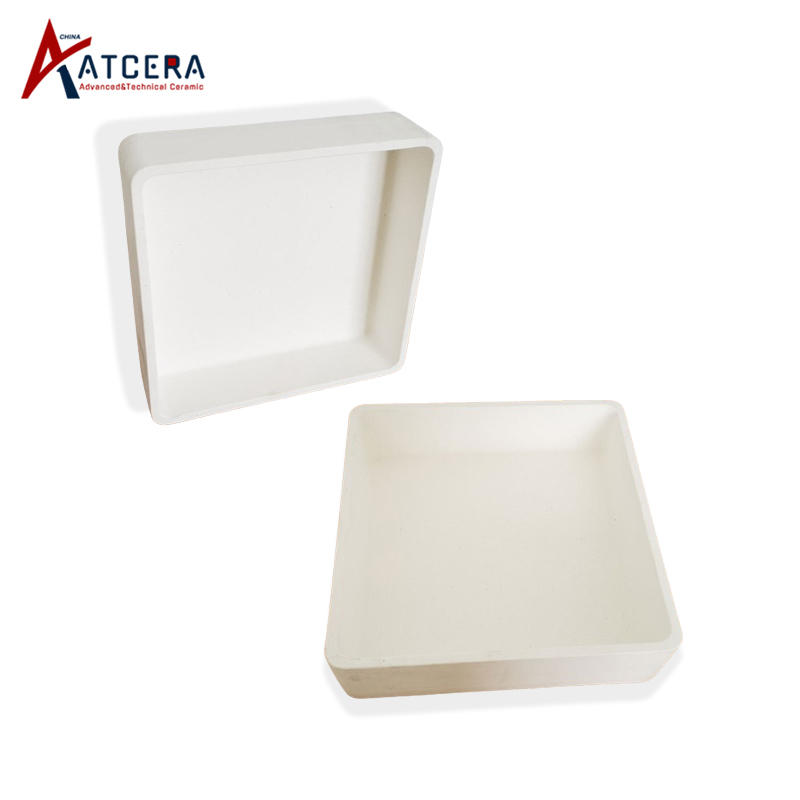

Quartz Ceramic Crucible Square Flat
Item NO.	Side Length (mm)	Height (mm)
AT-TCY-G2001	250*250	100
AT-TCY-G2002	300*300	110
AT-TCY-G2003	300*300	150
AT-TCY-G2004	300*300	200
AT-TCY-G2005	320*320	48
AT-TCY-G2006	320*320	55
AT-TCY-G2007	320*320	60
AT-TCY-G2008	320*320	75
AT-TCY-G2009	320*320	80
AT-TCY-G2010	320*320	85
AT-TCY-G2011	320*320	120
AT-TCY-G2012	320*320	130
AT-TCY-G2013	320*320	150
AT-TCY-G2014	320*320	190
AT-TCY-G2015	370*370	185
AT-TCY-G2016	420*420	150
AT-TCY-G2017	520*520	120
AT-TCY-G2018	530*530	120
AT-TCY-G2019	530*530	135
AT-TCY-G2020	520*520	150

Technical Data of Quartz Ceramic Materials

Purity (%)	>99.8	>99.5
Density (g/cm3)	1.9-1.95	1.9-1.95
Flexture strength (MPa)	28	28
Compressive strength (MPa)	>50	>50
Bending strength (MPa)	25	25
Maximum working temperature (℃)	1650	1650
*Thermal conductivity (W/mK)**	<1	<1
Thermal expansion coefficient (/℃)	8.5*10-7	8.5*10-7
number of use	≥10	≥10

*This chart illustrates the standard characteristics of the quartz ceramic materials commonly employed in the manufacturing of our quartz ceramic products and parts. Please be aware that the attributes of customized quartz ceramic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

High Purity Quartz Ceramic Crucibles Packing

Quartz ceramic crucibles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
