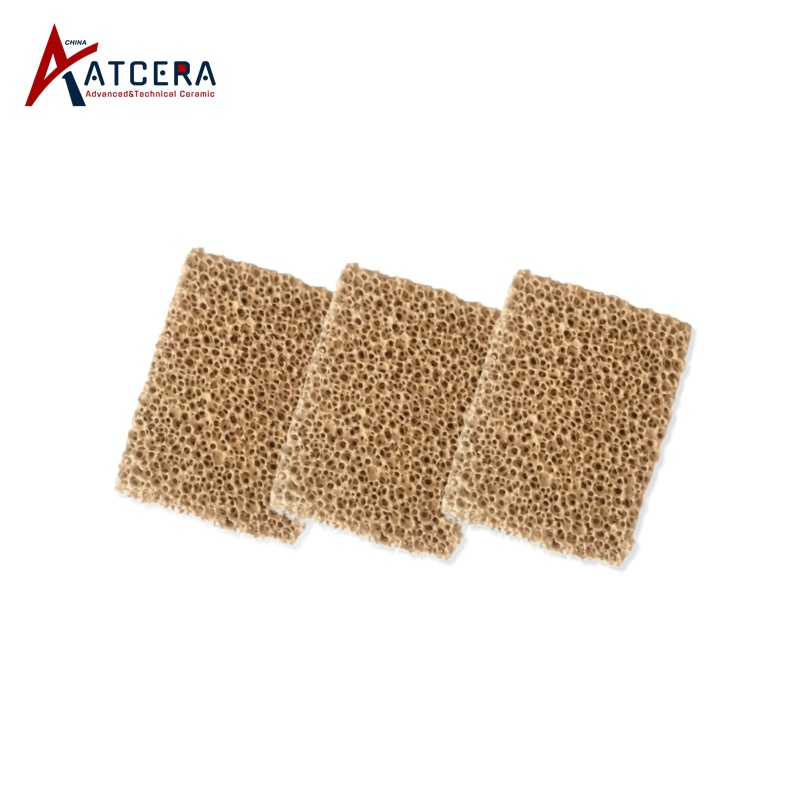

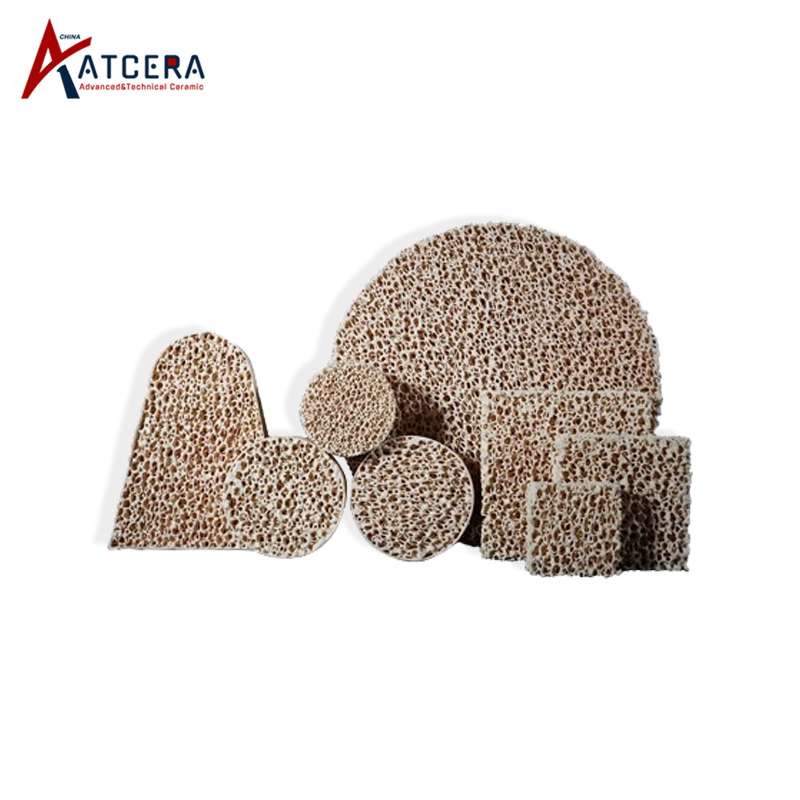

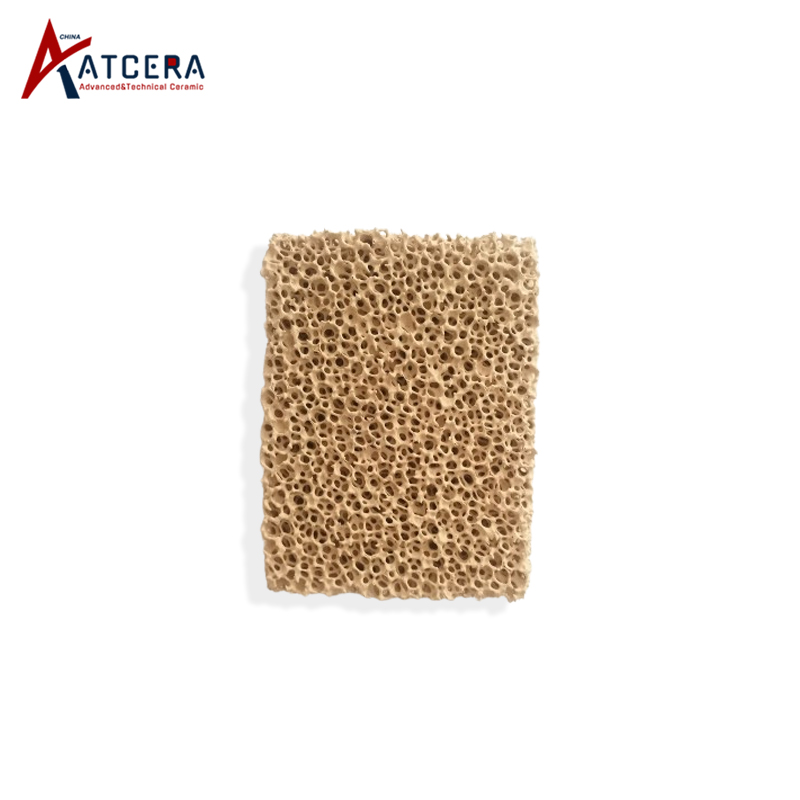

Magnesia Ceramic Foam Filter Ceramic Filter Foam

Magnesia ceramic foam filter is resistant to high temperature and corrosion,it has high porosity, large internal surface area of filtration, small flow resistance, and good filtration effect. It can be used in smelting industry of magnesium and its alloys to filter impurities in molten metal, to reduce casting defects and improve the casting quality.

Brand:
ATCERA
Item NO.:
AT-MO-PM1001

Materials
MgO
Shapes
Mechanical Parts
Applications
Metallurgy Industry

Inquire Now

Advantages of Magnesia Ceramic Foam Filter

Magnesia ceramic foam filter is resistant to high temperature and corrosion,it has high porosity, large internal surface area of filtration, small flow resistance, and good filtration effect.

Applications of Magnesia Ceramic Foam Filter

Magnesia ceramic foam filter is used in smelting industry of magnesium and its alloys to filter impurities in molten metal, to reduce casting defects and improve the casting quality.

Product Parameters
Material Parameters

Size Chart of Magnesia Ceramic Foam Filter

Committed to providing optimal magnesia ceramic foam filter customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

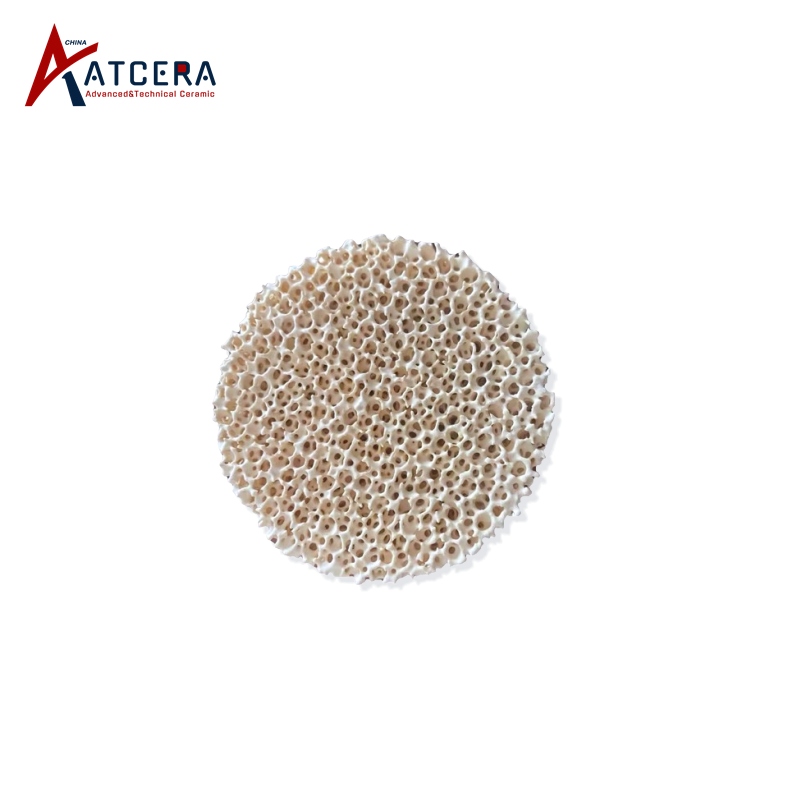

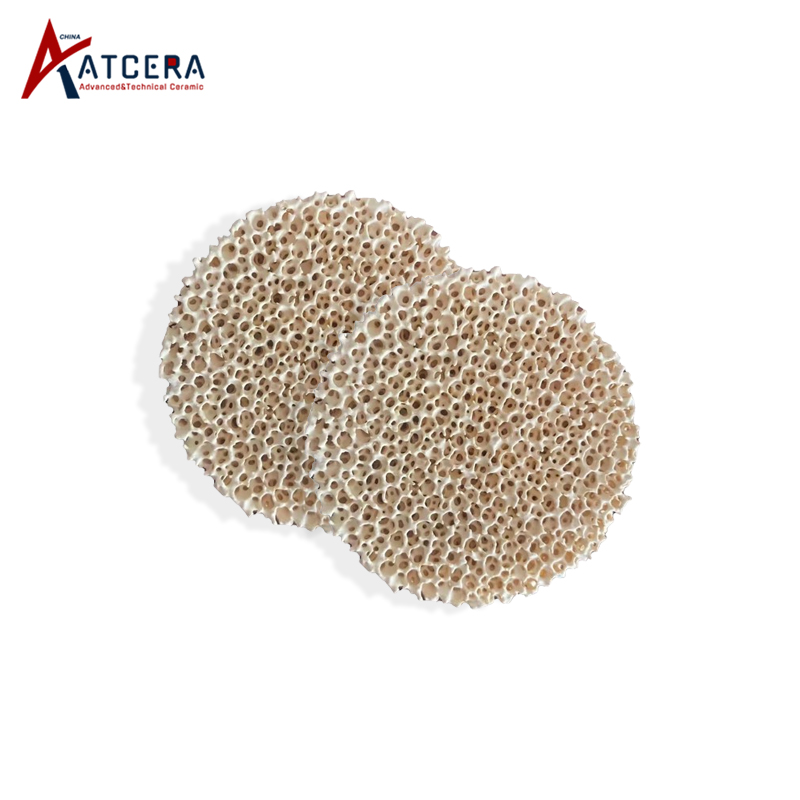

Magnesia Ceramic Foam Filter Round
Item NO.	Diameter(mm)	Thickness(mm)	Pore Density PPI	Porosity(%)
AT-MO-PM1001	40	11	10/20/30/40/50/60	80~90
AT-MO-PM1002	40	22	10/20/30/40/50/60	80~90
AT-MO-PM1003	50	15	10/20/30/40/50/60	80~90
AT-MO-PM1004	50	22	10/20/30/40/50/60	80~90
AT-MO-PM1005	75	22	10/20/30/40/50/60	80~90
AT-MO-PM1006	80	22	10/20/30/40/50/60	80~90
AT-MO-PM1007	90	22	10/20/30/40/50/60	80~90
AT-MO-PM1008	100	22	10/20/30/40/50/60	80~90
AT-MO-PM1009	120	22	10/20/30/40/50/60	80~90
AT-MO-PM1010	150	25	10/20/30/40/50/60	80~90

Magnesia Ceramic Foam Filter Round Square
Item NO.	Length(mm)	Width(mm)	Thickness(mm)	Pore Density PPI	Porosity(%)
AT-MO-PM2001	40	40	10	10/20/30/40/50/60	80~90
AT-MO-PM2002	40	40	22	10/20/30/40/50/60	80~90
AT-MO-PM2003	50	50	10	10/20/30/40/50/60	80~90
AT-MO-PM2004	50	50	22	10/20/30/40/50/60	80~90
AT-MO-PM2005	50	50	30	10/20/30/40/50/60	80~90
AT-MO-PM2006	75	50	22	10/20/30/40/50/60	80~90
AT-MO-PM2007	75	75	22	10/20/30/40/50/60	80~90
AT-MO-PM2008	100	100	22	10/20/30/40/50/60	80~90
AT-MO-PM2009	150	100	22	10/20/30/40/50/60	80~90
AT-MO-PM2010	150	150	22	10/20/30/40/50/60	80~90
AT-MO-PM2011	40-300	40-300	10-50	10/20/30/40/50/60	80~90

Technical Data of Magnesium Oxide Materials

Purity (%)	>99%
Density (g/cm3)	3.52-3.56
Bending Strength (MPa)	18
Compressive Strength (MPa)	50
Hardness (Moh's)	6
Maximum Working Temperature (℃)	2200
*Thermal Conductivity (W/mK)**	5
Thermal Expansion Coefficient (/℃)	13*10^-6
*Volume Resistivity (Ohmcm)**	1*10¹³
Dielectric Strength (kV/mm)	5.8

*This chart illustrates the standard characteristics of the magnesium oxide materials commonly employed in the manufacturing of our magnesium oxide products and parts. Please be aware that the attributes of customized magnesium oxide products and parts may vary depending on the specific processes involved.

Valuable Information

Magnesia Ceramic Foam Filter Packing

Magnesia ceramic foam filters are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
